TVS-h1688X

MSRP

TVS-h1688X

Intel® Xeon® W desktop QuTS hero NAS, ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications

Watch Video

The high-capacity TVS-h1688X features a powerful Intel® Xeon® W processor and allows for installing two QNAP QXP-T32P Thunderbolt™ 3 PCIe expansion cards (sold separately) to attain four Thunderbolt™ 3 ports, making it a perfect match for Thunderbolt™-equipped Mac® and Windows® users for high-speed media collaboration. The built-in 10GbE and 2.5GbE connectivity supports Port Trunking and failover to further satisfy bandwidth and reliability demanding business applications. Running the ZFS-based QuTS hero operating system, the TVS-h1688X supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, and read/write cache technologies, helping your business achieve reliable service-level agreement performance, from creative workflows to file server, virtualization server, and efficient file backup and recovery applications.

Attain quad-port Thunderbolt™ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots.
Note: QXP-T32P expansion cards are sold separately
Attain quad-port Thunderbolt™ 3 connectivity by installing two QXP-T32P expansion cards in the PCIe Gen 3 x4 slots.
Note: QXP-T32P expansion cards are sold separately
Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
Two 10GBASE-T and four 2.5GbE LAN ports accelerate virtualization, intensive file access, large backup/restoration tasks, and media transfer.
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance.
PCIe slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or graphics cards to increase application performance.
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
4K media playback and real-time transcoding; directly output videos to an HDMI display (up to 4K @30Hz).
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
Supports virtual machines and containerized apps, centralized storage, backup, sharing, disaster recovery, and storage expansion.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.

Available Models

TVS-h1688X-W1250-32G

TVS-h1688X-W1250-32G

Intel® Xeon® W-1250 6-core 3.3 GHz processor (Bust up to 4.7 GHz), 32 GB DDR4 ECC memory (2 x 16 GB)

Six cores up to 4.7 GHz with up to 128 GB DDR4 ECC memory

Intel® Xeon® W processors are designed for a wide range of creative professionals. Powered by an Intel® Xeon® W-1250 6 cores/12 threads 3.3 GHz processor (Burst up to 4.7 GHz), the TVS-h1688X has enormous processing power to drive virtual machine performance. The integrated Intel® AES-NI encryption engine boosts encryption performance while also maintaining the security of NAS data. With dual-channel modules and 4 Long-DIMM slots, the TVS-h1688X’s DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.

1 x Thunderbolt™ 3 Sequential Throughput (AJA System Test)

Sequential Read

1403 MB/s

Sequential Write

1257 MB/s

Tested in QNAP Labs. Figures may vary by environment.

NAS: TVS-h1688X installed with a QXP-T32P Thunderbolt™ 3 expansion card
RAID Pool Configuration: 4 x Samsung 850Pro 256GB as RAID 0, with QuTS hero h4.5.0
Cable: Thunderbolt 3 active cable (2 meter)
Client: MacBook Pro (Intel Core-i7 quad-core 2.9GHz, 16GB RAM)

Virtualization Certifications Supported by TVS-h1688X

Check QNAP NAS with Support for Virtualization application

Verified as Veeam Ready Object

QuObjects is verified Veeam® Ready, ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.

Learn More: OuObjects

Streamline video editing and 4K workflows with Thunderbolt™ 3 connectivity

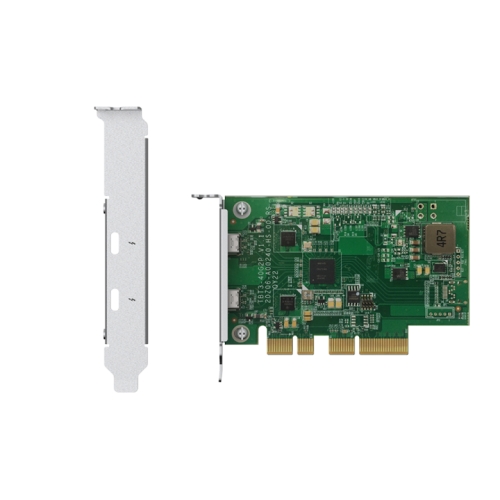

You can install two QXP-T32P Thunderbolt™ 3 expansion cards (sold separately) to the PCIe Gen 3 x4 slots of the TVS-h1688X and transform it into a Thunderbolt™ 3 NAS with quad-port Thunderbolt™ 3 connectivity. Up to four Thunderbolt™-equipped workstations can be connected to the TVS-h1688X to achieve greater teamwork efficiency in 4K workflows, file storage, backup, and sharing. An SLC/MLC SSD RAID 5 configuration is recommended for the highest possible performance and the best storage allocation for your NAS.

Note: If you connect a Thunderbolt™ 4 computer to a Thunderbolt™ 3 NAS, you must use a Thunderbolt™ 4 certificated cable or a passive Thunderbolt™ 3 cable that is shorter than 0.8 meters.

Learn More: QXP-T32P Thunderbolt™ 3 expansion card,QNAP Thunderbolt™ 3 Solution

Thunderbolt™ 3 + 10Gb Ethernet: perfect for studios and post-production houses

The TVS-h1688X can simultaneously run general Ethernet services with the built-in 10GBASE-T LAN card in addition to the Thunderbolt™ 3 network, completely independently and with no bandwidth interference. The media resources in the TVS-h1688X can be easily accessed by Thunderbolt™ and Ethernet workstations for different concurrent tasks with increased productivity.

Adobe® Premiere Pro® and Final Cut Pro® collaboration
Final Cut Pro® and Adobe® Premiere Pro® users can centrally store and share the media files in the TVS-h1688X via SMB protocol for greater efficiency.
Quick access with Qfinder Pro
Qfinder Pro allows you to quickly find and easily access QNAP NAS that are located on the same LAN. You can mount the TVS-h1688X through Qfinder Pro for direct access to specific shared folders.
Blazing-fast 10GbE/5GbE connectivity for Mac®/Windows®
Add high-speed connectivity to computers by using the Thunderbolt 3 to 10GbE adapter or USB 3.2 Gen 1 to 5GbE adapter. Servers and desktop computers can install PCIe network expansion cards that support 10G/5G/2.5G/1G/100M Multi-Gig. QNAP 10GbE switches allow for high-speed collaboration in device-dense environments.

Adobe® Premiere Pro® and Final Cut Pro® collaboration

Dual 10GbE connectivity optimizes high-speed data transfer

The TVS-h1688X comes with a pre-installed dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking, to improve bandwidth-demanding data center, virtualization applications, and high-speed backup and recovery. The TVS-h1688X is also ideally matched with QNAP’s managed and unmanaged 10GbE switches to form high-speed, secure and scalable network environments without going over budget.

Learn More: 10GbE NAS solutions,Budget-friendly QSW series switches

Direct 4K HDMI output

The TVS-h1688X features Intel® UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-h1688X to an HDMI display, you can directly watch multimedia content saved on the NAS with QNAP RM-IR004 remote control (sold separately).

Set SSD caching to boost IOPS with M.2 NVMe SSD

The TVS-h1688X comes with four 2.5-inch SATA 6Gb/s drive bays for SSDs and two M.2 NVMe Gen 3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance, reduce storage volume latency, and optimize 2.5GbE/10GbE performance. This is especially perfect for databases and virtual machine applications. With dedicated SSD bays/slots, the TVS-h1688X allows you to dedicate all of the 3.5-inch drive bays for high-capacity hard drives, ensuring both maximized storage capacity and performance.

Hybrid Storage with high I/O expandability

4x 2.5-inch SATA 6Gb/s SSD bays

Offers flexible configuration for cache acceleration to boost IOPS performance.
12x 3.5-inch drive bays

Supports SATA 6 Gb/s drives; lockable trays.
DDR4 ECC memory

Four DDR4 Long-DIMM slots supporting up to 128 GB RAM.
2x M.2 NVMe SSD slots

Supports NVMe Gen 3 x4 M.2 SSD with the 2280/22110 form factors for enabling cache acceleration.
Note: M.2 SSD sold separately.
Intel® Xeon® W processor

Intel® Xeon® W-1250 6 cores processor with up to 4.7 GHz speeds.
2x PCIe Gen 3 x4 expansion slots

Supports QXP-T32P Thunderbolt™ 3 expansion cards, 5/10/25/40GbE network expansion cards, QM2 cards, graphics cards, or QXP PCIe SATA expansion cards for greater application potential.
Audio input and output

Output to speakers and connect a microphone.
2x 10GBASE-T Ethernet ports

The PCIe Gen 3 x8 slot is pre-installed with a dual-port 10GBASE-T network card (supports 10GbE/1GbE), supporting failover and up to 20Gb/s bandwidth under Port Trunking.
6x USB 3.2 Gen 2 (10Gbps) ports

Delivers up to 10Gbps transfer speeds. Supports QNAP TL USB JBOD, external hard drives or UPS.
1x HDMI 1.4b output

Supports up to 4096 x 2160 @30Hz high resolution for optimal visual experience.
4x 2.5GbE RJ45 ports

Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 5 Gbps under Port Trunking.
Smart cooling

Monitors system temperatures and automatically adjusts fan speeds.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Learn More: QuTS hero operating system,Why QNAP business NAS uses ZFS?

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TVS-h1688X.

Tiered storage configuration for a QuTS hero NAS

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Step 1: System Drive & Default Shared Folders
The first Storage Pool you create is where the system drive, default shared folders, and apps are stored. In this step, it is recommended to create an SSD RAID with at least two SSDs to attain optimal system performance and efficient app metadata management. (With an all-HDD configuration, the first Storage Pool is also where the system drive and default shared folders are stored.)
Step 2: Read Cache & ZIL
Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.
Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.

Step 1: System Drive & Default Shared Folders

Inline data deduplication, compression, and compaction drives big data storage efficiency

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TVS-h1688X optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Note: SnapSync will be available from QuTS hero h4.5.2.

The TVS-h1688X also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TVS-h1688X to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

Learn More: HBS backup and restore

All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Learn More: Virtualization Station,P2V
Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

Learn More: Container Station

License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TVS-h1688X becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Learn More: Hyper Data Protector

PCIe expansion for 40GbE connectivity or graphics cards

Install various expansion cards based on your needs to fulfill greater I/O capability.

5/10/25/40GbE network cards

Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).

Learn More: QNAP network expansion cards

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.

Learn More: QM2 cards

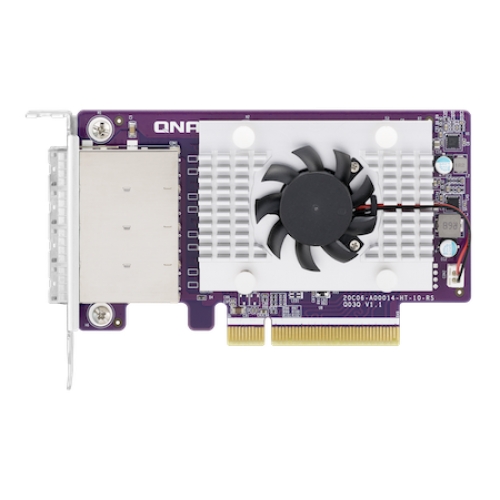

QXP expansion cards

Connect the TVS-h1688X to TL SATA JBOD enclosures by adding multi-lane SATA 6Gb/s transfer for high-performance storage expansion.

Learn More: QXP expansion cards,Compatible expansion enclosures

Graphics cards

Supercharge your video editing and transcoding, or enable GPU pass-through to virtual machines.

Note: 1. Supports graphics cards with dimensions up to 266 x 137 x 45 mm. 2. The 550W power supply unit provides an 8-pin (6+2) power connector and a 6-pin power connector for a graphics card.

Learn More: Check for compatible graphics cards

Move business data to the cloud and enjoy low latency access to cloud-based data

The TVS-h1688X perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible, and secure hybrid cloud applications.

Learn More: QNAP cloud storage gateways

HybridMount file-based cloud gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

Learn More: HybridMount
VJBOD Cloud block-based cloud gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Learn More: VJBOD Cloud

Subscribe to QVR Elite surveillance solution for 24/7 security

QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. You can arrange a dedicated, independent storage space for surveillance data on the TVS-h1688X and enjoy simplified camera management, storage space allocation, camera live viewing and playback. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. With QVR Pro Client software installed on your Windows®/Mac® or mobile devices, taking full control over monitored areas becomes more convenient and easier.

Learn More: QVR Elite

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TVS-h1688X, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More: QNAP NAS supports Fibre Channel SAN

More productivity applications

Boxafe

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TVS-h1688X.

Learn More: Boxafe
Security Counselor

A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Learn More: Security Counselor
Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Learn More: Qsirch

Extend hardware warranty up to 5 years

The TVS-h1688X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years.

Learn More: QNAP warranty services

QM2-2P-244A

Dual M.2 22110/2280 PCIe SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide

QM2-2P-344

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface

QM2-2P-384

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-2P10G1TA

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen2 x 4 , 1 x AQC107S 10GbE NBASE-T port

QM2-2P2G2T

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

QM2-2S-220A

Dual M.2 22110/2280 SATA SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

QM2-4P-384

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-4S-240

Quad M.2 2280 SATA SSD expansion card

Dimension (L × W × H): 265.00 × 120.00 × 55.00 (mm)

Weight: 0.50 (kg)

BRKT-PWR-01

Power bracket for PWR-PSU-550W-FS02

BRKT-QXG-10G2T

Full-height/low-profile/flat brackets for dual-port RJ45 NIC

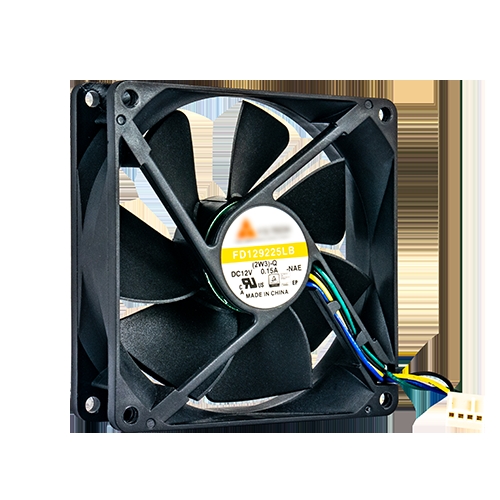

FAN-9CM-T01

92x92x25mm fan, 12V, 4PIN

Dimension (L × W × H): 92.00 × 92.00 × 25.00 (mm)

PWR-PSU-550W-FS02

550W power supply unit, FSP

Note: For TVS-h1288X manufactured before S/N Q211I090423 and TVS-h1688X manufactured before S/N Q211I002447, please purchase a new power bracket BRKT-PWR-01 to secure PWR-PSU-550W-FS02.

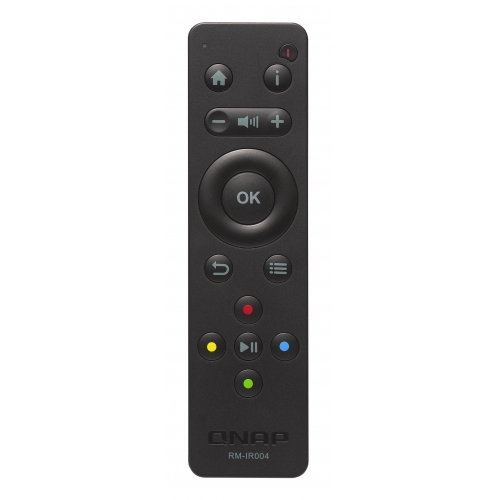

RM-IR004

INFRARED (IR) remote control with 2 x AAA battery

Dimension (L × W × H): 146.00 × 39.00 × 22.60 (mm)

SCR-HDD25A-96

Screw pack for 2.5" HDD/SSD intallation, 96 pieces, Flat head machine screw

SCR-HDD35B-96

Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw

SP-FAN-BLOWER-A01

Fan Module

TRAY-25-BLK01

2.5" HDD Tray with key lock and two keys, black and plastic

TRAY-35-BLK02

3.5" HDD Tray with key lock and two keys, black and plastic, 2.5" and 3.5" screw packs included.

LAN-10G2SF-MLX

Dual-port 10GbE SFP+ network expansion card

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

LAN-10G2T-X550

DUAL-PORT 10GBASE-T NETWORK EXPANSION CARD

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

LAN-40G2SF-MLX

Dual-port 40GbE QSFP+ network expansion card

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

QXG-10G1T

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4

Dimension (L × W × H): 18.00 × 11.00 × 5.50 (cm)

Weight: 1.00 (kg)

QXG-10G2SF-CX4

Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8

QXG-10G2T-107

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4

QXG-10G2T-X710

Dual-port (10GBASE-T) 10GbE network expansion card, Intel X710, PCIe Gen3 x4

QXG-10G2TB

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4

QXG-25G2SF-CX6

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8

QXG-2G1T-I225

Single-port 2.5 GbE network expansion card

QXG-2G2T-I225

Dual-port 2.5 GbE network expansion card

QXG-2G4T-I225

Quad-port 2.5 GbE network expansion card

QXG-5G1T-111C

Single-port, 4-speed 5 GbE network expansion card

QXG-5G2T-111C

Dual-port, 4-speed 5 GbE network expansion card

QXP-10G2U3A

Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142

QXP-1600ES

4-port miniSAS HD host bus adapter, 16 x SATA, PCIe 3.0 x8, for TL JBOD

QXP-16G2FC

Dual-port 16Gb Enhanced Gen 5 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-32G2FC

Dual-port 32Gb Gen 6 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-400ES-A1164

1-port SFF-8088 host bus adapter, 4 x SATA, PCIe 3.0 x2, for TL JBOD

QXP-800ES-A1164

2-port SFF-8088 host bus adapter, 4 x SATA, PCIe 3.0 x4, for TL JBOD

QXP-820S-B3408

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

QXP-T32P

Dual-port Thunderbolt™ 3 Expansion Card

TRX-10GSFP-SR-MLX

TRX-16GFCSFP-SR

16Gb LC SR shortwavelength SFP+ transceiver

TRX-32GFCSFP-SR

32Gb LC SR shortwavelength SFP+ transceiver

CAB-DAC15M-SFP28

SFP28 25GbE twinaxial direct attach cable, 1.5M

CAB-DAC15M-SFPP

1.5M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC30M-SFP28

SFP28 25GbE twinaxial direct attach cable, 3.0M

CAB-DAC30M-SFPP

3.0M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC50M-SFPP

5.0M SFP+ 10GbE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-NIC40G30M-QSFP

3.0M QSFP+ 40GBE DIRECT ATTACH CABLE

Note: This 40GbE QSFP+ network cable is designed for NAS models which are compatible with the QNAP 40GbE NIC LAN-40G2SF-MLX

RAM-16GDR4ECK1-UD-3200

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 2G X 8

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 2048M*72

Temperature: 0℃~85℃

Environmental Regulation: Halogen Free

RAM-32GDR4ECK0-UD-3200

DDR type: DDR4(288PIN)

Capacity: 32GB

Spec: 2G X 8

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 4G*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4ECI0-UD-3200

DDR type: DDR4(288PIN)

Capacity: 8GB

Spec: 512M X 8

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 1024M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

Personal and Home NAS

Small and Midsize Business

Enterprise NAS

Dual Controller NAS

Storage Accessories

Resources

JBOD & RAID

Resources

Cloud NAS

Cloud Applications

Cloud Service

Direct Attached Storage

Accessories

Wi-Fi Mesh Router

Wi-Fi 6 SD-WAN Router

Resources

QSW 2.5GbE Switches

QSW 10GbE Switches

QSW Full 10GbE Switches

PoE Switches

QSW Managed Switches

QSW Unmanaged Switches

QGD Smart Edge PoE Switches

Resources

QuCPE Series

Wake on Lan Device

Wired/Wireless Network Adapters

Computing Accelerators

Interface Cards

Storage Accessories

Resources

QVR Pro Appliances

Software

Resources

Products

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Security

Cloud

IT Management

SD-WAN

Mobile Apps
