TS-h2490FU

MSRP

TS-h2490FU

ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads, data centers, and 8K streams

Watch Video

The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks.

Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
Multi-connectivity of 25GbE SFP28 and 2.5GbE RJ45 accelerate virtualization, intensive file access, and large backup/restoration tasks.
Multi-connectivity of 25GbE SFP28 and 2.5GbE RJ45 accelerate virtualization, intensive file access, and large backup/restoration tasks.
PCIe Gen 4 slots allow for installing 10GbE/25GbE/40GbE/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
PCIe Gen 4 slots allow for installing 10GbE/25GbE/40GbE/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
Supports virtualization storage and hosting virtual machines and containerized apps.
Supports virtualization storage and hosting virtual machines and containerized apps.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity.
Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity.

Available Models

TS-h2490FU-7302P-256G

AMD EPYC™ 7302P 16 cores/32 threads 3.0 GHz processor (Max. boost clock 3.3 GHz), 256 GB RDIMM DDR4 ECC memory (8 x 32 GB), 1100W redundant power supplies, 2x dual-port 25GbE SmartNICs
TS-h2490FU-7302P-128G

AMD EPYC™ 7302P 16 cores/32 threads 3.0 GHz processor (Max. boost clock 3.3 GHz), 128 GB RDIMM DDR4 ECC memory (8 x 16 GB), 1100W redundant power supplies, 2x dual-port 25GbE SmartNICs
TS-h2490FU-7232P-64G

AMD EPYC™ 7232P 8 cores/16 threads 3.1 GHz processor (Max. boost clock 3.2 GHz), 64 GB RDIMM DDR4 ECC memory (8 x 8 GB), 1100W redundant power supplies, 1x dual-port 25GbE SmartNIC

Build high-performance storage infrastructure for IOPS-demanding applications

Virtualization

Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers

Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production

Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.

2nd Gen AMD EPYC™ processors and DDR4 ECC memory

The TS-h2490FU is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the “Zen 2” architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.

U.2 NVMe Gen 3 x4 All-Flash Storage Array

The 2U rackmount TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, with each individual SSD having 32Gb/s dedicated bandwidth for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TS-h2490FU provides solid foundations for overcoming complexity and performance demands in today’s evolving data center workloads.

6 x 25GbE iSCSI, Random IOPS (4K), Compression On, Dedupe Off

Read

471714 IOPS

Write

204612 IOPS

6 x 25GbE, Sequential Throughout (512K), Compression On, Dedupe Off

Sequential Read

14028 MB/s

Sequential Write

10582 MB/s

Tested in QNAP Labs. Figures may vary by environment.

Test Environment:
NAS: TS-h2490FU-7302P-128G with QuTS hero 4.5.0
Volume type: WD Ultrastar DC SN640 NVMe SSD *24 (RAID 50); Broadcom Dual-port 25GbE NIC with NetXtreme®-E Series BCM57414 controller *3
Client PC:
6* Client PC simultaneously read and write 16GB file (= 96GB totally)
Intel Core™ i7-7700 4.20GHz CPU, 32GB DDR4 RAM, QXG-25G2SF-CX4, Windows® Server 2016

Virtualization Certifications Supported by TS-h2490FU

Check QNAP NAS with Support for Virtualization application

Verified as Veeam Ready Object

QuObjects is verified Veeam® Ready, ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.

Learn More: OuObjects

Empower high-speed data transfer with four 25GbE ports

The TS-h2490FU provides breakthrough network connectivity with two pre-installed dual-port 25GbE SFP28 SmartNICs* (that use the Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx, or the same level SmartNIC). With failover and Port Trunking for up to 100Gb/s bandwidth, the TS-h2490FU empowers your organization with the bandwidth to tackle the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission.

* TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SFP28 SmartNIC.
* The 25GbE SmartNIC is backward compatible with 10GbE SFP+/1GbE SFP.

Learn More: QNAP QSW switch series

Leverage the M.2 PCIe NVMe SSD to U.2 Adapter

Install one or more QDA-UMP adapter in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of expensive U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA-UMP is hot swappable.

Learn More: QDA-UMP

Multiple PCIe Gen 4 slots for flexible expansion

The TS-h2490FU is equipped with five PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU can take advantage of many PCIe cards to expand application potential.

10GbE/25GbE/40GbE/100GbE network cards

Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).

Learn More: QNAP network expansion cards

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.

Learn More: QNAP QM2 cards

SAS/SATA storage expansion cards

Designed for connecting the TS-h2490FU to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.

Learn More: QNAP storage expansion cards,Compatible expansion enclosures

Robust hardware paralleled to boost all-flash NVMe performance

The TS-h2490FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. With a removable motherboard drawer design, IT staff can easily maintain the TS-h2490FU without needing to remove it from the rack.

2nd Gen AMD EPYC™ 7002 series processors

Designed for modern datacenter workloads with multi-core computing power. Up to 128 PCIe lanes of I/O provides 32Gb/s dedicated bandwidth for each SSD.

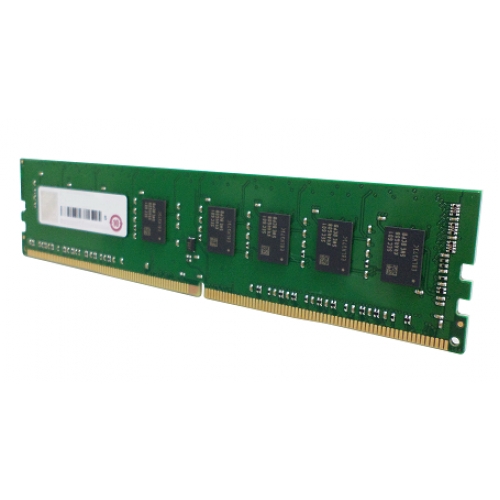

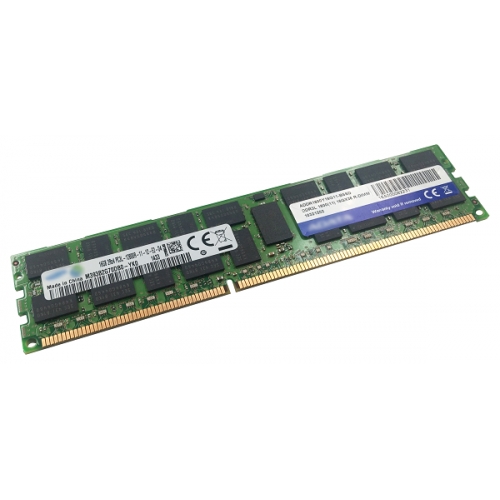

DDR4 ECC memory

Supports 16 DDR4 eight-channel Long-DIMM memory modules.
4x 25GbE SFP28 ports

Includes two dual-port 25GbE SmartNICs, supporting up to 100Gb/s bandwidth under Port Trunking.

Note: TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SmartNIC.
2x USB 3.2 Gen 1 Type-A ports

Delivers up to 5 Gbps transfer speeds. Supports external hard drives or UPS.
2x 2.5GbE RJ45 ports

Supports using existing CAT5e cables to instantly upgrade from 1GbE connections. Obtain up to 5 Gbps under Port Trunking.
5x PCIe Gen 4 slots

Supports installing 10/25/40/100GbE network cards, QM2 cards, and SAS/SATA storage expansion cards for greater application potential (slots 4 or 5 is pre-installed with dual-port 25GbE NIC).
Redundant power supply

Redundant 1100W power supplies ensure continuous system uptime.
Smart cooling

Monitors system temperatures and automatically adjusts fan speeds.

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Learn More: QuTS hero operating system,Why QNAP business NAS uses ZFS?

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h2490FU.

Inline data deduplication, compression, and compaction improve SSD endurance

QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2490FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.

More SSD performance and lifespan optimization technologies

Write Coalescing

Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning

Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM

Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Note: SnapSync will be available from QuTS hero h4.5.2.

The TS-h2490FU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h2490FU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

Learn More: HBS backup and restore

All-in-one virtual machine and container hosting solution

You can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Learn More: Virtualization Station,P2V
Container Station

Experience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.

Learn More: Container Station

License-free VMware® and Hyper-V backup appliance

With Hyper Data Protector, the TS-h2490FU becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.

Learn More: Hyper Data Protector

Move business data to the cloud and enjoy low latency access to cloud-based data

The TS-h2490FU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.

Learn More: QNAP cloud storage gateways

HybridMount file-based cloud gateway

Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

Learn More: HybridMount
VJBOD Cloud block-based cloud gateway

VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Learn More: VJBOD Cloud

High-performance, reliable storage solution for virtualization

● Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.

● Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Learn More: Storage for virtualization

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2490FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More: QNAP NAS supports Fibre Channel SAN,QNAP Fibre Channel cards

More productivity applications

Boxafe

Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TS-h2490FU.

Learn More: Boxafe
Security Counselor

A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.

Learn More: Security Counselor
Qsirch

QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.

Learn More: Qsirch

Build a high-density petabyte-scale data center with Seagate® Exos™ E series JBOD

QNAP and Seagate® join hands to assist you in overcoming the challenges of extreme data growth! The TS-h2490FU supports connecting a Seagate Exos E series JBOD, offering a competitive storage solution with unprecedented capacity, industry-leading storage density, and high reliability while also minimizing TCO by saving rack space. You can flexibly install one or more QDA-UMP adapters with IronWolf 525 M.2 NVMe SSDs in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of U.2 SSD for optimizing data-intensive applications.

Huge capacity	High density	Efficient management
Tackle the massive storage requirements of 4K/8K multimedia, big data storage, critical backups, and more.	The Seagate Exos E series JBOD offers families of 2U and 5U form-factor chassis, supporting up to 84 drives and 1.3 PB of raw data storage with a 12Gb/s SAS interface for up to 28.8 GB/s throughput in a dual controller configuration.	QNAP Storage & Snapshots Manager simplifies NAS and JBOD management, effectively minimizing IT operational workloads.

Supported Seagate JBOD models: Exos E 2U12, Exos E 2U24, Exos E 5U84, Exos E 4U106
The TS-h2490FU NAS requires QuTS hero h5.0 (or later) and QNAP SAS expansion cards (QXP-820S-B3408 or QXP-1620S-B3616W) with SAS 12Gb/s SFF-8644 cables to connect to the Seagate JBOD.
Seagate’s JBODs can only be used as an individual storage pool or volume. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on Seagate’s JBODs.

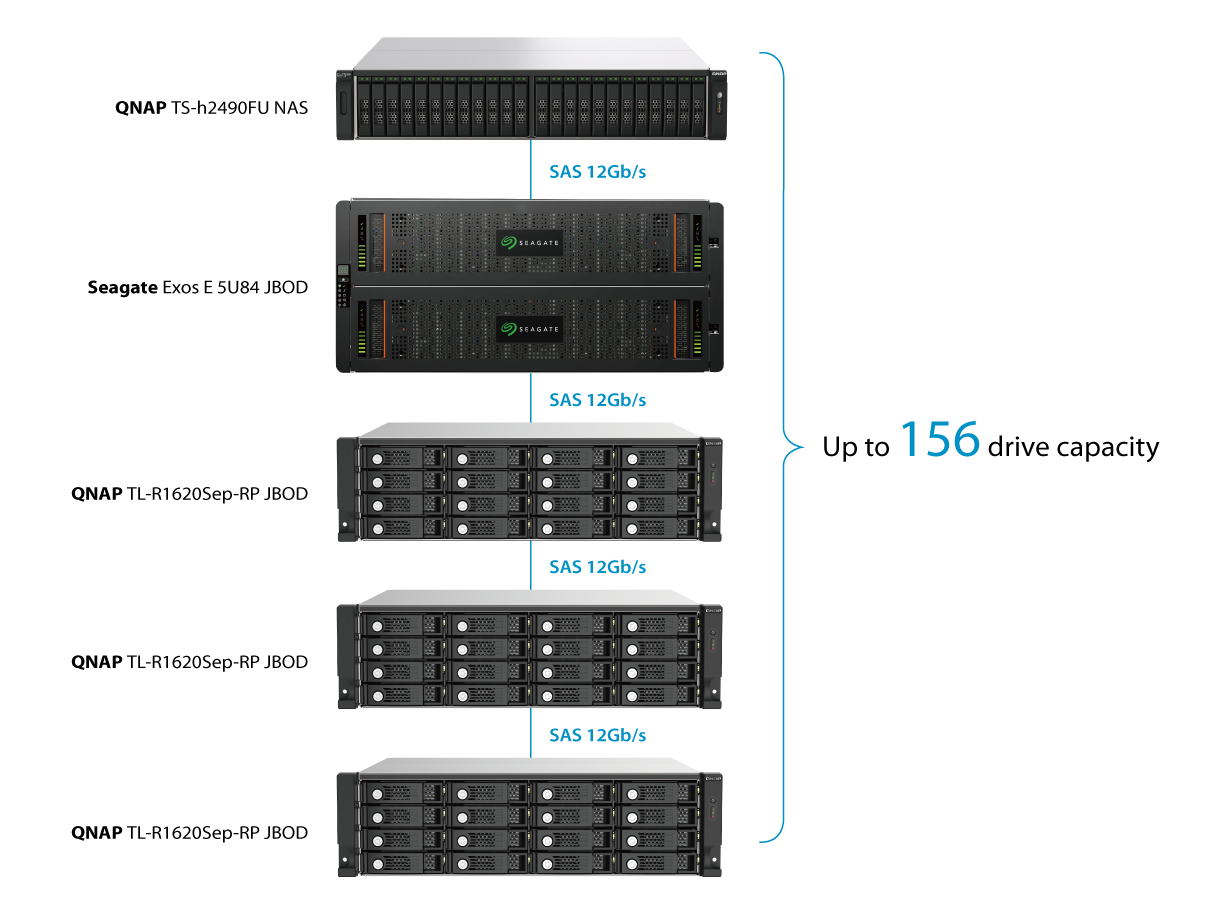

The following image illustrate an example of deployment types for QNAP TS-h2490FU NAS, TL series JBOD, and Seagate JBOD.

Standard 5-year warranty

TS-h2490FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.

Learn More: QNAP warranty services

QM2-2P-244A

Dual M.2 22110/2280 PCIe SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide

QM2-2P-344

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface

QM2-2P-384

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-2P10G1TA

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen2 x 4 , 1 x AQC107S 10GbE NBASE-T port

QM2-2P2G2T

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

QM2-2S-220A

Dual M.2 22110/2280 SATA SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

QM2-4P-384

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-4S-240

Quad M.2 2280 SATA SSD expansion card

Dimension (L × W × H): 265.00 × 120.00 × 55.00 (mm)

Weight: 0.50 (kg)

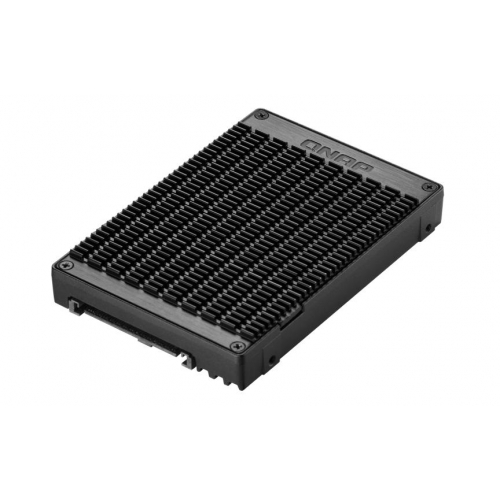

QDA-U2MP

U.2 NVMe to dual M.2 NVMe SSD adapter

Note: To use QDA-U2MP in TS-h2490FU, please update the firmware to QuTS hero h4.5.2/QTS 4.5.2 (or later), and BIOS to Q03XAR16.

QDA-UMP

U.2 NVMe to M.2 NVMe SSD Adapter

LAN-10G2T-X550

DUAL-PORT 10GBASE-T NETWORK EXPANSION CARD

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

LAN-40G2SF-MLX

Dual-port 40GbE QSFP+ network expansion card

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

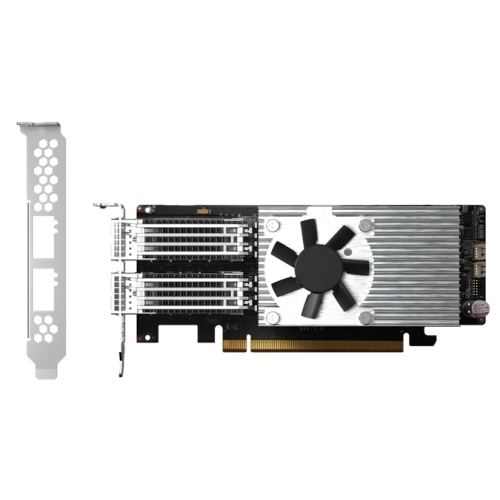

QXG-100G2SF-E810

Dual-port QSFP28 100GbE network expansion card; low-profile form factor; PCIe Gen4 x16

QXG-10G1T

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4

Dimension (L × W × H): 18.00 × 11.00 × 5.50 (cm)

Weight: 1.00 (kg)

QXG-10G2SF-CX4

Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8

QXG-10G2T-107

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4

QXG-25G2SF-CX6

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8

QXG-2G1T-I225

Single-port 2.5 GbE network expansion card

QXG-2G2T-I225

Dual-port 2.5 GbE network expansion card

QXG-2G4T-I225

Quad-port 2.5 GbE network expansion card

QXG-5G1T-111C

Single-port, 4-speed 5 GbE network expansion card

QXG-5G2T-111C

Dual-port, 4-speed 5 GbE network expansion card

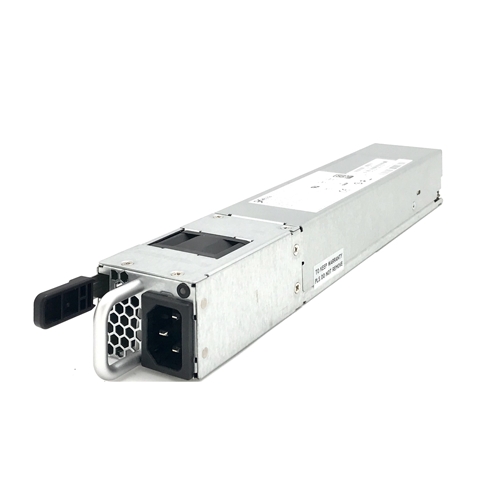

PWR-PSU-1100W-FS01

1100W FSP power supply

SCR-HDD25A-96

Screw pack for 2.5" HDD/SSD intallation, 96 pieces, Flat head machine screw

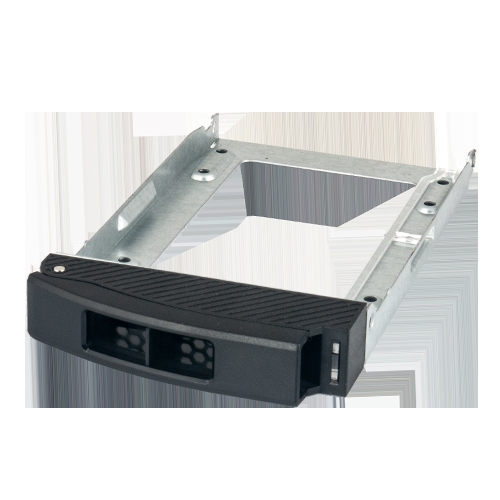

TRAY-25-NK-BLK04

2.5'' tray for 24 bay ES NAS

RAIL-A03-57

Rail Kit for 2U/3U rackmount models

QXP-16G2FC

Dual-port 16Gb Enhanced Gen 5 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-32G2FC

Dual-port 32Gb Gen 6 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-820S-B3408

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

TRX-10GSFP-SR-MLX

TRX-16GFCSFP-SR

16Gb LC SR shortwavelength SFP+ transceiver

TRX-25GSFP28-SR

Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m

TRX-32GFCSFP-SR

32Gb LC SR shortwavelength SFP+ transceiver

CAB-DAC15M-SFP28

SFP28 25GbE twinaxial direct attach cable, 1.5M

CAB-DAC15M-SFPP

1.5M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC30M-SFP28

SFP28 25GbE twinaxial direct attach cable, 3.0M

CAB-DAC30M-SFPP

3.0M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC50M-SFPP

5.0M SFP+ 10GbE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-NIC40G30M-QSFP

3.0M QSFP+ 40GBE DIRECT ATTACH CABLE

Note: This 40GbE QSFP+ network cable is designed for NAS models which are compatible with the QNAP 40GbE NIC LAN-40G2SF-MLX

RAM-16GDR4ECK0-RD-2666

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 2G X 4

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC/REG

Power Supply: 1.2V

Dram Organization: 2048M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-16GDR4ECT0-RD-2666

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 1G X 8

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 2048M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-32GDR4ECK0-RD-3200

DDR type: DDR4(288PIN)

Capacity: 32GB

Spec: 2G X 4

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 4G*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-64GDR4ECK0-RD-3200

DDR type: DDR4(288PIN)

Capacity: 64GB

Spec: 4G X 4

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 8G*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4ECK0-RD-2666

DDR type: DDR4(288PIN)

Capacity: 8GB

Spec: 1G X 8

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC/REG

Power Supply: 1.2V

Dram Organization: 1024M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

Personal and Home NAS

Small and Midsize Business

Enterprise NAS

Dual Controller NAS

Storage Accessories

Resources

JBOD & RAID

Resources

Cloud NAS

Cloud Applications

Cloud Service

Direct Attached Storage

Accessories

Wi-Fi Mesh Router

Wi-Fi 6 SD-WAN Router

Resources

QSW 2.5GbE Switches

QSW 10GbE Switches

QSW Full 10GbE Switches

PoE Switches

QSW Managed Switches

QSW Unmanaged Switches

QGD Smart Edge PoE Switches

Resources

QuCPE Series

Wake on Lan Device

Wired/Wireless Network Adapters

Computing Accelerators

Interface Cards

Storage Accessories

Resources

QVR Pro Appliances

Software

Resources

Products

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Security

Cloud

IT Management

SD-WAN

Mobile Apps
