TVS-AIh1688ATX Specification
-
TVS-AIh1688ATX-U9-48G
CPU Intel Core Ultra 9, 24 (8P+16E) core, 24 Threads, up to 5.6GHz CPU Architecture 64-bit x86 Graphic Processors Intel® Graphics Floating Point Unit Encryption Engine (AES-NI) Hardware-accelerated Transcoding Neural Processing Unit (NPU) System Memory 48GB ECC UDIMM DDR5 (1 x 48 GB) Maximum Memory 192 GB (4 x 48 GB) Memory Slot 4 x UDIMM DDR5 For dual-DIMM configurations, you must use a pair of identical DDR5 modules.Flash Memory 5GB (Dual boot OS protection) Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch U.2/SATA SSDHot-swappable SSD Cache Acceleration Support 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M) 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter 10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/1G) 25 Gigabit Ethernet Port Optional via an adapter Wake on LAN (WOL) Only the 2.5GbE portJumbo Frame Thunderbolt Port Optional via the QXP-T52P 2-port Thunderbolt 5 PCIe adapter Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.PCIe Slot 3
Slot 1: PCIe Gen4 x16
Slot 2: PCIe Gen4 x4
Slot 3: PCIe Gen4 x4Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used."USB 3.2 Gen 2 (10Gbps) Port 3 x USB3.2 Gen2 Type-A
2 x USB3.2 Gen 2 Type-CUSB 4 port 2 x USB4 Type-C HDMI™ Output 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) Form Factor Tower LED Indicators System status, LAN, USB, Disk 1~16 LCD Display/ Button Buttons Power, Reset, USB Auto Copy Dimensions (HxWxD) 11.59 × 14.56 × 12.59 inch Weight (Net) 30.42 lbs Operating Temperature 0 - 40°C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 750W PSU, 100~240V Power Consumption: Disk Standby Mode 97.036 W Power Consumption: Operating Mode, Typical 130.83 W Fan System fan: 3 x 80mm, 12VDC
CPU fan: 2 x 97mm, 12VDCSystem Warning Buzzer Kensington Security Slot Standard Warranty 5 Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000 Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice. -
TVS-AIh1688ATX-U7-32G
CPU Intel Core Ultra 7, 20 (8P+12E) core, 20 Threads, up to 5.3GHz CPU Architecture 64-bit x86 Graphic Processors Intel® Graphics Floating Point Unit Encryption Engine (AES-NI) Hardware-accelerated Transcoding Neural Processing Unit (NPU) System Memory 32GB ECC UDIMM DDR5 (1 x 32 GB) Maximum Memory 192 GB (4 x 48 GB) Memory Slot 4 x UDIMM DDR5 For dual-DIMM configurations, you must use a pair of identical DDR5 modules.Flash Memory 5GB (Dual boot OS protection) Drive Bay 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
2.5-inch bays:
2.5-inch U.2/SATA SSDHot-swappable SSD Cache Acceleration Support 2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M) 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter 10 Gigabit Ethernet Port 2 x 10GBASE-T (10G/1G) 25 Gigabit Ethernet Port Optional via an adapter Wake on LAN (WOL) Only the 2.5GbE portJumbo Frame Thunderbolt Port Optional via the QXP-T52P 2-port Thunderbolt 5 PCIe adapter Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.PCIe Slot 3
Slot 1: PCIe Gen4 x16
Slot 2: PCIe Gen4 x4
Slot 3: PCIe Gen4 x4Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used."USB 3.2 Gen 2 (10Gbps) Port 3 x USB3.2 Gen2 Type-A
2 x USB3.2 Gen 2 Type-CUSB 4 port 2 x USB4 Type-C HDMI™ Output 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) Form Factor Tower LED Indicators System status, LAN, USB, Disk 1~16 LCD Display/ Button Buttons Power, Reset, USB Auto Copy Dimensions (HxWxD) 11.59 × 14.56 × 12.59 inch Weight (Net) 30.42 lbs Operating Temperature 0 - 40°C (32°F - 104°F) Storage Temperature -20 - 70°C (-4°F - 158°F) Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) Power Supply Unit 750W PSU, 100~240V Power Consumption: Disk Standby Mode 97.036 W Power Consumption: Operating Mode, Typical 130.83 W Fan System fan: 3 x 80mm, 12VDC
CPU fan: 2 x 97mm, 12VDCSystem Warning Buzzer Kensington Security Slot Standard Warranty 5 Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000 Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
-
Operating System QuTS hero h5.6.0
Supported Client Operating Systems - Apple Mac OS 10.10 or later
- Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
- IBM AIX 7, Solaris 10 or later UNIX
- Microsoft Windows 7, 8, 10, and 11
Supported Browsers - Apple Safari (latest version)
- Google Chrome (latest version)
- Microsoft Edge (latest version)
- Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool SED Storage Pool Maximum Pool size 5 PB
Maximum number of storage pool 128
Shared Folder Type Thick, Thin
Maximum shared folder size 5 PB
Maximum number of shared folder 256
JBOD Expansion VJBOD / VJBOD Cloud iSCSI Service Fibre Channel Service LUN Type Thick, Thin
Block-based iSCSI LUN Maximum LUN size 1024 TB
Maximum number of targets LUN 256
RAID Type - 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
- 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
- 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
- 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
RAID Group To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Expansion (by replacing bigger Disks) Storage Pool Expansion (by adding RAID Group) RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing End-to-End data integrity Silent error detection and self-healing Internal drive ZFS
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
Disk, Enclosure Locate Disk S.M.A.R.T. Scan Disk S.M.A.R.T. Data Migration Ironwolf Health Management Secure Erase SSD Trim SSD Life Estimation Disk Roaming Disk Standby Shared Folder Snapshot LUN Snapshot Maximum Snapshot (Per System) Maximum Snapshot (Per Volume / LUN) Minimum Snapshot Interval 1 minute
Snapshot Retention Policy Self-serve Snapshot Recovery Application Consisted Snapshot Snapshot Full Clone Snapshot Instant Clone Snapshot Replica / Vault SSD read-only Cache SSD read & write log cache SSD dedicated ZIL cache SSD Cache Maximum Size SSD Cache RAID 0, 1, 10 (journal)
External Device Management Mount Smart Phone (MTP) External RAID Device (QNAP so on) Management (External Device Mode) External RAID Device (QNAP so on) Management (NAS Mode) File Server - File sharing across Windows, Mac, and Linux/UNIX
- Microsoft networking (CIFS/SMB)
- Apple networking (AFP)
- NFS version 2/3/4/4.1 services
FTP Server - FTP, SFTP and TFTP protocols
- FTP over SSL/TLS (explicit FTPS)
- FXP support
Maximum FTP connection 1024
Shared Folder Data Compression Shared Folder Data Deduplication Shared Folder WORM File Station (Web) Object Storage Local user account 16,000
Local group account 512
Domain user/group account 200,000
Domain Security Domain Controller Shared folder permission Windows ACL User quota Group quota Folder quota Home folder Resource Monitor SNMP V2, V3
Network recycle bin - Recover files deleted using AFP, CIFS/SMB, and File Station
- Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second
Smart Fan Schedule on/off Internet protocol IPv4, IPv6
Virtual Switch Port trunking , (7 modes)
VLAN DHCP Server DDNS (Dynamic Domain Name Service) Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor Malware Remover AES 256-bit Folder Encryption validated by FIPS 140-2 CAVP 2-step verification Allow/Deny List Access Protection Service binding Firewall vSphere Web Client Plug-in VMware vSphere VAAI for iSCSI VMware vSphere VAAI for NAS Windows ODX Windows/VMware Snapshot Agent HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection Supports Virtual Hosts 32
Qsync Note: At least 1 GB RAM is required.
[Qsync] Management Mode User customization, Central
[Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control 64
HybridMount Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway Concurrent Connections = 80 Upload & 80 Download
[HybridMount] Network Drive Mount [HybridMount] Free cloud gateway sessions 2
HBS (Hybrid Backup Sync) Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup [HBS (Hybrid Backup Sync)] Cloud Backup [HBS (Hybrid Backup Sync)] Cloud Sync [HBS (Hybrid Backup Sync)] 2-way and Active Sync [HBS (Hybrid Backup Sync)] Backup Deduplication [HBS (Hybrid Backup Sync)] Apple Time Machine Backup [HBS (Hybrid Backup Sync)] External drive backup [HBS (Hybrid Backup Sync)] Maximum number of backup job 400
Hyper Data Protector Boxafe Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup [Boxafe] Google Workspace Backup [Boxafe] Full-text search Qsirch Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder [Qsirch] Advanced picture search [Qsirch] Search filters QuMagie Note: At least 1 GB RAM is required.
[QuMagie] Browse photos [QuMagie] Virtual and smart albums [QuMagie] AI-assisted photo management People, things, places, and others
Antivirus (free) McAfee (License) QVPN Service Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients 100
HD Station LDAP Server RADIUS SQL server License Center Multimedia Console Photo Station Music Station Video Station Download Station Notes Station Qfiling Media Streaming add-on QmailAgent QuWAN DA Driver Analyzer Q'center Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q'center Server Q'center Agent Connect to Q'center Virtualization Station Note: At least 4 GB RAM is required.
[Virtualization Station] Supports Virtual machine instances Windows, Linux, Unix, and Android
[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration All function is Fine.
[Virtualization Station] Virtual switches Can create a virtual switch
[Virtualization Station] GPU pass-through GPU function is fine
Container Station Note: At least 1 GB RAM is required.
[Container Station] Supported type LXC/LXD and Docker
Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry [Container Station] Container importing and exporting [Container Station] Console mode Linux Station Notification: At least 4 GB RAM is required.
[Linux Station] Supports Ubuntu versions 16.04, 18.04, and 20.04
Linux Station Center QVR Elite Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique Standard MP4 file based
[QVR Elite] License Type Subscription-based
[QVR Elite] User-defined trigger events [QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile) Android and iOS
[QVR Elite] Recording camera streams H.264
[QVR Elite] Free built-in camera channels 2
[QVR Elite] Expandable camera channels Developing
QVR Center Note: At least 4 GB RAM is required.
[QVR Center] Log management [QVR Center] Central monitoring across multiple servers
Note:
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.
TVS-AIh1688ATX
10GBASE-T Ethernet cable x 1
Power Cord x 1
Flat head screw x 48 (for 3.5" HDD)
Flat head screw x 36 (for 2.5" HDD)
Drive tray keys x 2

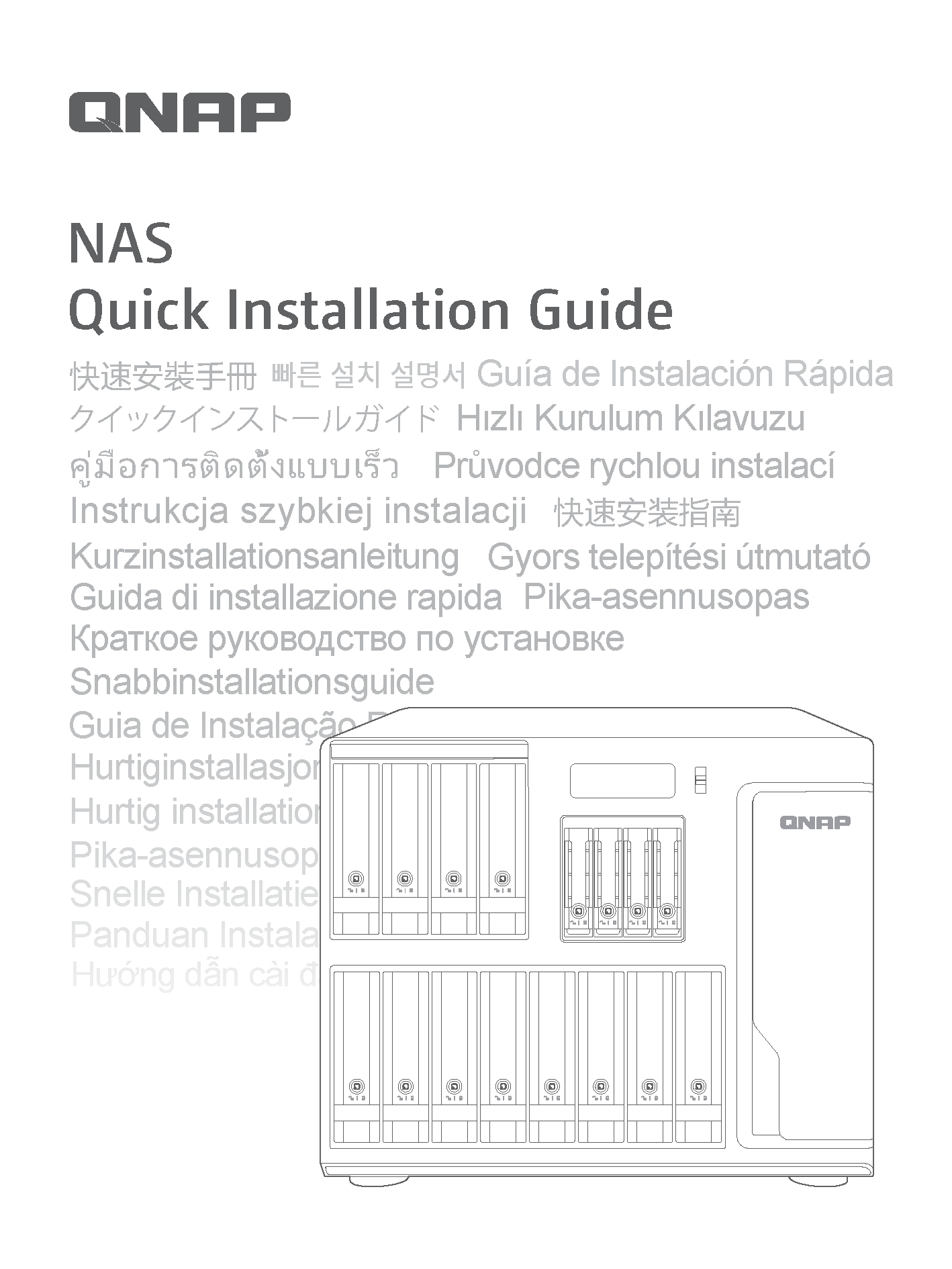

Quick Installation Guide (QIG)
Optional Accessories
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
