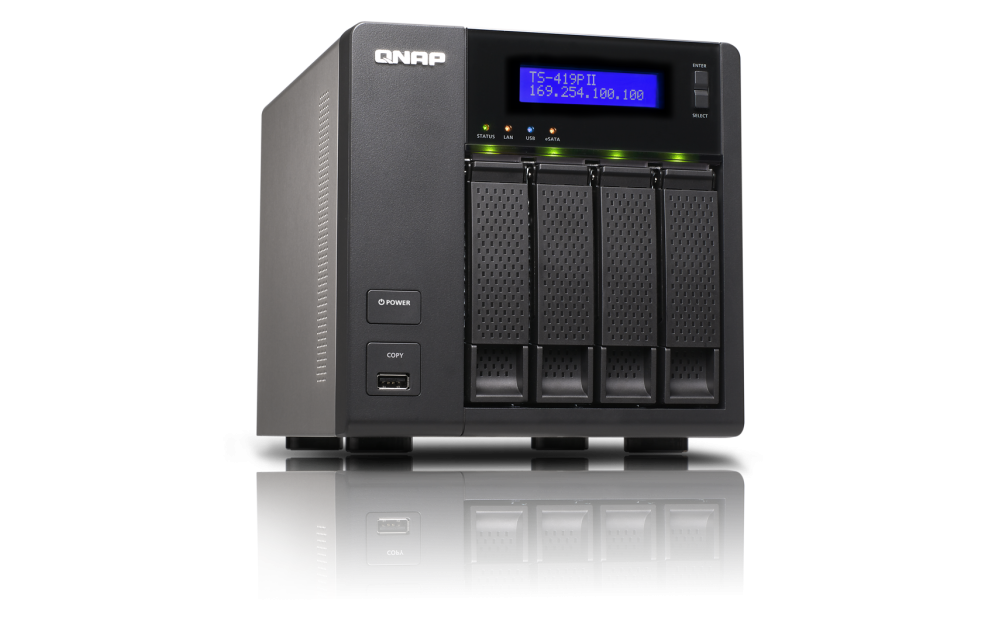

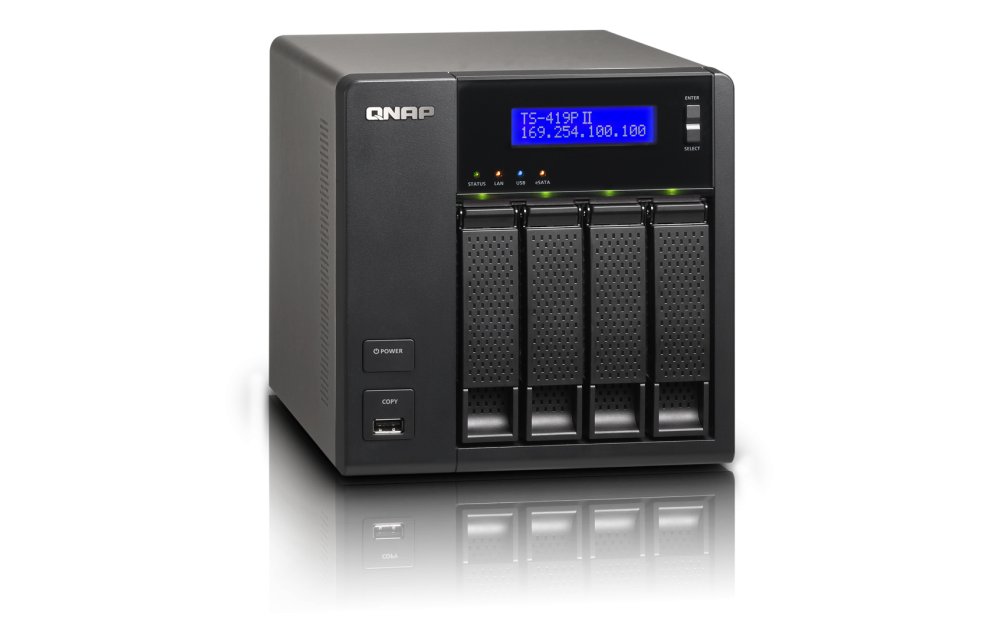

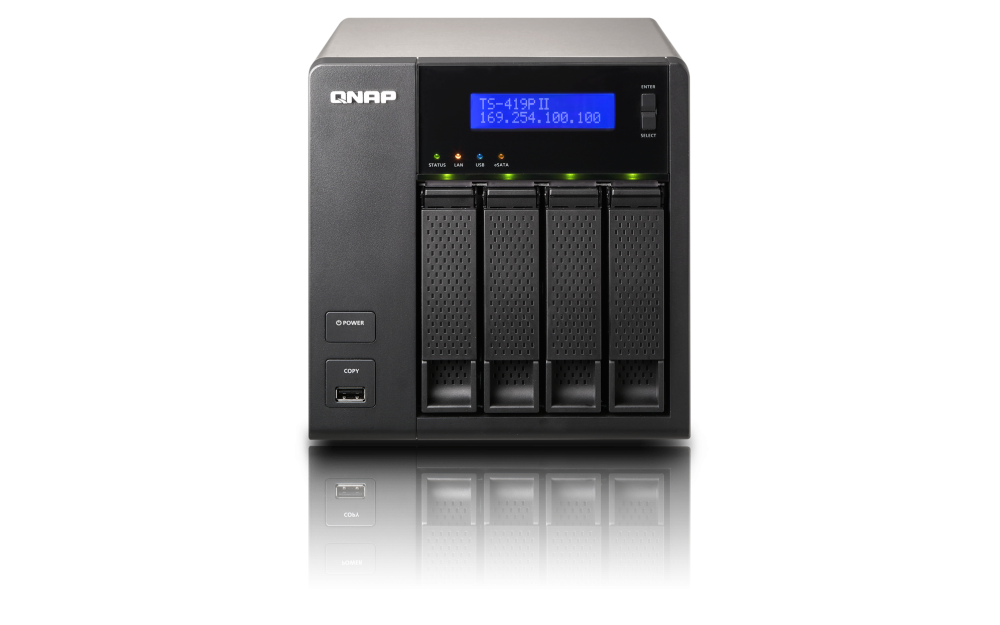

TS-419P II Specification
| 處理器 | Marvell 2.0GHz |
| 記憶體 | 512MB DDRIII RAM |
| 快閃記憶體 | 16MB DOM |
| 支援硬碟數量類型 | 4 x 3.5" SATA 6Gb/s, SATA 3Gb/s 硬碟或 2.5" SATA, SSD NOTE:
|
| 硬碟架 | 支援 4 顆硬碟熱抽換 |
| 網路埠 | 2 x Gigabit RJ-45 網路埠 |
| LED 指示燈 | 狀態、LAN、USB、eSATA、HDD 1、HDD 2、HDD 3、HDD 4 |
| USB | 2 個 USB 2.0 (正面：1；背面：1); 2 個 USB 3.2 Gen 1 (背面：2) (1) 支援USB印表機、硬碟、隨身碟、USB集線器以及USB不斷電系統..等等 |
| eSATA | 2 個 eSATA 埠（背面） |
| 按鍵 | 電源鍵、USB 單鍵備份、系統重置按扭 |
| LCD面板 | 單色背光 LCD 面板，使用確認鍵、選擇鍵進行設定。 |
| 警報器 | 系統警報 |
| 機種 | 直立式 |
| 尺寸 | 177(高) x 180(寬) x 235(深) mm 6.97(高) x 7.09(寬) x 9.25(深) inch |
| 重量 | 淨重: 3 Kg (6.61 lbs) 毛重: 4.6 Kg (10.14 lbs) |
| 耗電量 | 休眠模式: 13W 運行中: 26W （含 4 顆 500GB 硬碟） |
| 溫度 | 0~40˚C/ 32~104°F |
| 相對濕度 | 5~95% RH non-condensing, wet bulb: 27˚C. |
| Sound Level (Standby/運行中) | 35.6 dB/ 36.7 dB |
| 電源 | 外接電源,96W, 輸入： 100-240V |
| 安全設計 | K-Lock 安全鎖 |
| 風扇 | 1 x 靜音風扇 (9 cm, 12V DC) |
| Note (1): 2012年5月後生產的TS-419P II搭配USB3.0 | |
 | |
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
| ||
Powerful All-in-one server | ||
 |  |  |
| TS-419P II | CD-ROM | Ethernet cable x 1 |
 |  |  |
| Quick Installation Guide | Power cord | Flat head screw x 16 (for 3.5" HDD) |
 |  | |
| Flat head screw x 12 (for 2.5" HDD) | Adaptor |
Optional Accessories
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
Choose specification
