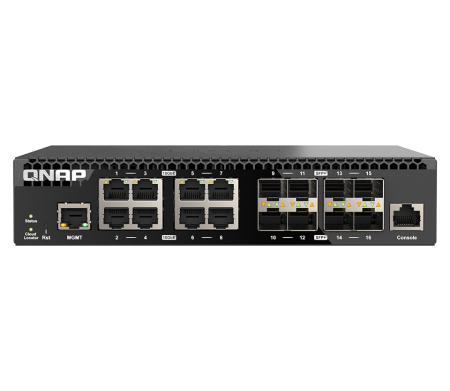

QSW-M3216R-8S8T

QSW-M3216R-8S8T Specification


Management Type	Web Managed
Number of Ports	16
10GbE SFP+	8 (10G/1G)
10GbE BASE-T (RJ45)	8 (10G/5G/2.5G/1G/100M)
Management Port	1 x 1GbE RJ45
Power Supply Description	Internal Power supply Unit
Max. Power Consumption	48.632W
Input Power Type	AC
Input Voltage Range	100-240VAC, 50/60Hz
MAC Address Table	16K
Total Non-Blocking Throughput	160Gbps
Switching Capacity	320Gbps
Management Interface	Web
Console	RJ45
Fan	PWM VAPO Bearing fan x 2
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service

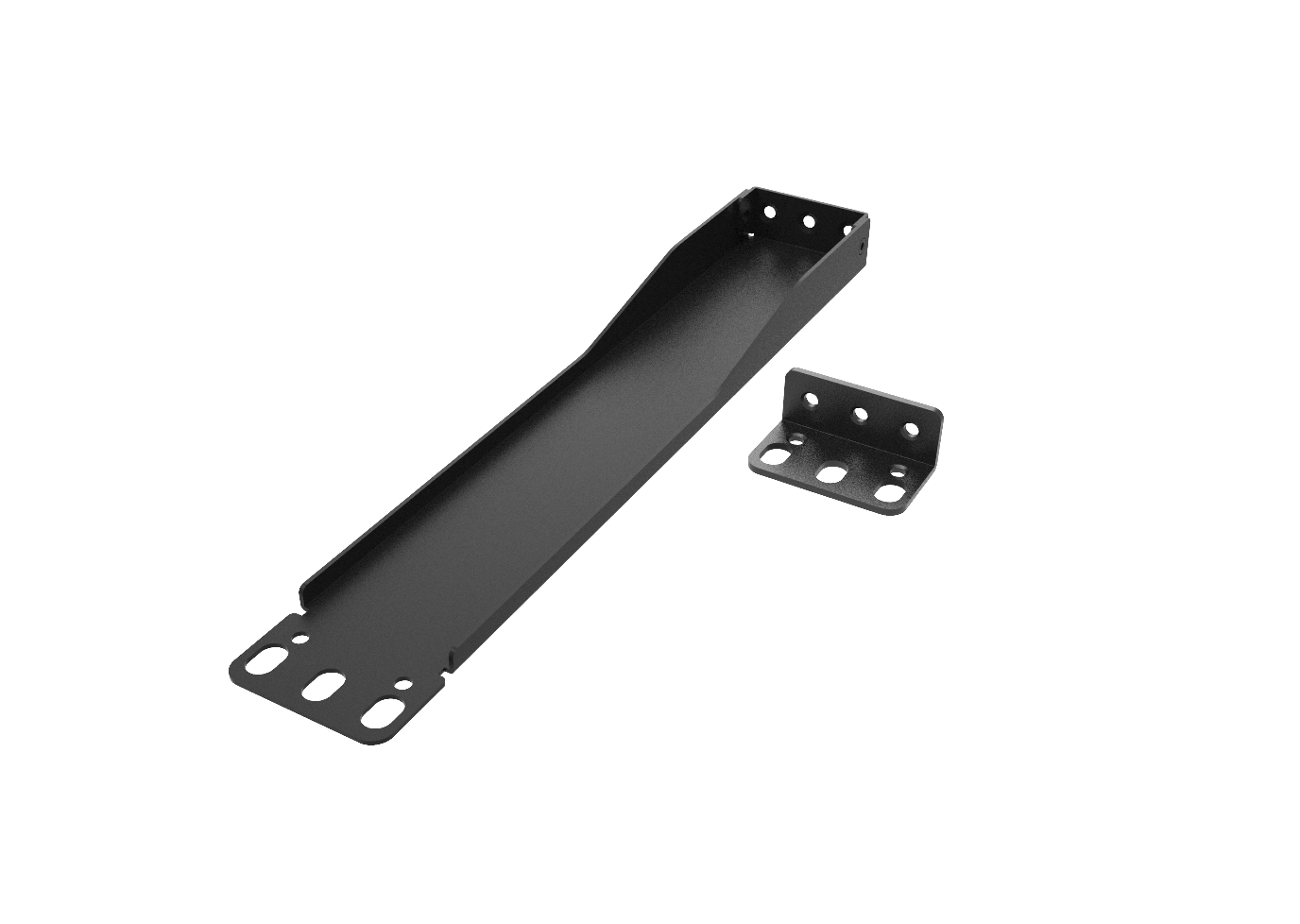

Form Factor	Half-width rackmount
LED Indicators	Per Port: Speed/Link/Activity Per System: Power/Status
Buttons	Reset button
Dimensions (HxWxD)	43.3 x 207 x 199.5 mm
Weight (Net)	3.35 lbs
Weight (Gross)	4.92 lbs
Operating Temperature	0˚C to 40°C (32°F to 104°F)
Relative Humidity	5~95% Non-condensing
Certifications	CE, FCC, VCCI, BSMI
Electromagnetic Compliance	CLASS A
Jumbo Frames	9K
Warranty	2 Years

Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10G BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service Show more...
Port Management	Port status Port statistics Port configuration Jumbo frame support IEEE 802.3x flow control Auto-negotiation of speed and duplex modes Show more...
QoS	Port-based QoS IEEE 802.1p CoS IPv4 DSCP-based QoS IPv4 ToS-based QoS
VLAN	VLAN configuration IEEE 802.1Q-based VLAN
Layer 2 Features	LACP IGMP snooping v2
Security	Access Control Lists (ACL): ACL by IP address, ACL by MAC
Firmware management	Firmware Live Update Firmware Manual Update
Other Features	Link Layer Discovery Protocol (LLDP): LLDP remote device Interface: Web UI SNTP, DNS, DHCP client
RSTP	IEEE802.1w Rapid Spanning Tree
