QSW-3216R-8S8T Specification
-
QSW-3216R-8S8T
Management Type Unmanaged Number of Ports 16 10GbE SFP+ 8 (10G/1G) 10GbE BASE-T (RJ45) 8 (10G/5G/2.5G/1G/100M) Power Supply Description Internal Power supply Unit Max. Power Consumption 48.632W Input Power Type AC Input Voltage Range 100-240VAC, 50/60Hz MAC Address Table 16K Total Non-Blocking Throughput 160Gbps Switching Capacity 320Gbps Management Interface Unmanaged Console Fan PWM VAPO Bearing fan x 2 Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow ControlForm Factor Half-width rackmount LED Indicators Per Port: Speed/Link/Activity
Per System: Power/StatusDimensions (HxWxD) 43.3 x 207 x 199.5 mm Weight (Net) 3.35 lbs Weight (Gross) 4.92 lbs Operating Temperature 0˚C to 40°C (32°F to 104°F) Relative Humidity 5~95% Non-condensing Certifications CE, FCC, VCCI, BSMI Electromagnetic Compliance CLASS A Jumbo Frames 9K Warranty 2 Years Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
QSW-3216R-8S8T
Power Cord
Rackmount kit

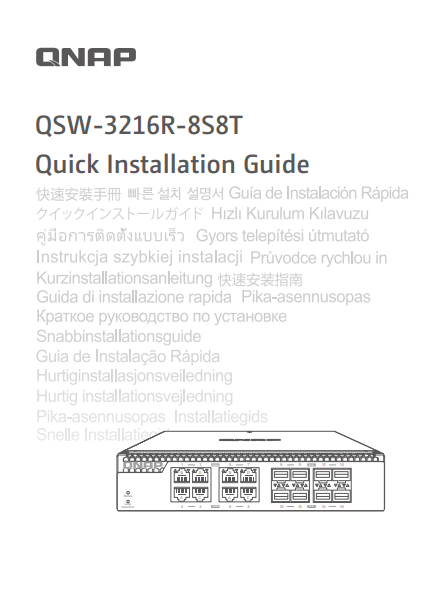

Quick Installation Guide (QIG)
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
