QSW-M2130-4C2S24T

L2 Managed Switch with 10GbE and 2.5GbE ports, ideal for enterprise network deployment

Simplify Network Architecture with Integrated Access and Aggregation

In SMB and multi-floor office environments, complexity often arises from fragmented network architectures. QSW-M2130-4C2S24T integrates both access and aggregation roles into a single device. With 24 x 2.5GbE ports connecting workstations, NAS, and edge devices, and 10GbE uplinks aggregating traffic to the core switch, it enables a scalable yet structured network architecture—reducing deployment complexity while maintaining predictable performance.

Flexible deployment with multiple 10GbE and 2.5GbE ports

QSW-M2130-4C2S24T features 24 x 2.5GbE Base-T ports, 2 x 10GbE SFP+ ports and 4 x 10GbE Combo ports, delivering a versatile port configuration that supports both access and aggregation layers for more flexible network expansion and multi-Gigabit deployment.

• 10GbE Combo Port

  Supports both SFP+ fiber and RJ45 copper connections, allowing flexible deployment without changing infrastructure.

• 10GbE SFP+

  Ideal for long-distance uplinks and high-speed backbone connections, enabling seamless connectivity to core switches, servers, or high-performance NAS.

• 2.5GbE RJ45

  Providing high-density access for workstations and servers, supporting connections via standard Ethernet cabling for flexible and cost-effective deployment.

10GbE Combo Port: Dual-purpose RJ45 direct connection and flexible SFP+ uplink

The 10GbE Combo port supports both RJ45 copper and SFP+ fiber connections, allowing flexible deployment based on your cabling environment and expansion needs. It helps simplify network upgrades and reduce costs without requiring changes to your existing infrastructure.

• As an RJ45 copper connection

• As an SFP+ fiber connection

As an RJ45 copper connection

When used as an RJ45 connection, it enables direct high-speed connections to NAS or servers using standard Ethernet cables.

As an SFP+ fiber connection

When used as an SFP+ uplink, it supports long-distance connections and scalable backbone expansion, providing greater flexibility for network growth.

Optimize Network Performance with bandwidth and packet control

The QSW-M2130-4C2S24T provides bandwidth and packet control functions (such as LACP, VLAN, QoS, and IGMP Snooping) to boost network performance through IP grouping and bandwidth management.

LACP	VLAN	QoS	IGMP Snooping
Link Aggregation (LAG) combines multiple network connections to increase throughput and protect against connection failure.	Virtual Networks (VLAN) allows groups of devices from different networks to be combined into a single network.	QoS (Quality of Service) helps prioritize bandwidth usage to optimize network resource allocation.	IGMP snooping assists in minimizing bandwidth loss and preventing network information leakage.

Powerful security and system functions

The QSW-M2130-4C2S24T has powerful security and system functions (including ACL, DoS Attack Prevention, RSTP and Flow Control) to help enhance network reliability with access controls, troubleshooting, loop prevention and avoiding packet loss.

ACL	DoS Attack Prevention	RSTP	Flow Control
Access Control List filters packets based on rules to offer firewall-like security protection.	Denial-of-Service (DoS) attack prevention is a critical security feature designed to protect against malicious traffic that could exhaust system resources and disrupt network access for legitimate users.	Rapid Spanning Tree Protocol, RSTP ensures a loop-free topology for Ethernet networks by blocking or forwarding traffic.	Flow Control balances the traffic between a sender and a receiver to avoid network congestion.

QSS: Human-centered settings guide

QSS provides an overview dashboard, port management and setting guide to help control Layer 2 networks.

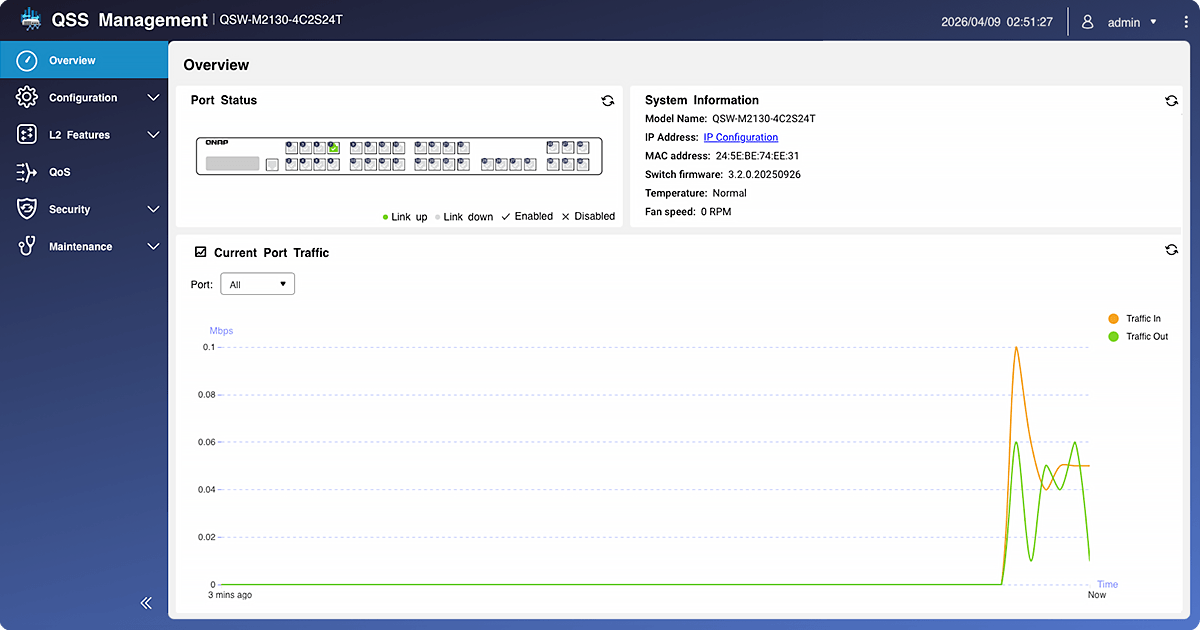

Overview Dashboard

View real-time system information, port connection status and port traffic.

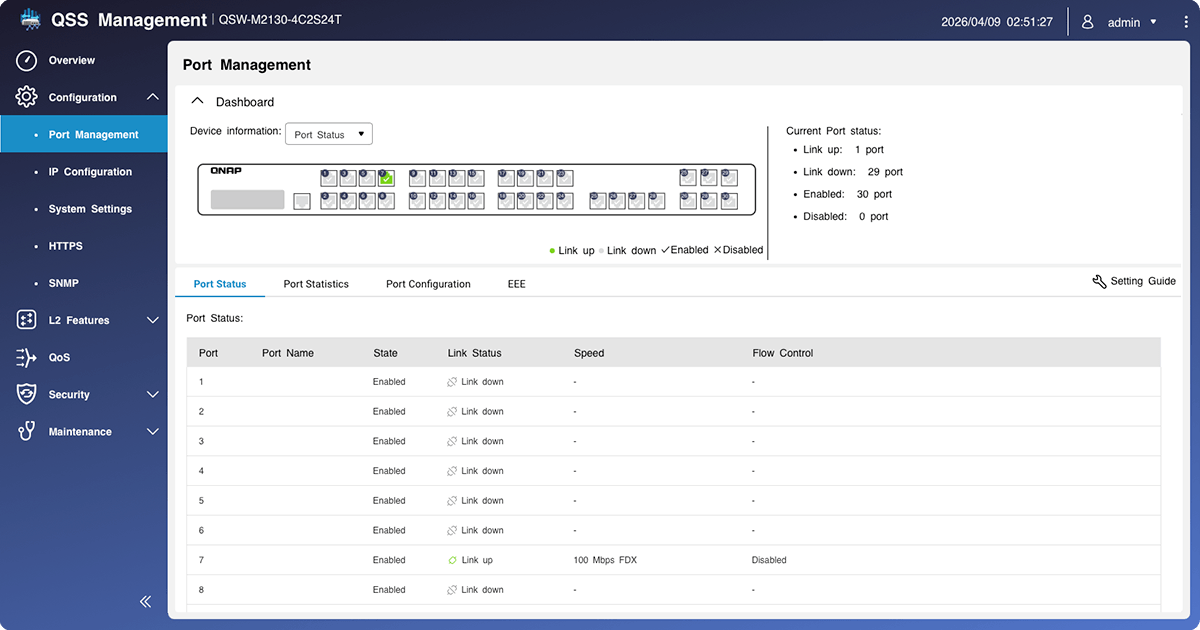

Port Management

View port status, port packet statistics, and configure port speeds.

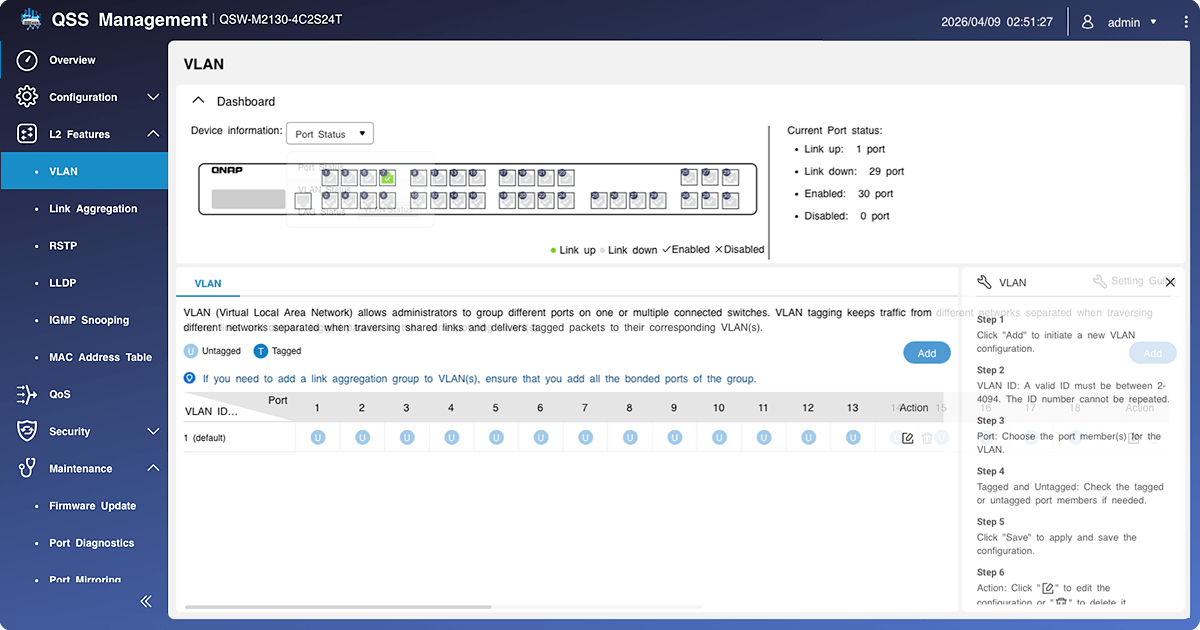

Setting Guide

Quickly learn how to set up the network using the introduction and step-by-step guide.

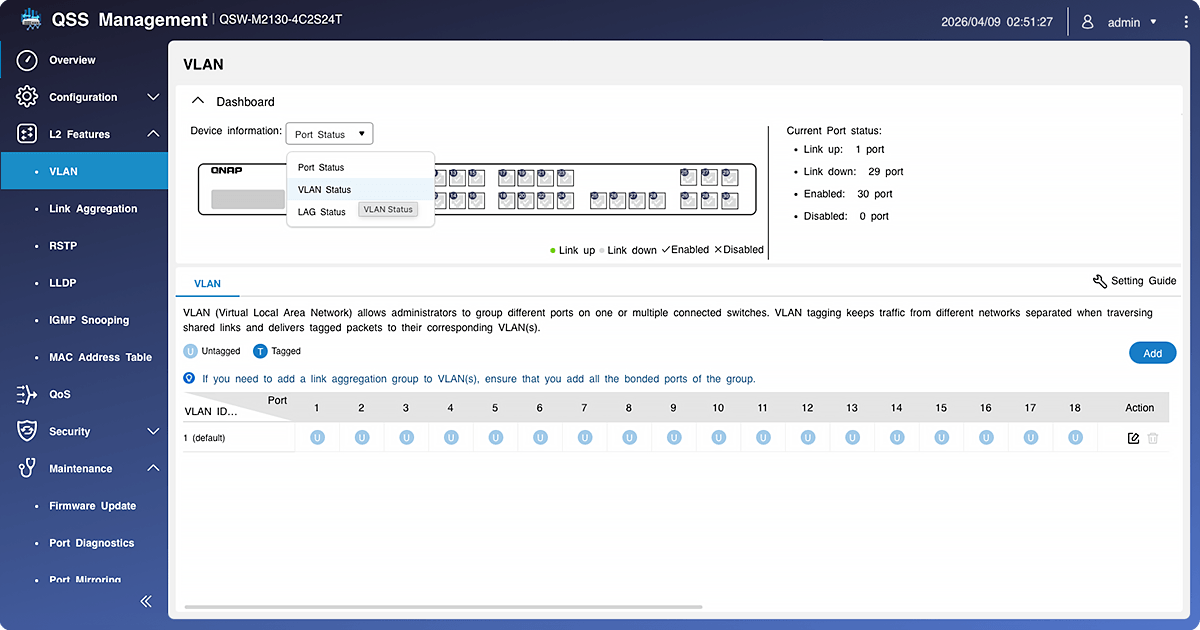

Exclusive Status Chart Referencing

Refer to four major status charts during configuration to avoid switching between different setting pages.

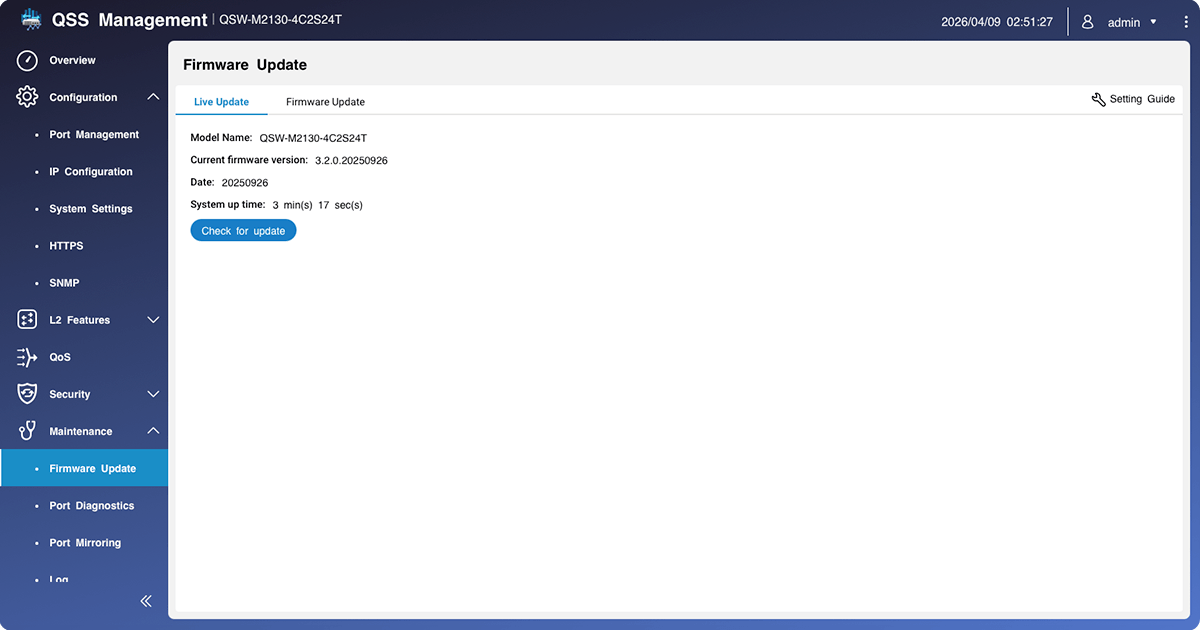

Online Firmware Check and Update

Secure your QSW-M2130-4C2S24T with one-click firmware updates

Extend hardware warranty up to 5 years

The QSW-M2130-4C2S24T is backed by a 2-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
