QSW-M7230P-2X4F24T

Triple-Speed High-Value Choice — Easily Upgrade to 100GbE Enterprise Backbone Networks with 90W 802.3bt PoE

Cost-Effective 100GbE Upgrade: Seamless Transition to High-Speed Enterprise Backbone

The QSW-M7230P-2X4F24T integrates 100G, 25G, and high-density 10G PoE connectivity within a 1U rack space, offering superior price-competitiveness and port flexibility compared to other 100GbE switches in its class. Enterprises can deploy 25GbE/100GbE for critical servers and NAS while retaining existing 10GbE cables and equipment for step-by-step backbone expansion.

Up to 1080Gbps Switching Capacity for Enterprise Backbone

Equipped with 2 x 100GbE QSFP28 ports, 4 x 25GbE SFP28 ports, and 24 x 10GbE RJ45 802.3bt PoE ports, QSW-M7230P-2X4F24T delivers up to 1080 Gbps switching capacity with non-blocking line-rate performance and stable low latency under heavy traffic.

Satisfies High-Speed Collaboration for 50-Person Dual Teams or Studios

Connected via 100GbE backbone, QSW-M7230P-2X4F24T supports up to 48 x 10GbE workstations and 8 x 25GbE NAS devices simultaneously, perfect for medium-to-large video editing studios and engineering teams needing high-volume asset rendering and backup.

100GbE / 25GbE / 10GbE Multi-Rate Port Design for Flexible Architecture

QSW-M7230P-2X4F24T provides two 100GbE QSFP28 ports, four 25GbE SFP28 ports, and twenty-four 10GbE RJ45 802.3bt PoE ports, covering core, aggregation, and access layer connectivity on a single appliance.

• 100GbE QSFP28

  Serves as uplink ports connecting core switches, high-performance servers, or 100GbE NAS using QSFP28 DACs or transceivers.

• 25GbE SFP28

  Ideal for connecting aggregation switches and all-flash NAS using SFP28 DACs or transceivers with backward compatibility to 10G/1G SFP.

• 10GbE NAS

  Provides high-density 10G access to workstations and servers, with PoE support for Wi-Fi 7 APs and SD-VoE devices.

IEEE 802.3bt 90W PoE++ Power Supply & 800W Budget

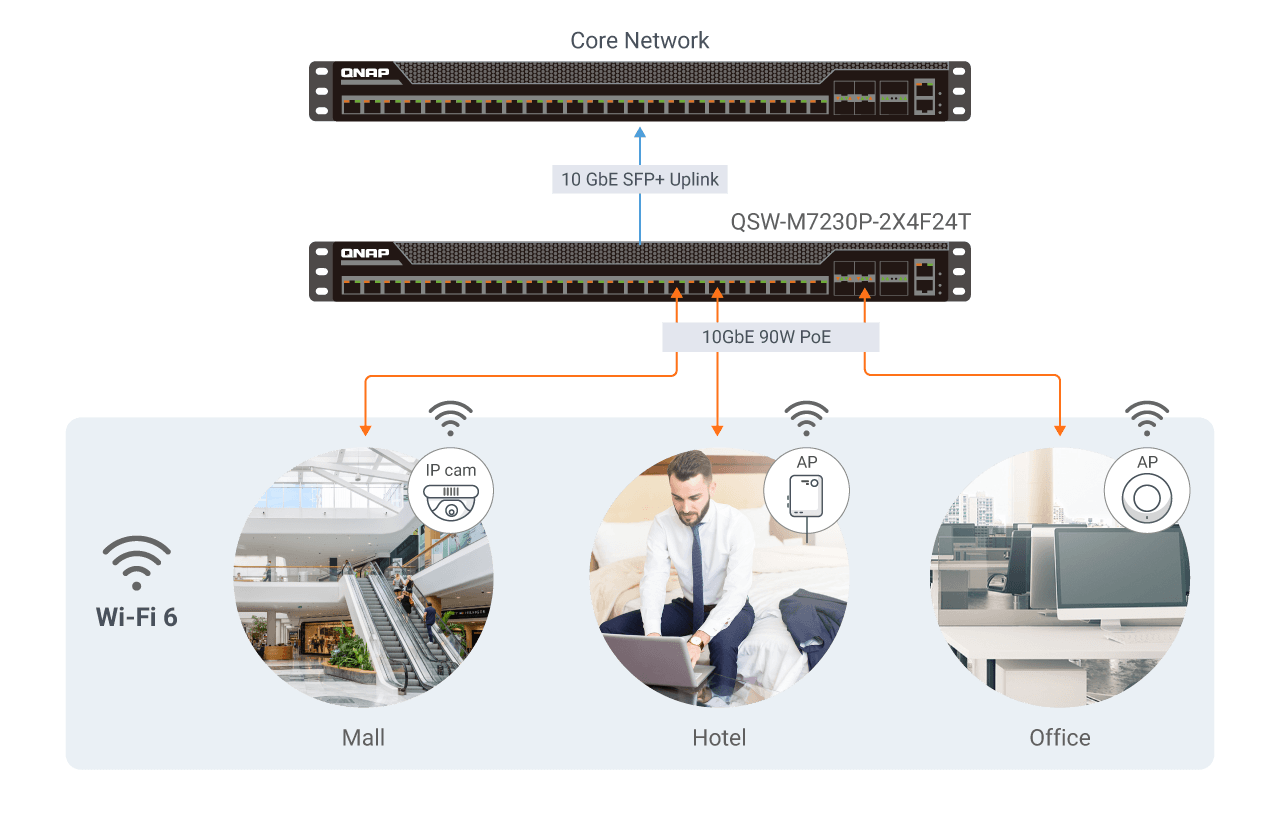

All 24 x 10GbE RJ45 ports on QSW-M7230P-2X4F24T support IEEE 802.3bt PoE++ delivering up to 90W per port with an 800W total power budget. Easily powers Wi-Fi 7 APs, SD-VoE AV-over-IP encoders, and PTZ IP cameras over a single cable.

Features front-panel dedicated PoE system indicators and per-port dual-color LEDs, alongside QSS Pro real-time wattage monitoring, power priority settings, and remote PoE power cycling.

•

Supports PTP Precision Clock for Large-Scale AV-over-IP Synchronization

Built-in SiTime precision clock and PTP Boundary Clock (Class A) support provide precise time references across video walls and digital signage, preventing video latency and tearing.

Enterprise-Class IP Routing and Network High Availability

QSW-M7230P-2X4F24T provides robust L3 Lite routing and redundancy mechanisms to safeguard core enterprise database links.

• IP Routing

  Forwards packets using IP addresses to enable communication across distinct network segments and subnets.

• MC-LAG High Availability

  Combines multiple physical connections across switches into a logical link for seamless fault tolerance.

• LACP

  Link Aggregation Control Protocol integrates multiple links to increase throughput and prevent link failures.

Expand Secure and Efficient Infrastructure with QNAP L3 Lite Switches

Upgrading to L3 Lite managed switches expands high-speed network infrastructure while reducing maintenance overhead.

• Scalability

  Enables fine-grained control over large segmented networks as more endpoint devices join.

• High Performance

  Satisfies demanding AI, multimedia, and virtualization workload throughput.

• Security

  Simplifies security management with IP routing tables for elevated network isolation.

Optimize Network Performance with Bandwidth & Packet Control

QSW-M7230P-2X4F24T offers practical bandwidth allocation and packet control tools to maximize administrative efficiency.

• LACP

  Aggregates links to expand available network bandwidth.

• PTP

  Precision Time Protocol (ITU-T Class A) ensures sub-100ns time synchronization for time-sensitive traffic.

• QoS

  Quality of Service controls traffic prioritization to guarantee mission-critical application resources.

• VLAN

  Virtual LANs logically segment devices from different physical locations into isolated groups.

• Forward Error Correction (FEC)

  Recovers lost packets and bit errors across high-speed long-distance fiber connections.

• IGMP Snooping

  Prevents multicast bandwidth waste and security leaks across video streams.

Robust Security and System Features

QSW-M7230P-2X4F24T features comprehensive security tools including ACL, LLDP, RSTP, and Flow Control.

• ACL

  Filters inbound/outbound packets based on custom security policies with port mirroring.

• LLDP

  Broadcasts device information to directly connected neighbor devices for easier troubleshooting.

• RSTP

  Prevents loop topologies by selectively blocking or forwarding network traffic.

• Flow Control

  Balances packet transmission speeds to prevent queue congestion.

QSS Pro: Powerful and Smart

QNAP Switch System Pro (QSS Pro) features an easy-to-use Web GUI for easier Layer 3 Lite and Layer 2 management and value-added functions.

Learn More: QSS Pro

• Overview Dashboard

  View real-time system information, port connection status, and port traffic.

• MC-LAG network redundancy

  Create a redundant link between two peers QSW-M7230-2X4F24T to achieve high availability.

• IPv4/IPv6 static routing

  Besides widely supporting existing IPv4 network devices, QSW-M7230-2X4F24T also supports IPv6 of expanded addressing capability for deploying more network devices in the future.

• DHCP server

  Auto-dispatch dynamic IP addresses to LAN clients.

• Uncompromising AV-over-IP experience

  The AV-over-IP Wizard guides you through configuring IGMP Snooping and VLAN to route AV traffic for applications like video walls and large outdoor display walls. Combined with PTP and QoS priority management, it delivers nanosecond-level latency and high-resolution AVoIP experiences.

• Manage all networked devices

  Supports SNMP for centrally and securely managing all networked devices in your network environment, such as NAS, routers, network switches, workstations, modems, IP phones, and IP cameras.

• Online firmware check and update

  Keep your QNAP switch secure with one-click firmware updates.

Advanced Security with ADRA NDR Standalone

Real-time enterprise NDR cybersecurity defense actively detects and isolates ransomware threats before spread.

Easily Deploy Air Gap Isolated Backups

Protects enterprise data by combining QNAP NAS and QSW-M7230P-2X4F24T for offline air-gapped backup security.

QNAP High-Speed Switch Lineup for Diverse Business Needs

Comprehensive managed and unmanaged switch portfolio spanning 2.5GbE, 10GbE, 25GbE, 100GbE, PoE, and industrial models.

• 100GbE Switches

  100GbE QSFP28 bandwidth for core data center backbones.

• 25GbE Switches

  25GbE SFP28 speed for enterprise servers and all-flash NAS.

• 10GbE PoE Switches

  10GbE SFP+/RJ45 with high-power 802.3bt PoE for Wi-Fi 7 APs.

• 2.5GbE Switches

  2.5GbE RJ45 speed over CAT 5e cables for instant upgrades.

Extend hardware warranty up to 5 years

The QSW-M7230P-2X4F24T is backed by a 2-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
