QSW-IM3216-8S8T Specification
-
QSW-IM3216-8S8T
Management Type Web Managed Number of Ports 16 10GbE SFP+ 8 (10G/1G) 10GbE BASE-T (RJ45) 8 (10G/5G/2.5G/1G/100M) Management Port 1 x 1GbE RJ45 Power Supply Description Adapter Max. Power Consumption 48.632W Input Power Type AC Input Voltage Range 100-240VAC, 50/60Hz MAC Address Table 16K Total Non-Blocking Throughput 160Gbps Switching Capacity 320Gbps Management Interface Web Console RJ45 Fan Fanless Fanless Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of ServiceForm Factor Rackmount LED Indicators Per Port: Speed/Link/Activity
Per System: Status/Power1/Power2/Power3/LocatorButtons Reset button Dimensions (HxWxD) 43.5 x 285 x 231.5 mm Weight (Net) 4.26 kg Weight (Gross) 5.72 kg Operating Temperature "Natural convection (in airy environments 0.5~0.7m/s) operating temperature
-30°C-65°C (-22°F –149°F) in airy environments
Non natural convection operating temperature
-30°C-45°C (-22°F –113°F)"Relative Humidity 5~95% Non-condensing Certifications CE, FCC, VCCI, BSMI Electromagnetic Compliance CLASS A Jumbo Frames 9K Warranty 2 Years Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
| Standards Compliance |
|
| Port Management |
|
| QoS |
|
| VLAN |
|
| Layer 2 Features |
|
| Security |
|
| Firmware management |
|
| Other Features |
|
QSW-IM3216-8S8T
Power Cord
Power supply
Rackmount kit
Rubber feet
Wallmount kit

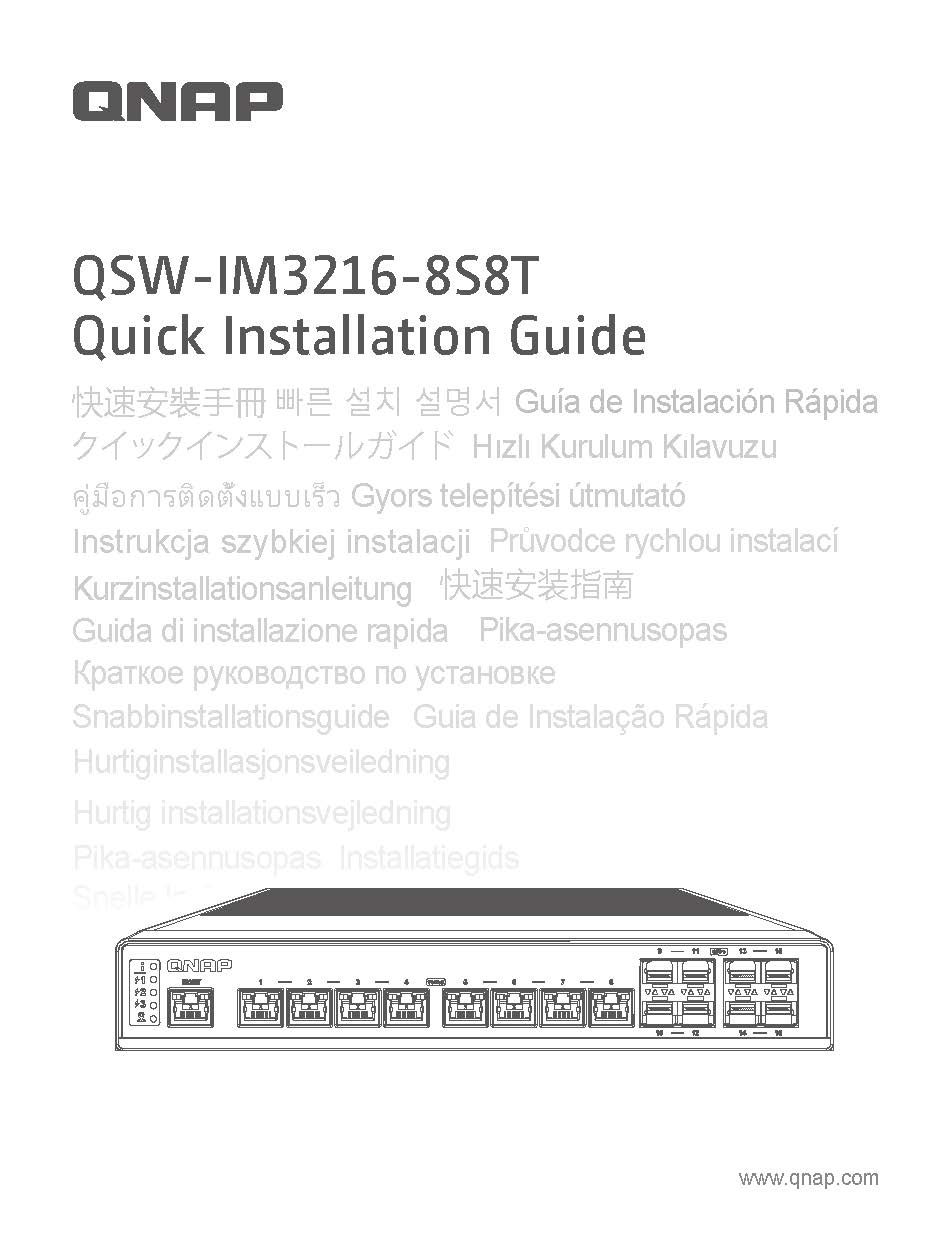

Quick Installation Guide (QIG)
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
