TEC-2N16 (Enclosure)

GM-1000 enclosure: Supports two NAS nodes for greater flexibility

TEC-2N16

Features

The TEC-2N16 is a 3U rackmount chassis designed for the GM-1000 system. By housing two independent NAS nodes, the TEC-2N16 minimizes costs and provides greater flexibility in upgrading and maintaining your IT environment to meet future performance, backup, and application requirements.

1
An enclosure that houses two replaceable NAS nodes.
2
A 3U chassis with 16 drive bays (each node supports eight 6 Gb/s SATA drives).
3
770W redundant power supply, shared by two NAS nodes for reliable 24/7 operation.

Economic and space-saving design for dual NAS nodes

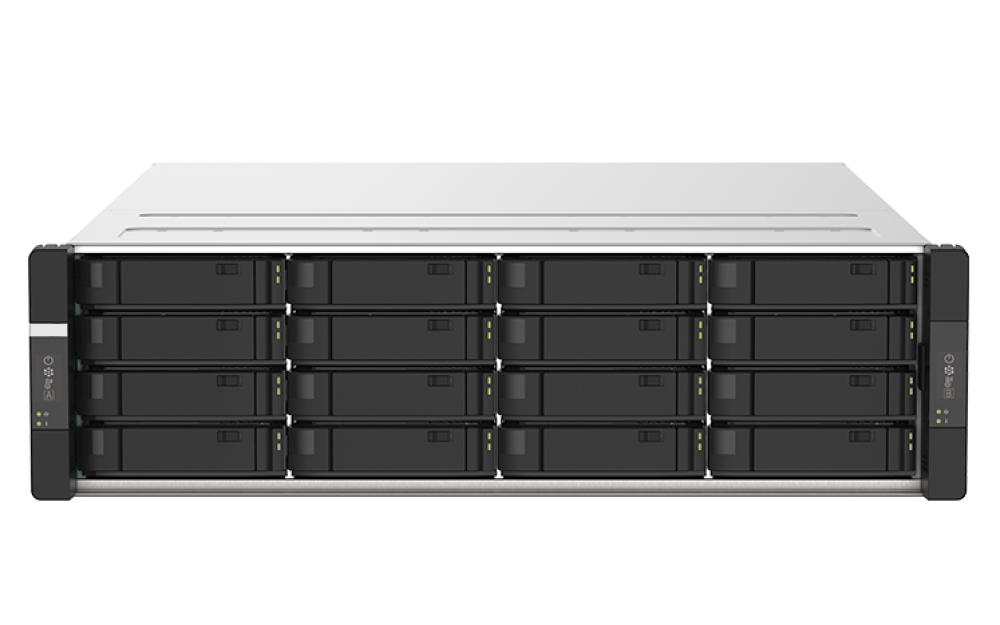

The TEC-2N16 is a 3U chassis with sixteen 3.5-inch drive bays. Compared with deploying two similar 2U 8-bay rackmount NAS, the TEC-2N16 saves rack space and system costs. The support for replaceable NAS nodes also simplifies upgrades and maintenance.

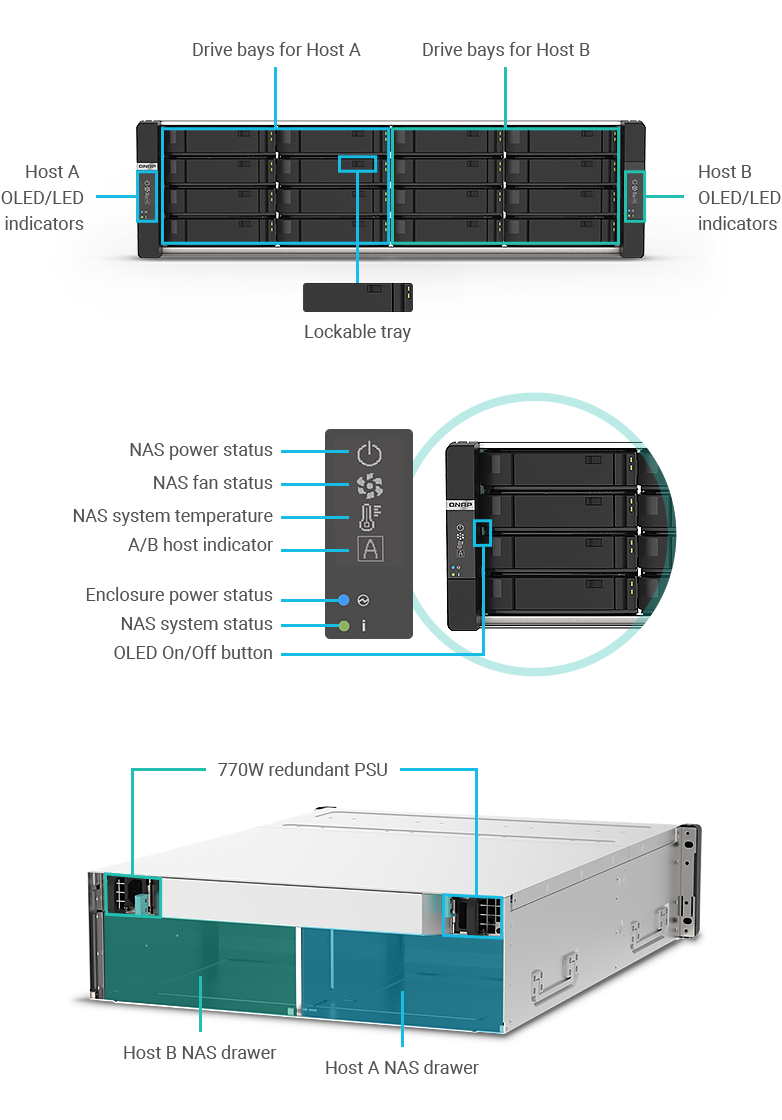

TEC-2N16 enclosure specifications

Build a dual NAS, double-performance storage solution

Install two NAS nodes in the TEC-2N16 to enjoy a cost-effective high-performance backup solution and cloud storage gateway applications.

Learn more about GM-1000

SKU	Enclosure	NAS Node	Processor	Memory
GM-1001	1 x TEC-2N16-770W	2 x TNS-h1083X-E2234-8G	Intel Xeon E-2234	8 GB (2 x 4GB)
GM-1002	1 x TEC-2N16-770W	2 x TNS-h1083X-E2236-16G	Intel Xeon E-2236	16 GB (2 x 8GB)

Need help?

Optional Accessories

Other Accessories

PWR-PSU-770W-DT01 (EOL)

770W Delta power supply
Dimension (L × W × H): 43 × 13 × 10 (mm)
Weight: 2.43 (kg)
For safety information and operating instructions, please refer to the documentation of your original QNAP product.
SCR-HDD25A-96

Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.01 (kg)
SP-ES-TRAY-LOCK

HDD Tray of ES NAS series, with black flat head machine screw x4 for 2.5" HDD & silver flat head machine screw x4 for 3.5" HDD
Dimension (L × W × H): 36 × 118 × 245 (mm)
Weight: 0.23 (kg)
SP-ES-TRAY-WOLOCK

HDD Tray of ES NAS series, with black flat head machine screw x4 for 2.5" HDD & silver flat head machine screw x4 for 3.5" HDD
Dimension (L × W × H): 36 × 118 × 245 (mm)
Weight: 0.23 (kg)
TRAY-25-NK-BLK04

2.5" U.2 drive tray, support QDA-SA3
Dimension (L × W × H): 184 × 142 × 40 (mm)
Weight: 0.05 (kg)
RAIL-E02

New Rail Kit for ES1640dc, EJ1600, EJ1601
Dimension (L × W × H): 700 × 123 × 83 (mm)
Weight: 2.55 (kg)
RAIL-E02 is included inside package of ES NAS and EJ JBOD series
