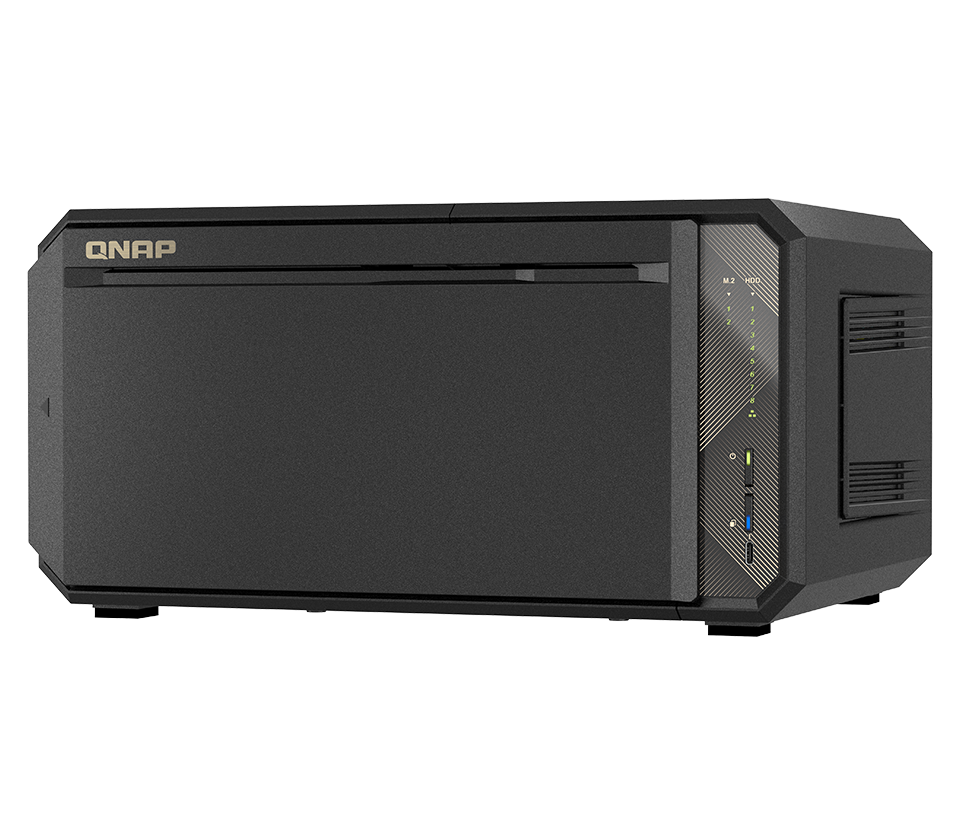

TS-867X, TS-667X, TS-467X Compare products

	TS-867X TS-867X-4G TS-867X-4G	TS-667X TS-667X-4G TS-667X-4G	TS-467X TS-467X-4G TS-467X-4G


CPU
CPU	AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor	AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor	AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture
CPU Architecture	64-bit x86	64-bit x86	64-bit x86
Encryption Engine
Encryption Engine	(AES-NI)	(AES-NI)	(AES-NI)
System Memory
System Memory	4GB Non-ECC DDR4 ¹	4GB Non-ECC DDR4 ¹	4GB Non-ECC DDR4 ¹
Maximum Memory
Maximum Memory	64 GB (2 x 32 GB)	64 GB (2 x 32 GB)	64 GB (2 x 32 GB)
Memory Slot
Memory Slot	2 x SODIMM DDR4 ²	2 x SODIMM DDR4 ²	2 x SODIMM DDR4 ²
Flash Memory
Flash Memory	8 GB (Dual boot OS protection)	8 GB (Dual boot OS protection)	8 GB (Dual boot OS protection)
Drive Bay
Drive Bay	8 x 3.5-inch SATA 6Gb/s	6 x 3.5-inch SATA 6Gb/s	4 x 3.5-inch SATA 6Gb/s
Drive Compatibility
Drive Compatibility	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives	3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
Hot-swappable
Hot-swappable	³	³	³
M.2 Slot
M.2 Slot	2 x M.2 2280 PCIe Gen3 x2 slots ⁴	2 x M.2 2280 PCIe Gen3 x2 slots ⁴	2 x M.2 2280 PCIe Gen3 x2 slots ⁴


10 Gigabit Ethernet Port
10 Gigabit Ethernet Port	2 x 10GBASE-T	2 x 10GBASE-T	2 x 10GBASE-T
Jumbo Frame
Jumbo Frame
PCIe Slot
PCIe Slot	1x PCIe Gen 3 x4	1x PCIe Gen 3 x4	1x PCIe Gen 3 x4
USB 3.2 Gen 2 (10Gbps) Port
USB 3.2 Gen 2 (10Gbps) Port	2 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 2 10Gbps	2 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 2 10Gbps	2 x Type-A USB 3.2 Gen 2 10Gbps 1 x Type-C USB 3.2 Gen 2 10Gbps
Audio Output
Audio Output	- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)	- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)	- (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)


Form Factor
Form Factor	Tower	Tower	Tower
LED Indicators
LED Indicators	Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2	Status/Power, USB, LAN, Drive 1-6, M.2 SSD 1-2	Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
Buttons
Buttons	Power, Reset, USB Auto Copy	Power, Reset, USB Auto Copy	Power, Reset, USB Auto Copy
Dimensions (HxWxD)
Dimensions (HxWxD)	171 × 332 × 232 mm	171 × 266 × 232 mm	171 × 195 × 232 mm
Weight (Net)
Weight (Net)	3.92 kg	3.08 kg	2.49 kg
Weight (Gross)
Weight (Gross)	5.32 kg	5 kg	4.91 kg


Operating Temperature
Operating Temperature	0 - 40 °C (32°F - 104°F)	0 - 40 °C (32°F - 104°F)	0 - 40 °C (32°F - 104°F)
Storage Temperature
Storage Temperature	-20 - 70°C (-4°F - 158°F)	-20 - 70°C (-4°F - 158°F)	-20 - 70°C (-4°F - 158°F)
Relative Humidity
Relative Humidity	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)	5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
Power Supply Unit	150W, 100-240V	120W adapter, 100-240V	90W adapter, 100-240V
Power Consumption: Disk Standby Mode
Power Consumption: Disk Standby Mode	24 W	19 W	15 W
Power Consumption: Operating Mode, Typical
Power Consumption: Operating Mode, Typical	48 W	43 W	28 W
Fan
Fan	2x 92mm	2x 92mm	1x 120mm
System Warning
System Warning	Buzzer	Buzzer	Buzzer
Kensington Security Slot
Kensington Security Slot
Standard Warranty
Standard Warranty	3	3	3


Port Trunking / Link Aggregation
Port Trunking / Link Aggregation
Network Service Discovery (UPnP & Bonjour)
Network Service Discovery (UPnP & Bonjour)
Virtual LAN (VLAN)
Virtual LAN (VLAN)
Service Binding Based on Network Interfaces
Service Binding Based on Network Interfaces


AES 256-bit Volume-based Encryption
AES 256-bit Volume-based Encryption
AES 256-bit Folder Encryption
AES 256-bit Folder Encryption
External Drive Encryption
External Drive Encryption
Hardware Encryption Engine (Not available in certain countries)
Hardware Encryption Engine (Not available in certain countries)	(AES-NI)	(AES-NI)	(AES-NI)


Snapshot
Snapshot	(max 1024)	(max 1024)	(max 1024)


RAID Recovery
RAID Recovery
Online RAID Capacity Expansion
Online RAID Capacity Expansion
Online RAID Level Migration
Online RAID Level Migration
RAID 50/60
RAID 50/60
RAID 10+ hot spare
RAID 10+ hot spare
RAID 10
RAID 10
RAID 6+ hot spare
RAID 6+ hot spare
RAID 6
RAID 6
RAID 5+ Spare
RAID 5+ Spare
RAID 5
RAID 5
RAID 1
RAID 1
RAID 0
RAID 0
JBOD
JBOD
Single Disk
Single Disk
Global Hot Spare
Global Hot Spare
Storage Pool
Storage Pool
SSD Caching
SSD Caching
iSCSI Target
iSCSI Target
iSCSI LUN Snapshot/Backup
iSCSI LUN Snapshot/Backup
Thin-provisioned volume
Thin-provisioned volume
SSD Over-provisioning
SSD Over-provisioning


Domain Controller
Domain Controller


Wake on LAN (WOL)
Wake on LAN (WOL)


Max. Number of Users
Max. Number of Users	4096	4096	4096
Max. Number of User Groups
Max. Number of User Groups	512	512	512
Max. Number of Share Folders
Max. Number of Share Folders	512	512	512
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
Max. Number of Concurrent Connections (CIFS) - with Max. Memory	1200	1200	1200


Language
Language	English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek	English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek	English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek
