TS-h665U
Intel® quad-core 1U rackmount NAS with dual E1.S slots, dual 2.5GbE ports, and PCIe expansion — delivering high-speed performance and versatile scalability
TS-h665U is designed for small and medium-sized businesses, powered by an Intel® quad-core processor, and equipped with dual 2.5GbE network ports that support port trunking for up to 5 Gbps network bandwidth. A PCIe expansion slot allows flexible upgrades, such as adding a 10GbE/5GbE network card or a QM2 card for M.2 SSD caching, delivering exceptional expandability. With the built-in Intel® AES-NI encryption engine, TS-h665U maintains outstanding data access performance even when accelerating AES 256-bit encryption.
Within a 1U chassis, TS-h665U offers four 3.5-inch SATA bays and two high-expandability E1.S slots, delivering a powerful and efficient multitasking NAS solution. TS-h665U comes with the QuTS operating system preinstalled, offering ZFS data integrity and immutability to protect against data tampering
Dual 2.5GbE as standard
Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Flexible E1.S slots
E1.S NVMe PCIe slots provide flexible configuration of SSD caching, ensuring the NAS is never limited in its specifications.
Secure Snapshot Protection
Snapshots record the complete system state and data, allowing you to quickly restore the system to a normal state in the event of unexpected incidents.
PCIe Gen 3 slot
Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
Long-term supply
TS-h665U will be available and supported by QNAP for an extended period, up to 2031.
New-gen high-performance Intel® Quad-core processor
New-gen high-performance Intel® Quad-core processor
-
Memory
DDR5 non-ECC RAM (Supports In-Band ECC); upgradable to 16GB (1 x 16GB)
-
AES-NI Encryption Engine
AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data
-
In-Band ECC
Enhances system security and data reliability
-
2 x 2.5GbE SMB sequential throughput (1M)
Read MB/sWrite MB/s -
2 x 10GbE SMB sequential throughput (1M)
Read MB/sWrite MB/s
| 2 x 2.5GbE SMB sequential throughput (1M) |
Read
MB/s
|
Write
MB/s
|
|---|---|---|
| 2 x 10GbE SMB sequential throughput (1M) |
Read
MB/s
|
Write
MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h665U with QXG-10G2TB
OS: QTS 5.2.6.3209
Volume type : 8 x Samsung 870 EVO 1TB SATA SSD , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM, LAN-10G2T-X550
IOmeter : RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding
Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade
In modern business IT, a NAS with only 1GbE is a performance bottleneck. The TS-h665U comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.
-
Built-in 2.5GbE
The TS-h665U comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
-
Upgradable to 10GbE
You can install up to two-port 10GbE network modules via the PCIe Gen3 slot.
-
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking.
Powerful expansion with E1.S PCIe slots
TS-h665U has two E1.S NVMe slots that offer unparalleled NAS flexibility for boosting performance.
-
Enable SSD caching
Install E1.S PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
-
Create SSD system drive
Use the E1.S PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
- HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer.
- With the QDA-E1SM2 adapter, it supports M.2 NVMe SSDs, providing a hot-swappable solution.

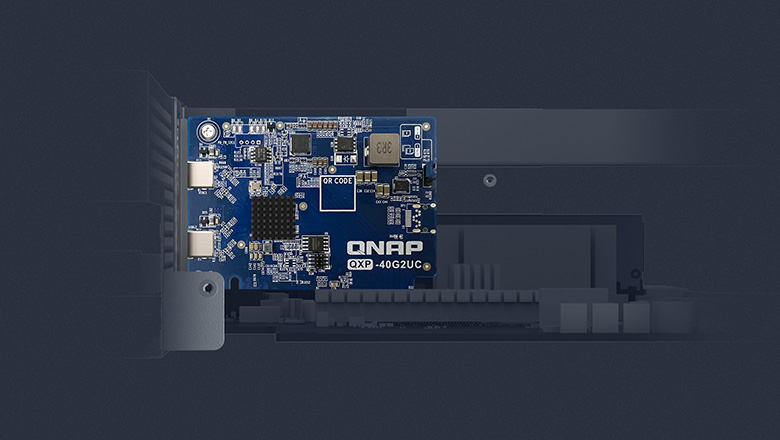

Abundant I/O capabilities with PCIe expansion
TS-h665U has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.
Future-proof your storage with JBOD scalability
As file volumes and storage needs grow, the TS-h665U can connect up to one QNAP 12-bay TL-R1200C-RP JBOD expansion units, adding up to 12 additional hard drives and providing exceptional storage capacity.
All-in-one backup solution
The TS-h665U supports various apps that cover all your backup needs. See all
-
NAS/File server
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
-
Cloud
Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.
-
Mac
Set a QNAP NAS as Time Machine backup destination.
-
Windows® PC/Server
Back up full PC/server systems and manage all backups from multiple devices through a single interface. Learn more
-
VM
Back up VMware® vSphere and Microsoft® Hyper-V with dramatically lower costs than others. Explore
-
Google™ Workspace/Microsoft 365®
Use QNAP’s HDP for SaaS to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
-
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website. Learn more
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective. Explore more >
-
NAS and file server
Backup NAS data to another QNAP NAS or remote server. Supports immutable backups by using WORM folders as the destination, preventing data from being overwritten, modified, or deleted to effectively protect against ransomware.
-
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
-
myQNAPcloud One
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
RPO = 0 real-time replication
Real-time SnapSync syncs between shared folders/LUNs on primary NAS and secondary NAS. This assists organizations in resuming essential data and services in the shortest time. Learn more
Real-time sync for seamless team collaboration
Whether you’re in the office or on the go, you can access the latest files synchronized to TS-h665U on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Connection
Permission
Transmission
-
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.
Assessment
Construct a multi-level security defense system for enterprises
How to configure your network and connect your NAS to prevent malware attacks?
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h665U. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
-
VM High Availability
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
-
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
Surveillance NAS solution for Business
Surveillance NAS is an easy-to-deploy and cost-efficient all-in-one intelligent surveillance platform that integrates AI analytics, video backup and fault tolerance, centralized management (CMS), and surveillance cloud services, meeting professional surveillance requirements across diverse deployment scenarios. A single NAS supports up to 1,024 channels, leveraging file-based writing technology to enhance processing performance and meet the demands of multi-channel, high-capacity, and long-duration recording. Learn more about QVR Surveillance NAS solution
-
Simplifying surveillance structure
An all-in-one surveillance solution integrating NVR and VMS. Record, analyze and manage videos on surveillance NAS to boost deployment and maintenance efficiency.
-
Support ONVIF® cameras
Over 8000 ONVIF cameras from 200+ brands are supported.
-
PoE switch solution
QNAP offers a one-stop QNAP PoE switch solution designed for connecting TS-h665U NAS and IP cameras to simplify network and power cabling.
-
Smart AI surveillance
Surveillance NAS performs AI image identification, analysis and search on the NVR server side, saving you from having to purchase expensive AI cameras.
-
Flexible storage expansion and secure video backup
The longer video retention periods you require, the greater the storage capacity needed. You can connect QNAP JBOD expansion enclosures to TS-h665U, or back up surveillance recordings to a QVR Recording Vault backup server or myQNAPcloud Surveillance.
QNAP solves all your surveillance system challenges in business
Use AI-powered drive failure prediction to safeguard your data
-
Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.
Switch to QuTS hero operating system
for optimal data integrity and reliability
The TS-h665U also supports QuTS hero - QNAP’s ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.
What’s the difference between QTS and QuTS hero?
How to migrate data from an old NAS?
Extend hardware warranty up to 5 years
The TS-h665U is backed by a 3-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Need help?
Contact us now to get more recommended products or solutions catered to your needs and requirements!
Optional Accessories
-
QM2-2P-244A
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 170.5 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
-
QM2-2P-344A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P10G1TB
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 152.65 × 18.9 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P2G2T
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 152.65 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
-
QM2-2S-220A
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QXG-10G1T
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 143 × 193 × 52 (mm)
Weight: 0.53 (kg)
-
QXG-10G2T
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)
Weight: 0.24 (kg)
-
QXG-10G2TB (EOL)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)
Weight: 0.28 (kg)
-
QXG-2G1T-I225
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)
Weight: 0.19 (kg)
-
QXG-2G2T-I225
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)
Weight: 0.23 (kg)
-
QXG-2G4T-I225
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 104.6 × 68.9 × 24.1 (mm)
Weight: 0.24 (kg)
-
QXG-5G1T-111C
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G2T-111C
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G4T-111C
QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.23 (kg)
-
QXP-10G2U3A
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)
Weight: 0.09 (kg)
-
RAM-8GDR5K0-SO-5600
8GB DDR5 RAM, 5600 MHz, SODIMM
