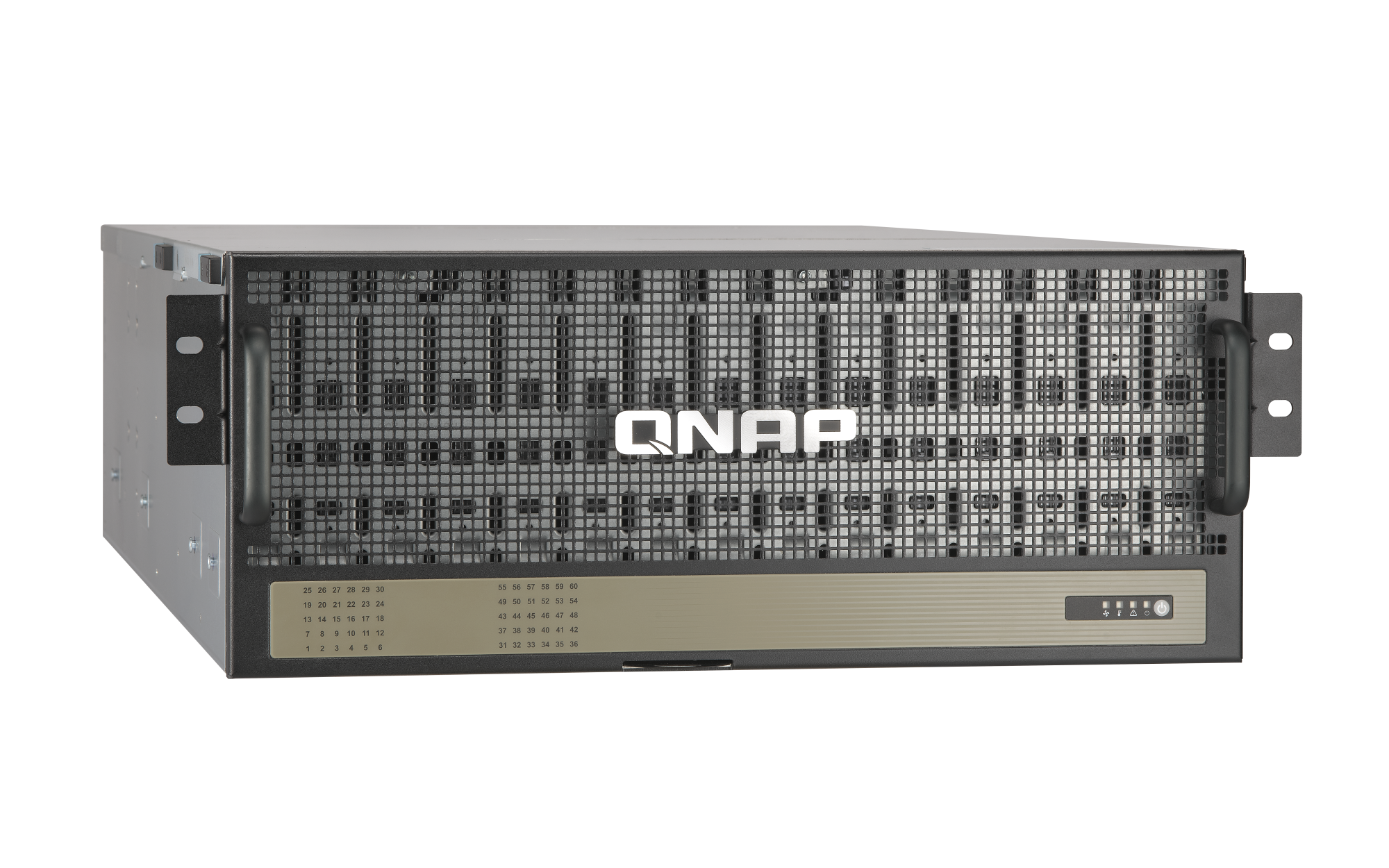

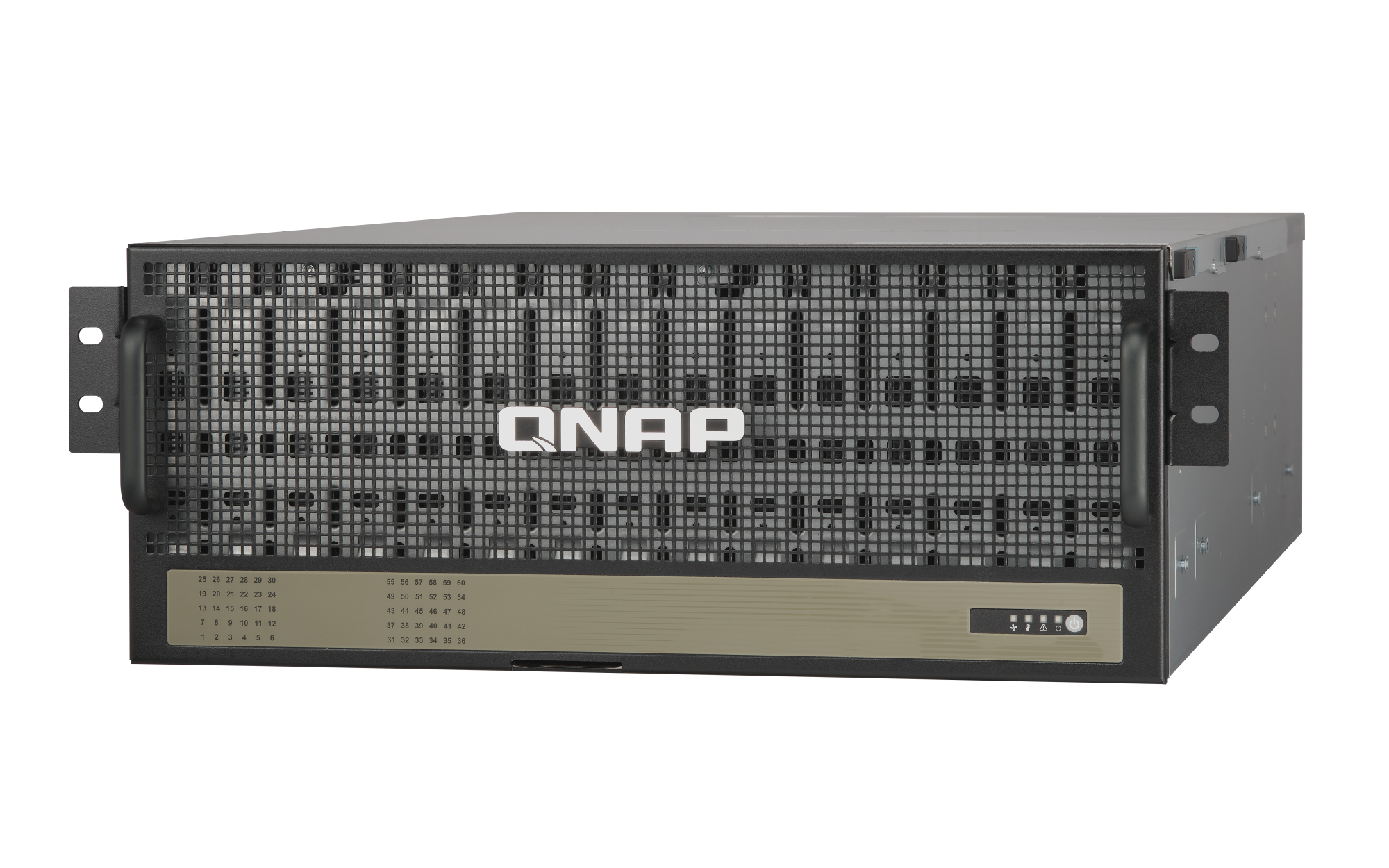

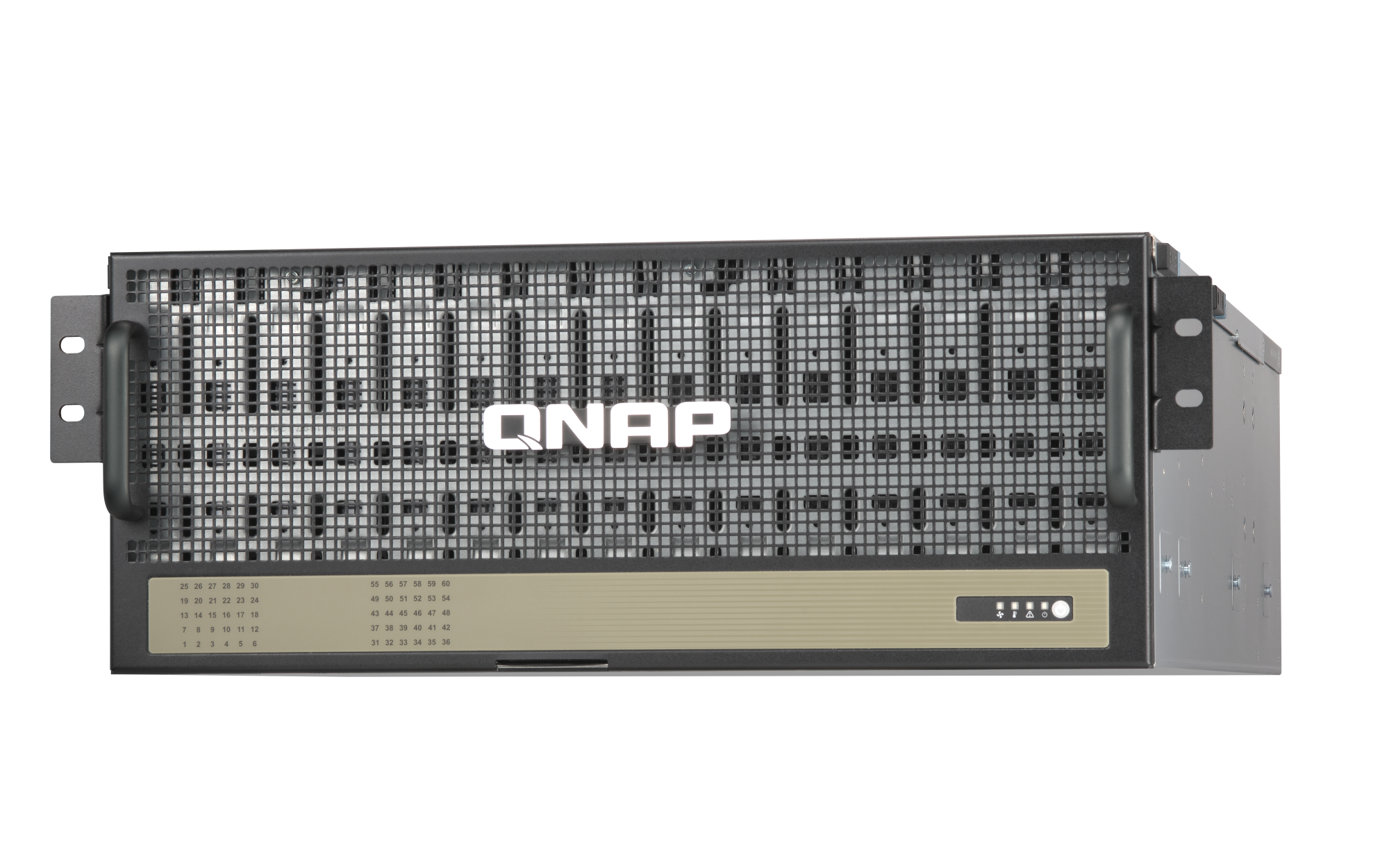

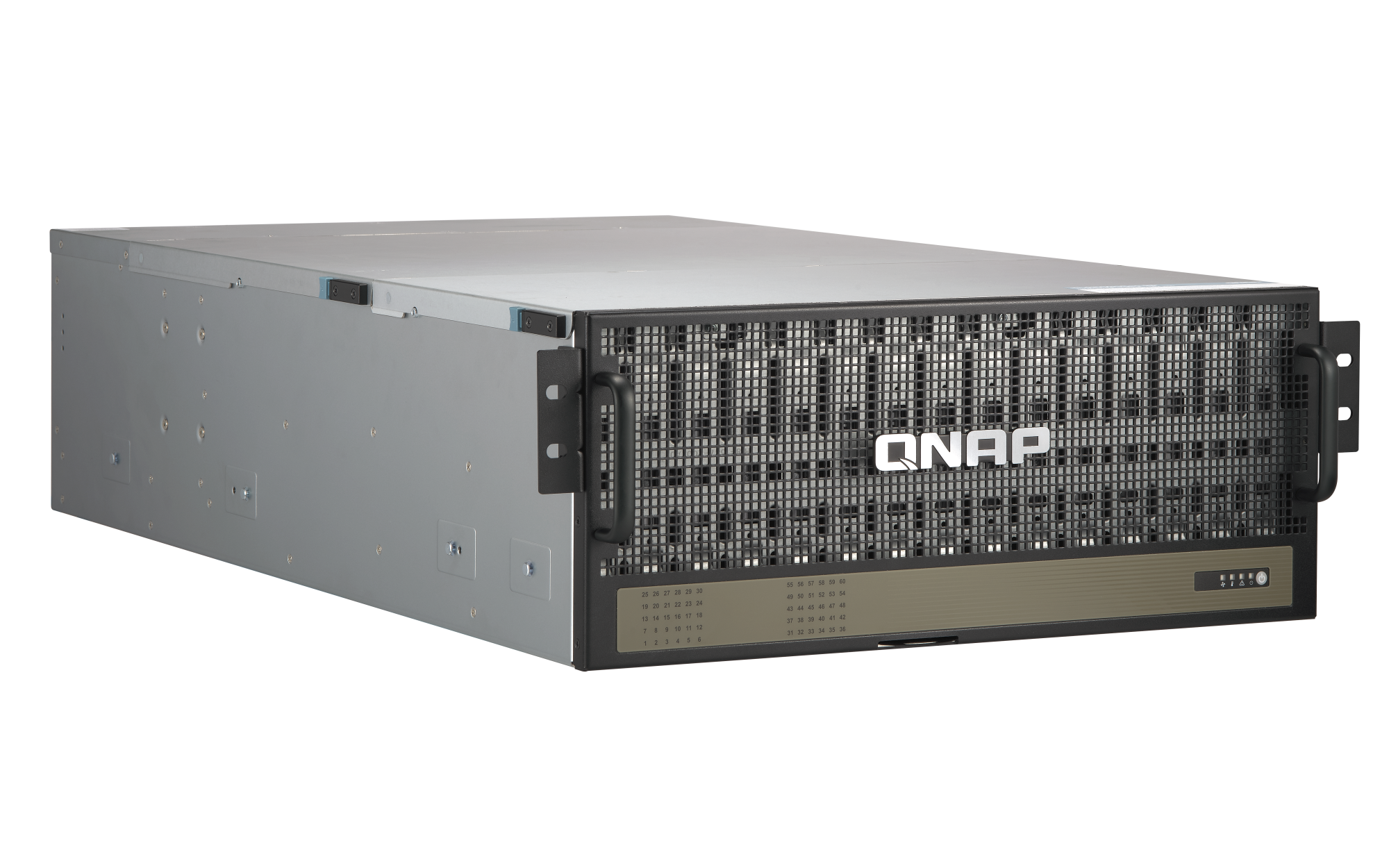

TL-R6020Sep-RP

TL-R6020Sep-RP Specification


JBOD Connection Interface	SAS

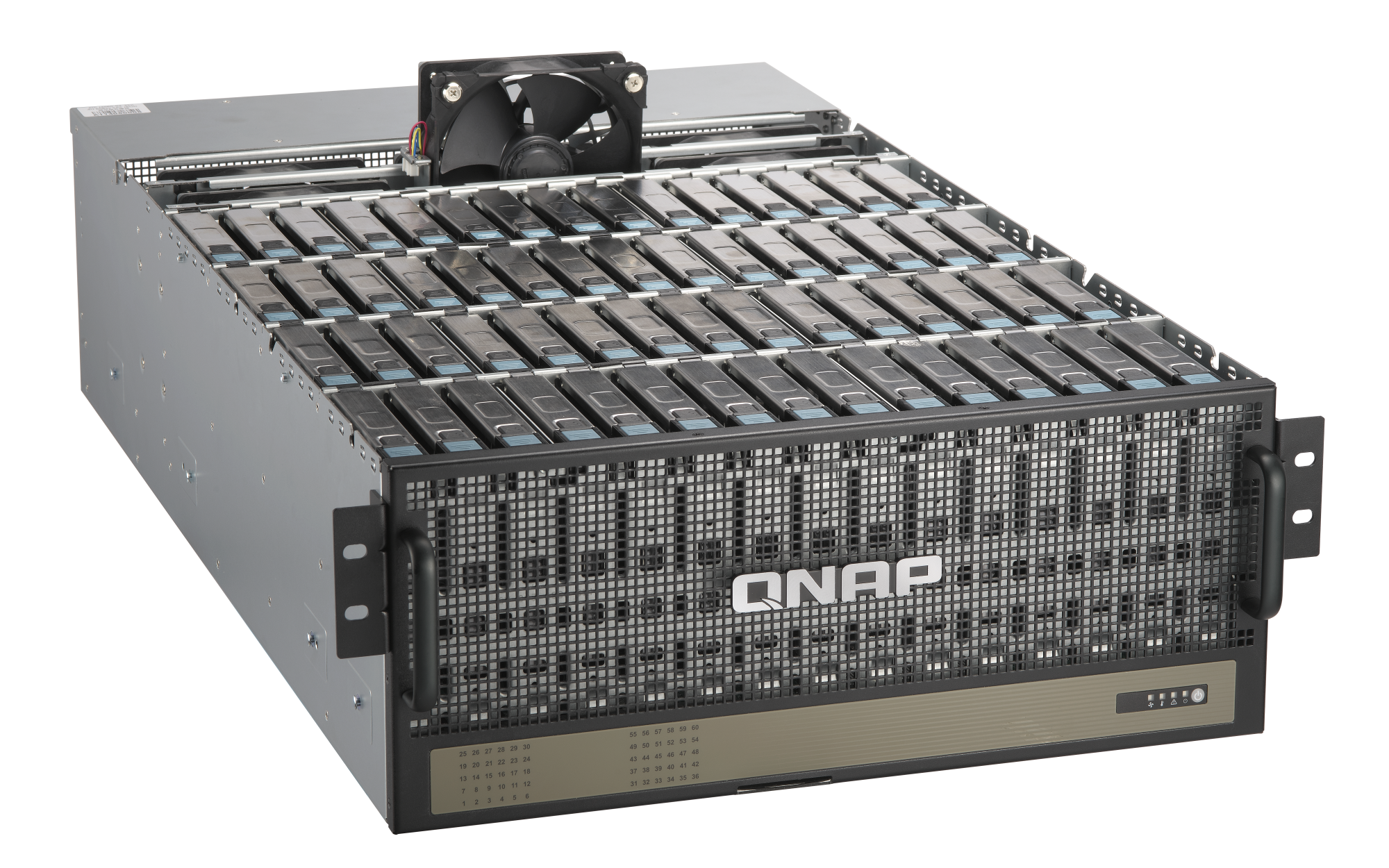

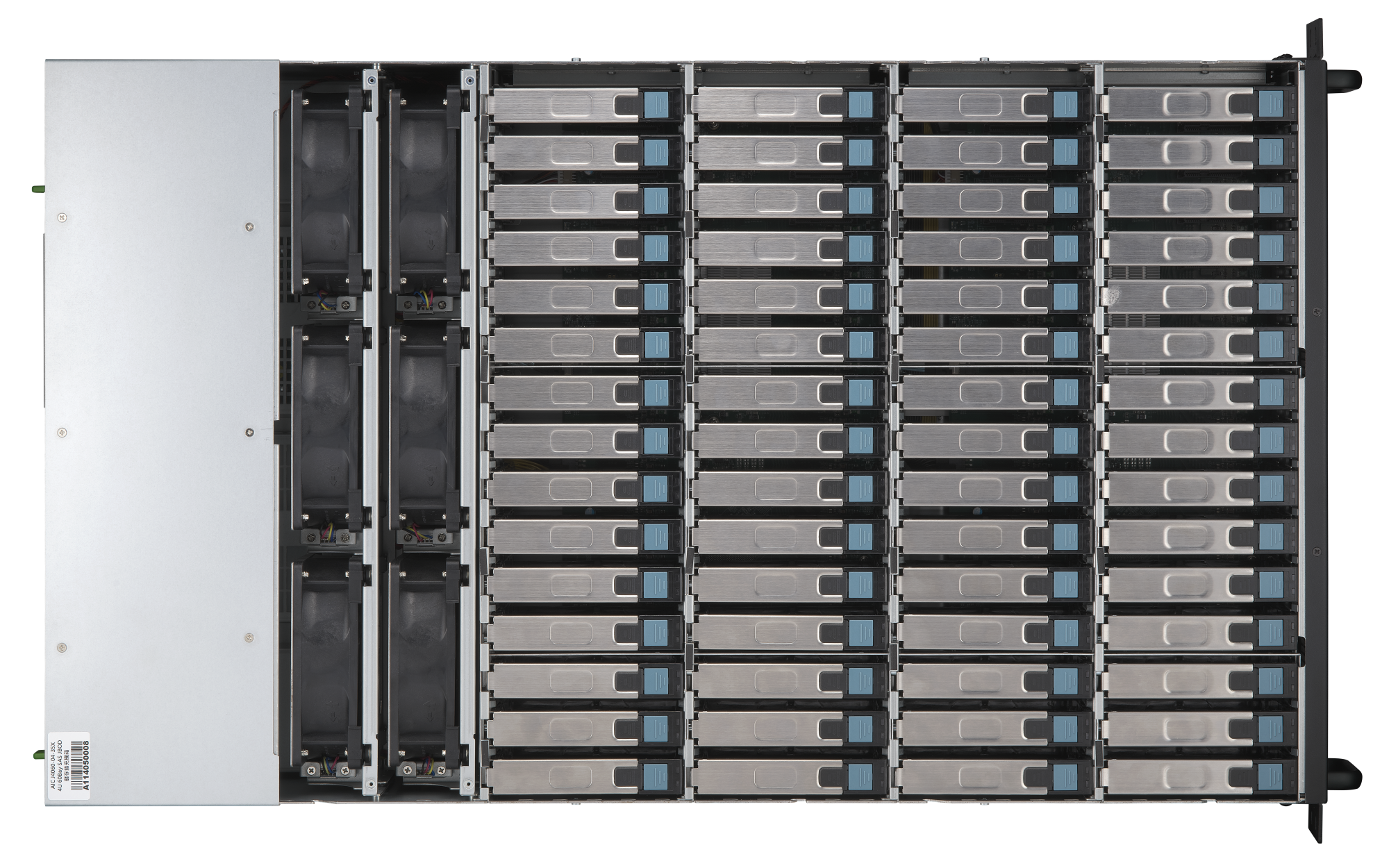

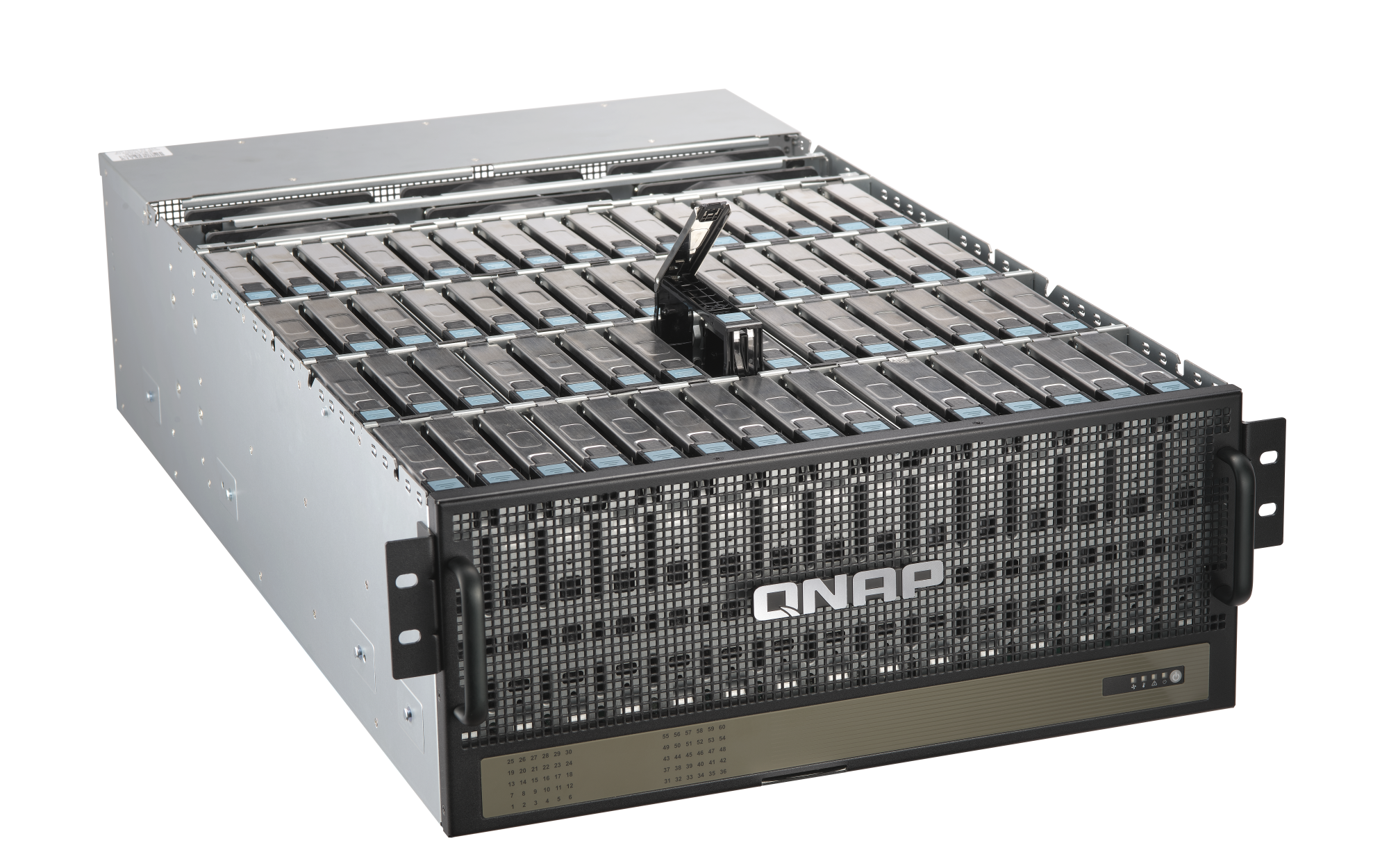

Drive Bay	60 x 3,5-tommer Systemet leveres uden HDD. For HDD-kompatibilitetslisten, besøg venligst https://www.qnap.com/compatibility/
Drive Compatibility	3,5-tommers bays: 3,5-tommers SAS 12Gb/s, 6Gb/s harddiske 3,5-tommers SATA 6Gb/s, 3Gb/s harddiske Du kan kun bruge én disktype (HDD eller SSD) i en RAID-gruppe. Kombination af forskellige typer diske i én RAID-gruppe understøttes ikke.
Hot-swappable
Form Factor	4U Rackmount

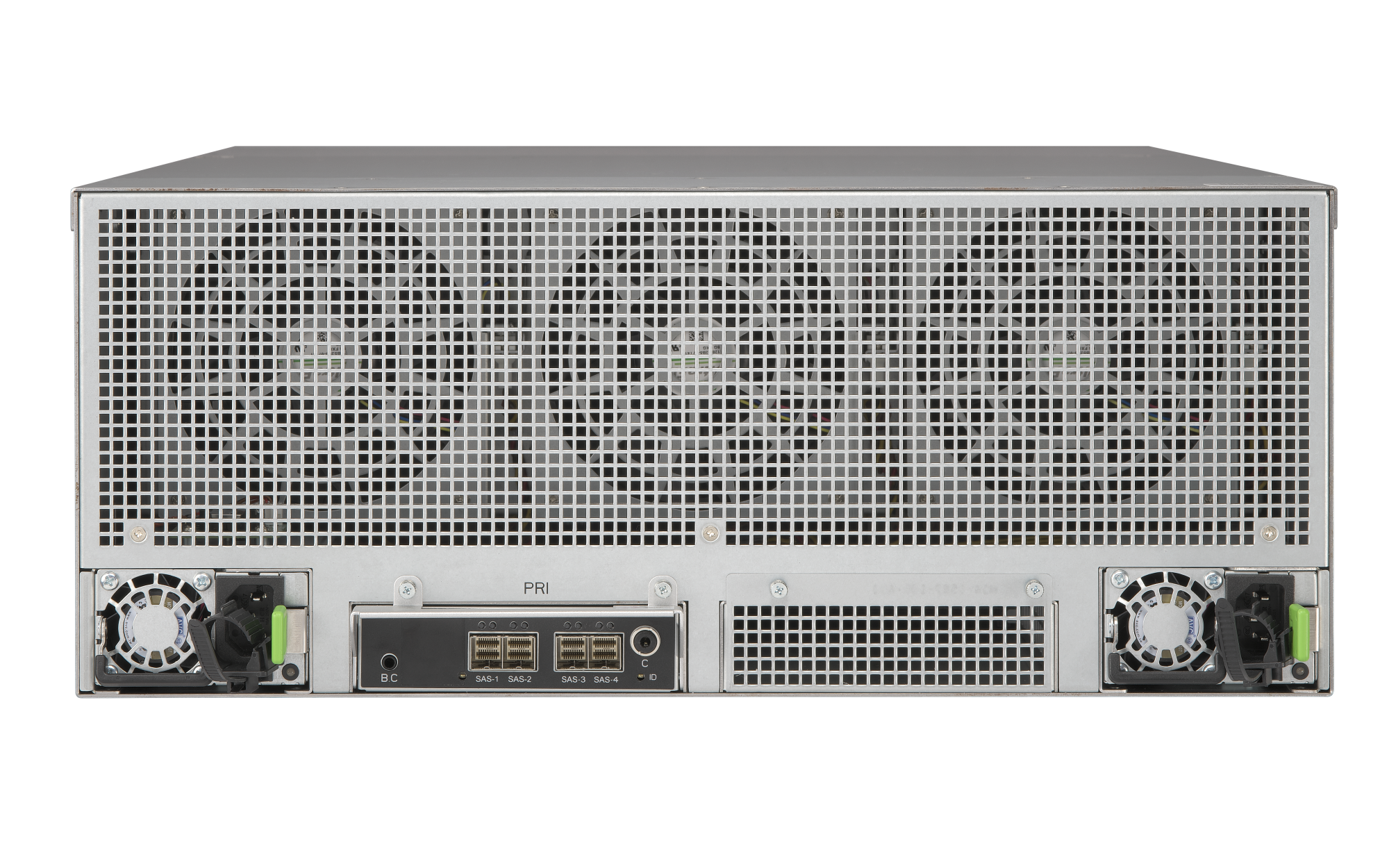

Host Interface	4 x 12Gb/s SAS 3.0 brede porte (4-bred port) Mini-SAS HD (SFF-8644)

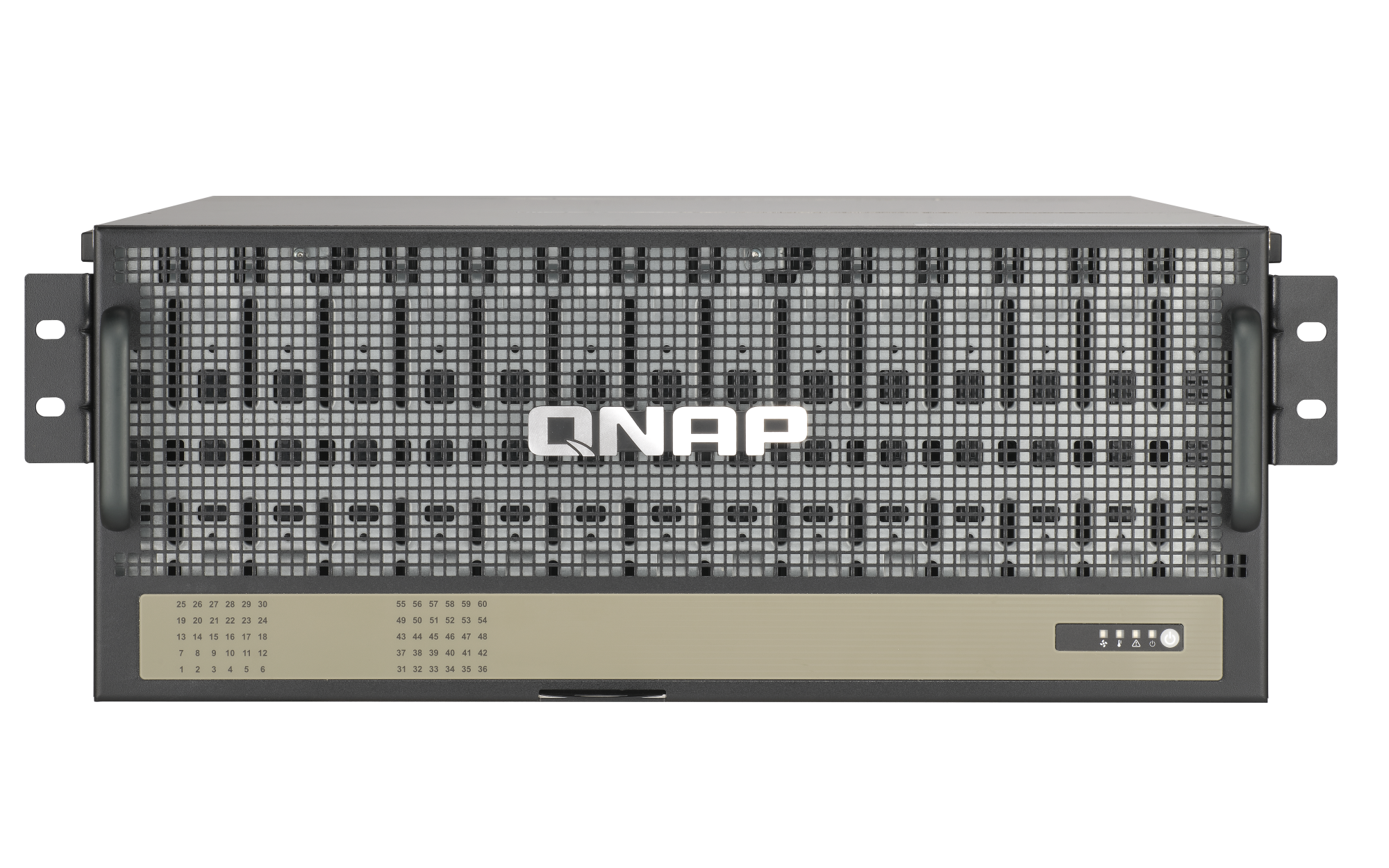

LED Indicators	Frontpanel: HDD 1-60, Tænd/sluk-knap, Strømstatus-LED, Strømsvigt-LED, Temperatur (overophedning)-LED, Blæserfejl-LED Bagpanel: SAS-stik, SAS UP/DOWN Link Status-LED'er, ID-LED
Buttons	Strøm
Dimensions (HxWxD)	176 × 482 × 750 mm Inkluderer ikke ørekrog og den fremspringende del af strømforsyningsenheden.
Weight (Net)	25.204 kg
Weight (Gross)	58.2 kg
Operating Temperature	0 - 40°C (32°F - 104°F)
Storage Temperature	-20 - 70 °C (-4 - 158 °F)
Relative Humidity	5~95% RH ikke-kondenserende, vådpære: 27℃ (80.6℉)

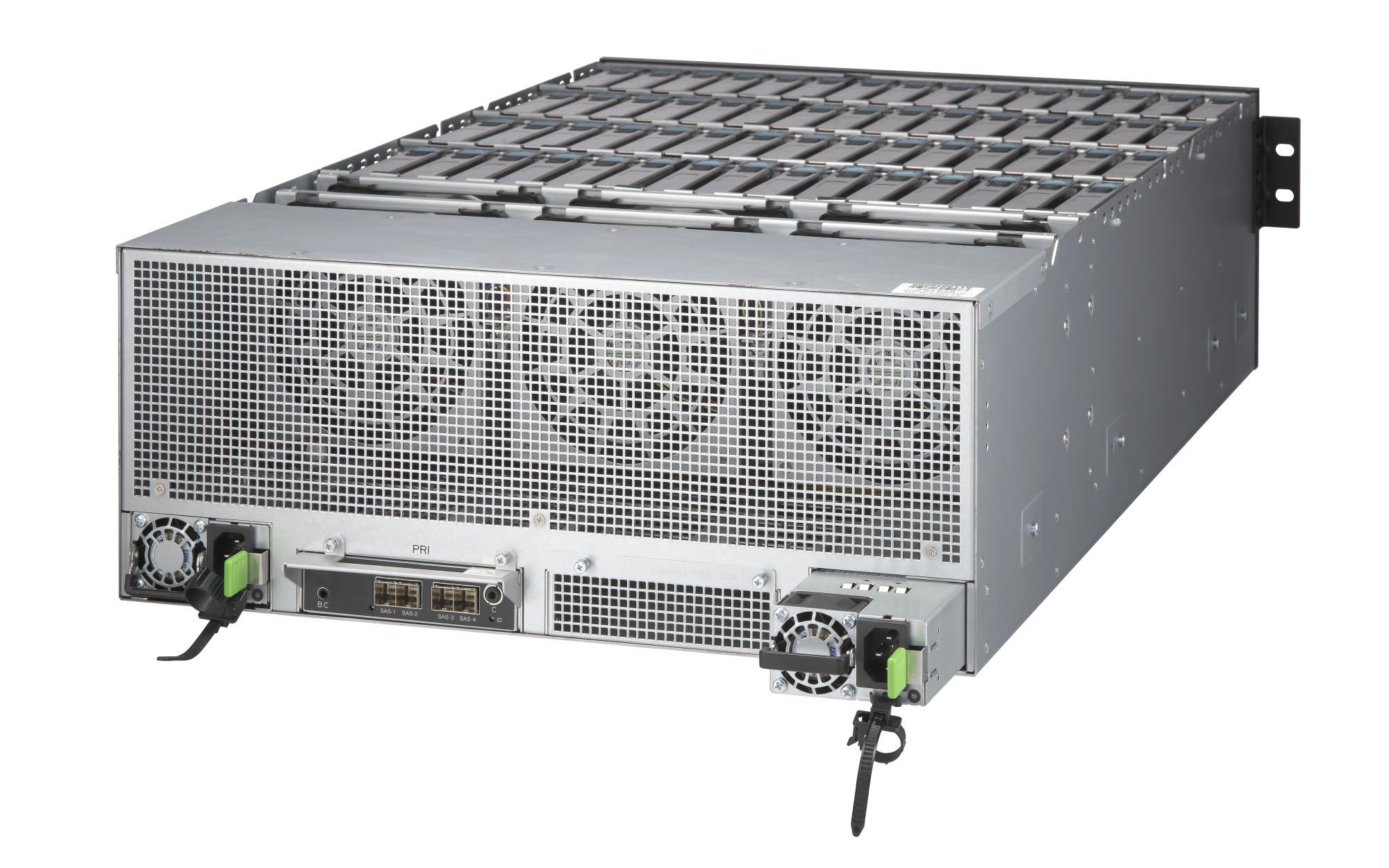

Power Supply Unit	1300W(x2), 100-240V
Power Consumption: Operating Mode, Typical	746.21 W Testet med drevene helt fyldt op.
Fan	6 x 120mm, 12VDC
System Warning	Strømsvigt-LED, Temperatur (overophedning)-LED, Blæserfejl-LED
QTS / QuTS hero	QuTS hero
Supports JBOD cascading
Supports expanding NAS storage pools
Supports Multi-path
Standard Warranty	5
Management	Administreres via QNAP QuTS hero OS 1. Understøtter disk S.M.A.R.T.-information 2. Find RAID-udvidelsesenheder 3. Find harddiske på RAID-udvidelsesenhed 4. Smart blæserstyring ved registrering af system- og harddisktemperatur 5. In-band SAS firmwareopdatering

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
