| Mål (L x B x H) | 157.3 mm length × 1-slot width × Low-profile (The dimension is based on PCBA size × not including the bracket) mm |
| Controller | Broadcom 57508 |
| Antal porte | 2 x QSFP28 |
| Stik | QSFP28 |
| PCIe og Lanes | PCIe 4.0 x16 (Compatible to PCIe 3.0 x16) |
| Transmissionshastigheder | 100Gbps |
| IEEE-standarder | > IEEE 802.3bs, 200 Gigabit Ethernet > IEEE 802.3cd, 50, 100 and 200
Gigabit Ethernet
> IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet
> IEEE 802.3by, 25, 50 Gigabit Ethernet supporting all FEC modes
> IEEE 802.3ba 40 Gigabit Ethernet > IEEE 802.3ae 10 Gigabit Ethernet > IEEE 802.3az Energy Efficient
Ethernet (supports only “Fast- Wake” mode)
> IEEE 802.3ap based auto- negotiation and KR startup
> IEEE 802.3ad, 802.1AX Link Aggregation
> IEEE 802.1Q, 802.1P VLAN tags and priority
> IEEE 802.1Qaz (ETS)
> IEEE 802.1Qbb (PFC)
> IEEE 802.1Qbg
> 25/50 Ethernet Consortium
“Low Latency FEC” for 50GE/100GE/200GE PAM4 links
> PCI Express Gen3 and Gen4 |

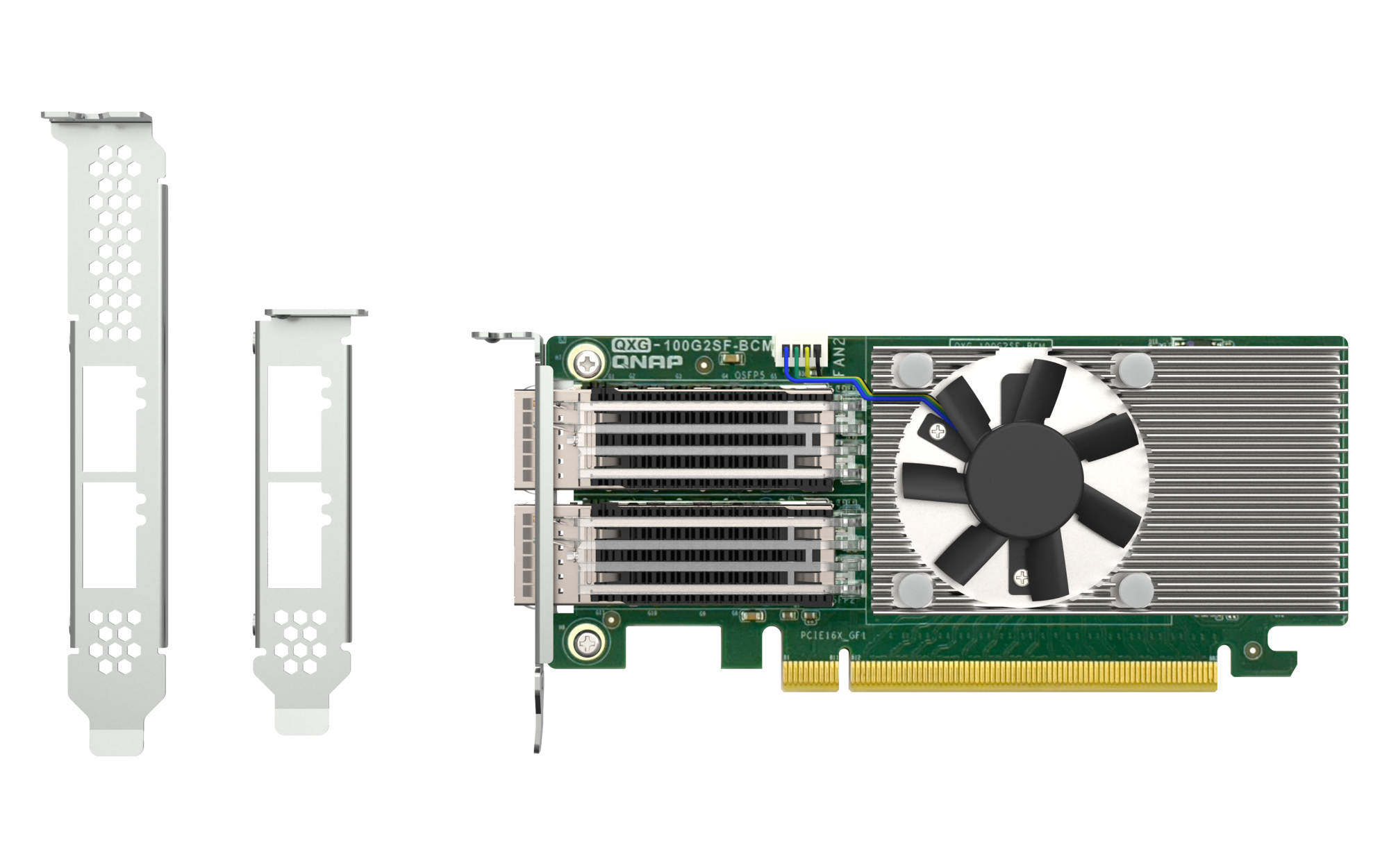

| Beslag | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV-understøttelse | |
| Understøttelse af krypto-hardwareaccelerator | |
| Understøttelse af RDMA over Converged Ethernet (RoCE), Zero Touch RoCE (ZTR) | |
| Understøttelse af VLAN-indsættelse/afisolering | |
| iSER-understøttelse | |
| Understøttelse af NVGRE, VXLAN, Geneve | |
| Hvor mange virtuelle funktioner | 1K virtual functions per port |
| Hvor mange fysiske funktioner pr. vært | 8 physical functions |
| Understøttede NAS-operativsystemer | QTS (recommend an upgrade to the latest version) ; Windows (Driver required); Linux (Driver required) |
| Understøttet QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Understøtter Ubuntu kommerciel Linux-distribution | Ubuntu 20.04/22.04 |
| Understøtter Windows | Windows 10/11 |
| Support Windows Server | Windows Server 2022 |
| Port og kabel | QSFP28 DAC cable or QSFP28 OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 2 x Brackets |
| Standard Warranty | 3 years |
