TS-201 Specification
| Processor: | SoC 266MHz |
| Memory: | 128MB DRAM, 16MB Flash |
| HDD Capacity: | 2 x 3.5" SATA I/II HDD, support hot swap and up to 1TB (the HDD is not included) |
| LAN Port: | 1 x Gigabit RJ-45 Ethernet port |

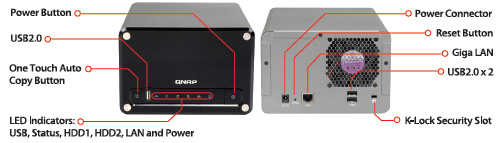

| LED Indicators: | USB, Status, HDD, LAN, Power |
| USB: | 3 x USB 2.0, support USB printer, |
| Buttons: | Intelligent USB auto copy button |
| Alarm Buzzer: | System warning |
| Form Factor: | Compact cubic type |
| Dimensions: | 214(D) x 175(W) x 115(H) mm |
| Weight: | Net weight: 2.4Kg |
| Operation Environment: | Temperature 0~35°C |
| Power Supply: | Input: 100-240V AC, 50/60Hz, Output: 12V DC, 5A |
| Power Consumption: | Sleep mode 10.2W |
| Energy-saving Design: | HDD sleep mode |
| Thermal Solution: | Silent Fan Case |
| Secure Design: | K-Lock security slot for theft prevention |
| Sound Level: | Standby: 36 dB In operation: 42dB |
 | |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
