TS-1273AU-RP

NAS แบบ 2.5GbE คู่ประสิทธิภาพสูง ขับเคลื่อนด้วยโปรเซสเซอร์ AMD Ryzen™ แบบ Quad-core รองรับการขยาย PCIe สำหรับเครือข่าย 10GbE หรือการแคช SSD M.2 สำหรับแอปพลิเคชันเสมือนจริง
(รองรับระบบ QTS หรือ QuTS hero)

BRKT-1P-2U

Single-slot PCIe bracket for TS-x73AU short depth 2U chasis

Dimension (L × W × H): 30.6 × 89.1 × 86.4 (mm)

Weight: 0.17 (kg)

BRKT-RISER-2P-2U

Riser Card Module; 1 x PCIe 3 x8 to 2 x PCIe 3 x4; x73AU short depth 2U chassis

Dimension (L × W × H): 127.7 × 88 × 86.4 (mm)

Weight: 0.31 (kg)

FAN-8CM-T01

DC Fan, 80*80*25mm, 12V, 4PIN

Dimension (L × W × H): 186 × 141 × 40 (mm)

Weight: 0.09 (kg)

PWR-PSU-300W-DT02

Single 300W power supply unit for redundant PSU, Active PFC, 90~264VAC, , Vout:12VDC/12VSB, CCL, RoHS

Dimension (L × W × H): 185 × 73.5 × 40 (mm)

Weight: 0.91 (kg)

For safety information and operating instructions, please refer to the documentation of your original QNAP product.

SCR-HDD25A-96

Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw

Dimension (L × W × H): 1 × 118 × 128 (mm)

Weight: 0.01 (kg)

SCR-HDD35B-96

Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw

Dimension (L × W × H): 1 × 118 × 128 (mm)

Weight: 0.03 (kg)

SP-TS-TRAY-WOLOCK

Black HDD tray with black flat head machine screw x6 for 2.5" HDD & silver flat head machine screw x8 for 3.5" HDD

Dimension (L × W × H): 185 × 140 × 40 (mm)

Weight: 0.20 (kg)

RAIL-B02

new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc

Dimension (L × W × H): 738 × 100 × 70 (mm)

Weight: 2.48 (kg)

This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.

RAIL-S01

Rail Kit, support rack-post 4.96" ~ 16.34" (126 ~ 415mm) depth cabinet, for 1U/2U/3U short-depth rackmount QNAP model

Dimension (L × W × H): 540 × 110 × 70 (mm)

Weight: 1.62 (kg)

LAN-10G2SF-MLX (EOL)

Dual-port 10GbE SFP+ network expansion card, Brackets for rackmount,tower and full height models are included.

Dimension (L × W × H): 60 × 105 × 260 (mm)

Weight: 0.24 (kg)

QXG-10G1T

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

Dimension (L × W × H): 143 × 193 × 52 (mm)

Weight: 0.17 (kg)

QXG-10G2SF-X710

Dual-port SFP+ 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x8

Dimension (L × W × H): 26 × 10.5 × 6 (mm)

Weight: 0.29 (kg)

QXG-10G2T

Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4

Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)

Weight: 0.29 (kg)

QXG-10G2T-107 (EOL)

Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen2 x4

Dimension (L × W × H): 145 × 190 × 52 (mm)

Weight: 0.24 (kg)

QXG-10G2T-X710

Dual-port 10GbE Network Adaptor, Intel 700 series Ethernet Controller

Dimension (L × W × H): 113.6 × 68.9 × 18.3 (mm)

Weight: 0.24 (kg)

QXG-10G2TB (EOL)

Dual-port 10GbE Network Adaptor, Aquantia AQC113C

Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)

Weight: 0.28 (kg)

QXG-25G2SF-CX6

Dual-port SFP28 25Gb network expansion card; Mellanox ConnectX-6 Lx;low-profile formfactor; PCIe Gen4 x8

Dimension (L × W × H): 120 × 16.5 × 69 (mm)

Weight: 0.15 (kg)

QXG-2G1T-I225

Single port 2.5GbE 4-speed Network card

Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)

Weight: 0.19 (kg)

QXG-2G2T-I225

Dual port 2.5GbE 4-speed Network card

Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)

Weight: 0.23 (kg)

QXG-2G4T-I225

Quad port 2.5GbE 4-speed Network card

Dimension (L × W × H): 104.6 × 68.9 × 24.1 (mm)

Weight: 0.24 (kg)

QXG-5G1T-111C

QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile

Dimension (L × W × H): 145 × 190 × 52 (mm)

Weight: 0.20 (kg)

QXG-5G2T-111C

QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile

Dimension (L × W × H): 145 × 190 × 52 (mm)

Weight: 0.20 (kg)

QXP-10G2U3A

Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142

Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)

Weight: 0.09 (kg)

QXP-1620S-B3616W (EOL)

4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series

Dimension (L × W × H): 149.7 × 68.9 × 23 (mm)

Weight: 0.23 (kg)

QXP-16G2FC

QNAP 2-port 16Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 16G transceivers

Dimension (L × W × H): 190 × 143 × 50 (mm)

Weight: 0.40 (kg)

QXP-32G2FC

QNAP 2-port 32Gbps fiber channel adapter, PCIe 3.0 x8, SFP+, low profile, w/ SFP+ 32G optical transceivers

Dimension (L × W × H): 190 × 143 × 50 (mm)

Weight: 0.40 (kg)

QXP-820S-B3408

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

Dimension (L × W × H): 129.7 × 68.9 × 230 (mm)

Weight: 0.21 (kg)

QXP-W6-AX200 (EOL)

QNAP WiFi 6 (Intel AX200) PCIe wireless card w/ antenna & brackets for NAS; Giga-byte GC-WBAX200 QNAP Edition

Dimension (L × W × H): 55 × 150 × 215 (mm)

Weight: 0.32 (kg)

USB-U31A2P01 (EOL)

USB 3.2 Gen 2 10Gbps Type-A Dual-port PCIe Card

Dimension (L × W × H): 113 × 185 × 52 (mm)

Weight: 0.17 (kg)

USB cabe is not included.

TRX-10GSFP-SR-MLX

Mellanox MFM1T02A-SR SFP+ Optical Module for 10GBASE-SR

Dimension (L × W × H): 120 × 195 × 35 (mm)

Weight: 0.10 (kg)

TRX-25GSFP28-SR

Optical Transceiver 25GbE SFP28 LC-LC 850nm SR up to 100m

Dimension (L × W × H): 96.5 × 13.6 × 10.4 (mm)

Weight: 0.07 (kg)

CAB-DAC15M-SFP28

SFP28 25GbE twinaxial direct attach cable, 1.5M

Dimension (L × W × H): 1500 × 13.6 × 8.6 (mm)

Weight: 0.17 (kg)

CAB-DAC15M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 1.5M

Dimension (L × W × H): 10 × 240 × 295 (mm)

This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC30M-SFP28

SFP28 25GbE twinaxial direct attach cable, 3.0M

Dimension (L × W × H): 3000 × 13.6 × 8.6 (mm)

Weight: 0.28 (kg)

CAB-DAC30M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 3.0M

This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC50M-SFPP

SFP+ 10GbE twinaxial direct attach cable, 5.0M

This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

RAM-16GDR4A0-UD-2400

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 1024M X 8

Frequency: DDR4-2400

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 2048M*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-16GDR4ECT0-UD-2666

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 1G X 8

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 2048M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

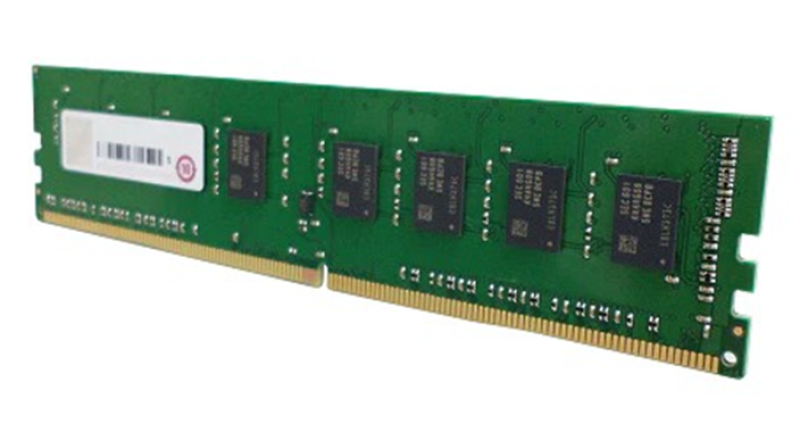

RAM-16GDR4K2-UD-3200

16GB DDR4 RAM, 3200 MHz, UDIMM, 288 pin

RAM-32GDR4ECK1-UD-3200

32GB DDR4 ECC RAM, 3200 MHz, UDIMM, K1 version

RAM-32GDR4ECT0-UD-3200 (EOL)

DDR type: DDR4(288PIN)

Capacity: 32GB

Spec: 2G X 8

Frequency: DDR4-3200

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 4G*72

Temperature: 0℃~85℃

Environmental Regulation: Halogen Free

RAM-4GDR4A0-UD-2400 (EOL)

DDR type: DDR4(288PIN)

Capacity: 4GB

Spec: 512M X 16

Frequency: DDR4-2400

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 512M*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-4GDR4ECP0-UD-2666

DDR type: DDR4(288PIN)

Capacity: 4GB

Spec: 512M X 8

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 512M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4A0-UD-2400

DDR type: DDR4(288PIN)

Capacity: 8GB

Spec: 1024M X 8

Frequency: DDR4-2400

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 1024M*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4A1-UD-2400

DDR type: DDR4(288PIN)

Capacity: 8GB

Spec: SAMSUNG 1024M X 8

Frequency: DDR4-2400

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 1024M*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4ECT0-UD-2666

DDR type: DDR4(288PIN)

Capacity: 8GB

Spec: 1G X 8

Frequency: DDR4-2666

Form(PIN): 288PIN

with ECC Supported: ECC

Power Supply: 1.2V

Dram Organization: 1024M*72

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-8GDR4K0-UD-3200

8GB DDR4 RAM, 3200 MHz, UDIMM, K0 version
