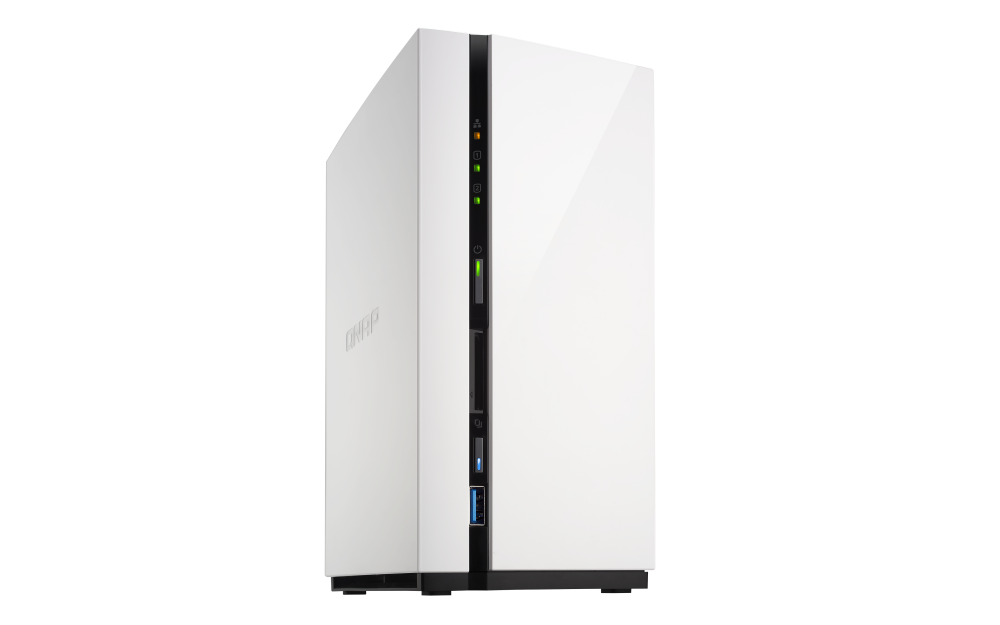

TAS-268 Specification

TAS-268
Specification
Buy→
CPU ARM® 1.1 GHz dual-core processor
Memory 2GB DDR3
Flash Memory 4GB
Hard Disk Drive 2 x 3.5" SATA 6Gb/s, 3Gb/s HDDs

NOTE:
1. For the HDD compatibility, please visit https://www.qnap.com/compatibility
2. Maximum single volume: 16TB
RAID Management RAID 0, RAID 1, JBOD, Single disk
LAN Port 1 x Gigabit RJ-45 Ethernet port
LED Indicators HDD 1-2, LAN, Status, USB
USB 1 x USB 3.2 Gen 1 (Front)
4 x USB 2.0 (Rear)
Buttons Power/Status, Reset, USB One-Touch-Backup
Alarm Buzzer System warning
Form Factor Mini-tower
Dimensions (H x W x D) 187.7 x 90 x 125 mm
7.36 x 3.54 x 4.92 inch
Weight Net: 0.7 Kg (1.54lbs)
Gross: 1.88 Kg (4.14lbs)
Sound Level* Sound pressure (LpAm): 17.0 dB(A)
Temperature & Humidity 0-40℃，5-95% RH non-condensing
Power Consumption (HDD Standby) HDD standby：6.05W
In operation：13.24W
(with 2 x 2TB HDDs intalled)
Power Supply External Power Adapter, 60W, 100-240V
Fan Yes


1. LED Indicators: LAN, HDD, Status, USB 7. Password & Network Settings Reset Button
2. Power Button 8. USB 2.0 port x 4
3. SD Card Reader 9. HDMI™ portx 1
4. USB One-touch-copy Button 10. Gigabit LAN port x 1
5. USB 3.2 Gen 1 port x 1 11. DC 12V Power Connector
6. Exhaust for heat dissipation


Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Operating System
QTS 4.1 (embedded Linux)
Storage Management
  1. Single Disk, JBOD, RAID 0, 1
  2. Bad block scan and hard drive S.M.A.R.T.
  3. Bad block recovery
  4. RAID recovery
  5. Bitmap support
Supported Clients*
  1. Apple Mac OS 10.7 or later
  2. Linux and UNIX
  3. Microsoft Windows 7, 8, and 10
  4. Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016
Power Management
  1. Internal hard drive standby mode
  2. Scheduled power on/off
  3. Automatic power on after power recovery
  4. USB and network UPS support with SNMP management
Supported Browsers
  1. Chrome, IE 10+, Firefox, Safari
Access Right Management
  1. Batch users creation
  2. Import/export users
  3. User quota management
  4. Local user access control for CIFS, AFP, FTP, and WebDAV
  5. Application access control for Photo Station, Music Station, Video Station, and Multimedia Station
  6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private cloud storage and sharing with myQNAPcloud id (qid)
  2. Free host name registration (DDNS)
  3. Auto router (via UPnP) configuration
  4. Web-based file manager with HTTPS 2048-bit encryption
  5. myQNAPcloud Link for remote access without complicated router setup
File System
  1. Internal hard drive: EXT4
  2. External hard drive: EXT4, EXT3, NTFS, FAT32, HFS+
Qsync
  1. Syncs files among multiple devices with SSL support
  2. Selective synchronization for syncing specific folders only
  3. Share team folder as a file center for team collaboration
  4. Shares files by links via e-mail
  5. Policy settings for conflicted files and file type filter support
  6. Version control: up to 64 versions.
  7. Incremental synchronization for HDD space saving
  8. Supports Windows & Mac OS
Networking
  1. TCP/IP: IPv4
  2. Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming )
  3. Proxy client, proxy server
  4. DHCP client
  5. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, SNMP, SMTP, and SMSC
  6. UPnP & Bonjour discovery
Web Administration
  1. Multi-window, multi-tasking based system management
  2. Personalized desktop
  3. Smart toolbar and dashboard for neat display on system status
  4. Login screen with personalized photo-wall style
  5. Smart fan control
  6. Dynamic DNS (DDNS)
  7. SNMP (v2 & v3)
  8. Resource monitor
  9. Network recycle bin for file deletion via CIFS/SMB, AFP and File Station
    - Automatic cleanup
    - File type filter
  10. Comprehensive logs (events & connection)
  11. Syslog client/server
  12. System settings backup and restore
  13. Restore to factory default
  14. Mobile app: Qmanager for remote system monitoring & management
Security
  1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. CIFS host access control for shared folders
  3. Importable SSL certificate
  4. Instant alert via E-mail, SMS, and beep

Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Advanced folder permission for CIFS/SMB, AFP, FTP
  3. Shared folder aggregation (CIFS/SMB)
FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP supported
  3. Passive ftp port range control
Video Station
  1. Show photos in thumbnails, list, timeline, or folder view
  2. Supports virtual/smart collection
  3. Validity control for sharing collections
  4. Tags videos with text, color, and rating
  5. Animated thumbnails for videos
  6. Shares video collection link to social websites or through email
  7. Sorting videos automatically into defined classifications
  8. Display movie information from IMDB
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Support thumbnail display of multimedia files
  3. Supported share download link and upload link
  4. Drag-n-drop Files via Chrome and Firefox Browsers
  5. Photo, music, and video preview and playback with hardware accelerated transcoding
  6. File Compression (ZIP or 7z)
DLNA Server
  1. Supports DLNA/UPnP TVs and Players such as PlayStation 3 and Xbox 360
  2. Support CUE indexing file
* DRM encryption format is not supported.
Backup Station
  1. Remote replication server (over rsync)
  2. Real-time remote replication (RTRR) to another QNAP NAS or FTP server
  3. Works as both RTRR server & client with bandwidth control
  4. Real-time & scheduled backup
  5. Compression, file filter, and transfer rate limitation
  6. Desktop backup with QNAP NetBak Replicator for Windows
  7. Apple Time Machine backup support
  8. Data backup to multiple external storage devices
  9. Synchronizes with cloud storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud Storage
  10. Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
Download Station
  1. PC-less BT, FTP/FTPS, and HTTP/HTTPS download (up to 500 Tasks)
  2. BT download with Magnet Link and PT support
  3. Scheduled download and bandwidth control
  4. RSS subscription and download (broadcatching)
  5. Bulk download with wildcard settings
  6. BT search
  7. Proxy support for BT download
  8. PC utility: Qget for downloads browsing and management
  9. Mobile app: Qget for downloads browsing and management
Cloud Drive Sync Station (Beta)
  1. Dropbox
  2. Google Drive
Android™ Station
  1. Playbacks videos, music, photos on tv with Kodi via hdmi output
  2. Watch various online contents such as Flickr, Picasa, Shoutcast, etc.
  3. Web browser
  4. Supports USB U.S. keyboard and mouse for Windows.
  5. Apple keyboard and mouse is not supported.
  6. Download Apps from Google Play™ for fun.
Note:
The playback and quality of some video files may be affected due to the current CPU and GPU's decoding capability.
Up to 7.1 channel audio passthrough can be supported for PCM
Up to 5.1 channel audio passthrough can be supported for DTS and Dolby.
Photo Station
  1. Show photos in thumbnails, list, timeline, or folder view
  2. Supports virtual/smart album
  3. Validity control for sharing albums
  4. Tags photos with text, color, and rating
  5. Slideshows with background music and different transition effects
  6. Animated thumbnails for videos
  7. Geotags photos and display them on Google maps
  8. Shares slideshows link to social websites or through email
  9. Supports Facebook friends login
  10. Supports modification on photo taken date

Music Station
  1. Plays or Shares Music Collections with Web Browser
  2. Automatic Classification via Media Library
  3. Internet Radio (MP3)
* DRM encryption format is not supported.

* The data encryption functions may not available in accordance with the legislative restrictions of some countries.
Design and specifications are subject to change without notice.
TAS-268 Ethernet Cable x 1 Power Cord x 1
AC Adapter: SP-2BAY-ADAPTOR Infrared (IR) Remote Control: RM-IR003 Quick Installation Guide (QIG)

Optional Accessories

  1. FIXER-HDD35-BLK001
    FIXER-HDD35-BLK001
    PWR-ADAPTER-65W-A01
    PWR-ADAPTER-65W-A01 (EOL)
    RM-IR003
    RM-IR003 (EOL)
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
