QDA-A2AR Specification

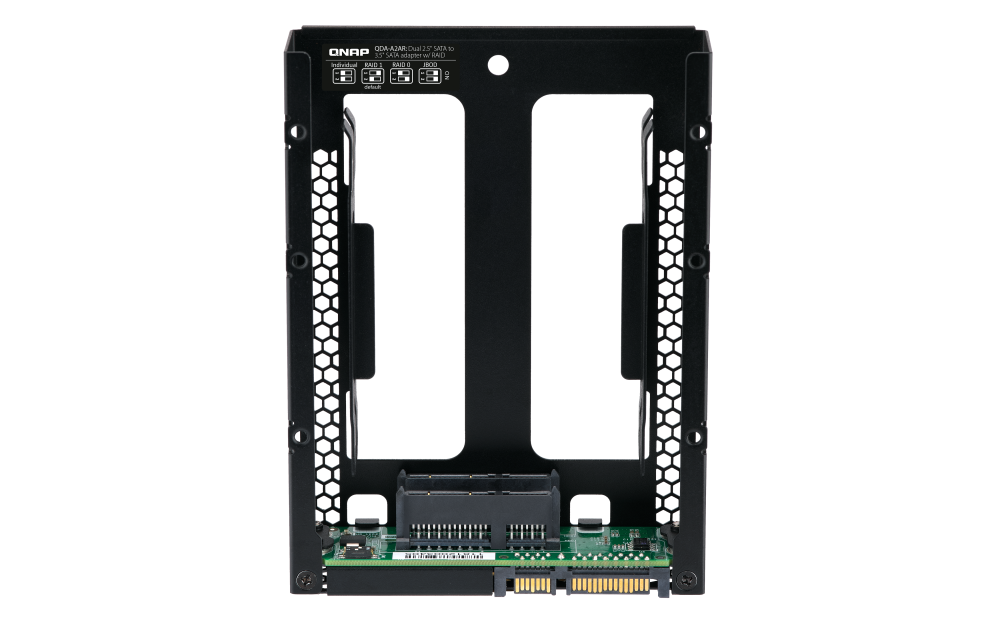

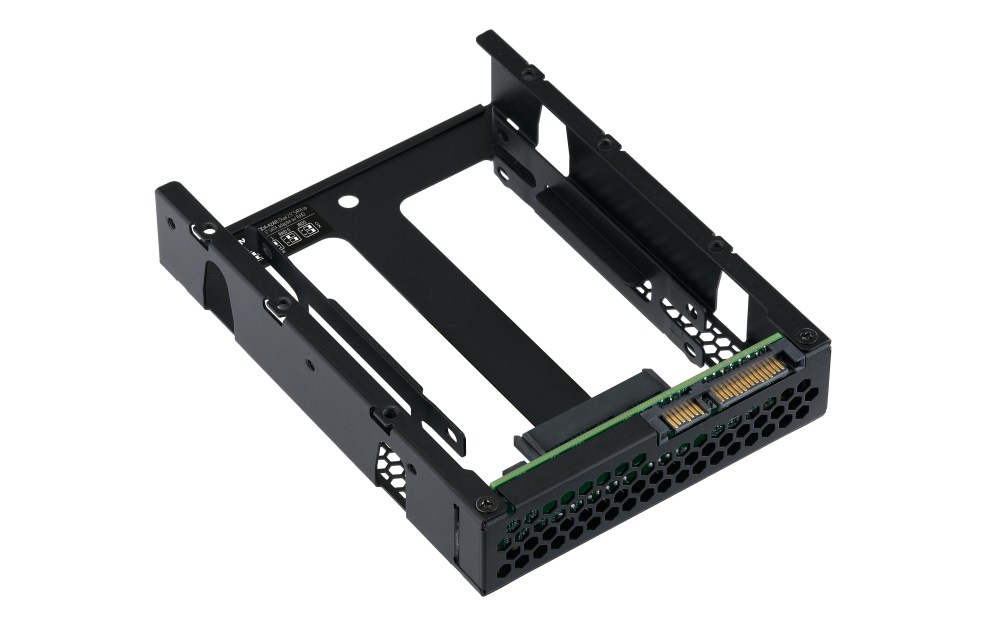

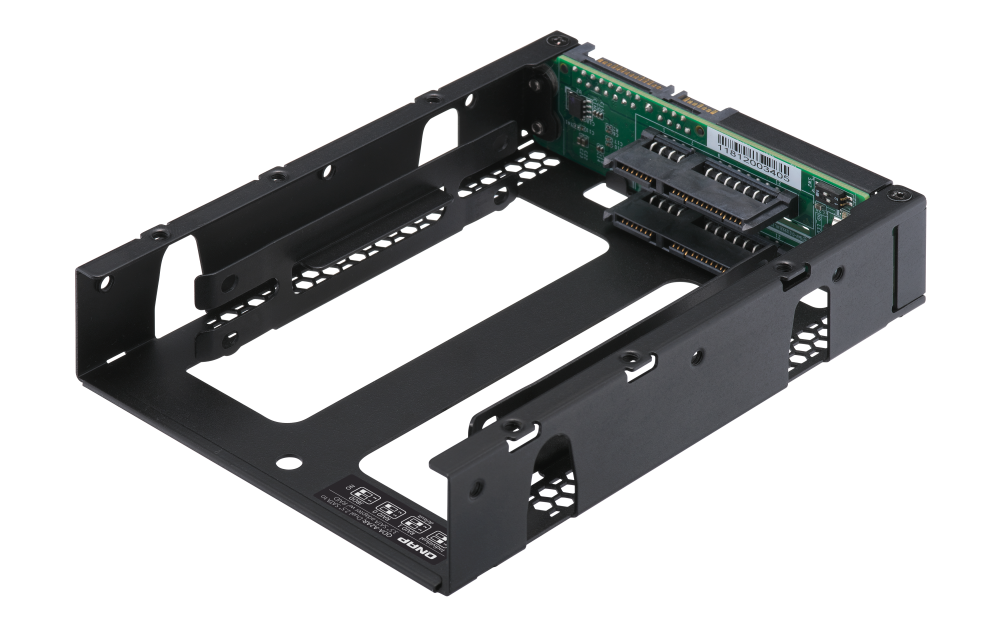

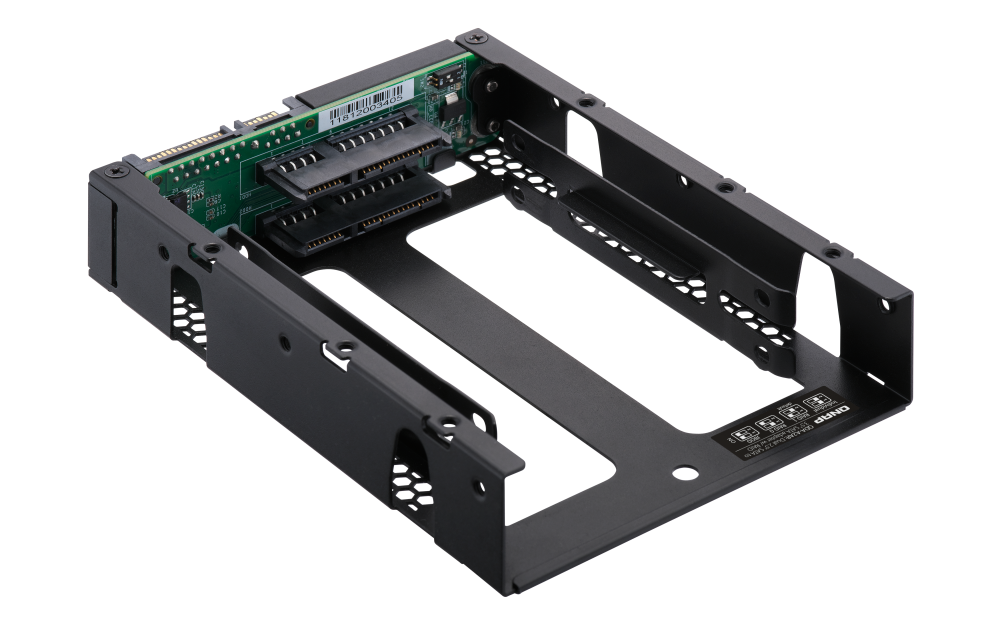

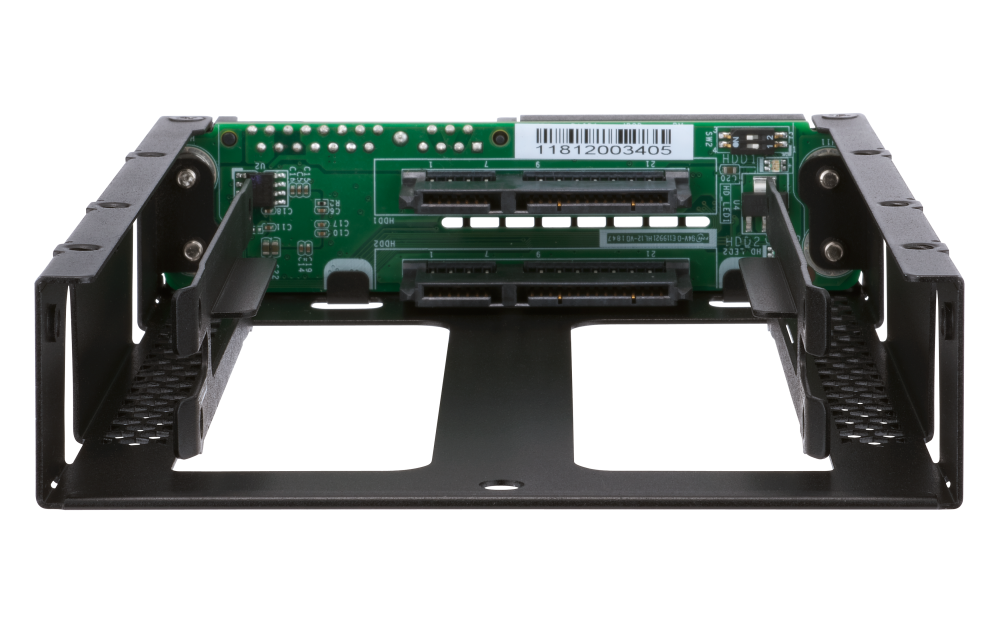

Use two 2.5-inch SATA drives in a single 3.5-inch SATA drive bay with RAID support for PC and NAS


Standard Warranty	1 year
Supported Drives	2 x 2.5" SATA 6Gbps HDD/SSD (up to 9.5 mm in height)
Host-interface	SATA 6Gbps
Ondersteunde besturingssystemen	1. QTS 4.4.1 (or later) 2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2 3. Ubuntu
Dimensions (L x W x H)	138,2 × 101,6 × 25,9 mm
Gewicht	0.15 kg
RAID-ondersteuning	RAID 0, 1
Opgelet	The connected drive may not reach its optimal performance due to protocol translation and some overhead. All the drive data will be cleared upon drive initialization or RAID mode switching with the QDA-A2AR. Ensure that all data is backed up beforehand. Window and Linux PC supports all four modes mentioned above. QTS does not support Individual mode. It is recommended that only drives with identical model numbers and capacities are used to create a RAID 0/1 group because the total storage space will be equal to the size of the smallest drive. The SATA controller of the PC must support port multipliers to recognize two drives in the Individual mode configuration. Consult your system provider and install the latest drivers for your SATA controller. Installing a QNAP disk adapter in another QNAP disk adapter is not supported. (e.g. QDA-A2MAR cannot be installed in the QDA-A2AR.) TR-002/TR-004 RAID expansion enclosures do not support QDA-A2AR/QDA-A2MAR. QTS identifies the drives in a QDA-A2AR as a single volume. Installing two drives with a RAID 1 configuration for QDA-A2AR is required to use Qtier. If a QDA-A2AR drive fails and needs replaced: you must disable Qtier to make the QDA-A2AR drive data move to the NAS-based storage pool, and then replace the failed QDA-A2AR drive.
Architectuurschema

Opmerking: QNAP behoudt zich het recht voor om onderdelen of accessoires te vervangen als het origineel niet meer beschikbaar is bij de fabrikant/toeleverancier. Elke vervanging wordt volledig getest en geverifieerd om de strikte compatibiliteit en stabiliteit richtlijnen te volgen, en zal identieke performantie leveren als het origineel.
Productafbeeldingen zijn ter illustratie en kunnen verschillen van het actuele product. Door verschillen in beeldschermen kunnen de kleuren van producten op de site afwijken van het origineel.
Designs en specificaties kunnen wijzigen zonder voorafgaande kennisgeving.

Minimum operating system requirements

QNAP NAS: QTS 4.4.1 and later
Windows: Windows 7 and later, Windows Server 2012 R2 and later
Linux

Software Utility Features

QNAP External RAID Manager

Overview device, disks, and RAID info and status
Support for disk’s S.M.A.R.T. monitoring
Desktop notification to inform abnormal status
RAID rebuild
RAID recovery
Firmware update
Notification for new version of firmware and application
System event logs for troubleshooting
Export event logs to .csv file

Note: Actual performance may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, disk model and capacity.
