QSW-M2130P-2C2S26T Specification
-
QSW-M2130P-2C2S26T
Management Type L2 Web Managed Number of Ports 30 10GbE SFP+ 2 10GbE BASE-T (RJ45) 2 10G/5G/2.5G/1G/100M10GbE SFP+/RJ45 Combo Ports 2 Note: The 10GbE SFP+ ports are backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M).2.5GbE (RJ45) 24 Total PoE Ports 28 PoE++ PSE (802.3bt, 90W) Port 17-28 (90W) PoE Power Output Port 1-16 (45W)
Port 17-28 (90W)Total PoE Power Budget 375W Power Supply Description Internal Power supply unit Max. Power Consumption 455W Input Power Type AC Input Voltage Range 100-240VAC, 50/60Hz MAC Address Table 32K Total Non-Blocking Throughput 120Gbps Switching Capacity 240Gbps Management Interface Web Console RJ45 Energy Efficient Ethernet (IEEE 802.3az complaint) Fan PWM VAPO Bearing fan x 3 Sound Level <28dB db(A) Supported Standards IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10GBASE-T
IEEE 802.3ae 10G Fiber
IEEE 802.3z 1000BASE-SX/LX
IEEE 802.3bt Power over Ethernet
IEEE 802.3x Full-Duplex Flow Control
IEEE 802.1Q VLAN Tagging
IEEE 802.1w RSTP
IEEE 802.3ad LACP
IEEE 802.1AB LLDP
IEEE 802.1p Class of Service
IEEE 802.3az EEEForm Factor Rackmount LED Indicators Per Port: Speed/Link/Activity
Per System: Power/LoopButtons Reset button Dimensions (HxWxD) 44 x 440 x 205 mm Weight (Net) 3.54 kg Weight (Gross) 4.398 kg Operating Temperature 0°C to 50°C (32°F to 104°F) Relative Humidity 5~95% Non-condensing Certifications CE, VCCI, BSMI, FCC, ICES, RCM, UKCA, LVD Electromagnetic Compliance CLASS A Jumbo Frames 12K Warranty 2 Years Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

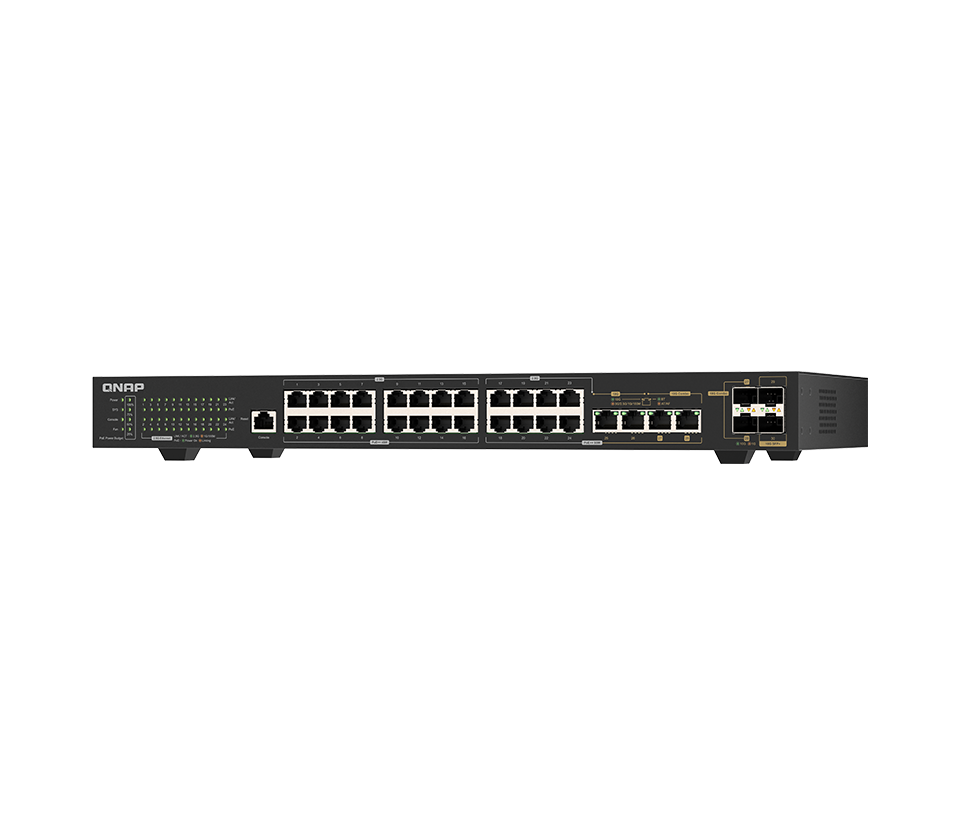

QSW-M2130P-2C2S26T
Tápkábel
Rack szerelőkészlet

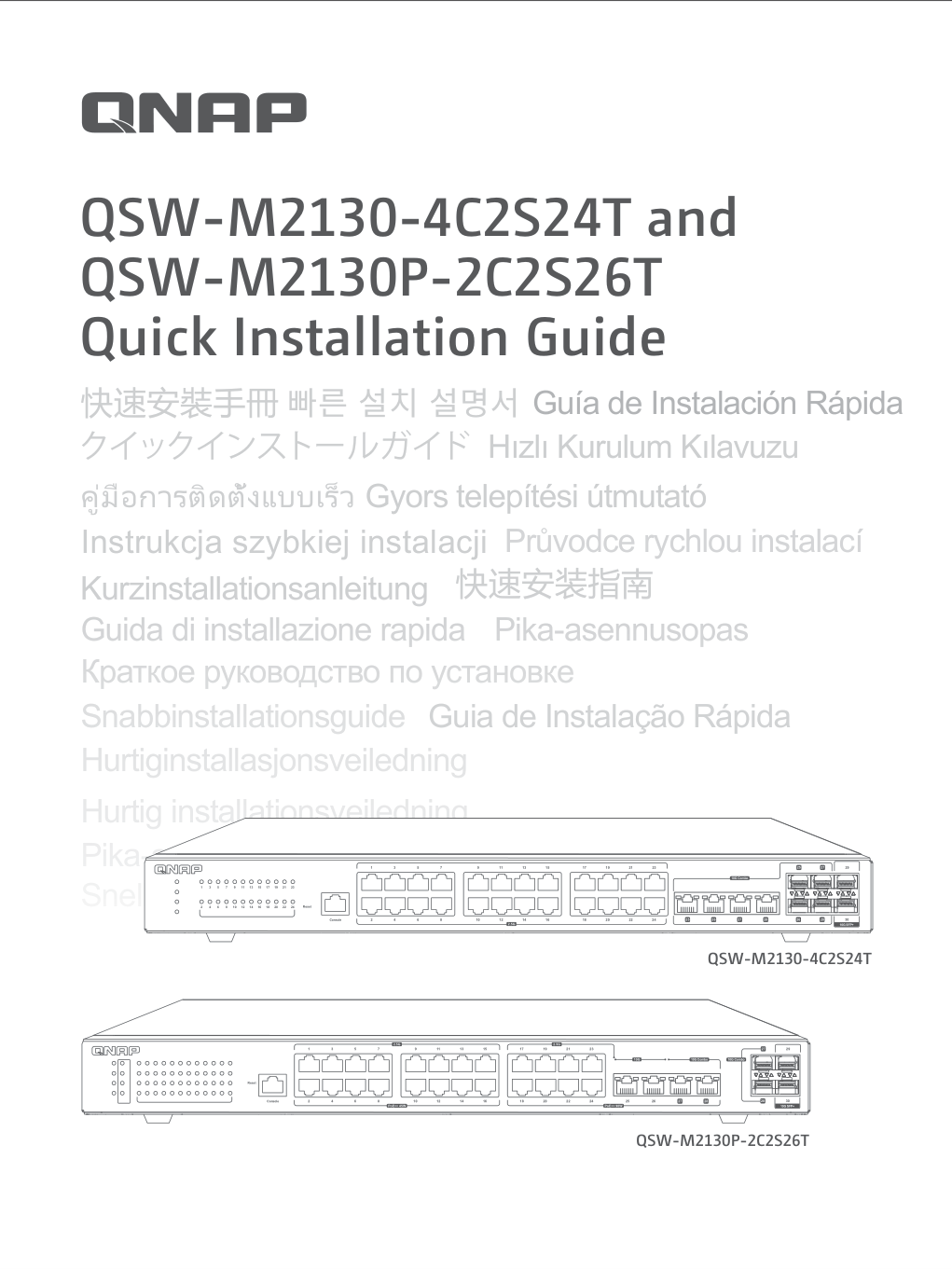

Gyors telepítési útmutató (QIG)
A termék mellé csomagolt tartozékokra, mint például a bővítőkártyára, a hálózati adapterre és az egyéb kiegészítőkre egy éves garancia vonatkozik.
