QSW-3205-5T Specification
-

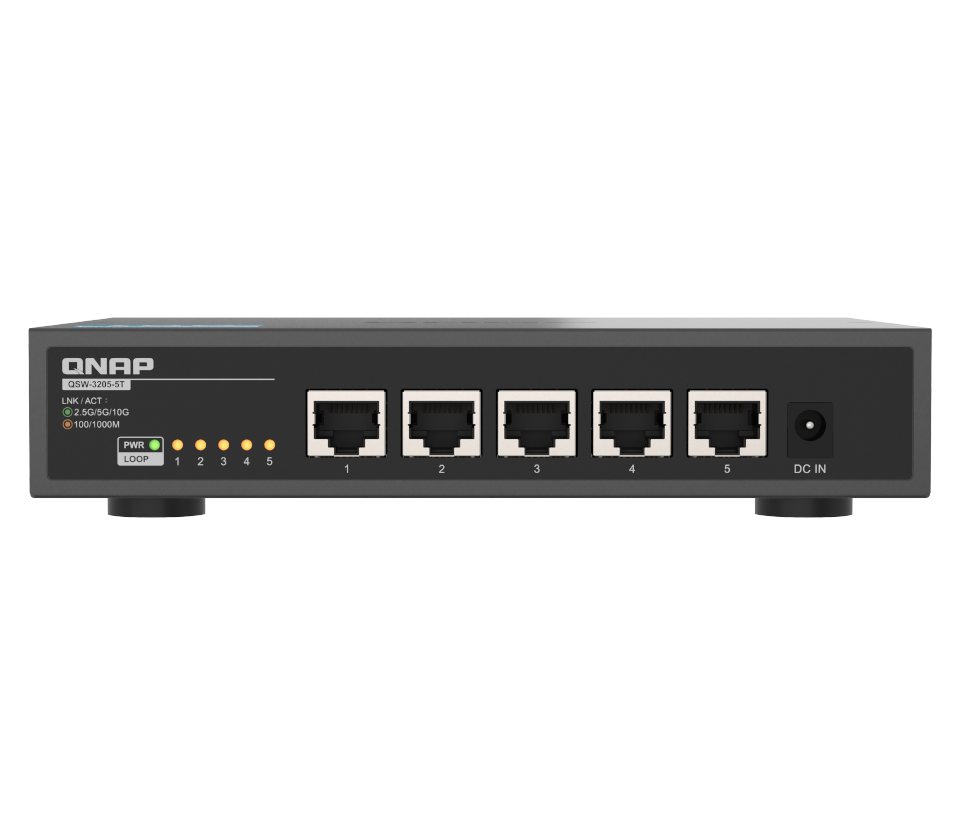

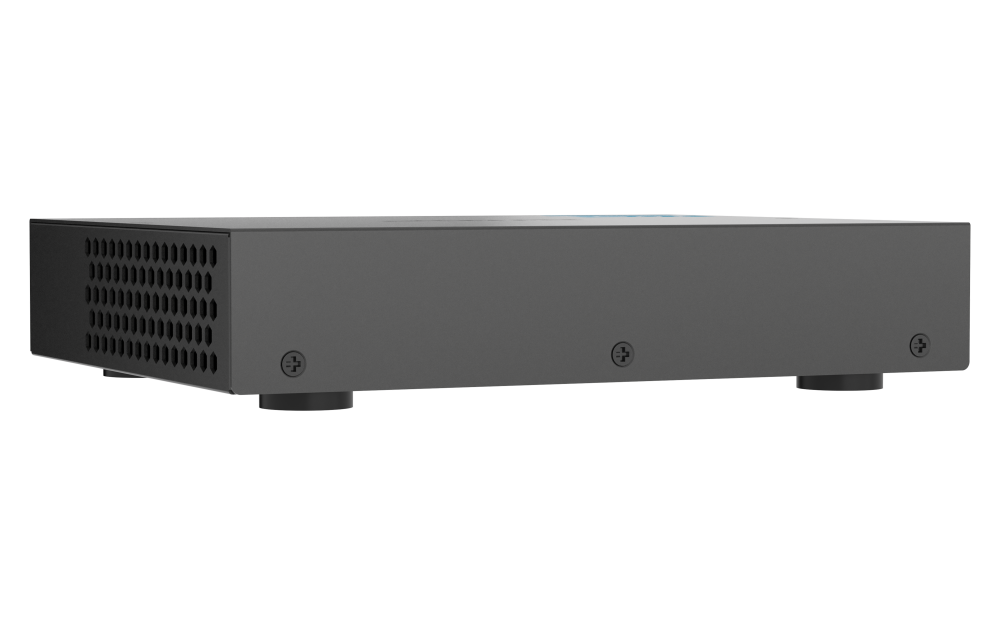

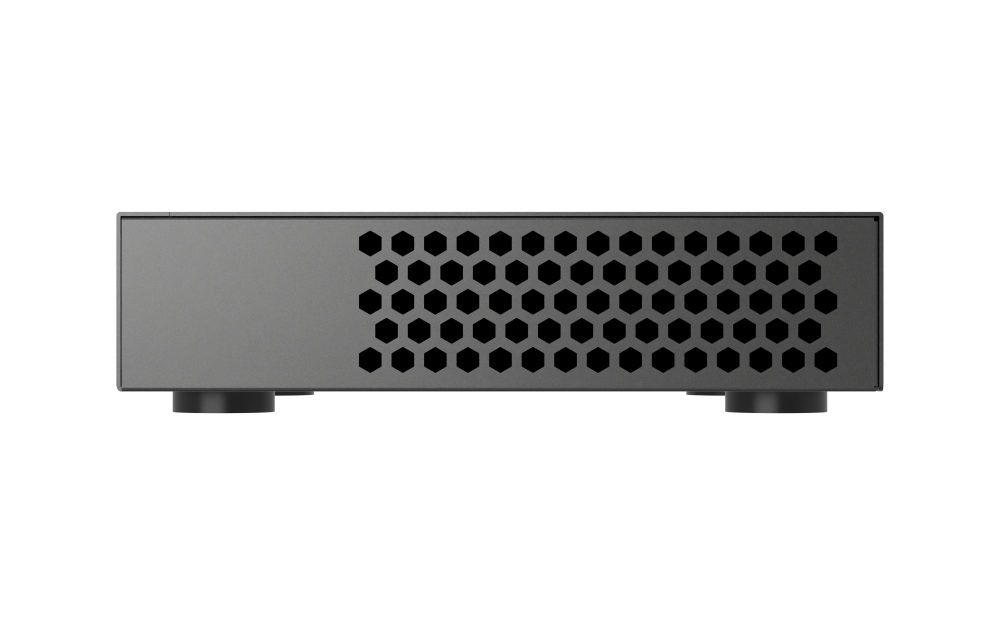

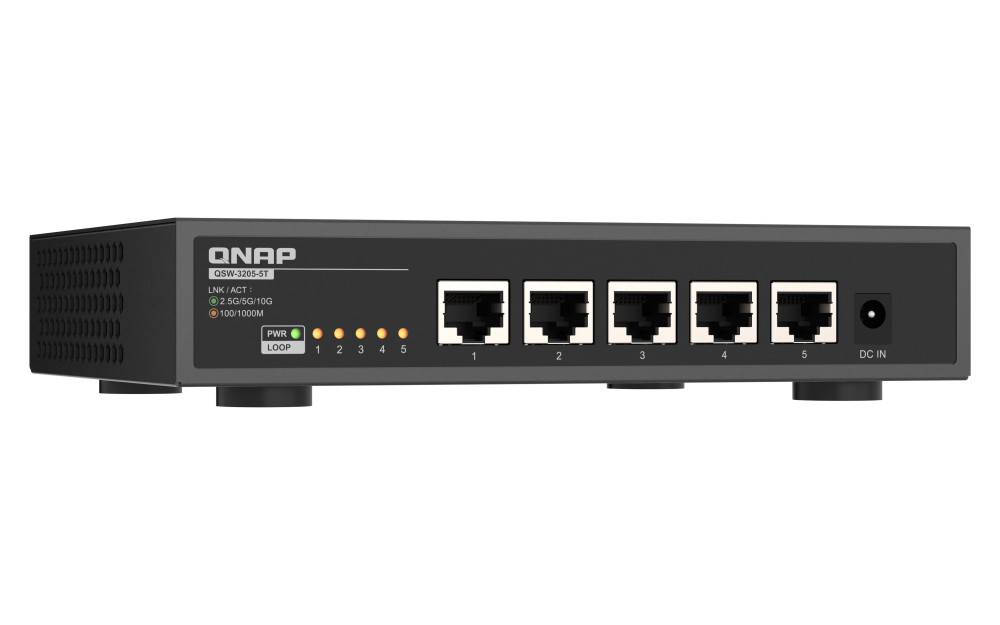

QSW-3205-5T
Management Type Unmanaged Number of Ports 5 10GbE BASE-T (RJ45) 5 10G/5G/2.5G/1G/100MPower Supply Description Adapter Max. Power Consumption 36W Input Power Type DC Input Voltage Range 12V/3A MAC Address Table 16K Total Non-Blocking Throughput 50Gbps Switching Capacity 100Gbps Energy Efficient Ethernet (IEEE 802.3az complaint) Fanless Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5G/5GBase-T
IEEE 802.3an 10GBASE-T
IEEE 802.3az EEE
IEEE 802.3x Full-Duplex Flow ControlForm Factor Desktop LED Indicators Per Port: Speed/Link/Activity
Per System: Power/Status/LoopDimensions (HxWxD) 34 x 180 x 145 mm Weight (Net) 0.96 kg Weight (Gross) 1.2 kg Operating Temperature 0˚C to 40°C (32°F to 104°F) Relative Humidity 10~95% Non-condensing Certifications CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC Electromagnetic Compliance CLASS A Jumbo Frames 12K Warranty 2 Years Note: QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
QSW-3205-5T

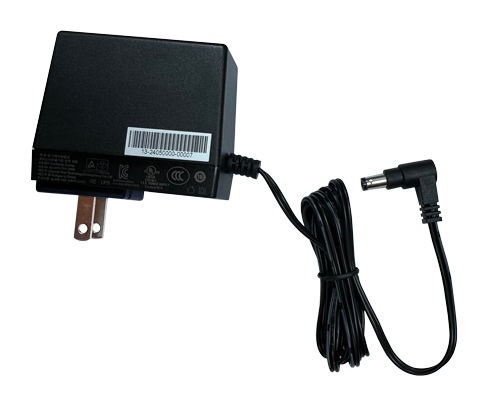

Power supply

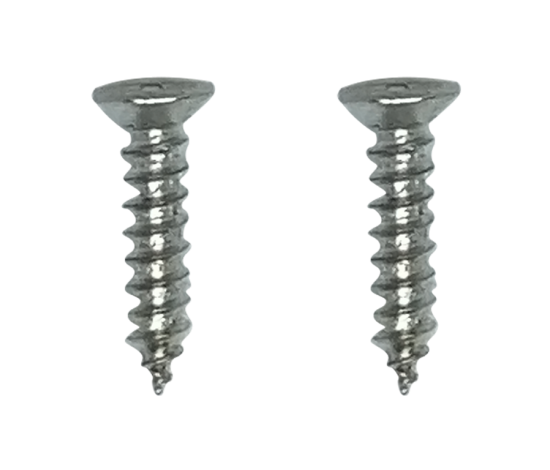

Bracket screws

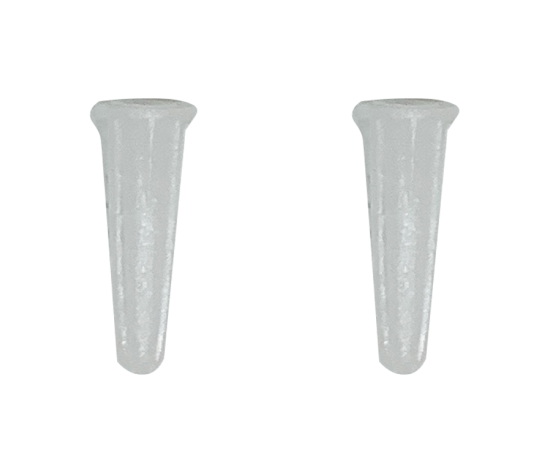

Anchors
Foot pads
Quick Installation Guide (QIG)
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
