TS-119

TS-119 Turbo NAS is QNAP's next generation one-bay Turbo NAS with iSCSI, especially designed for small business and home users who are eager for an extremely large storage center to store, back up, share thousands of multimedia files or expand the capacity of their current storage device. Combining the fashionably shiny design, the TS-119 takes the lead in the current small business and home NAS market with the outstanding specifications and performance, powerful all-in-one server features, high stability, and high reliability.

Superior performance with abundant business features

Adopting Marvell 1.2 GHz CPU and large-sized 512MB DDRII RAM, the Turbo NAS maintains superior performance even when there is intensive access to the network services of the server simultaneously. The TS-119 also supports cross-platform service across Windows, Mac, Linux, and UNIX. Enhanced industry-leading features are also provided, e.g. built-in iSCSI target service, unauthorized policy-based IP blocking, instant SMS alert, schedule power on/ off, and two IP cameras for network surveillance.

Maximize the enjoyment of your home multimedia center

The built-in UPnP media server (with TwonkyMedia enabled) of the Turbo NAS supports a wide range of media players such as Sony PS3 and Microsoft Xbox 360 gaming consoles and works well with NFS-supported High-Definition (HD) DMA for HD video streaming. By installing UPnP application on your iPhone or iPod touch, you can access the Turbo NAS on the local network and play the multimedia contents, e.g. videos, music, and photos on the server. In addition, the high-speed PC-less Download Station with the unique QGet utility enables you to manage the BT/ FTP/ HTTP download tasks remotely over the local network or the Internet. The TS-119 is the ideal multimedia and storage solutions to enhance your home entertainment experience.

Brand new user Interface available

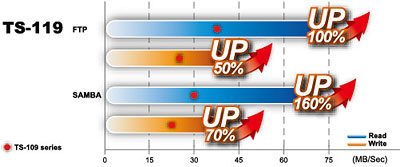

Ultra-high Speed Performance

• Client PC: Intel Core 2 Quad 2.34GHz CPU, 2GB RAM, NVIDIA nForce Networking Controller, Windows Vista 32-Bit SP1
• Testing Method: Connect the TS-119 and PC to switch, upload/ download 3GB file, FTP program: FileZilla 3.1.5

No fan design

The fan used inside a device is for the purpose of cooling system, no matter how quiet it is, the fan has to be activated for air ventilation. Somehow, it is inevitable to generate intermittent chirping noise which distracts your work or diminishes your enjoyment. TS-119 adapts no fan design approach by using black aluminum case for thermal dissipation. It provides an absolute quiet working environment for you!!

For more details about fanless design

Exclusive Q-RAID 1 Data Backup

The Turbo NAS supports exclusive Q-RAID 1 advanced data backup function. The data on NAS can be synchronized to the external USB or eSATA drive. If the internal hard drive on the NAS should fail, users can install the external SATA hard drive to the NAS to restore the data and normal system operation.

Virtual Disk Drive (VDD) adds flexibility to storage expansion along with ease of management

The unique "Virtual Disk Drive" adds flexibility to expand the capacity of NAS. By using the built-in iSCSI initiator, the NAS can connect to other iSCSI targets on the network and turn them into virtual disks, which become multiple single volumes on the NAS. Up to 8 virtual disks can be stacked. The NAS serves as the storage stack chaining master. The user only needs to connect to this single entry (QNAP NAS) and is able to reach and use all the iSCSI target storages on the network.

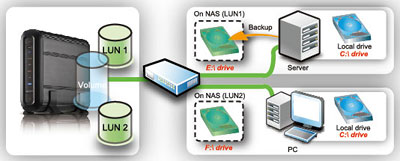

Flexible Built-in iSCSI Target Service

With the built-in iSCSI target feature, the NAS can be an ideal solution for backup or storage expansion. Small business and SOHO users can easily create dedicated virtual drives ( up to 8 iSCSI devices) on the NAS for their PCs or existing servers. The iSCSI drives on the NAS can be formatted as file system and used as local drives.

S.M.A.R.T & Advanced HDD Health Scanning (HHS)

The NAS supports Hard Disk Drive S.M.A.R.T (Self-Monitoring Analysis and Reporting Technology) for monitoring the hard drive status. Moreover, the NAS is embedded with HHS Technology which supports disk checking and bad blocks scanning.

UPS Support

The NAS supports the majority of USB UPS devices (usbhid-ups supported) which enables the users to store the data in time and avoid critical data loss when power outage occurs during data transfer.

Complete Backup Solution

QNAP Backup Software - NetBak Replicator

The backup software, NetBak Replicator, is provided for the NAS users to perform real-time synchronization or schedule backup from multiple PCs to the NAS.

3rd Party Backup Software Ready

The NAS works well with other backup software, e.g. Acronis True Image, CA BrightStor ARCserve Backup, EMC Retrospect, Symantec Backup Exec, and LaCie Silverkeeper.

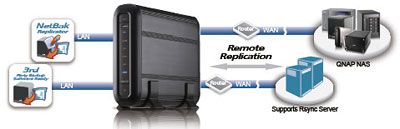

Encrypted Remote Replication

The data on the NAS can be backed up to or from another Turbo NAS over the network securely.

One Touch USB Auto Copy

The one touch button can be configured to trigger instant data backup from the external USB device to the NAS or the other way round (applies to the USB device connected to the front USB port of the NAS only).

Cross-platform Data Sharing and Storage Center

Sharing Files across Windows, Mac, Linux, and UNIX

The NAS is designed for users to share the files across Windows, Mac, Linux, and UNIX environment.

Support Windows AD

The Windows AD feature enables server manager to import user accounts from AD domain to NAS to reduce the time and effort for account setup, and users can use the same set of login name and password.

Web File Manager

The NAS provides Web File Manager for you to easily download, upload, and manage the files on the server by web browser.

Ease of User and Share Folder Management

The NAS supports batch creation of users and share folders to save the time and effort of the server manager in account and folder creation. For the security of Windows network environment, server managers can hide or show network share folders.

Power Management

Hard Disk Standby

You can configure the hard disks to enter standby mode if there is no disk access within the specified period.

Schedule Power on/ off

The flexible schedule power on/off feature is now provided on the NAS for IT administrators to manage the NAS server's up time according to the working hours. You can set the time for automatic system power on, power off, or restart on any days of the week.

Secure data storage, access, and sharing

• Comprehensive event logs: Detailed logs of file-level data access to the NAS via samba, FTP, AFP, HTTP, HTTPS, Telnet, and SSH, and networking services accessed by online users are all recorded.
• SSL security (HTTPS): The NAS can be accessed and configured by web browser securely.
• Remote login to the NAS by SSH (secure shell) or Telnet connection is supported.
• Secure FTP: The data can be transmitted with SSL/TLS (explicit) encryption. Passive FTP port range setup is also supported.
• Write-only access right on FTP server: The third party partners are allowed to upload data to the NAS but not able to read or edit the data on FTP server.

Policy-based Automatic IP Blocking

To prevent the NAS from malicious attacks, the server manager can create an IP filter policy to allow, deny, or auto-block the IP address or network domain which attempts to connect to the NAS via SSH/ Telnet/ HTTP(S)/ FTP/ samba/ AFP.

Powerful All-in-one Server Features

	File Server You can create the user ID and password, and define the access right and storage quota of each user on the NAS.
	FTP Server You can establish your own FTP server using the NAS and share the files conveniently with others.
	Backup Server The automatic backup software, NetBak Replicator, is provided for you to perform real-time synchronization or schedule backup from multiple PCs to the NAS.
	Remote Replication The data on the NAS can be backed up to or from another Turbo NAS or Rsync server over the network.
	Web Server The NAS supports Joomla!, MySQL, SQLite and editable php.ini.
	MySQL Server The NAS can be flexibly applied in various deployments such as a database server of another web server in remote site or as an additional backup database server.
	Printer Server The NAS supports network printer sharing function (max 3 USB printers).
	UPnP Media Server (with built-in TwonkyMedia Server) The NAS is a perfect media storage centre and it works well with UPnP Media Server compliant media players. You can play the photos and videos on TV, or listen to your favorite music and Internet radio on your Hi-Fi System.
	Multimedia Station You can share you photos, video, or music over the network by the Multimedia Station of the NAS.
	Download Station The NAS supports PC-less BT, FTP, and HTTP download. TCP/ UDP, encrypted BT download function, and DHT (Distributed Hash Tables) are also supported.
	iTunes Server You can stream the mp3 music on the NAS to the computers on the home network and listen to the music by iTunes over wired or wireless network connection.
	Surveillance Station The Surveillance Station enables you to configure multiple IP-based security cameras simultaneously for real-time monitoring, recording, and playback.

The most comprehensive support for numerous brands of IP cameras

The Surveillance Station of QNAP NAS supports all the leading network camera brands such as AXIS, D-Link, IPUX, LevelOne, Linksys, Panasonic and Vivotek etc. By using particular models, users can use two-way video and audio monitoring and recording, and smart PTZ control to control the monitoring direction via the web interface. Each of the supported cameras has been put through stringent tests with the NAS series in QNAP's laboratory to guarantee 100% compatibility and reliability with all these camera brands.

Powerful System Management Tools

Instant SMS/ Email Alert

You can configure the SMTP server and SMSC server settings on the NAS in order to receive instant system warning or error messages by email or SMS.

SSL Secure Certificate

The administrator can upload a secure certificate and an RSA private key in X.509PEM format issued by a trusted provider in order to allow the users to access the NAS by secure SSL login.

Syslog Settings

All the system event logs and connection logs can be saved to a remote syslog server.

Network Recycle Bin

The files deleted from the network shares of the NAS will be moved to a particular recycle bin folder. You can restore your data anytime in case of unintended file deletion.

Comprehensive Event Log System

The logs of connections to the NAS via samba, FTP, AFP, HTTP, HTTPS, Telnet, and SSH, and networking services accessed by online users are all recorded.

Detailed System Information

You can view the system status, e.g., CPU usage, total memory, free memory, packets received, packets sent, error packets, system up time, CPU temperature, system temperature, HDD temperature, and system fan speed.

DDNS Support

You can register a unique domain name from a DDNS service provider and assign it to your NAS. Your users can access the NAS by the domain name instead of the IP address.

Software Expansion and Website Management

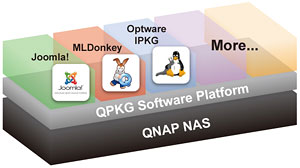

QPKG Software Package Platform

The QPKG software package platform enables the users to maximize the usage of the NAS by installing additional software packages developed from the users and community worldwide. This can be done by simple "download & install" clicking without going through any complicated process.
