TS-439 Pro II+ Specification

CPU	Intel Atom 1.8GHz Single-core Processor
DRAM	1GB RAM
Flash Memory	512MB DOM
HDD	4 x 2.5"/3.5" SATA NOTE: The system is shipped without HDD.
HDD Tray	4 x Hot-swappable and lockable tray
LAN Port	2 x Gigabit RJ-45 Ethernet port

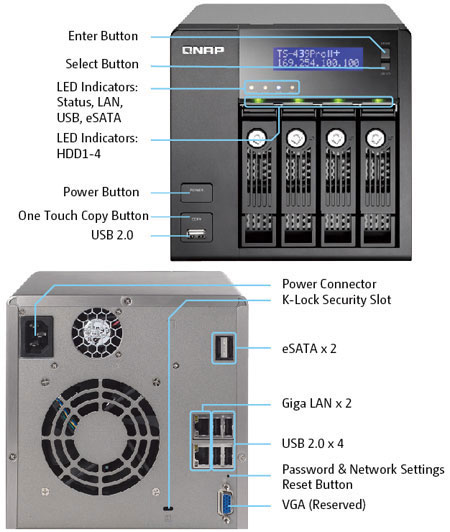

LED Indicators	Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4
USB	5 x USB 2.0 port (Front: 1; Back: 4) Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA	2 x eSATA port (Back)
Buttons	System: Power button, USB One-Touch-Backup Button, Reset button
LCD panel	Mono-LCD display with backlight Enter button, Select button for configuration
Alarm Buzzer	System warning
Form Factor	Tower
Dimensions	177 (H) x 180 (W) x 235 (D) mm 6.97 (H) x 7.09 (W) x 9.25 (D) inch
Weight	Net weight: 3.65 kg (8.04 lbs) Gross weight: 4.65 kg (10.24 lbs)
Sound Level (dB)	w/o HDD installed: 29.1 dB Stand by: 36.9 dB In operation: 37.3 dB (with 4 x 500GB HDD installed)
Power Consumption (W)	Sleep mode: 23W In Operation: 33W Power-off (in WOL mode): 1W (with 4 x 500GB HDD installed)
Temperature	0~40˚C
Humidity	0~95% R.H.
Power Supply	Input: 100-240V AC, 50/60Hz, Output: 250W
Secure Design	K-lock security slot for theft prevention
VGA	Reserved VGA interface for maintenance
Fan	1 x quiet cooling fan (9 cm, 12V DC)

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Powerful All-in-one server

Operating System

Embedded Linux

Supported Operating System

Microsoft Windows 2000, XP, Vista (32/ 64 bit), Windows 7 (32/ 64 bit), Server 2003/ 2008
Apple Mac OS X
Linux & Unix

Supported Web Browsers

Internet Explorer 7 & 8 or later
Firefox 3 or later
Safari 3 & 4 or later
Google Chrome

Multilingual Support

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Spanish, Swedish, Turkish.

File System

Internal HDD: EXT3, EXT4
External HDD: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

TCP/IP (IPv4 & IPv6: Dual Stack)
Dual Gigabit LAN with Jumbo Frame
Multi-IP Settings, Port Trunking/NIC Teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
DHCP Client, DHCP Server
Protocols: CIFS/SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI and SNMP.
Network Service Discovery (UPnP, Bonjour)
USB Wi-Fi 802.11n Adapter Support (Optional Purchase)

Network File Sharing

CIFS/SMB (Plus DFS Support)
AFP
NFS
FTP
WebDAV

Backup Solution

Real-time Remote Replication (RTRR)
- Work as Both RTRR Server & Client
- Supports Real-time & Scheduled Backup
- Supports Encryption, Compression, and File Filter
USB One Touch Backup (Import/Export)
Apple Time Machine Support with Backup Management
Block-level Remote Replication
- Work as Both Rsync Server & Client
- Supports Encrypted Replication between QNAP NAS Servers
Back up to External Storage Device
Back up to Cloud Storage (Amazon S3 & ElephantDrive)

Security

IP Filter & Policy-based Automatic IP Blocking
Network Access Protection with Auto-blocking
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rsync over SSH)
CIFS Host Access Control for Shared Folders
AES 256-bit Volume-based Encryption
Importable SSL Certificate
Instant Alert via Email, SMS, and LCD

Disk Management

Single Disk, JBOD, RAID 0 / 1 / 5 / 5+Hot Spare / 6 / 10
Online RAID Capacity Expansion & Online RAID Level Migration
Bad Block Scan & HDD S.M.A.R.T
Global Spare Drive
AES 256-bit Volume-based Encryption
RAID Recovery
Bitmap Support
Supports ISO Mounting (via Web File Manager)

iSCSI (IP SAN)

iSCSI Target
- Multi-LUNs per Target
- Up to 256 LUNs
- Supports LUN Mapping & Masking
- Supports SPC-3 Persistent Reservation
- Supports MPIO & MC/S
Virtual Disk Drive (via iSCSI Initiator)
- Stack Chaining Master
- Max. Virtual Disk Drives: 8

Server Virtualization & Clustering

Supports VMware vSphere (ESX/ESXi 4.x)
Supports Citrix XenServer (5.6)
Supports Windows Server 2008 Hyper-V & Failover Clustering

Power Management

Wake on LAN
Scheduled Power on/off (Max 15 settings)
Automatic Power on after Power Recovery

Access Right Management

Max User Accounts: 4,096
Max Groups: 512
Max. Share Folder: 512
Batch Creating Users
Import/Export Users
User Quota Management
Subfolder Permissions Support

Windows AD Support

Domain Users Login via CIFS/SMB, AFP, FTP and Web File Manager
Supports NTLMv2 Authentication

Web Administration

AJAX-based User Interface
HTTP/HTTPS Connections
Alert Notification (Email & SMS)
Smart Fan Control
DDNS & MyCloudNAS Remote Access
SNMP (v2 & v3)
UPS Support with SNMP Management (USB)
Supports Network UPS
Resource Monitor
Network Recycle Bin for CIFS/SMB and AFP
Comprehensive Logs (Events & Connection)
Real-time Online User List
Syslog Client
Firmware Update with Live Update Notification
Backup and Restore System Settings
Restore to Factory Default

Applications

Web File Manager
Multimedia Station
Download Station
Surveillance Station
iTunes Server
UPnP Media Server
Apache Web Server
MySQL Server

QMobile App

QMobile for iPhone, iPad, iPod touch, Android devices
Third Party UPnP Media Player

QPKG

Web Applications
- Joomla!
- phpMyAdmin
- WordPress
- vtigerCRM
- GLPI
- Magento
P2P Applications
- MLDonkey (eMule)
- SABnzbd+
- NZBGet
- Transmission
Server Applications
- Squeezebox Server
- Tomcat
- Asterisk
- XDove (Mail Server)
- OpenLDAP
- eyeOS
Media Server
- PS3 Media Server
- IceStation
Misc.
- Optware IPKG
- Python
- Java Runtime Environment
- Mono
- iStat

…and more

Powerful All-in-one server

File Server

File Sharing across Windows, Mac, and Linux/UNIX
Protocols: CIFS/SMB, AFP(3.2), NFS, FTP, HTTP, HTTPS
QNAP Web File Manager
- Supports ISO Mounting
- Direct File Viewing via Google Doc

FTP Server

FTP over SSL/TLS (Explicit)
Max Concurrent Connections: 256
FXP Supported
Passive FTP Port Range Control
FTP Bandwidth & Connection Control
Unicode Support

Web Server

HTTP/ HTTPS Connections
Supports WebDAV Connection
Support Virtual Host
Importable SSL Certificate

Database Server

Built-in MySQL Server
Web-based Management via phpMyAdmin (QPKG)

Backup Server

Remote Replication Server (over Rsync)
Real-time Remote Replication Server
Apple Time Machine Support
QNAP Client Backup Application-NetBak Replicator
3rd Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper

iTunes Server

Audio and Video Sharing
Smart Playlist for iTunes Client (Windows & Mac OS)

UPnP Media Server

Built-in TwonkyMedia Server
Real-time & Background Photo Transcoding
Supports UPnP Media Player
- Game Console: PlayStation 3, PSP and Xbox 360
- Digital Media Adapter/Player
- Mobile Device (e.g. iPhone, iPod touch with UPnP Applications)
Supported Formats:
- ASF - Windows Media Video (Codecs: WMV video and WMA audio)
- BMP - Bitmap Image
- FLV, F1V, F4V - Standard Quality YouTube Video (Codec: Flash, Video: Sorenson Spark H.263 Video Codec & MP3 Audio Codec)
- GIF - Graphics Interchange Format
- JPG, JPEG, JPE - Joint Photographic Experts Group Image
- MP3 - MPEG Audio Layer 3 (Codec: MPEG Audio)
- MP4 - High Quality YouTube Video (Codecs: MP4: H.264 Video & HE-AAC audio)
- MP4 - MPEG-4 Video (Codecs: Microsoft MPEG-4 v1, Microsoft MPEG-4 v2, Microsoft MPEG-4 v3 & ISO MPEG-4 v1)
- MPEG, .MPG, .MLV - MPEG-1 (Codecs: MPEG-1 Video & MP2 Audio)
- PNG - Portable Network Graphics
- WAV - Linear Audio (Codecs: Uncompressed PCM-encoded & ADPCM-encoded)

Printer Server

Network Printer Sharing (USB)
Max Printers: 3
Supports Internet Printing Protocol
Supports Apple Bonjour Printing
Advanced Printer Management
- Print Jobs Display and Management
- Access Right Control (IP & Domain Names)

Multimedia Station

Supports Photo, Audio and Video
Image Slide Show and Rotation
Automatic & Schedule Thumbnail Generation for Easy Browsing
Display Photo Details from EXIF: Date, Exposure Time, Aperture, etc.
Display Audio Details from ID3 Tag: Album Cover, Title, Artist, Album, etc.
Access Authority Management
Multimedia (Video & Audio) Streaming
Supports Cooliris
Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger)
Share Photos by Email
Supported Formats:
- Photo - JPG/JPEG, GIF, PNG
- Audio - MP3
- Video
  - Playback: FLV, MPEG-4 Video (H.264 + AAC)
  - Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV
QNAP Exclusive iPhone & Android App - QMobile

Download Station

PC-less BT, FTP, HTTP Download (up to 500 Tasks)
BT Download
- Supports TCP/ UDP Tracker Protocol
- Schedule Download
- Configurable Port Range
- Bandwidth Control
- UPnP NAT Port Forwarding
- Subscribe to RSS Feeds
- RSS Download (Broadcatching)
- Selectable Download Files
HTTP/ FTP Download
- Configurable Saving Directory
- Bulk Download with Wildcard Setting
- RapidShare Download Support
QNAP Download Management Software: QGet
- For Both Windows & Mac OS
- Manage the Download Tasks of Multiple QNAP NAS Remotely over LAN or WAN
