TVS-470 Specification

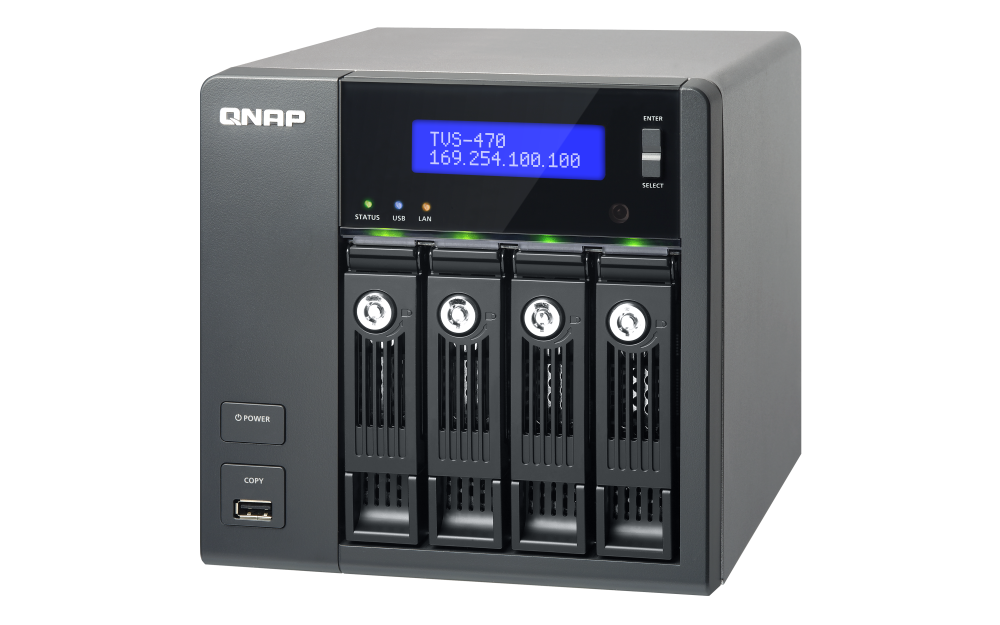

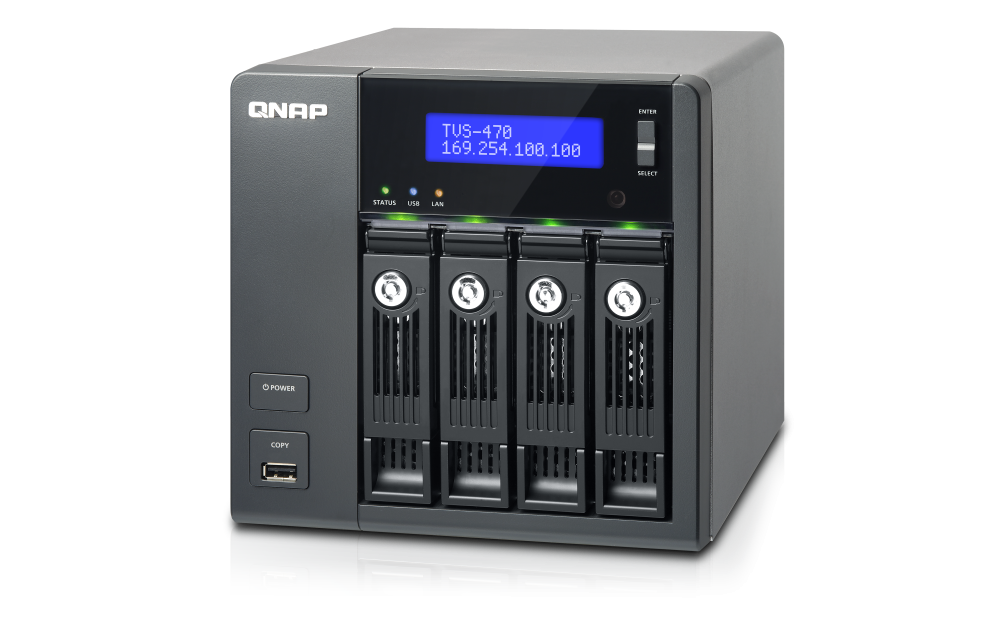

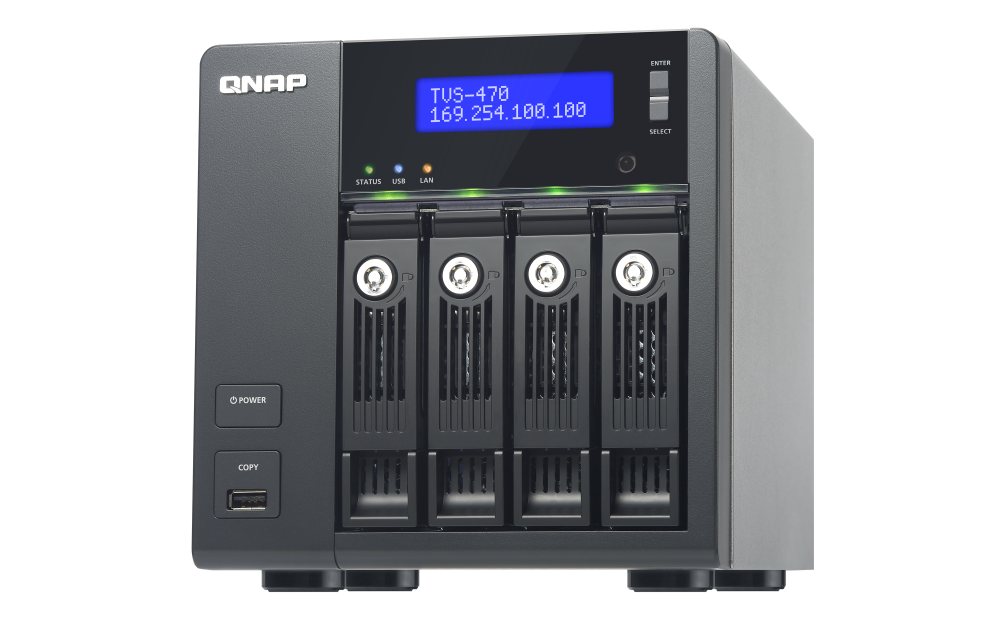

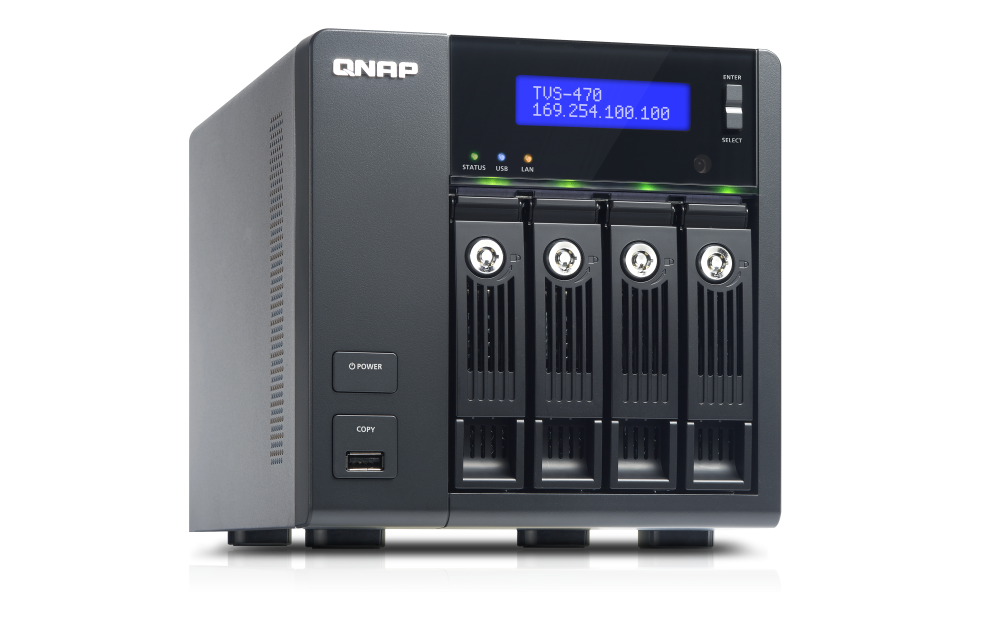

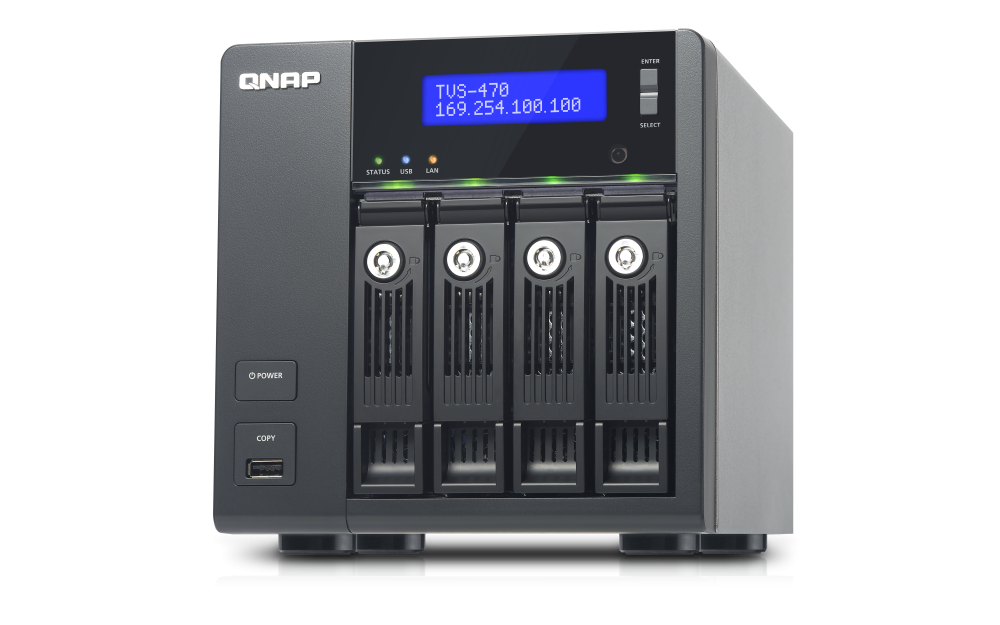

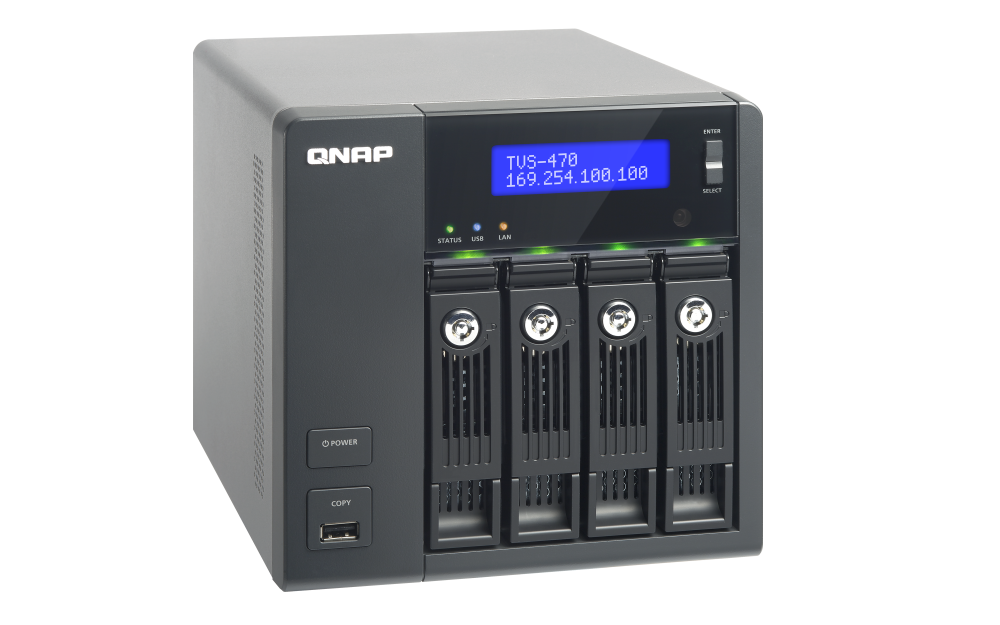

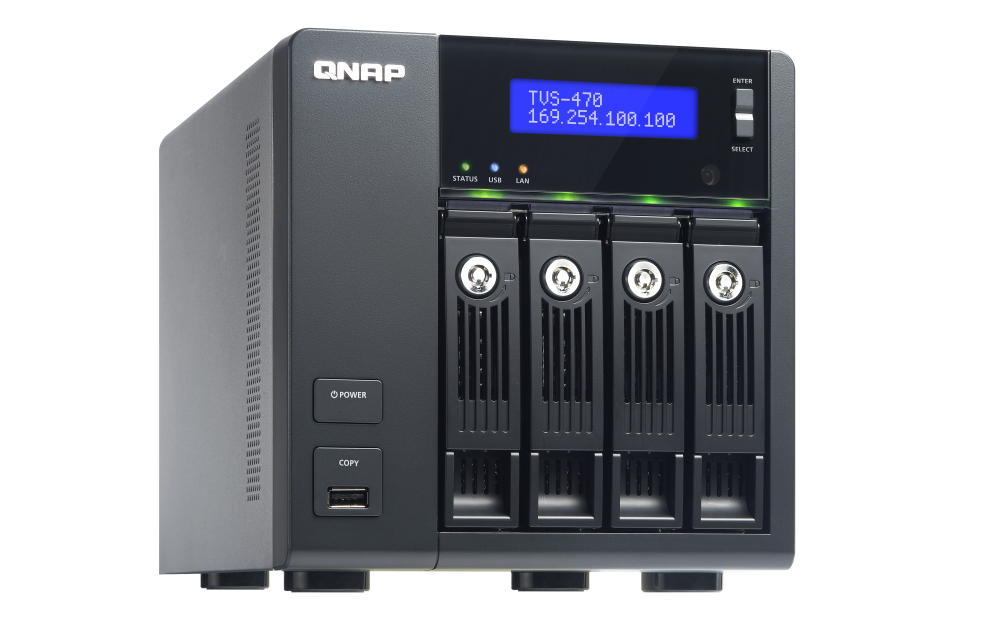

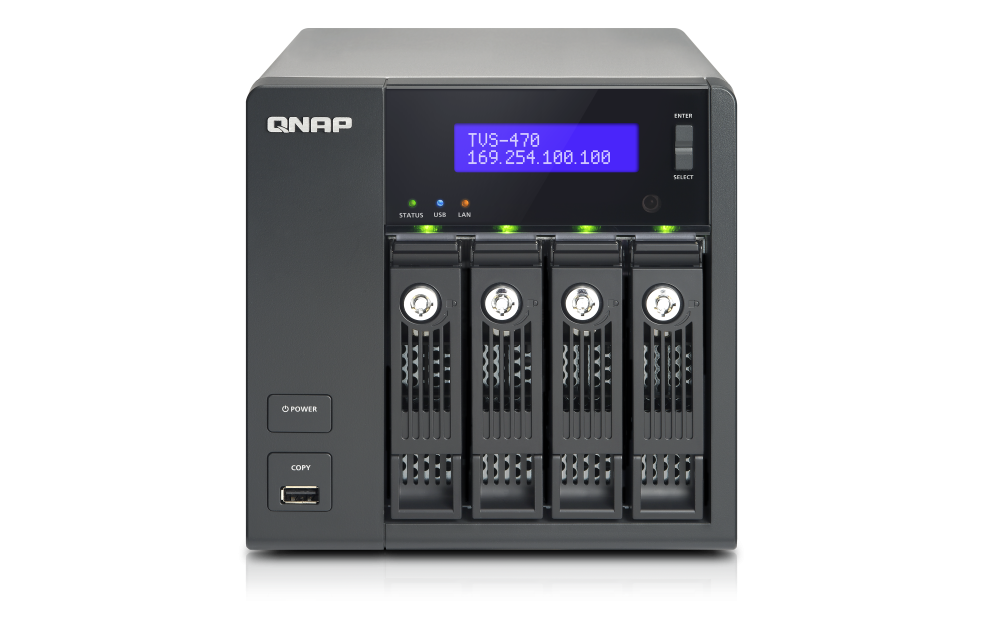

TVS-470
規格
購買→
處理器 Intel® Core i5 Series四核心處理器
記憶體

16GB SO-DIMM RAM (8GB*2)
快閃記憶體 1GB DOM
支援硬碟數量類型 4 x 3.5” 或 2.5” SATA 6Gb/s, SATA 3Gb/s 硬碟或 SSD
備註:
1. 系統出貨不包含硬碟。
2.硬碟相容性列表請參考 www.qnap.com/compatibility

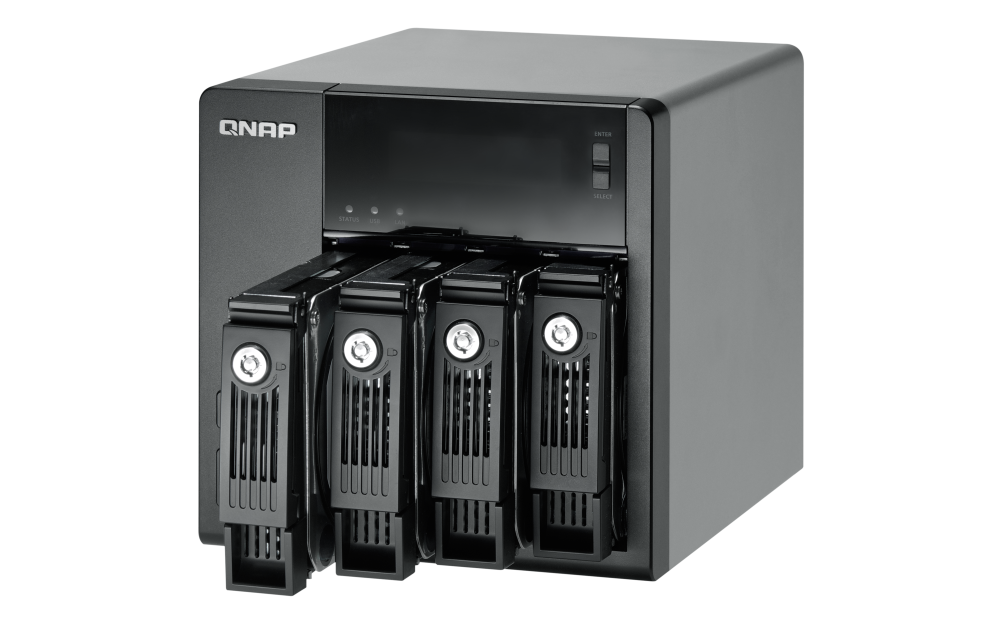

硬碟架 支援4顆硬碟熱抽換及可鎖式硬碟

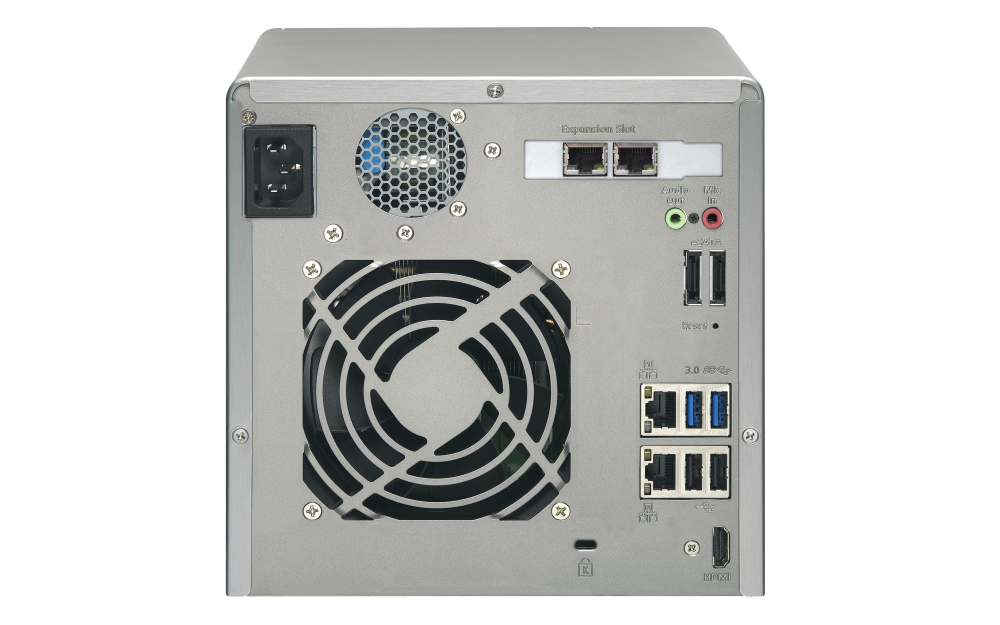

網路埠 4 x Gigabit RJ-45網路埠 (2 ports are provided by the included PCI-E NIC); Optional dual-port 10 GbE NIC support by replacing the dual-port GbE PCI-E NIC
備註:
1. 網路卡模組的安裝說明請參考Turbo NAS硬體使用手冊中第六章。
LED 指示燈 狀態, USB, 網路, 硬碟 1 - 4
USB 2 x USB 3.2 Gen 1 (背面)
3 x USB 2.0 (前面: 1, 背面:2)
支援 USB 印表機、隨身碟及 USB UPS 等
eSATA 2 x eSATA port (背面)
HDMI™ HDMI™ x 1
IR 內建 Infrared Receiver (IR) for MCE remote control
音源輸出 1 (支援的應用: Music Station, HD Station)
音源輸入 1 (系統保留)
按鍵 電源、系統重置、USB單鍵備份
警報器 系統警報
LCD 面板 單色背光 LCD 面板
確認鍵、選擇鍵
安全設計 K-Lock 安全鎖
風扇 1 x 靜音風扇 (9 cm, 12V DC)
PCI-E Slot 1, with dual-port GbE NIC pre-installed (提供1GbE或10GbE網路的擴充)
機種 直立式
尺寸 177 (高) x 180 (寬) x 235 (深) mm
6.97 (高) x7.09 (寬) x 9.25 (深) 吋
重量
淨重: 4.56 kg (10.05 lbs)
毛重: 5.7 kg (12.57 lbs)
耗電量 (瓦) 硬碟休眠模式: 23.9W
運行中: 38.4W
關機狀態（網路喚醒模式）: 1W
(含4顆500GB硬碟)
溫度 0-40˚C
相對溼度 5~95% RH non-condensing, wet bulb: 27˚C
電源
輸入: 100-240V AC, 50/60Hz
輸出: 250W
注意：請僅使用 QNAP 記憶體模組來維持系統的效能與穩定性。若 NAS 裝置有多個記憶體模組，請使用相同規格的 QNAP 模組，並參考硬體使用手冊安裝相容的 QNAP 記憶體模組。
警告：使用不支援的模組可能會降低效能、造成錯誤，或使作業系統無法啟動。
QNAP 有權視供應商產品供貨情況，更換部分零件或配件。其相容性與穩定性皆經過相同嚴格的測試檢驗，請用戶放心使用。
HDMI、HDMI High-Definition Multimedia Interface、HDMI Logo 是 HDMI Licensing Administrator, Inc. 的商標或註冊商標。
產品圖僅供示意，實際產品可能有所不同。由於螢幕顯示誤差，產品實際顏色亦可能和網站所示有所不同。
威聯通科技得保留隨時修改的權利，恕不另行通知。
Operating System
QTS 4.1
Disk Management
  1. QNAP Flexible Volume
  2. Thin-provisioning Volume with Space Reclamation Supported
  3. Online Volume Expansion
  4. Online Storage Pool Expansion
  5. Single Disk, JBOD, RAID 0, 1, 5, 6, 10
  6. RAID Hot Spare and Global Hot Spare
  7. Online RAID Capacity Expansion and Online RAID Level Migration
  8. Bad Block Scan and Hard Drive S.M.A.R.T.
  9. Bad Block Recovery
  10. RAID Recovery
  11. Bitmap Support
  12. Cache Acceleration Technology
  13. SMART Data Migration
Supported Clients*
  1. Apple Mac OS 10.7 or later
  2. Linux and UNIX
  3. Microsoft Windows 7, 8, and 10
  4. Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016
Power Management
  1. Wake on LAN
  2. Internal Hard Drive Standby Mode
  3. Scheduled Power on/off
  4. Automatic Power on after Power Recovery
  5. USB and Network UPS Support with SNMP Management
  6. System Sleep Mode (S3)**
Supported Browsers
  1. Chrome, Internet Explorer 10+, Firefox, Safari
Access Right Management
  1. Batch Users Creation
  2. Import/Export Users
  3. User Quota Management
  4. Local User Access Control for CIFS, AFP, FTP, and WebDAV
  5. Subfolder Permissions Support for CIFS/SMB, AFP, FTP, and File Station
Multilingual Support
  1. Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
myQNAPcloud Service
  1. Private Cloud Storage and Sharing with myQNAPcloud ID (QID)
  2. Free Host Name Registration (DDNS)
  3. Auto Router (via UPnP) Configuration and
  4. Web-based File Manager with HTTPS 2048-bit Encryption
  5. myQNAPcloud Connect for Easy VPN Connection (Windows VPN Utility)
File System
  1. Internal Hard Drive: EXT4
  2. External Hard Drive: EXT4, EXT3, NTFS, FAT32, HFS+
Qsync
  1. Sync Files among multiple devices with SSL support (Supports Windows and Mac)
  2. Selective Synchronization for folders
  3. Share Team Folder as a File Center for Team Collaboration
  4. Shares Files by Links via E-mail
  5. Policy settings for conflicted files and file type filter support
  6. Privilege Control for Qsync Users
  7. Version Control: up to 64 versions.
  8. Incremental synchronization for HDD space saving
Networking
  1. TCP/IP: IPv4 & IPv6(1)
  2. Multiple NICs with Jumbo Frame (Failover, Multi-IP Settings, Port Trunking/NIC Teaming )
  3. Service Binding Based on Network Interfaces
  4. Proxy Client, Proxy Server
  5. DHCP Client, DHCP Server
  6. NTP Server**
  7. Protocols: CIFS/SMB, SMB2.1**, SMB3.0 (Encryption only)**, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  8. UPnP & Bonjour Discovery
  9. USB Wi-Fi Adapter Support
Web Administration
  1. Multi-window, Multi-tasking based System Management
  2. Movable Icons and Personalized Desktop
  3. Smart Toolbar and Dashboard for Neat Display on System Status
  4. Login Screen with Personalized Photo-wall Style
  5. Smart Fan Control
  6. Dynamic DNS (DDNS)
  7. SNMP (v2 & v3)
  8. Resource Monitor
  9. Network Recycle Bin for File Deletion via CIFS/SMB, AFP and File Station
    - Automatic Cleanup
    - File Type Filter
  10. Comprehensive Logs (Events & Connection)
  11. Syslog Client/Server
  12. System Settings Backup and Restore
  13. Restore to Factory Default
  14. Mobile App: Qmanager for Remote System Monitoring & Management
Security
  1. Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  2. SMB 3.0 Encryption **
  3. CIFS Host Access Control for Shared Folders
  4. FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption*
  5. AES 256-bit External Drive Encryption*
  6. Importable SSL Certificate
  7. Instant Alert via E-mail, SMS, Beep, and LCD Panel*


Powerful All-in-one server
File Server
  1. File Sharing across Windows, Mac, and Linux/UNIX
  2. Windows ACL
  3. Advanced Folder Permission for CIFS/SMB, AFP, FTP
  4. Shared Folder Aggregation (CIFS/SMB)
VPN Server
  1. Secure Remote Access: PPTP & OpenVPN VPN services
  2. Max No. of Clients: 30
FTP Server
  1. FTP over SSL/TLS (Explicit)
  2. FXP Supported
  3. Passive FTP Port Range Control
Domain Authentication Integration
  1. Microsoft Active Directory (AD)
  2. Domain Controller** and Domain Member
  3. LDAP Server, LDAP Client
  4. Domain Users Login via CIFS/SMB, AFP, FTP, and File Station
File Station
  1. Supports ISO Mounting (Up to 256 ISO Files)
  2. Support Thumbnail Display of Multimedia Files
  3. Supported Share Download Link and Upload Link
  4. Drag-and-drop Files via Chrome and Firefox Browsers
  5. Photo, Music, and Video Preview and Playback Empowered by Built-in Real-time Transcode
  6. Smart Filter
  7. File Compression (ZIP or 7z)
Storage Plug & Connect
  1. Creates and Maps Shared Folders by QNAP Windows Qfinder
  2. Creates and Connects to iSCSI Target/LUN
Backup Station
  1. Remote Replication Server (over Rsync)
  2. Real-time Remote Replication (RTRR) to another QNAP NAS or FTP Server
  3. Works as Both RTRR Server & Client with Bandwidth Control
  4. Real-time & Scheduled Backup
  5. Encryption, Compression, File Filter, and Transfer Rate Limitation
  6. Encrypted Replication between QNAP NAS Servers
  7. Desktop Backup with QNAP NetBak Replicator for Windows
  8. Apple Time Machine Support with Backup
  9. Data Backup to Multiple External Storage Devices
  10. Synchronizes with Cloud Storage: Amazon S3, ElephantDrive, Dropbox, and Google Cloud Storage
  11. Third Party Backup Software Support: Veeam Backup & Replication, Acronis True Image, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, etc.
iSCSI (IP SAN)
  1. iSCSI Target with Multi-LUNs per Target (Up to 256 Targets/LUNs Combined)
  2. Supports LUN Mapping & Masking
  3. Supports LUN Target ACL **
  4. Online LUN Capacity Expansion
  5. Supports SPC-3 Persistent Reservation
  6. Supports MPIO & MC/S
  7. iSCSI LUN Backup, One-time Snapshot, and Restore
  8. iSCSI Connection and Management by QNAP Finder (Windows)
  9. Virtual Disk Drive (via iSCSI Initiator)
  10. Stack Chaining Master
  11. Max No. of Virtual Disk Drives: 8
Print Server
  1. Max No. of Printers: 3 (via Internet Printing Protocol)
  2. IP-based and Domain Name-based Privilege Control
Server Virtualization & Clustering
  1. VMware vSphere (ESX/ESXi 4.x, 5.x)
  2. VMware VAAI iSCSI ** (Block Copy, Block Zeroing, Hardware Assisted Locking, Thin Provisioning and Space Reclamation)
  3. VAAI for NAS** (Full File Clone, Space Reserve, Extended Statistics)
  4. vSphere Plug-in
  5. Citrix XenServer (6.2)
  6. Windows Server 2012 Hyper-V
  7. Supports Microsoft ODX **
  8. QNAP SMI-S Provider for Microsoft SCVMM **
  9. QNAP VSS Hardware Provider **
  10. Windows Server 2012 Failover Clustering
Surveillance Station
  1. Supports over 2,100 IP Cameras
  2. Includes 1 Free Camera License, Up to 72 Camera Channels via Additional License Purchase
  3. Simple Floating Toolbar to Show Only When User Hovers Over Areas
  4. Instant Playback to Check the Recent Event
  5. Online Editing to Edit Cameras When Live View
  6. Visual Aid by E-map
  7. Playback and Speed Control by Shuttle Bar
  8. Video Preview on Playback Timeline
  9. Intelligent Video Analytics (IVA) for Advanced Video Search
  10. Surveillance Client for Mac
  11. Mobile Surveillance App: Vmobile (iOS and Android)
  12. Mobile Recording App: Vcam (iOS and Android) (only for x86-based)
APP Center
  1. Offers more than 100 Official and Community Software Add-ons (The actual available software add-ons may vary depending on the NAS platform)
Virtualization Station
  1. Supports multiple Virtual Machine (VM) creation to run various operating systems includes Windows, Linux, Unix.
  2. Supports importing VMs from Virtual Appliances
  3. Supports exporting of VMs into a virtual appliance in OVF / QVM format
  4. Supports VM cloning
  5. Supports VM snapshot
  6. Supports multiple remote consoles
  7. Supports HTML5-based shared remote console
  8. Supports multiple bridge interfaces to offer the individual network bandwidth for each VM
  9. Supports customization options for each VM
Mobile App
  1. Qfile: iOS, Android Phone, Windows phone
  2. Qfile HD: iPad version
  3. Qmanager: iOS, Android Phone
  4. Qmusic: iOS, Android Phone
  5. Qremote: iOS, Android Phone
  6. Qget: Android Phone
  7. Vmobile: iOS, iPad, Android Phone
Notes Station
  1. Take Notes of Everything on Your Private Cloud
  2. Collaborate Notes from Multiple Users
  3. Supports Graphical Editor for Note Editing (WYGIWYS)
  4. Integrated with NAS File System: Insert attachments or Images from NAS File System
  5. Supports Event Calendar and To-do List
  6. Supports Image Editor
  7. Supports Note Publishing with a Single Link
  8. Supports Key Word Search
  9. Clip Web Page Content to Note (via Chrome Extension)
  10. Clip Web Page Image to Note (via Chrome Extension)



(1). Not all services are supported.
* The data encryption functions may not available in accordance with the legislative restrictions of some countries.
** Specific NAS series only.

Design and specifications are subject to change without notice.
TVS-470 CD-ROM Ethernet cable x 2
Power cord Hard disk lock Quick installation guide
Flat head screw x 16 (for 3.5" HDD) Flat head screw x 12 (for 2.5" HDD) Dual-port Gigabit Network Expansion Card(Pre-installed): LAN-1G2T-I210

選購配件

  1. QM2-2S-220A

    QM2-2S-220A

    FAN-9CM-T01

    FAN-9CM-T01

    QNA-UC5G1T

    SP-TS-TRAY-BLACK

    SP-TS-TRAY-BLACK

    LAN-10G2SF-MLX

    LAN-10G2SF-MLX (EOL)

    LAN-10G2T-X550

    LAN-10G2T-X550 (EOL)

    QXG-10G1T

    QXG-10G1T

    QXG-10G2T-107

    QXG-10G2T-107 (EOL)

    QXP-10G2U3A

    QXP-10G2U3A

    USB-U31A2P01

    USB-U31A2P01 (EOL)

    TRX-10GSFP-SR-MLX

    TRX-10GSFP-SR-MLX

    RAM-8GDR3-SO-1600

    RAM-8GDR3-SO-1600

原包裝出貨的擴充卡、變壓器及配件自購買日起享有一年保固。
