QVP-85B Specification

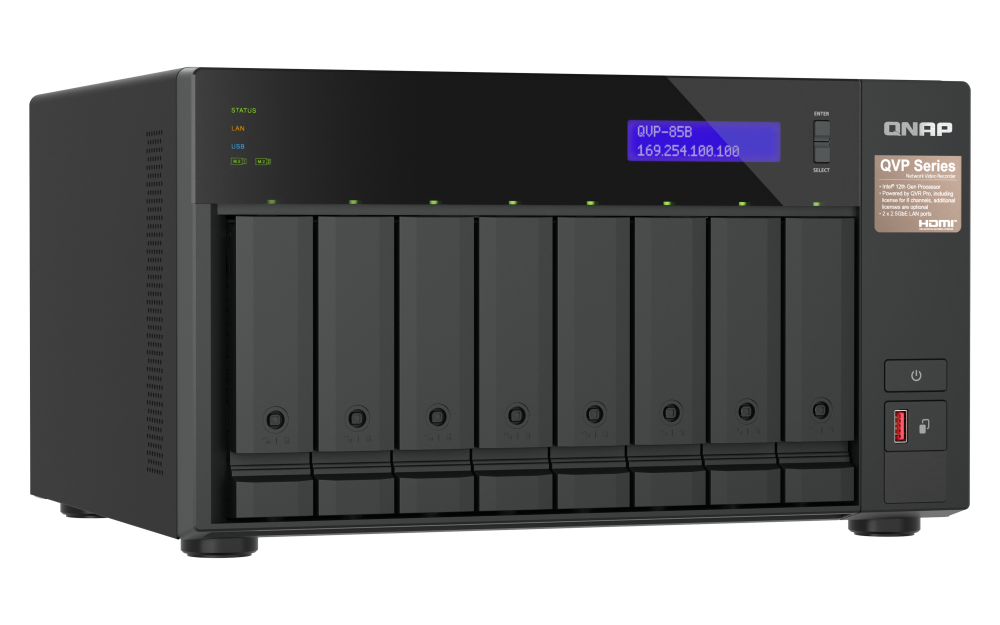

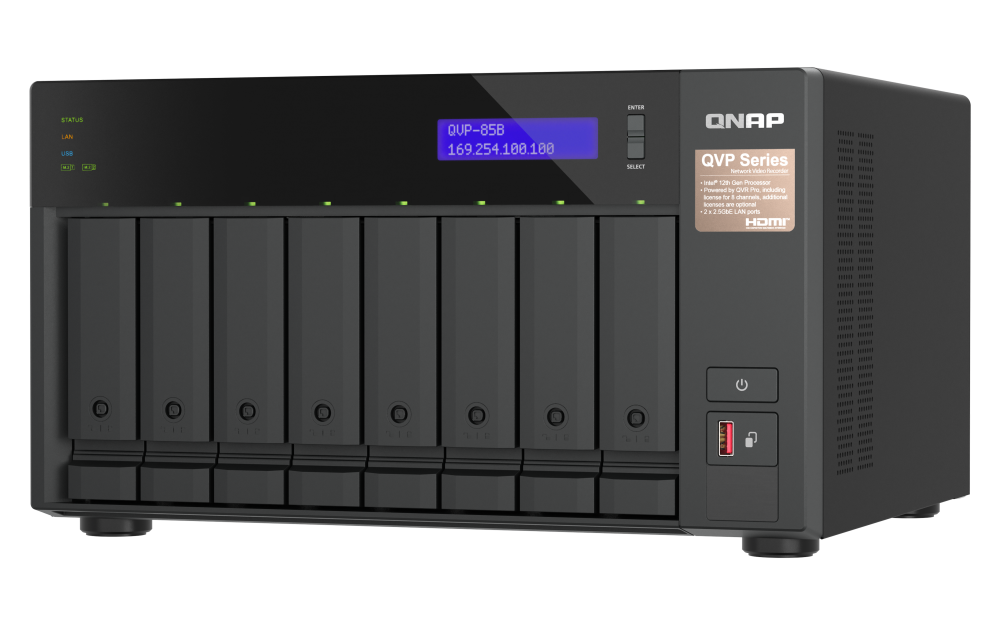

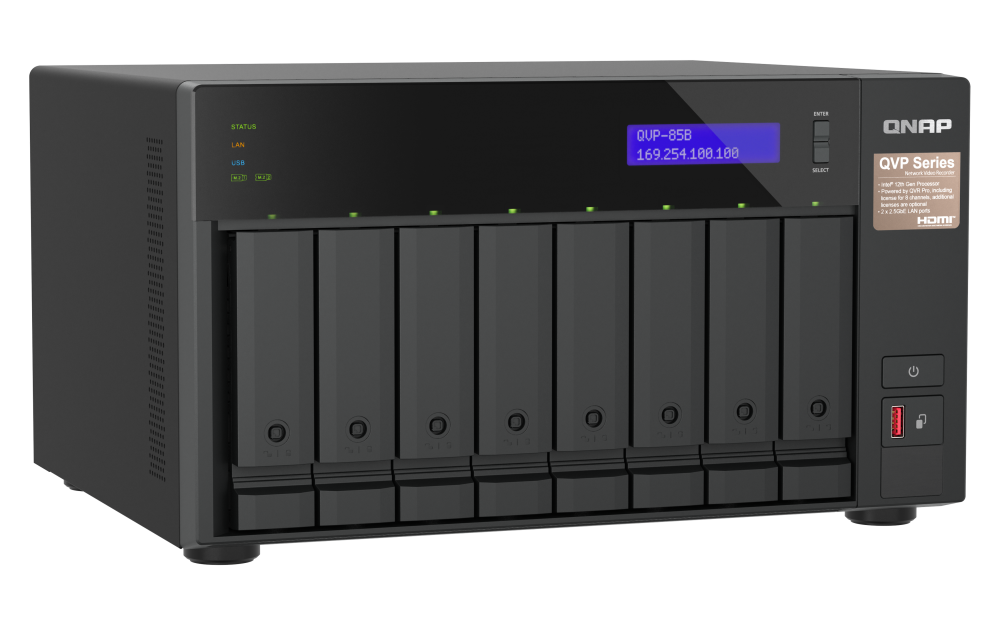

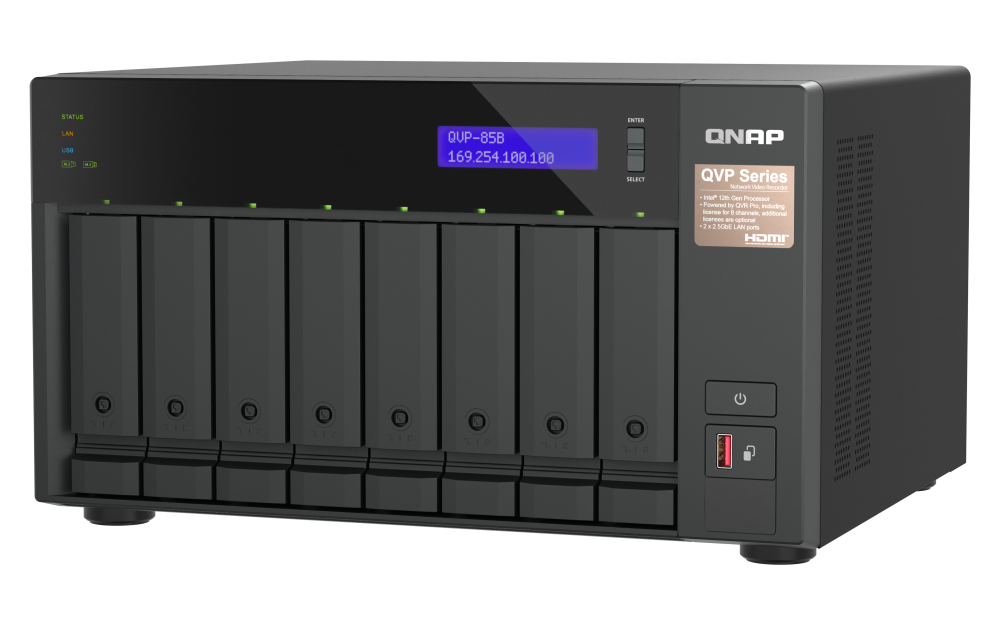

QVP-85B
規格
購買→

  1. QVP-85B
    OS QVR Pro 作業系統 (QVP)
    CPU Intel® Core™ i5 6核心/12執行緒處理器
    CPU 架構 64 位元 x86
    圖形處理器 Intel® UHD Graphics 730
    硬體加速轉檔
    系統記憶體 32 GB SODIMM DDR4 (2 x 16 GB)
    最大記憶體 64 GB (2 x 32 GB)
    記憶體插槽 2 x SO-DIMM DDR4
    快閃記憶體 5 GB (雙啟動作業系統防護)
    即時影像上限 (本機顯示) 56ch @ 全 720p、H.264、30FPS
    34ch @ 全 1080p、H.264、30FPS
    同時回放上限 (本機顯示) 16
    同時連線數目上限 (用戶端) 16（每個遠端用戶端可連接 4 路即時攝影機）
    *用戶端同時連線數會依即時攝影機數量而異
    內建頻道授權 8
    最大錄影頻道 64
    H264 / 1920x1080 / 30FPS
    最大頻寬 1686 Mbps
    Drive Bay 8 x 3.5 吋 SATA 6Gb/s、3Gb/s
    系統出貨時不含硬碟。
    有關硬碟相容性列表，請造訪https://www.qnap.com/compatibility/
    支援硬碟類型 3.5 吋插槽：
    3.5 吋SATA硬碟
    2.5 吋SATA硬碟
    2.5 吋SATA固態硬碟
    熱插拔支援
    M.2 SSD 插槽 2 x M.2 2280 PCIe Gen 4 x4 插槽
    M.2 固態硬碟插槽_note (NVMe 或 SATA) 這些 M.2 插槽不支援與 QVP 軟體相關的功能

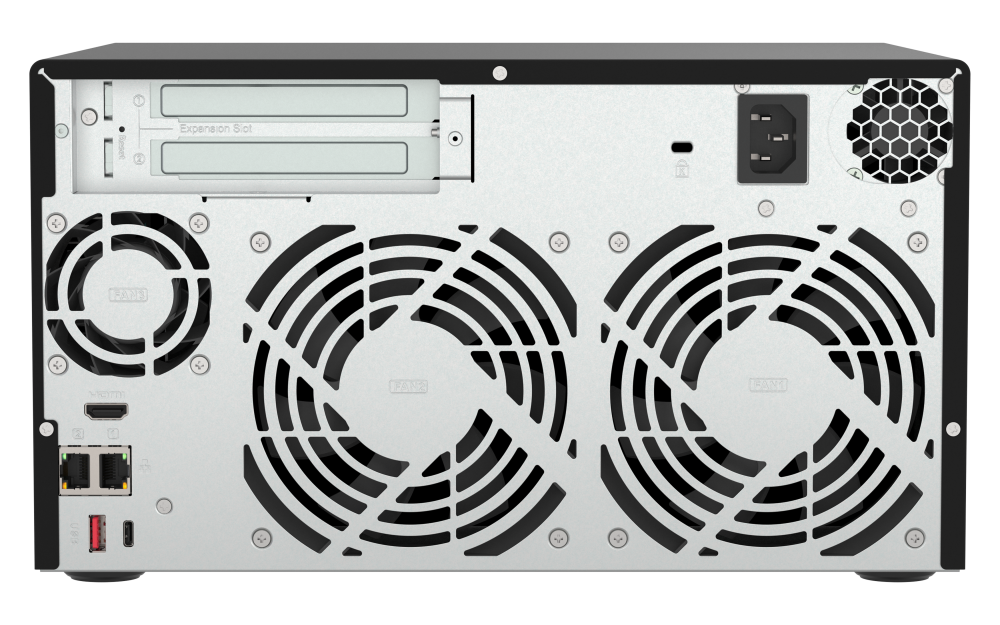

    2.5 Gigabit 乙太網路埠 2
    PCIe 插槽 2
    插槽 1：PCIe Gen 4 x16
    插槽 2：PCIe Gen 4 x4
    USB 3.2 Gen 2 (10Gbps) 連接埠 1 x Type-C USB 3.2 Gen 2 10Gbps
    2 x Type-A USB 3.2 Gen 2 10Gbps
    HDMI™ 輸出 1, HDMI™ 1.4b (最高達 4096 x 2160 @ 30Hz)
    外型 直立式
    LED 指示燈 HDD 1-8、狀態、網路、USB 埠、M.2 埠
    LCD 顯示器/按鈕 是
    按鈕 電源、系統重置、USB 複製
    尺寸 (高 x 寬 x 深) 188.2 × 329.3 × 280.8 mm
    重量 (淨重) 7.3 kg
    操作溫度 0 - 40 °C (32°F - 104°F)
    相對濕度 5-95% RH (不凝結)，濕球：27˚C (80.6˚F)
    電源供應器 250W，100-240V
    耗電量：硬碟休眠模式 43.131 W
    耗電量：運作模式，一般 85.701 W
    搭配 WD10EFRX 硬碟滿載
    風扇 系統風扇：2 x 120mm, 12VDC
    CPU 風扇：1 x 60mm, 12VDC
    噪音值 24.2 db(A)
    系統警示 語音提示或蜂鳴器
    硬碟櫃 是
    檔案系統：內接式硬碟 EXT4
    RAID 復原
    線上 RAID 容量擴充
    線上 RAID 組態遷移
    RAID 10+ 熱備援
    RAID 10
    RAID 6+ 熱備援
    RAID 6
    RAID 5+ 備援
    RAID 5
    RAID 1
    JBOD
    單獨的硬碟
    全域備份硬碟
    網路喚醒 (WOL)
    系統排程開機/關機 (15 種設定)
    Telnet 和 SSH 登入 (僅限 Admin)
    Syslog 伺服器和用戶端
    語言 英文、德文、法文、義大利文、西班牙文、波蘭文、瑞典文、丹麥文、挪威文、芬蘭文、俄文、日文、韓文、荷蘭文、捷克文、繁體中文、簡體中文、土耳其文、匈牙利文、羅馬尼亞文、泰文、葡萄牙文/巴西、希臘文
    注意：請僅使用 QNAP 記憶體模組來維持系統的效能與穩定性。若 NAS 裝置有多個記憶體模組，請使用相同規格的 QNAP 模組，並參考硬體使用手冊安裝相容的 QNAP 記憶體模組。
    警告：使用不支援的模組可能會降低效能、造成錯誤，或使作業系統無法啟動。
    QNAP 有權視供應商產品供貨情況，更換部分零件或配件。其相容性與穩定性皆經過相同嚴格的測試檢驗，請用戶放心使用。
    HDMI、HDMI High-Definition Multimedia Interface、HDMI Logo 是 HDMI Licensing Administrator, Inc. 的商標或註冊商標。
    產品圖僅供示意，實際產品可能有所不同。由於螢幕顯示誤差，產品實際顏色亦可能和網站所示有所不同。
    威聯通科技得保留隨時修改的權利，恕不另行通知。
Recording
Supported Media Sources IP cameras (https://www.qnap.com/go/compatibility-qvr-pro)
Generic RTSP url
Onvif ProfileS camera
Webcam camera (Need QUSBCam2 qpkg installed)
Recording Mode Continuous/ scheduled/ event recording
Alarm recording by multiple events
Pre-alarm (up to 300 sec) and post-alarm (up to 300 sec) recording
Round-the-clock recording and smart recording when user-defined stream is supported on the camera model
Edge recording (Support Onvif Profile G client)
Auto Snapshot / Capture picture Yes (Per 1, 2, 3, 4, 5, 6, 10, 12, 15, 30, 60 minutes)
Support to save to the remote destination.
Megapixel Recording Supports megapixel cameras (up to 6K Resolution)
Bitrate Type CBR  / VBR (depending on the camera models)
Max stream number 3 (depending on the camera models)
Transport Protocol TCP / UDP / HTTP
Audio Support Audio in/out
Format: G711muLaw / G711aLaw / G726 / AAC / PCM
Video System NTSC / PAL
Download & Export Download recordings via the File Station, FTP, SMB/CIFS Recordings export on local playback and remote playback
Multiple Volumes Support Support using multiple volumes as a recording space
Retention Rule Support to specify the number of days that
normal and event recording streams are recorded, or the maximum file size for the saved files, and whether or
not to overwrite files older files to make space for new recordings.
File Format Standard MP4, AVI and QNAP QVI (QVI format needs Qdecoder Pro)
Minimum Requirement Physical memory: 4GB
Recording Performance The maximum allowed number of camera channels varies, depending on the NAS model, network configuration, and camera settings.
For more information, see https://www.qnap.com/go/qvr-nas-selector
Recording Storage　
Storage Allocation / Dedicated Storage Independent recording space from QTS, ensuring dedicated storage space, high-quality recordings, and no performance interference.
Assign separate streaming resources and allocate dedicated storage spaces for general recordings and event recordings.
Expansion Unit Support expansion enclosure
Camera Integration and function
Transport Protocol HTTP, RTSP RTP over TCP / UDP
Onvif ProfileS Support Yes
Onvif Profile T Support Yes
Camera Brand Support Over 170 brands
Camera Model Support Support more than 5000 compatible IP camera models, including fisheye, 360 degree camera and PTZ.
IVA Support Yes (Compatible List: https://www.qnap.com/en/compatibility-qvr-pro/?audio_detection=true&tampering_detection=true&cross_line=true&intrusion_detection=true)
Two Way Audio Support Yes (Compatible List: https://www.qnap.com/go/compatibility-qvr-pro?audio_inout=In%2FOut)
Share channel via HTTP/RTSP 1.Share channel via HTTP, user can watch the live stream from browser.
2.Share channel via RTSP, user will get the RTSP stream url.
Get recording via RTSP url Yes
Monitoring Live & Playback (QVR Pro Client Desktop Platform / QVR Smart Client HDMI™ Output)
Platform Support Windows 7 SP1 or later version
Mac OS El Capitan 10.11.5 or later version
Ubuntu 16.10 or later version
HybridDesk Station V3.1.2 for AMD CPU NAS model
HybridDesk Station V3.1.5 for Intel CPU NAS model
Minimum Hardware Requirement (CPU / GPU / Memory / Resolution) CPU (with standalone GPU Card): Intel 4th Core i5 or above
CPU (without standalone GPU Card): Intel 6th Core i5 or above
GPU: Nvidia 1050
Memory: 4 GB or above.
Ethernet: 100/1000Mbps.
Display Resolution: 1366 x 760 pixels or above.
Support Server Product 1.QVR Pro
2.QVR Center
3.QVR Guard
Multiple Monitor Support (Video Wall) Up to 8 monitor
Multiple Graphics Card Support Up to 2 graphic card (Windows platform)
Monitoring Live view at the same time Windows: 64 Channels (720p@H.264@30fps) @ i7-3770, 16GB Memory, GTX 1050
Mac: 40 Channels  (720p@H.264@30fps) @ i7-3770 + 16GB GTX 1050 (MacBook Pro 2017, 2.3Ghz Intel i5, 8GB Memory)
HybridDeskop Station: 36 Channels (720p@H.264@30fps) @TVS-682-i5
Ubuntu: 64 Channels (720p@H.264@30fps) @ i7-3770, 16GB Memory, GTX 1050
Recording Playback at the same time Max 20Channel at single QVR Pro Client desktop / QVR Smart Client HDMI™ Output
(This spec will be limited by live view channel support while using lower hardware level)
The time between start to playback and see recording picture Within 1 second. (It still needs enough network bandwidth)
The method & function of connecting server 1.Support secure login
2.Support remember password
3.Support auto login
4.Support myqnapcloud / domain login
5.Support login history list
Intuitive Live & Playback Control Yes, easily for using. Support just clicking the timeline for play reording / export recording / live.
View Layout 1.Saved at server, using different computer could get same view layout by same user account.
2.Dynamic layout editor
3.One screen one view
4.The view could contain below information
a.Camera, the cross column of camera and the cross row of camera.
b.The position of ROI (Region of Interest)
c.The position of dewarping fisheye camera
d.The position of digital zoom by a camera
e.The position of a emap
5.Could display the blink red camera unit frame while receiving event
Sequential Mode Provide 2 sequential mode:
1.Sequential display view by configured view list and view list order.
2.Sequential display camera by specific view layout
Playback method / Retrieve Recording Provide below method:
1.Click the timeline of the camera to play recording, even the camera is under live could be switched to recording immediately.
2.Choose a day on the calendar then click the specific time of the timeline to play recording.
3.Drag the camera snapshot in notification list into a view to play recording.
4.Search keyword of metadata then drag the time period to the view.
User Interface Time Control Previous 5 minutes / Previous frame / Pause / Play / Next frame / Next 5 minutes
Speed: 0.1x / 0.5x / 1x / 2x / 4x / 8x / 16x
Next Event / Previous Event
Sync mode: ensuring all camera at the view display same time recording.
Support to control playback by keyboard
Keyboard Time Control Space: Play / Pause
Right: Next frame
Left: Previous frame
Setting a Region of Interest (ROI) Yes
Auto Cruising / Setting the movement path of mutiple preset points Yes, setting path at client
Preset Point Number 256
Move camera by Preset Point setting Yes
Auto stop auto cruising while user manual move ptz camera Yes
Recording export 1.Quickly export, export 1hour length recording for 5 minutes.
2.Attach timestamp, channel name on the recording screen.
3.Transcoding to specific codec.
4.Could remove the audio stream.
5.File format: AVI, MP4
Snapshot picture Yes
Support format: BMP/PNG/JPG
Support for the overlay text (Channel Name, Date Time)
Qdewarp for Fisheye Camera Dewarping function for fisheye cameras and Panomorph lens Play, pause, rewind, fast forward, slow motion, frame by frame search, audio, digital zoom
E-map Picture format: PNG / JPG / SVG
E-map at server: Support to put cameras / emap at a emap.
Rotation & Status: Show the camera position, camera event icon and camera status icon (Desktop)
Support viewing live / recording / e-map at single view layout in the same time. (Desktop)"
Bookmark 1.Place a vertical thin bar and text details on video footage for easier event investigation
2.Support to search bookmark for playback.
Supported Codec format of GPU accelerator H.264 / H.265
Decode Unit CPU / GPU
Hardward Accelerator / GPU Accelerator Yes
Notification List Yes, support to display latest notification
User could hide the specific event type or hide event of specific channels.
Notify Buzzer Yes
E-map Notify Yes
HybirdDesk Station Platform Feature 1.The user interface as same as windows platform
2.Virtual Keyboard for input
3.Non-PC required, installed at NAS directly.
4.Support to login to other NAS.
Resolution support 1. At least: 1377 x 768
2. Max: Unlimited (Including 4K / Very Wide Screen)
Click & Go (PTZ control) Yes
Event Management & Logging　
Rule Support user to create multiplerule, set the schedule, set the event to action binding.
Event Support the "OR" or "AND" logical in the event setting
Support event type (From Camera):Motion detection,Alarm Input,Audio Detection,Cross Line,Digital Autotracking,Intrusion Detection,Tampering Detection,Connection Error,Reconnection,Recording Space Error,Recording Space Warning,Recording Space Full,Recording Space Restored,Disc Warning,Disc Error,Disc Hours Warning,Event URL
(Some event need specific camera model)
Action Support action type: Event Recording,Alarm Output,Camera Control (Based on preset point), App Push Notification,Email, SMS
Support attach the camera snapshot in the notification email.
Support Gmail, Yahoo SMTP (including 2-step validation)
QVR Pro Client (Desktop) Notification / QVR Smart Client (HDMI™ ) Support notification list, beeper sound, emap change icon, camera frame change color
Push Notification Support push notification to mobile devices through MyQNAPCloud.
Motion detection at QVR Pro server Up to 2 cameras
With QVR Pro motion detection, even the camera does not support motion detection you can still use the feature.
Log System System event logs, system connection logs, online users, surveillance event logs, surveillance setting logs
Backup & Expansion
Remote Backup Support to backup to the remote NAS, also could be executed by schedule.
Support to overwrite the oldest recording of remote NAS.
External Backup Copy recordings of "QVRProRecording" shared folder from the local disk volume to an external storage device
USB One Touch Copy Press the “USB One Touch Copy” button to backup recordings of "QVRProRecording" shared folder from external storage to USB storage.
Remote Replication Schedule video data backup to a NAS by using HybridBackupSync.
Expansion Unit Support expansion enclosure
Cloud Backup Easily upload/download the data from the NVR to Amazon S3 or Google Drive by using HybridBackupSync.
Easy Configuration and Management
QVR Pro - Desktop Web Multi-window, multi-tasking
Intelligent desktop with main menu, smart dashboard, drag-and-drop icons.
Supports Google Chrome, Internet Explorer, Mozilla Firefox on Windows
Easily Camera Management 1. Auto search camera   2. Batch Add/Mdy camera 3. Export/Import CSV format file for camera connection setting.
File Station Access standard MP4 files using web browsers at "QVRProRecording" shared folder.
Securely share files by URL.
myQNAPcloud Unique hostname for the machine.
Automatic port forwarding on a UPnP router.
App Center Download numerous free on-demand apps
License Upgrade Flexibly expand the number of channels to meet your demands by purchasing additional licenses
https://license.qnap.com/#/license_product?pid=14
Privilege Management
Permission Level Allow, Deny, Not Determined.
Permission Unit User, user group, role
Privilege Report Yes, see the permission result combine from user, user group and role
Permission Setting Set System, Surveillance Setting and View, Camera, E-map
Security Protection
Secure Connection Security connection with HTTPS、SSH
2-step Verification Add an extra layer of protection to your account by requiring an additional one-time security code.
Malware Remover The Malware Remover is designed to protect your Turbo NAS against harmful software. QNAP strongly recommends that you install this app to avoid potential security risks. During installation, the app will scan your Turbo NAS and quarantine any detected malware. After installation: - If no warning messages appear after installation, your Turbo NAS is not infected. You can verify the scan results by going to “Control Panel”>“System Logs”. - If a warning message appears, malware was detected on your Turbo NAS and it has now been quarantined. You must now immediately reboot the system and change the administrator’s password.
Security Counselor Security Counselor is a centralized security management suite for your QNAP NAS. Security Counselor integrates features such as a checkup of your device security, automatic adjustment of suggested settings, and a unified interface for QNAP’s powerful anti-virus and anti-malware tools.
User Privilege Management Different user types and rights can be assigned to different QVR Pro users
Network Access Protection Specify the connections to be allowed and denied to access the NAS
Auto Logoff Automatic user logoff from idling on configuration pages
Disk Management
RAID Type RAID 0, RAID 1, RAID 5 , RAID 5+ Hot spare , RAID 6 , RAID 6+ Hot spare , RAID 10 , RAID 10+ Hot spare
RAID Features Online RAID Capacity Expansion, Online RAID Level Migration
HDD Utility HDD S.M.A.R.T., bad blocks scan
Reliability
USB UPS device APC/ CyberPower/ Epson/ MGE/ YEC, more could refer https://www.qnap.com/en/compatibility/?device_category=ups
Network Service
Protocol Support HTTP, HTTPS, TCP/IP, UDP, DHCP, Static IP, DNS, DDNS, UPnP, FTP, NTP, and SMTP
Built-in Server DHCP Server, NTP Server, NTP Client, Virtual Switch
Multiple Gigabit LAN Failover, load-balancing, multi-IP settings
File Services Web, FTP, SMB/CIFS
Language Support
Language 23 Languages: Czech/ Danish/ Dutch/ English/ French/ Finnish/ German/ Hungarian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Russian/ Spanish/ Swedish/ Simplified Chinese/ Traditional Chinese/ Turkish/ Greek/ Romanian/ Thai
QNAP QFinder
Discovery All QNAP NASes in the same LAN segment are discovered automatically.
Quick Setup Quick configuration on the discovered NASes.
Mobile Surveillance (QVR Pro Client)
Support Platform Minimum system requirement: iOS 9, Android 4.4
Intuitive Timeline Design Instant switch between Live and Playback modes for an intuitive user experience.
Camera Control Various advanced monitoring options, including sequential mode, PTZ control, auto cruising and preset point control
Notification List Support for receiving instant push notifications with server name and self defined message.
Play back events via event logs, easily switch between previous event and next event.
Capture and Share 1.Screenshot feature helps you catch the important moment and save to device.
2.Share link feature let you share the live stream URL easily with mobile app, and watch the live stream with browser.
Multiple camera viewer 1.Swiping the screen at single channel view to browse channels.
2.Base on the camera channel numbers, there will be multiple slip layout for user, 2 channels, 4 channels, 6 channels, 9 channels, 12 channels and 16 channels.
3.Sequential mode with multiple option, which is 10, 15, 30 and 60 seconds.
Performance Global streaming priority help facilitate recording viewing without compromising recording quality when users do not have sufficient network bandwidth.
E-map Support for displaying camera locations on e-maps
Displaying event icons at camera locations on E-maps when events occur.
Tap icon and jump to single channel view for checking video.
Camera icon on e-map shows the camera status, which is Connected, Connecting, Idle, Error.
Dashboard Server dashboard that displays NAS information, camera recording status, license information, recording space status, and resource usages.
Event log Querying event logs within a specific time period.
Search event log via keyword.
Various notification method, which is ring, silent and vibrate.
Tap on the event screenshot for playback event recording.
2-step Verification Add an extra layer of protection to your account by requiring an additional one-time security code.
3rd Party Integration
API Document Go to https://www.qnap.com/solution/qvrpro-developer/en/ for applying the API document.
Metadata Vault 1.Support storing text data by http post via specific integration URL.
2.Paired camera and single metadata.
3.QVR Pro Client / QVR Smart Client provide metadata search for retrieving recording.
Plug-in Center Support 3rd-party developer
Stream Out 1.RTSP
2.HTTP (WebRTC / HLS auto detected)
Stream Out Connection 1.RTSP: 30 connections
2.HTTP: 10 connections
Central Management System (QVR Center)
Multiple QVR Pro Server Management Support up to 128 QVR Pro servers．
Managing multiple servers by batch editing, stopping, activating, updating, and deleting QVR Pro servers.
Displaying each QVR Pro’s status and show system status for potential troubleshooting.
Customizing the events dashboard based on users' needs and displaying the analytics of event frequencies or business peak hours from visualized graphics to easily address potential issues.
User Management & Access Control Allow to use a single account to access multple QVR Pro servers for monitoring and playback.
Allow to define the permission of system management and access to a camera, an e-map or a view by roles.
Failover (QVR Guard)
Failover management each NAS running QVR Guard can serve as a failover server for one NAS running QVR Pro
QVR Guard automatically enables or disable takeover tasks when QVR Pro failed or recovers
Dashboard: QVR Guard, QVR Pro health status, network connection status. takeover  transfer log
Recording location on the QVR Guard when the QVR Pro failed.  Use QVR Pro Client / QVR Smart Client for live monitoring and playback recording data.
Fault takeover time: 1 ~ 3 minutes. (Depending on the number of cameras and network quality)
QVR Guard protects QVR Pro from taking over recording tasks when the following exception occurs
1.QVR Pro server failure
2.QVR Pro network disconnection
3.QVR Pro recording space failure
Disable failover QVR Guard automatically stops taking over tasks when QVR Pro returns to normal
Supported Server Hardware
Product Safety Certification All QTS NAS Model: CE, FCC, BSMI, VCCI
Optional: KCC, CCC, India BIS

* Two-way audio is only supported on one browser or local display at the same time.
Designs and specifications are subject to change without notice.

QVP-85B

QVP-85B

乙太網路線纜 x 1

乙太網路線纜 x 1

Power cord 電源線

Power cord 電源線

十字螺絲 (適合 3.5 吋硬碟) x 24

十字螺絲 (適合 3.5 吋硬碟) x 24

十字螺絲 (適合 2.5 吋硬碟) x 18

十字螺絲 (適合 2.5 吋硬碟) x 18

M.2 SSD散熱片 x 2

M.2 SSD散熱片 x 2

硬碟槽鑰匙 x 2

硬碟槽鑰匙 x 2

快速安装手册 (QIG)

快速安装手册 (QIG)

選購配件

  1. QM2-2P-244A

    QM2-2P-244A

    QM2-2P-344

    QM2-2P-344 (EOL)

    QM2-2P-344A

    QM2-2P-344A

    QM2-2P-384

    QM2-2P-384 (EOL)

    QM2-2P-384A

    QM2-2P-384A

    QM2-2P10G1TB

    QM2-2P10G1TB

    QM2-2P2G2T

    QM2-2P2G2T

    QM2-2P410G1T

    QM2-2P410G1T (EOL)

    QM2-2P410G2T

    QM2-2P410G2T (EOL)

    QM2-2S-220A

    QM2-2S-220A

    LAN-40G2SF-MLX

    LAN-40G2SF-MLX (EOL)

    QXG-10G1T

    QXG-10G1T

    QXG-10G2SF-X710

    QXG-10G2SF-X710

    QXG-10G2T

    QXG-10G2T

    QXG-10G2T-X710

    QXG-10G2T-X710

    QXG-10G2TB

    QXG-10G2TB (EOL)

    QXG-25G2SF-CX6

    QXG-25G2SF-CX6

    QXG-25G2SF-E810

    QXG-25G2SF-E810

    QXG-2G1T-I225

    QXG-2G1T-I225

    QXG-2G2T-I225

    QXG-2G2T-I225

    QXG-2G4T-I225

    QXG-2G4T-I225

    QXG-5G1T-111C

    QXG-5G1T-111C

    QXG-5G2T-111C

    QXG-5G2T-111C

    QXG-5G4T-111C

    QXG-5G4T-111C

    QXP-10G2U3A

    QXP-10G2U3A

    QXP-1620S-B3616W

    QXP-1620S-B3616W (EOL)

    QXP-16G2FC

    QXP-16G2FC

    QXP-32G2FC

    QXP-32G2FC

    QXP-820S-B3408

    QXP-820S-B3408

    RAM-16GDR4T0-SO-2666

    RAM-16GDR4T0-SO-2666 (EOL)

    RAM-32GDR4K0-SO-3200

    RAM-32GDR4K0-SO-3200 (EOL)

    RAM-8GDR4T0-SO-2666

    RAM-8GDR4T0-SO-2666

原包裝出貨的擴充卡、變壓器及配件自購買日起享有一年保固。

選擇規格

      顯示更多 隱藏更多

      選擇其他偏好的語言：

      open menu
      back to top
