TS-h686

TS-h686

TS-h686-D1602-8G
  • TS-h686-D1602-8G

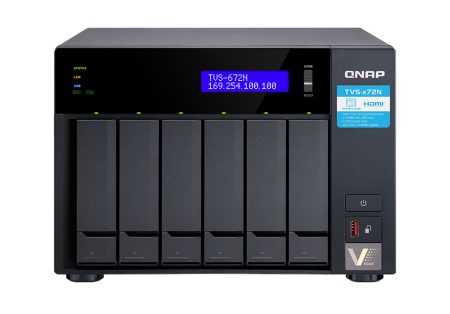

 TVS-672N

TVS-672N

TVS-672N-i3-4G
  • TVS-672N-i3-4G

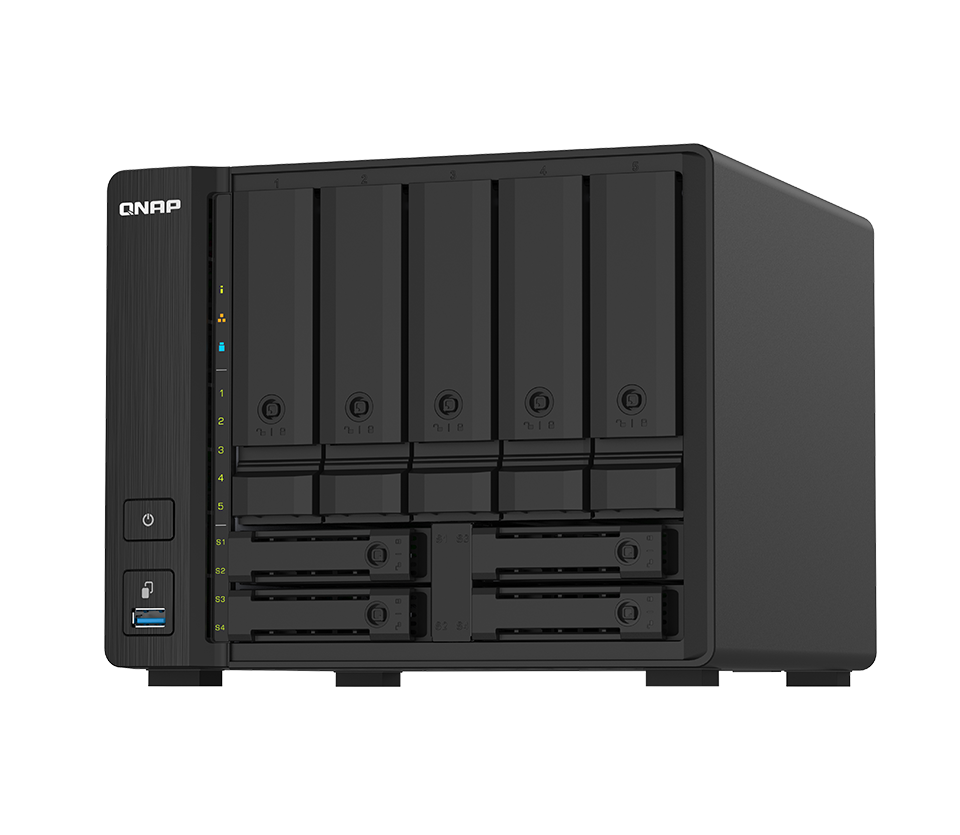

 TS-932PX

TS-932PX

TS-932PX-4G
  • TS-932PX-4G

System Specification
CPU
CPU Intel® Xeon® D-1602 2-core/4-thread processor, up to 3.2 GHz Intel® Core™ i3 Processor AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor
CPU Architecture
CPU Architecture 64-bit x86 64-bit x86 64-bit ARM
Graphic Processors
Graphic Processors Intel® UHD Graphics 630
Floating Point Unit
Floating Point Unit
Encryption Engine
Encryption Engine (AES-NI) (AES-NI)
Hardware-accelerated Transcoding
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory
System Memory 8 GB UDIMM DDR4 ECC (2 x 4 GB) 4 GB SODIMM DDR4 (2 x 2 GB) 4 GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory
Maximum Memory 128 GB (4 x 32 GB) 32 GB ( 2 x 16 GB) 16 GB (1 x 16 GB)
Memory Slot
Memory Slot 4 x UDIMM DDR4 1 2 x SODIMM DDR4 1 x SODIMM DDR4
Flash Memory
Flash Memory 5GB (Dual boot OS protection) 5GB (Dual boot OS protection) 512 MB (Dual boot OS protection)
Drive Bay
Drive Bay 4 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch SATA 6Gb/s, 3Gb/s 2 6 x 3.5-inch SATA 6Gb/s, 3Gb/s 5x 3.5-inch+ 4 x 2.5-inch SATA 6Gb/s
Drive Compatibility
Drive Compatibility 3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives



2.5-inch bays:

2.5-inch SATA solid state drives 		3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives 		3.5-inch bays:

3.5-inch SATA hard disk drives

2.5-inch SATA hard disk drives

2.5-inch SATA solid state drives



2.5-inch bays:

2.5-inch solid state drives
Hot-swappable
Hot-swappable (Not supported M.2 SSD) (Not supported M.2 SSD)
M.2 Slot
M.2 Slot 2 x M.2 22110/2280 NVMe PCIe Gen3 x4 slots 3 2 x M.2 2280 PCIe Gen3 x2 slots 3
SSD Cache Acceleration Support
SSD Cache Acceleration Support

Connections
GPU pass-through
GPU pass-through
SR-IOV
SR-IOV
Gigabit Ethernet Port (RJ45)
Gigabit Ethernet Port (RJ45) 2
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4 (2.5G/1G/100M/10M) 2 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via an adapter 1 x 5GbE(5G/2.5G/1G/100M)
10 Gigabit Ethernet Port
10 Gigabit Ethernet Port 2 x 10GbE SFP+
25 Gigabit Ethernet Port
25 Gigabit Ethernet Port Optional via an adapter
Jumbo Frame
Jumbo Frame
PCIe Slot
PCIe Slot 2

Slot 1: PCIe Gen3 x8

Slot 2: PCIe Gen3 x8 4 		2

Slot 1: PCIe Gen 3 x16 (CPU)

Slot 2: PCIe Gen 3 x4 (PCH)
USB 3.2 Gen 1 port
USB 3.2 Gen 1 port 3 1 3
USB 3.2 Gen 2 (10Gbps) Port
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps

2 x Type-A USB 3.2 Gen 2 10Gbps
IR Sensor
IR Sensor (QNAP RM-IR004 & MCE)
HDMI™ Output
HDMI™ Output 1, HDMI™ 2.0 (up to 3840 x 2160 @ 60Hz)
Audio Input
Audio Input 1 x 3.5mm microphone input jacks
Audio Output
Audio Output 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)

Appearance
Form Factor
Form Factor Tower Tower Tower
LED Indicators
LED Indicators System status, LAN, USB, Disk 1~6, M.2 SSD 1~2 HDD 1-6, Status, LAN, USB port, M.2 port System Status, LAN, USB, HDD1~5, SSD1-4
LCD Display/ Button
LCD Display/ Button
Buttons
Buttons Power, Reset, USB Auto Copy Power, Reset, USB Copy Power, Reset, USB Copy
Dimensions (HxWxD)
Dimensions (HxWxD) 225 × 224.9 × 319.8 mm 5 188.2 × 264.3 × 279.6 mm 176.5 × 224.6 × 224.1 mm 5
Weight (Net)
Weight (Net) 8.44 kg 6.553 kg 4.66 kg
Weight (Gross)
Weight (Gross) 8.7 kg 8.07 kg 5.2 kg

Others
Operating Temperature
Operating Temperature 0 - 40°C (32°F - 104°F) 0 - 40 °C (32°F - 104°F) 0 - 40 °C (32°F - 104°F)
Storage Temperature
Storage Temperature -20 - 70°C (-4°F - 158°F) -20 - 70°C (-4°F - 158°F) -20 - 70°C (-4°F - 158°F)
Relative Humidity
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit
Power Supply Unit 250W PSU, 100~240V 250W, 100-240V External, 120 W, AC 100 to 240 V
Power Consumption: Disk Standby Mode
Power Consumption: Disk Standby Mode 26.52 W 23.833 W
Power Consumption: Operating Mode, Typical
Power Consumption: Operating Mode, Typical 61.115 W 6 45.6 W 7 43.003 W 6
Fan
Fan System fan: 1 x 97mm, 12VDC

CPU fan: 1 x 90mm, 12VDC 		System fan: 2 x 92mm, 12VDC

CPU fan: 2 x 60mm blower fan 		1 x 140mm, 12VDC
System Warning
System Warning Buzzer Voice prompts or Buzzer Voice prompts or Buzzer
Kensington Security Slot
Kensington Security Slot
Standard Warranty
Standard Warranty 3 2 2

Networking
Port Trunking / Link Aggregation
Port Trunking / Link Aggregation
Network Service Discovery (UPnP & Bonjour)
Network Service Discovery (UPnP & Bonjour)
Virtual LAN (VLAN)
Virtual LAN (VLAN)
Service Binding Based on Network Interfaces
Service Binding Based on Network Interfaces

Encryption
AES 256-bit Volume-based Encryption
AES 256-bit Volume-based Encryption
AES 256-bit Folder Encryption
AES 256-bit Folder Encryption
External Drive Encryption
External Drive Encryption
Hardware Encryption Engine (Not available in certain countries)
Hardware Encryption Engine (Not available in certain countries) (AES-NI)

Snapshot Protection
Snapshot
Snapshot QTS: (max 1024)

QuTS hero: (max 65536) 		(max 256)

Storage Management
RAID Recovery
RAID Recovery
Online RAID Capacity Expansion
Online RAID Capacity Expansion
Online RAID Level Migration
Online RAID Level Migration QTS:

QuTS hero: N/A
RAID 50/60
RAID 50/60
RAID 10+ hot spare
RAID 10+ hot spare
RAID 10
RAID 10
RAID 6+ hot spare
RAID 6+ hot spare
RAID 6
RAID 6
RAID 5+ Spare
RAID 5+ Spare
RAID 5
RAID 5
RAID 1
RAID 1
RAID 0
RAID 0
RAID TP
RAID TP QTS: N/A

QuTS hero:
Triple Mirror
Triple Mirror QTS: N/A

QuTS hero:
JBOD
JBOD
Single Disk
Single Disk
Global Hot Spare
Global Hot Spare
Storage Pool
Storage Pool
SSD Caching
SSD Caching
iSCSI Target
iSCSI Target
iSCSI LUN Snapshot/Backup
iSCSI LUN Snapshot/Backup
Thin-provisioned volume
Thin-provisioned volume
Deduplication
Deduplication QTS: N/A

QuTS hero:
Compression
Compression QTS: N/A

QuTS hero:
Write Coalescing
Write Coalescing QTS: N/A

QuTS hero:
SSD Over-provisioning
SSD Over-provisioning QTS:

QuTS hero: N/A
Pool Over-provisioning
Pool Over-provisioning QTS: N/A

QuTS hero:
Quality of Service(QoS)
Quality of Service(QoS) QTS: N/A

QuTS hero:

Virtualization
Container Station
Container Station
Virtualization Station
Virtualization Station
Linux Station (RAM of NAS >= 4GB)
Linux Station (RAM of NAS >= 4GB)
VMware Ready®
VMware Ready®
Citrix Ready
Citrix Ready
Microsoft Hyper-V Compatibility
Microsoft Hyper-V Compatibility

Privilege
Domain Controller
Domain Controller

Software Application
Wake on LAN (WOL)
Wake on LAN (WOL) 8 8

Sharing Capacity
Max. Number of Users
Max. Number of Users 4096 4096 4096
Max. Number of User Groups
Max. Number of User Groups 512 512 512
Max. Number of Share Folders
Max. Number of Share Folders 256 512 512
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000 2500 700

Supported Languages
Language
Language English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek
