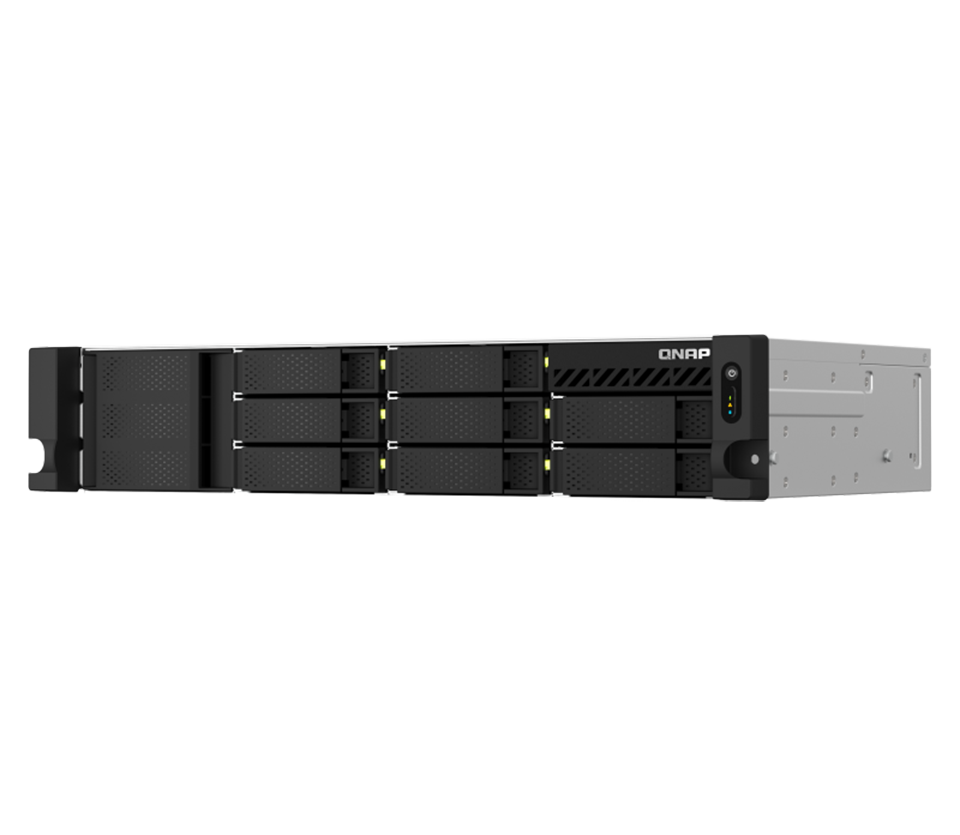

TS-873AeU |

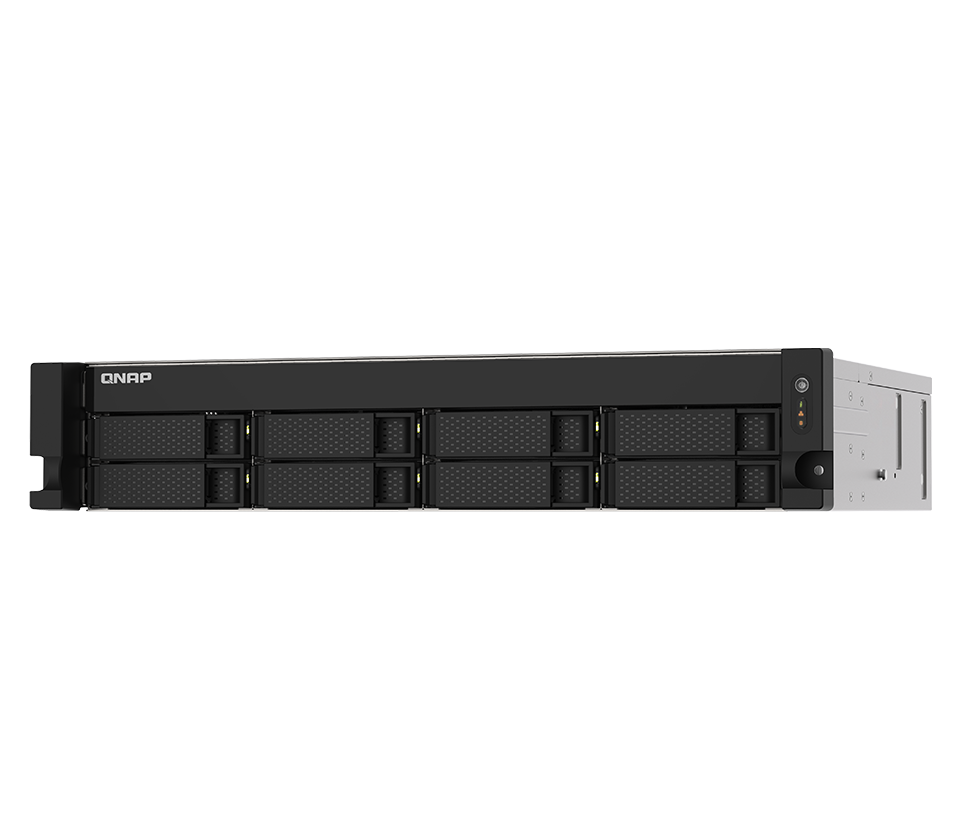

TS-873AU |
| CPU | ||
|---|---|---|
| CPU | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor | AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor |
| CPU Architecture | ||
| CPU Architecture | 64-bit x86 | 64-bit x86 |
| Floating Point Unit | ||
| Floating Point Unit | ||
| Encryption Engine | ||
| Encryption Engine | (AES-NI) | (AES-NI) |
| Hardware-accelerated Transcoding | ||
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card | Optional via a PCIe graphics card |
| System Memory | ||
| System Memory | 4 GB SODIMM DDR4 (1 x 4 GB) | 4 GB UDIMM DDR4 (1 x 4 GB) |
| Maximum Memory | ||
| Maximum Memory | 64 GB (2 x 32 GB) | 64 GB (2 x 32 GB) |
| Memory Slot | ||
| Memory Slot |
2 x SODIMM DDR4 Support ECC memory 1 |
2 x UDIMM DDR4 Support ECC memory 1 |
| Flash Memory | ||
| Flash Memory | 5GB (Dual boot OS protection) | 5GB (Dual boot OS protection) |
| Drive Bay | ||
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s 2 | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s 2 |
| Drive Compatibility | ||
| Drive Compatibility |
3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | ||
| Hot-swappable | (Not supported M.2 SSD) | (Not supported M.2 SSD) |
| M.2 Slot | ||
| M.2 Slot | 2 x M2 2280 (PCIe Gen3 x 1) 3 | Optional via a QNAP QM2 PCIe card |
| SSD Cache Acceleration Support | ||
| SSD Cache Acceleration Support | ||
| GPU pass-through | ||
|---|---|---|
| GPU pass-through | ||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | ||
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | ||
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter | Optional via a network adapter |
| 10 Gigabit Ethernet Port | ||
| 10 Gigabit Ethernet Port | Optional via a network adapter | Optional via a network adapter |
| Jumbo Frame | ||
| Jumbo Frame | ||
| PCIe Slot | ||
| PCIe Slot | 1 x PCIe Gen3 x8 4 |
2 x PCIe Gen3 x4 (Units manufacturered before 2021/01/09 are 1 x PCIe Gen3 x8 slot and can be upgraded to 2 x PCIe Gen3 x4 slots with the purchase of a BRKT-RISER-2P-2U adapter) 5 |
| USB 3.2 Gen 1 port | ||
| USB 3.2 Gen 1 port | 1 x Type-A | |
| USB 3.2 Gen 2 (10Gbps) Port | ||
| USB 3.2 Gen 2 (10Gbps) Port | 4 (2 x Type A, 2 x Type C) |
2 x Type-C 1 x Type-A |
| HDMI™ Output | ||
| HDMI™ Output | Optional via a PCIe graphics card | Optional via a PCIe graphics card |
| Form Factor | ||
|---|---|---|
| Form Factor | 2U Short Depth Rackmount | 2U Rackmount |
| LED Indicators | ||
| LED Indicators | HDD 1-8, Status, LAN, USB, Power | HDD 1-8, Status, LAN, USB, Power |
| Buttons | ||
| Buttons | Power, Reset | Power, Reset |
| Dimensions (HxWxD) | ||
| Dimensions (HxWxD) | 3.49 × 17.01 × 11.71 inch 6 | 3.5 × 18.98 × 16.73 inch 6 |
| Weight (Net) | ||
| Weight (Net) | 17.57 lbs | 17.73 lbs |
| Weight (Gross) | ||
| Weight (Gross) | 20.88 lbs | 28.13 lbs |
| Operating Temperature | ||
|---|---|---|
| Operating Temperature | 0 - 40 °C (32°F - 104°F) | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | ||
| Storage Temperature | -20 - 70°C (-4°F - 158°F) | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | ||
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | ||
| Power Supply Unit | 250W PSU, 100 - 240V | 250W PSU, 100 - 240V |
| Power Consumption: Disk Standby Mode | ||
| Power Consumption: Disk Standby Mode | 26.76 W | 28.98 W |
| Power Consumption: Operating Mode, Typical | ||
| Power Consumption: Operating Mode, Typical | 52.49 W 7 | 55.01 W 7 |
| Fan | ||
| Fan | 3 x 60mm, 12VDC | 2 x 80mm, 12VDC |
| System Warning | ||
| System Warning | Buzzer | Buzzer |
| Standard Warranty | ||
| Standard Warranty | 3 | 3 |
| Port Trunking / Link Aggregation | ||
|---|---|---|
| Port Trunking / Link Aggregation | ||
| Network Service Discovery (UPnP & Bonjour) | ||
| Network Service Discovery (UPnP & Bonjour) | ||
| Virtual LAN (VLAN) | ||
| Virtual LAN (VLAN) | ||
| Service Binding Based on Network Interfaces | ||
| Service Binding Based on Network Interfaces | ||
| AES 256-bit Volume-based Encryption | ||
|---|---|---|
| AES 256-bit Volume-based Encryption | ||
| AES 256-bit Folder Encryption | ||
| AES 256-bit Folder Encryption | ||
| External Drive Encryption | ||
| External Drive Encryption | ||
| Hardware Encryption Engine (Not available in certain countries) | ||
| Hardware Encryption Engine (Not available in certain countries) | ||
| Snapshot | ||
|---|---|---|
| Snapshot | (max 1024) | (max 1024) |
| RAID Recovery | ||
|---|---|---|
| RAID Recovery | ||
| Online RAID Capacity Expansion | ||
| Online RAID Capacity Expansion | ||
| Online RAID Level Migration | ||
| Online RAID Level Migration |
QTS: QuTS hero: N/A |
QTS: QuTS hero: N/A |
| RAID 50/60 | ||
| RAID 50/60 | ||
| RAID 10+ hot spare | ||
| RAID 10+ hot spare | ||
| RAID 10 | ||
| RAID 10 | ||
| RAID 6+ hot spare | ||
| RAID 6+ hot spare | ||
| RAID 6 | ||
| RAID 6 | ||
| RAID 5+ Spare | ||
| RAID 5+ Spare | ||
| RAID 5 | ||
| RAID 5 | ||
| RAID 1 | ||
| RAID 1 | ||
| RAID 0 | ||
| RAID 0 | ||
| RAID TP | ||
| RAID TP |
QTS: N/A QuTS hero: |
QTS: N/A QuTS hero: |
| Triple Mirror | ||
| Triple Mirror |
QTS: N/A QuTS hero: |
QTS: N/A QuTS hero: |
| JBOD | ||
| JBOD | ||
| Single Disk | ||
| Single Disk | ||
| Global Hot Spare | ||
| Global Hot Spare | ||
| Storage Pool | ||
| Storage Pool | ||
| SSD Caching | ||
| SSD Caching | ||
| iSCSI Target | ||
| iSCSI Target | ||
| iSCSI LUN Snapshot/Backup | ||
| iSCSI LUN Snapshot/Backup | ||
| Thin-provisioned volume | ||
| Thin-provisioned volume | ||
| SSD Over-provisioning | ||
| SSD Over-provisioning |
QTS: QuTS hero: N/A |
QTS: QuTS hero: N/A |
| Container Station | ||
|---|---|---|
| Container Station | ||
| Virtualization Station | ||
| Virtualization Station | ||
| VMware Ready® | ||
| VMware Ready® | ||
| Citrix Ready | ||
| Citrix Ready | ||
| Microsoft Hyper-V Compatibility | ||
| Microsoft Hyper-V Compatibility | ||
| Domain Controller | ||
|---|---|---|
| Domain Controller | ||
| Max. Number of Users | ||
|---|---|---|
| Max. Number of Users | 4096 | 4096 |
| Max. Number of User Groups | ||
| Max. Number of User Groups | 512 | 512 |
| Max. Number of Share Folders | ||
| Max. Number of Share Folders | 512 | 512 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | ||
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 | 2000 |
| Language | ||
|---|---|---|
| Language | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek | English, German, French, Italian, Spanish, Polish, Swedish, Danish, Norwegian, Finnish, Russian, Japanese, Korean, Dutch, Czech, Traditional Chinese, Simplified Chinese, Turkish, Hungarian, Romanian, Thai, Portuguese/Brazil, Greek |
