TS-h1065eU
2U short-depth NAS equipped with advanced E1.S/M.2 PCIe NVMe slots and expandable with 10GbE connectivity
TS-h1065eU is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 PCIe NVMe slots—all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.
Flexible E1.S/M.2 slots
Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
Built-in QuTS hero operating system
Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
Dual 2.5GbE as standard
Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.

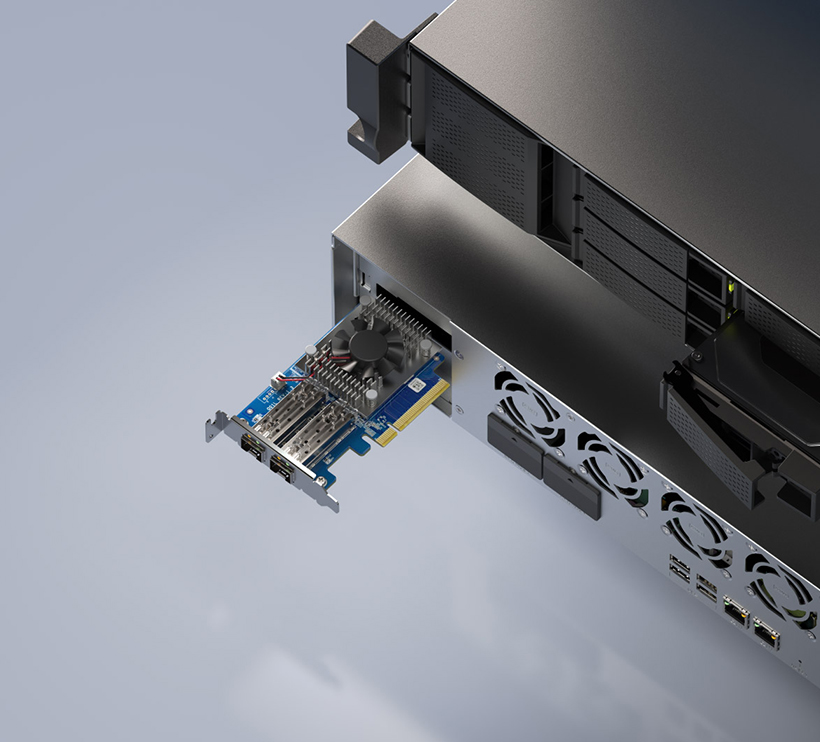

PCIe Gen 3 slot
Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
Long-term supply
TS-h1065eU will be available and supported by QNAP for an extended period, up to 2031.

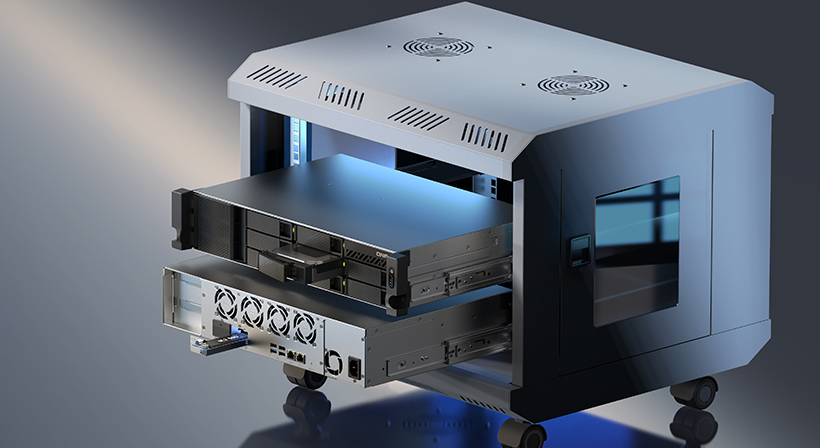

2U short-depth design for flexible deployment
TS-h1065eU has a short chassis depth of only 12 inches (297mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
High-performance Intel® quad-core processor
High-performance Intel® quad-core processor
-
Memory
Built-in DDR5 non-ECC RAM (Supports In-Band ECC); upgradable to 16GB (1 x 16GB)
-
AES-NI Encryption Engine
AES 256-bit hardware-accelerated encryption boosts system performance while securing sensitive data
-
In-Band ECC
Enhances system security and data reliability
-
2 x 2.5GbE SMB sequential throughput (1M)
Read MB/sWrite MB/s -
2 x 10GbE SMB sequential throughput (1M)
Read MB/sWrite MB/s
| 2 x 2.5GbE SMB sequential throughput (1M) |
Read
MB/s
|
Write
MB/s
|
|---|---|---|
| 2 x 10GbE SMB sequential throughput (1M) |
Read
MB/s
|
Write
MB/s
|
Tested in QNAP Labs. Figures may vary by environment.
Test Environment:
NAS: TS-h1065eU with QXG-10G2TB
OS: QTS 5.2.6.3209
Volume type : 8 x Samsung 870 EVO 1TB SATA SSD , RAID 5, thick volume
Client PC : Windows Server 2019 Standard, Intel i7-6700 3.4GHz, 64GB RAM, LAN-10G2T-X550
IOmeter : RAM*4, 30-sec ramp up time, 3-min seq. run time, 1 workers, 32-outstanding

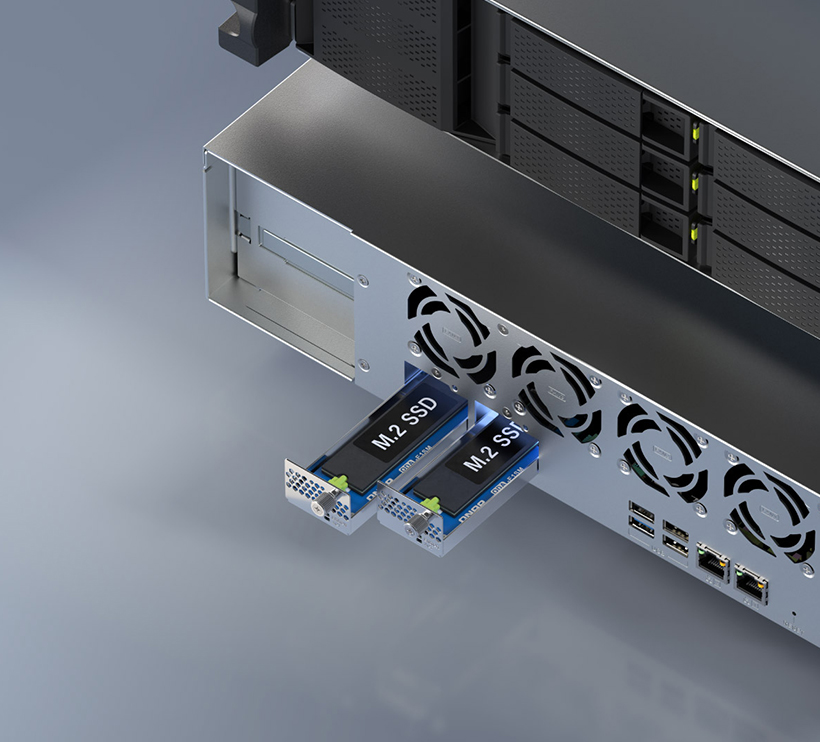

Powerful expansion with E1.S / M.2 PCIe NVMe slots
TS-h1065eU comes with three E1.S / M.2 PCIe NVMe slots that offer unparalleled NAS flexibility for boosting performance. To reach its full potential, it is recommended to upgrade the TS-h1065eU to support high-speed 10GbE networking and pair it with M.2 SSDs.
-
Enable SSD caching
Install E1.S / M.2 PCIe NVMe SSDs and enable SSD caching to reduce latency and enhance random read/write efficiency (IOPS) for small files.
-
Create SSD system drive
Use the E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to achieve optimal NAS system performance, efficient application metadata management, and optimized database operations.
-

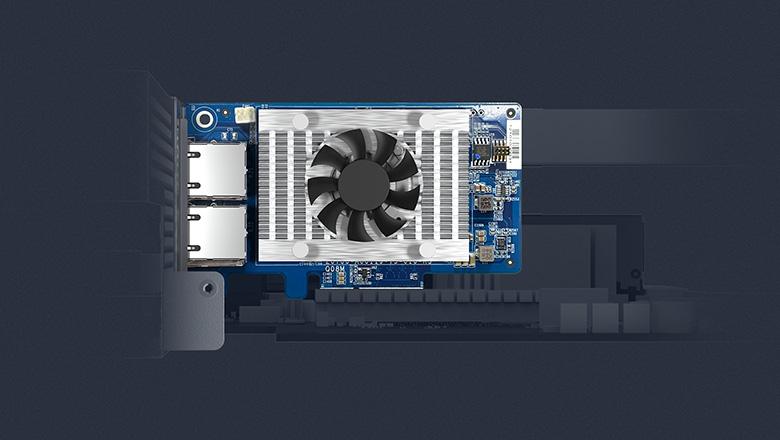

Upgrade to 10GbE
Install the QXG-ES10G1T 10GbE network module for faster network connectivity.
-
Configure SSD system drive
Use an E1.S / M.2 PCIe NVMe SSD storage pool as the QuTS hero system drive to significantly enhance application metadata management and database performance, delivering improved overall system responsiveness.
- HS-M2SSD-07 or TPAD-M2SSD-04 thermal kit (optional purchase) is recommended for optimizing M.2 PCIe NVMe SSD cooling efficiency for stable data transfer.
- With the QDA-E1SM2 adapter, it supports M.2 NVMe SSDs, providing a hot-swappable solution.
- A TRAY-E1S-01 drive tray (sold separately) is required to install 9.5/15mm E1.S SSD.
Surpass the competitor with standard 2.5GbE and flexible 10GbE upgrade
In modern business IT, a NAS with only 1GbE is a performance bottleneck. TS-h1065eU comes with faster network connectivity which enables businesses to facilitate bandwidth-demanding applications, such as large file access, backup/restore, virtualization, and more.
-
Built-in 2.5GbE
TS-h1065eU comes with two 2.5GbE ports, outperforming similar competitor NAS that only provides 1GbE.
-
Upgradable to 10GbE
With the PCIe Gen3 slot and E1.S/M.2 PCIe NVMe slots, a 10GbE network module can be easily installed
-
Enhance overall bandwidth
Obtain increased network speed and fault tolerance by configuring Port Trunking.

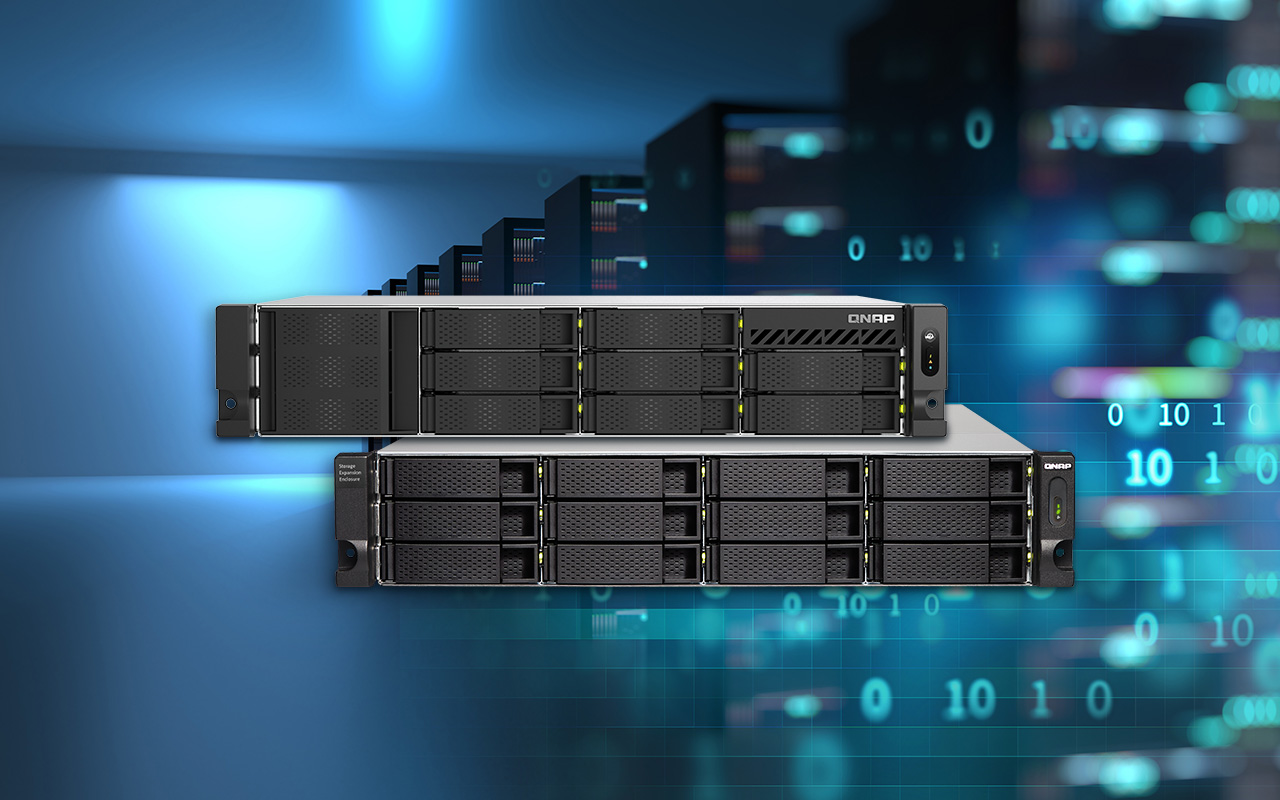

Future-proof your storage with JBOD scalability
As file volumes and storage needs grow, the TS-h1065eU can connect up to one QNAP 12-bay TL-R1200C-RP JBOD expansion units, adding up to 12 additional hard drives and providing exceptional storage capacity.
QuTS hero operating system
Designed for enterprises, the QuTS hero operating system adopts the highly reliable ZFS file system to provide utmost data integrity and stability for mission-critical storage. QuTS hero further optimizes SSD performance and endurance to meet businesses’ stringent demands for performance and reliability. Explore the QuTS hero operating system Check out QuTS hero’s latest features

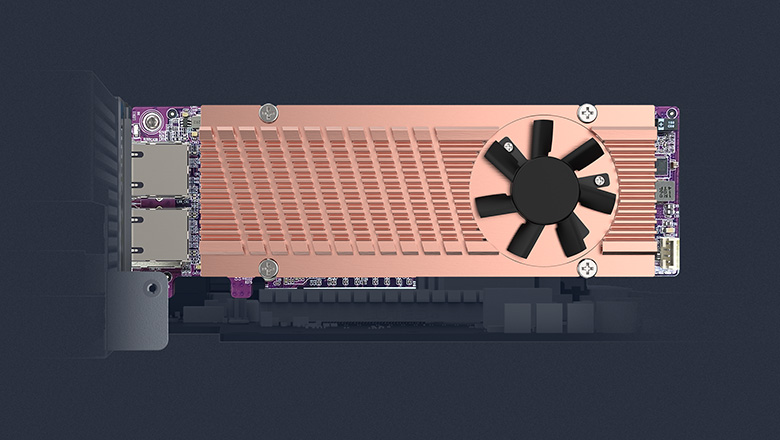

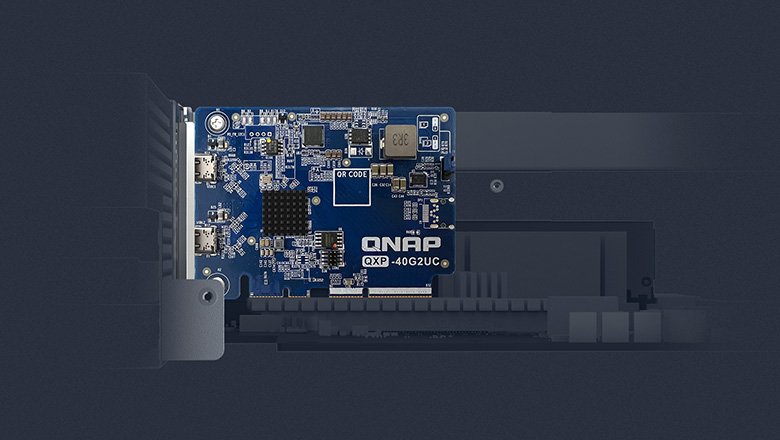

Abundant I/O capabilities with PCIe expansion
QNAP offers a wide range of expansion cards to add versatile functions to your NAS. TS-h1065eU has two PCIe Gen 3 x4 slots that support various expansion cards for expanding application potential.
All-in-one backup solution
The TS-h1065eU supports various apps that cover all your backup needs. See all
-
NAS/File server
Supports multiple protocols such as Rsync, FTP and CIFS/SMB for backing up different file servers.
-
Cloud
Back up NAS data to/from major cloud services, including QNAP’s myQNAPcloud One.
-
Mac
Set a QNAP NAS as Time Machine backup destination.
-
Google™ Workspace/Microsoft 365®
Use QNAP’s HDP for SaaS to back up, recover, and manage the data of 10,000+ users over multiple Google™ Workspace and Microsoft 365®.
-
WordPress
Backup, restore or migrate your WordPress site. QNAP NAS can also host a website. Learn more
Secondary backup or restore
By supporting secondary backup, replication, or restore in a single interface, QNAP makes your business Disaster Recovery (DR) quick, easy, and effective. Explore more >
-
NAS and file server
Use the same interface to configure and run backup, replication, and restore jobs.
-
Cloud
Supports advanced technologies to save backup time, spaces, and effort.
-
myQNAPcloud One
QNAP-hosted cloud storage that only charges for storage space, with transmitting data being completely free.
Real-time sync for seamless team collaboration
Whether you’re in the office or on the go, you can access the latest files synchronized to TS-h1065eU on multiple devices for efficient teamwork. Version Control keeps track of document changes, simplifying file management and restoration.
Multi-level security strategy for enterprises
Bolster business data security with resilience from all aspects
Connection
Permission
Transmission
-
SMB signing acceleration
Enable SMB signing to facilitate secure SMB file transfer, while QNAP’s exclusive algorithm greatly increases data signing efficiency and data transmission performance.
Assessment
Construct a multi-level security defense system for enterprises
How to configure your network and connect your NAS to prevent malware attacks?
Secure data access at your fingertips
-
Access NAS data like from a local folder
Map your TS-h1065eU NAS folders as network drives on your computer, and access files like they were stored locally.
-
Cross-platform file sharing
Supporting SMB/CIFS, AFP, WebDAV, and NFS protocols, the TS-h1065eU enables seamless file sharing and transfer across Windows®, macOS® and Linux® computers, without compatibility concerns.
-
Secure remote access
Trusted storage for virtualization
Centrally manage multi-site NAS from the cloud

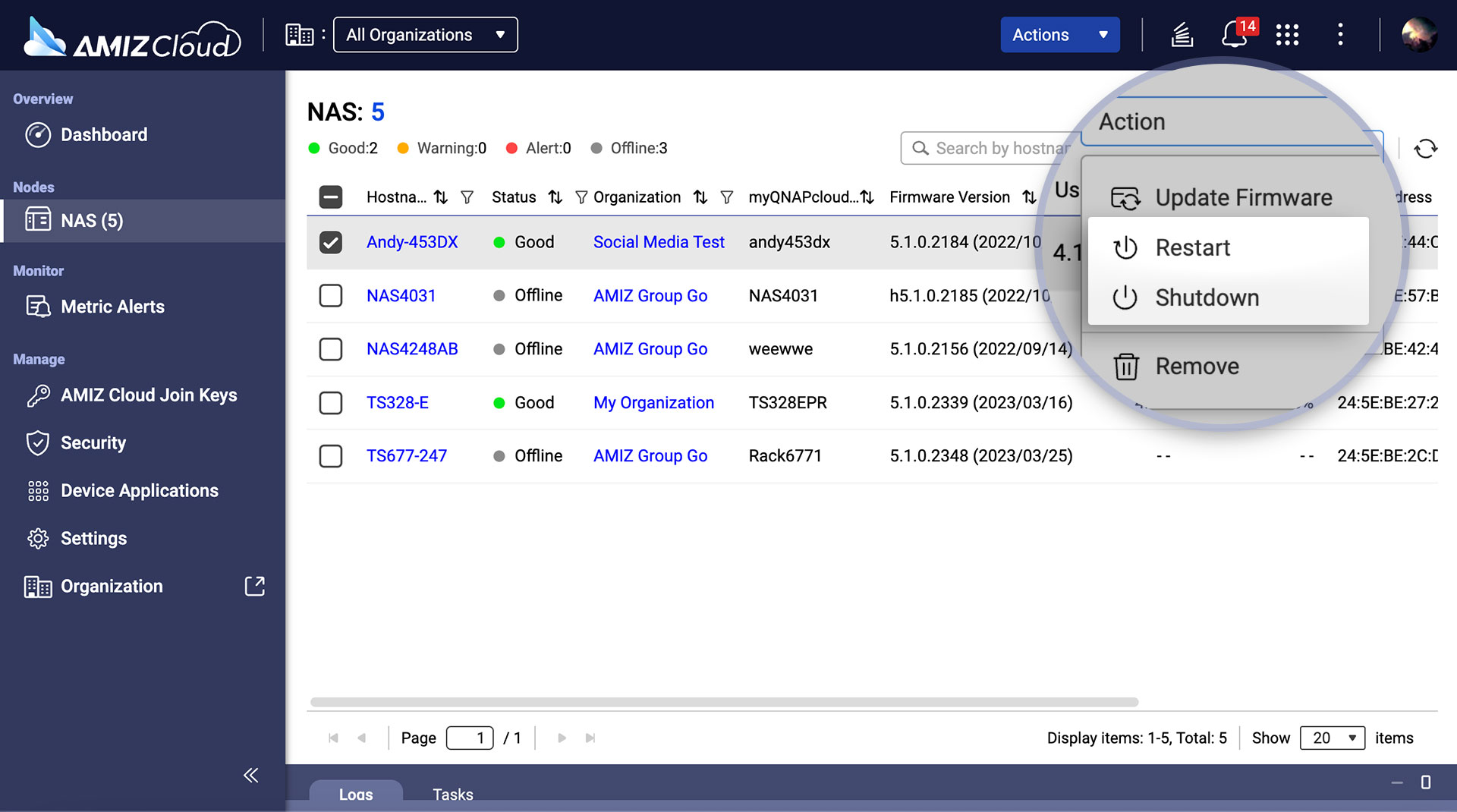

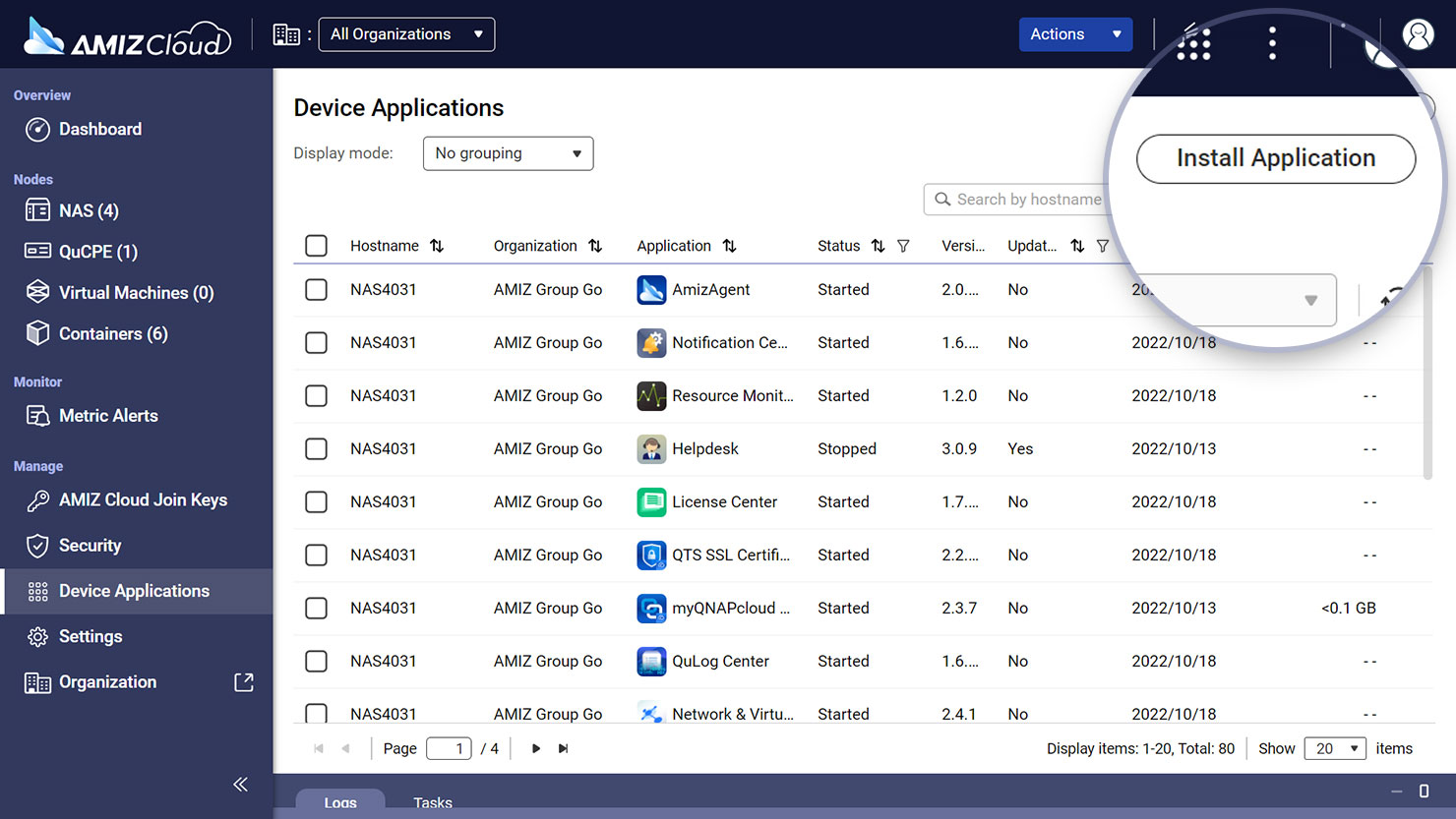

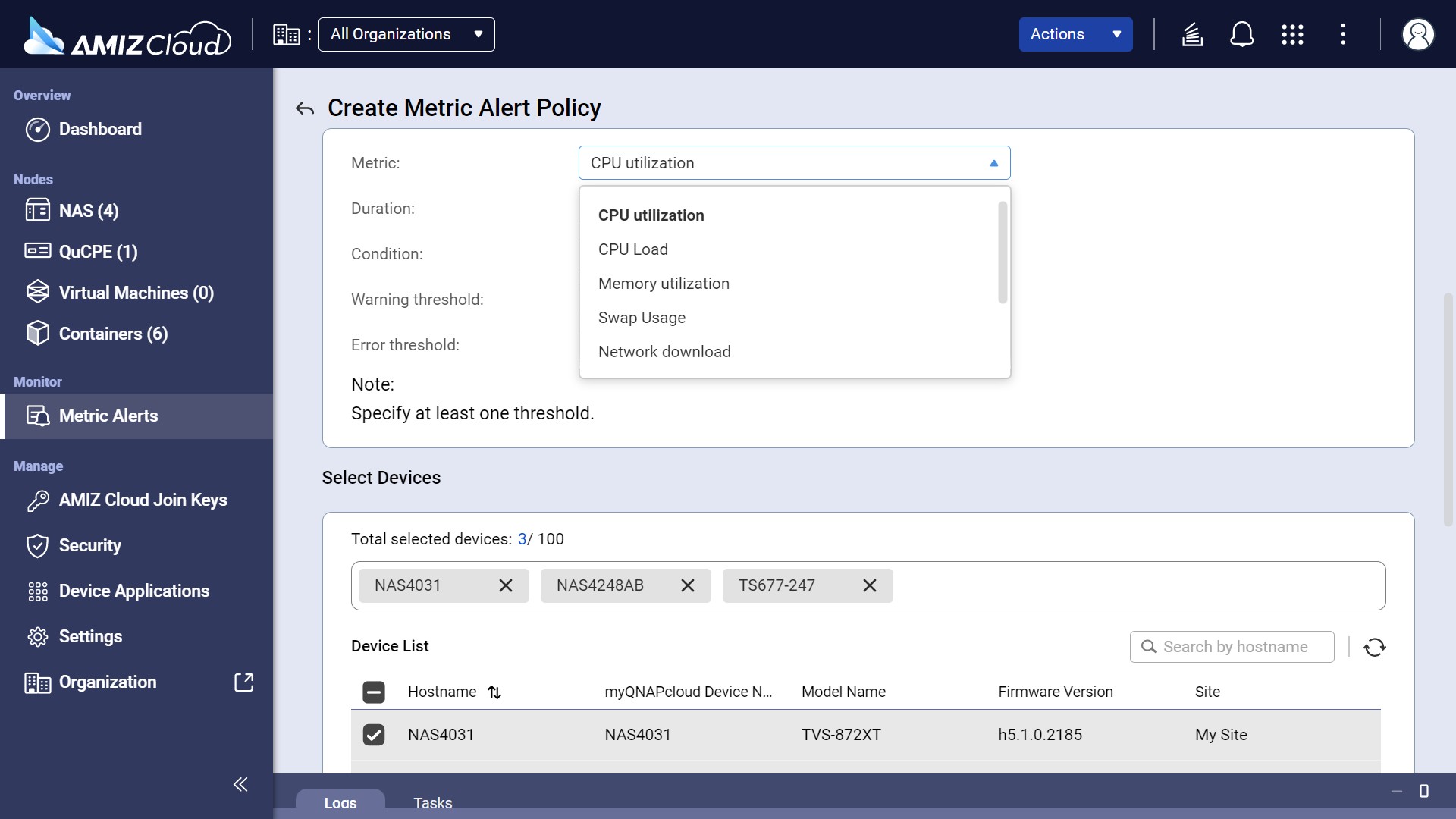

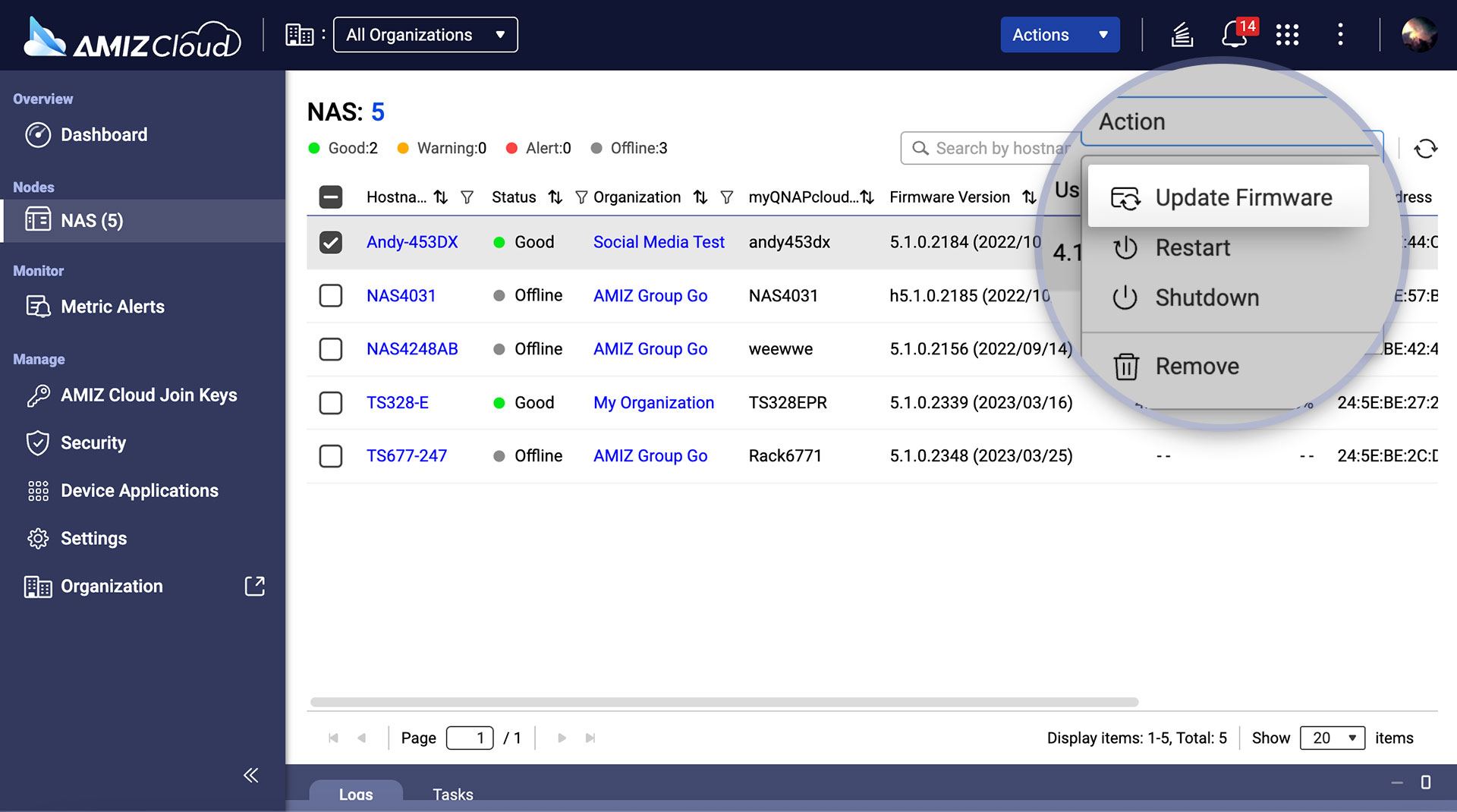

QNAP provides AMIZcloud, a central management platform for large-scale NAS management. With AMIZcloud, IT administrators can remotely manage multi-site NAS devices and networks to boost productivity, enhance security, and optimize costs.
Organization-based authority management for multi-site NAS
Quickly join multi-site NAS to a secure VPN
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h1065eU. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
-
VM High Availability
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
-
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.
Surveillance NAS solution for Business
Surveillance NAS is an easy-to-deploy and cost-efficient all-in-one intelligent surveillance platform that integrates AI analytics, video backup and fault tolerance, centralized management (CMS), and surveillance cloud services, meeting professional surveillance requirements across diverse deployment scenarios. A single NAS supports up to 1,024 channels, leveraging file-based writing technology to enhance processing performance and meet the demands of multi-channel, high-capacity, and long-duration recording. Learn more about QVR Surveillance NAS solution
-
Simplifying surveillance structure
An all-in-one surveillance solution integrating NVR and VMS. Record, analyze and manage videos on surveillance NAS to boost deployment and maintenance efficiency.
-
Support ONVIF® cameras
Over 8000 ONVIF cameras from 200+ brands are supported.
-
PoE switch solution
QNAP offers a one-stop QNAP PoE switch solution designed for connecting TS-h1065eU NAS and IP cameras to simplify network and power cabling.
-
Smart AI surveillance
Surveillance NAS performs AI image identification, analysis and search on the NVR server side, saving you from having to purchase expensive AI cameras.
-
Flexible storage expansion and secure video backup
The longer video retention periods you require, the greater the storage capacity needed. You can connect QNAP JBOD expansion enclosures to TS-h1065eU, or back up surveillance recordings to a QVR Recording Vault backup server or myQNAPcloud Surveillance.
QNAP solves all your surveillance system challenges in business
Use AI-powered drive failure prediction to safeguard your data
-
Powered by cloud-based AI engine, DA Drive Analyzer can predict drive failure and lifespan. Enterprises can plan drive replacement in advance to prepare for drive failure before it occurs and prevent data loss.
Extend hardware warranty up to 5 years
The TS-h1065eU is backed by a 3-year warranty at no additional cost.
You can also purchase a warranty extension that extends your warranty coverage up to 5 years.
Need help?
Contact us now to get more recommended products or solutions catered to your needs and requirements!
Optional Accessories
-
QM2-2P-244A
Dual M.2 22110/2280 PCIe SSD expansion card;
Dimension (L × W × H): 170.5 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
Please check the M.2 SSD compatibility list and QM2 Installation Guide
-
QM2-2P-344A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x4 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P-384A
Dual M.2 PCIe SSD expansion card; M.2 2280/22110 PCIe NVMe(Gen 3x4) SSDs; PCIe Gen3x8 host interface
Dimension (L × W × H): 170.5 × 19.3 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P10G1TB
QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 8 , 1 x Marvell AQC113C 10GbE NBASE-T port
Dimension (L × W × H): 152.65 × 18.9 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-2P2G2T
QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
Dimension (L × W × H): 152.65 × 20.6 × 68.9 (mm)
Weight: 0.29 (kg)
-
QM2-2S-220A
Dual M.2 22110/2280 SATA SSD expansion card;
Dimension (L × W × H): 147.15 × 20.6 × 68.9 (mm)
Weight: 0.30 (kg)
-
QM2-4P-384
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
QM2-4S-240 (EOL)
Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 204.95 × 68.9 × 20.6 (mm)
Weight: 0.32 (kg)
-
PWR-PSU-250W-DT02
250W Delta power supply
Dimension (L × W × H): 220 × 177 × 56 (mm)
Weight: 0.76 (kg)
For safety information and operating instructions, please refer to the documentation of your original QNAP product.
-
SCR-HDD25A-96
Screw pack for 2.5" HDD / SSD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.01 (kg)
-
SCR-HDD35B-96
Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw
Dimension (L × W × H): 1 × 118 × 128 (mm)
Weight: 0.03 (kg)
-
RAIL-B02
new rail kit for new 1U & 2U NAS: TVS-471U, 1253U, etc
Dimension (L × W × H): 738 × 100 × 70 (mm)
Weight: 2.48 (kg)
This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.
-
RAIL-S01
Rail Kit, support rack-post 4.96" ~ 16.34" (126 ~ 415mm) depth cabinet, for 1U/2U/3U short-depth rackmount QNAP model
Dimension (L × W × H): 540 × 110 × 70 (mm)
Weight: 1.62 (kg)
-
QXG-10G1T
Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4, Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
Dimension (L × W × H): 143 × 193 × 52 (mm)
Weight: 0.53 (kg)
-
QXG-10G2T
Dual-port 10GBASE-T 10Gb network expansion card; low-profile formfactor; PCIe Gen3 x4
Dimension (L × W × H): 54.5 × 39.5 × 18 (mm)
Weight: 0.29 (kg)
-
QXG-10G2TB (EOL)
Dual-port 10GbE Network Adaptor, Aquantia AQC113C
Dimension (L × W × H): 104.7 × 16.1 × 68.9 (mm)
Weight: 0.28 (kg)
-
QXG-2G1T-I225
Single port 2.5GbE 4-speed Network card
Dimension (L × W × H): 67.3 × 68.9 × 25.2 (mm)
Weight: 0.19 (kg)
-
QXG-2G2T-I225
Dual port 2.5GbE 4-speed Network card
Dimension (L × W × H): 81.3 × 68.9 × 25.2 (mm)
Weight: 0.23 (kg)
-
QXG-2G4T-I225
Quad port 2.5GbE 4-speed Network card
Dimension (L × W × H): 104.6 × 68.9 × 24.1 (mm)
Weight: 0.24 (kg)
-
QXG-5G1T-111C
QNAP 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 1;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G2T-111C
QNAP dual port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 2;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.20 (kg)
-
QXG-5G4T-111C
QNAP Quad port 5GbE multi-Gig expansion card;Aquantia AQC111C;Gen2 x 4;low profile
Dimension (L × W × H): 145 × 190 × 52 (mm)
Weight: 0.23 (kg)
-
QXP-10G2U3A
Dual-port USB 3.2 Gen 2 10Gbps Type-A PCIe Gen 3 x2 Card, Asmedia ASM3142
Dimension (L × W × H): 89.6 × 68.9 × 14 (mm)
Weight: 0.09 (kg)
-
RAM-8GDR5K0-SO-5600
8GB DDR5 RAM, 5600 MHz, SODIMM
