TS-509 Pro Specification
| Processor | Intel Celeron Processor 1.6GHz | ||||
| Memory | 1GB DDRII RAM, 128MB flash (DOM) | ||||
| HDD Capacity | 5 x 3.5" SATA I/II NOTE:
| ||||

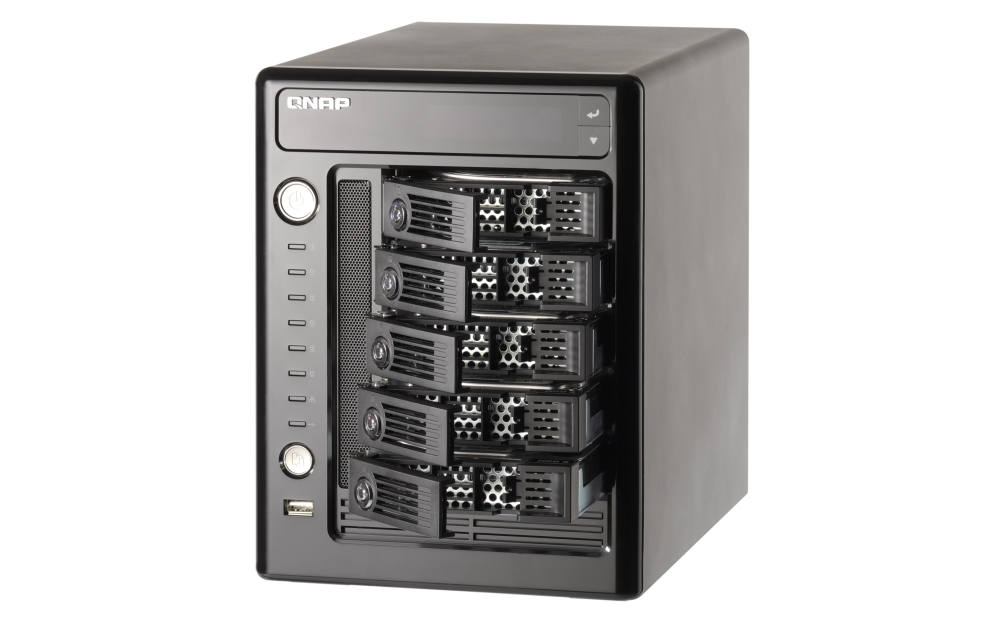

| HDD Tray | 5 x hot-swappable and lockable tray | ||||
| LAN Port | 2 x Gigabit RJ-45 Ethernet port | ||||

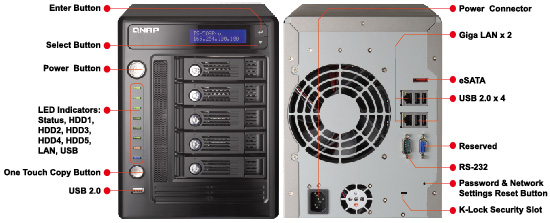

| LED Indicators | Status, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, LAN, USB | ||||
| USB | 5 x USB 2.0 (Front: 1; Back: 4) Support USB printer, disk, pen drive, USB hub, and USB UPS etc. | ||||
| eSATA | 1 x eSATA port (Back) | ||||
| Buttons | System: Power button, USB one-touch backup button, reset button | ||||
| LCD Panel | Mono-LCD display with backlight Enter button, Select button for configuration | ||||
| Alarm Buzzer | System warning | ||||
| Form Factor | Tower | ||||
| Dimensions | 261.1(D) x 188.5(W) x 261.1(H) mm 10.28(D) x 7.42(W) x 10.28(H) inch | ||||
| Weight |
| ||||
| Operation Environment | Temperature 0~40˚C Humidity 0~95% R.H. | ||||
| Power Supply | Input: 110-240V AC, 50/60Hz, Output: 250W | ||||
| Power Consumption | sleep: 39W In Operation: 63W Power-off (in WOL mode): 2.25W with 5 x640GB HDD installed | ||||
| Secure Design | K-Lock security slot for theft prevention | ||||
| VGA | Reserved VGA interface for maintenance | ||||
| RS-232 | RS-232 x1 | ||||
| Fan | 12cm quiet cooling fan (12V DC) | ||||
| Sound Level: | Standby: 34.2 dB In operation: 41.2dB | ||||
 | |||||
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Powerful All-in-one server |
|
|
| |||||||||
|
|
| |||||||||
|
|
| |||||||||
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
