TS-409U Specification

TS-409U
Specification
Buy→
CPU Marvell 5281 500MHz
DRAM 512 MB DDRII
Flash Memory 8MB
HDD 4 x 3.5" SATA I/II
NOTE:
  1. The system is shipped without HDD.
LAN Port 1 * Gigabit RJ-45 Ethernet port

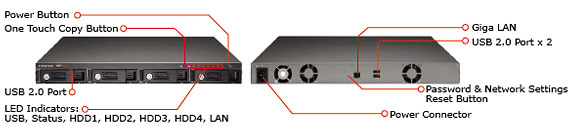

LED Indicators USB, Status, HDD 1, HDD 2, HDD 3, HDD 4, LAN
USB 3 * USB 2.0, support USB printer, disk, digital camera, pen drive, card reader, USB hub, and USB UPS etc.
Buttons USB auto-copy button
Power button
Reset button
Alarm Buzzer System Warning
Form Factor 1U Rack Mount
Dimensions 409.1(D) x 430(W) x 44.45(H) mm
Weight Net weight: 5.2Kg
Gross weight: 7Kg
Temperature 0~40°C
Humidity 0~95% R.H.
Power Supply Input: 100-240V AC, 47-63Hz, Output: 200W
Energy-saving Design Smart fan
Thermal Solution Heat dissipation by fan * 2
Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications and refer to the hardware user manual to install compatible QNAP memory modules.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Powerful All-in-one server

Software Specifications
Operation System Linux-embedded system
Networking TCP/IP, DHCP Client, DHCP Server, CIFS/SMB, AFP, NFS, HTTP, HTTPS, FTP, DDNS, NTP, Gigabit Jumbo Frame
File System EXT3 (Internal/ external HDD)
FAT (External HDD)
NTFS (External HDD)
Supported Operating Systems Microsoft® Windows® 98/ ME/ NT/ 2000/ XP/ 2003/ Vista/ Windows 7 (32bit & 64bit)
Macintosh® OS X
Linux / Unix
Disk Management Single disk, RAID 0 (Disk Stripping), RAID 1 (Disk Mirroring), RAID 5, RAID 5+ Hot spare, RAID 6, and JBOD (Linear Disk Volume), Multiple RAID
Online RAID capicity expansion, online RAID level migration
Disk usage status management
Check disk (Check Linux file system)
HDD S.M.A.R.T.
Bad blocks scan
User Management User quota management (per user)
Windows AD Service support
User account management (max. 1,024 users)
User group management (max. 128 groups)
File System Management Network share management (max. 256 shares)
Share folder level ACL support
Unicode support
Journaling file system
Web File Manager
System Tools E-mail alert (SMTP authentication)
HDD standby mode
Disk usage alert
Automatic power on after power loss
System firmware upgrade
Change homepage logo
Back up, restore, reset system settings
Smart fan setting
Configurable management port
Easy IP filter management
Secure remote login by SSH connection; remote login by Telnet connection
USB, SNMP UPS support
Network recycle bin
Event Logs Complete system logs (system events management, connection logs, current connection of on-line users)
Multilingual Support English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Danish, Finnish, Norwegian, and Swedish
Backup Management PC-client backup software- NetBak Replicator: Instant/ Schedule/ Auto-sync backup
Encrypted remote replication
One touch USB copy for different destination folders
Backup to external storage device
TS-409U
Power cord
CD-ROM
Ethernet cable x 1
Quick installation guide
Flat head screws x 16
Hard disk lock x 1
Mount kit x 2
Round head screw x 4

Optional Accessories

  1. SP-5BAY-PSU
    SP-5BAY-PSU
    SP-TS-TRAY-BLACK
    SP-TS-TRAY-BLACK
Bundled accessories delivered together with the product such as expansion cards, power adapter, and accessories are covered with one-year warranty.
