TS-832PXU-RP Specification
-
TS-832PXU-RP-4G
CPU Processador AnnapurnaLabs Alpine AL324 de 64 bits ARM® Cortex-A57 de 4 núcleos de 1,7 GHz Arquitetura da CPU ARM de 64 bits Unidade de ponto flutuante Motor de encriptação Memória do sistema UDIMM DDR4 de 4 GB (1 × 4 GB) Memória máxima 16 GB (1 × 16 GB) Ranhura de memória 1 módulo UDIMM DDR4 Memória Flash 512 MB (Proteção de SO de arranque duplo) Compartimentos de unidades 8 compartimentos de unidades SATA, 6 Gb/s, 3 Gb/s de 3,5 polegadas Compatibilidade de unidades Compartimentos de 3,5 polegadas:
Unidades de disco rígido SATA de 3,5 polegadas
Unidades de disco rígido SATA de 2,5 polegadas
Unidades de estado sólido SATA de 2,5 polegadasPode ser substituído em funcionamento (Não suporta SSD M.2) Ranhura M.2 Opcional através de um adaptador PCIe Suporte de aceleração da cache de SSD Porta Ethernet 2,5 Gigabit (2,5G/1G/100M) 2 (2,5G/1G/100M/10M) Porta Ethernet 10 Gigabit 2 portas SFP+ de 10 GbE Wake on LAN (WOL) Apenas a porta de 2,5 GbEJumbo Frame Ranhura PCIe 1
Ranhura 1: PCIe Gen 2 x2Limitações de largura de banda PCIe restringem o desempenho do NAS de 10 GbE.
Dimensões da placa para a ranhura PCIe: 220 × 68,9 × 18,76 mm/8,67 × 2,71 x 0,74 polegadas.Porta USB 3.2 Gen 1 4 Fator de forma Montagem em bastidor 2U Indicadores LED Disco rígido 1-8, Estado, LAN, Expansão de armazenamento Botões Alimentação, Reiniciar Dimensões (A×L×P) 88,6 × 432 × 511 mm Exclui gancho de orelha e parte saliente da unidade de fonte de alimentação.Peso (Líquido) 12.47 kg Peso (Bruto) 14.61 kg Temperatura de funcionamento 0–40 °C Temperatura de armazenamento -20–70 °C Humidade relativa 5–95% HR sem condensação, termómetro molhado: 27 ˚C Unidade de fonte de alimentação Unidade de alimentação elétrica (2x) de 250 W, 100–240 V Consumo de energia: Modo de funcionamento, Típico 69.191 W Testado com unidades totalmente preenchidas.Ventoinha 2 ventoinhas de 70 mm, 12 V CC Aviso do sistema Campainha Garantia padrão 3 Número máx. de ligações simultâneas (CIFS) — com a memória máx. 700 Nota: Utilize apenas módulos de memória QNAP para manter o desempenho e a estabilidade do sistema. Para dispositivos NAS com mais do que uma ranhura de memória, utilize módulos QNAP com especificações idênticas e consulte o manual do utilizador do hardware para instalar módulos de memória QNAP compatíveis.
Advertência: A utilização de módulos não suportados pode reduzir o desempenho, causar erros ou impedir o arranque do sistema operativo.
A QNAP reserva-se o direito de substituir peças ou acessórios parciais se o seu fabricante/fornecedor já não possuir o original. Qualquer substituição será totalmente testada e verificada a fim de cumprir as rigorosas diretrizes de compatibilidade e estabilidade e terá um desempenho idêntico ao original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
As imagens do produto são apenas para fins ilustrativos e podem ser diferentes do produto real. Devido às diferenças nos monitores, as cores dos produtos também podem parecer diferentes das apresentadas no site.
Os desenhos e especificações estão sujeitos a alterações sem aviso prévio.
-
Operating System QTS 5.2.5
Supported Client Operating Systems - Apple Mac OS 10.10 or later
- Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
- IBM AIX 7, Solaris 10 or later UNIX
- Microsoft Windows 7, 8, 10 and 11
Supported Browsers - Apple Safari (latest version)
- Google Chrome (latest version)
- Microsoft Edge (latest version)
- Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool SED Storage Pool Maximum Pool size 308 TB
Maximum number of storage pool 128
Volume Type Thick, Thin, Static
Maximum volume size 250 TB
Note: At least 4 GB RAM is required.
Maximum number of volume 128
Maximum shared folder size 250 TB
Maximum number of shared folder 512
JBOD Expansion VJBOD / VJBOD Cloud iSCSI Service Fibre Channel Service LUN Type Thick, Thin
File-based iSCSI LUN Block-based iSCSI LUN Maximum LUN size 250 TB
Note: At least 4 GB RAM is required.
Maximum number of targets LUN 128
LUN feature - LUN Mapping (LUN can be moved between iSCSI and FC)
- LUN Masking
- WWPN Aliases Import/Export
- FC Port Group
Auto Tiering Requires minimum 2GB memory.
RAID Type - 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
- 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
- 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
- 2-bay: JBOD, Single, RAID 0, 1
RAID Group To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration RAID Expansion (by adding Disk) RAID Expansion (by replacing bigger Disks) Storage Pool Expansion (by adding RAID Group) RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing Internal drive EXT4
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate Disk S.M.A.R.T. Scan Disk S.M.A.R.T. Data Migration Ironwolf Health Management Secure Erase SSD Trim SSD Life Estimation Disk Roaming Disk Standby Volume Snapshot LUN Snapshot Maximum Snapshot (Per System) Maximum Snapshot (Per Volume / LUN) Minimum Snapshot Interval 5 minutes
Snapshot Retention Policy Self-serve Snapshot Recovery Application Consisted Snapshot Snapshot Full Clone Snapshot Replica / Vault SSD read-only Cache SSD read-write cache SSD write-only cache SSD Cache Maximum Size SSD Cache RAID 0, 1, 5, 6, 10
SSD profiling tool External Device Management Mount Smart Phone (MTP) External RAID Device (QNAP so on) Management (External Device Mode) External RAID Device (QNAP so on) Management (NAS Mode) File Server - File sharing across Windows, Mac, and Linux/UNIX
- Microsoft networking (CIFS/SMB)
- Apple networking (AFP)
- NFS version 3/4 services
FTP Server - QuFTP
- FTP, SFTP and TFTP protocols
- FTP over SSL/TLS (explicit FTPS)
- FXP support
Maximum FTP connection 1024
File Station (Web) Object Storage Local user account 4,096
Local group account 512
Domain user/group account 200,000
Domain Security Domain Controller Shared folder permission Advanced folder permission , (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL , (CIFS/SMB)
User quota Group quota Folder quota , (Snapshot shared folder)
Home folder Resource Monitor SNMP V2, V3
Network recycle bin - Recover files deleted using AFP, CIFS/SMB, and File Station
- Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second
Smart Fan Schedule on/off Internet protocol IPv4, IPv6
Virtual Switch Port trunking , (7 modes)
VLAN DHCP Server DDNS (Dynamic Domain Name Service) Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor Malware Remover AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP 2-step verification Allow/Deny List Access Protection Service binding Firewall vSphere Web Client Plug-in VMware vSphere VAAI for iSCSI VMware vSphere VAAI for NAS Windows ODX Windows/VMware Snapshot Agent HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection Supports Virtual Hosts 32
Qsync Note: At least 1 GB RAM is required.
[Qsync] Management Mode User customization, Central
[Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control 64
HybridMount Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount [HybridMount] Free cloud gateway sessions 2
HBS (Hybrid Backup Sync) Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup [HBS (Hybrid Backup Sync)] Cloud Backup [HBS (Hybrid Backup Sync)] Cloud Sync [HBS (Hybrid Backup Sync)] 2-way and Active Sync [HBS (Hybrid Backup Sync)] Apple Time Machine Backup [HBS (Hybrid Backup Sync)] External drive backup [HBS (Hybrid Backup Sync)] Maximum number of backup job 400
Boxafe Note: At least 4 GB RAM is required.
[Boxafe] Office 365 Backup [Boxafe] Google Workspace Backup [Boxafe] Full-text search Qsirch Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder [Qsirch] Advanced picture search [Qsirch] Search filters QuMagie Note: At least 1 GB RAM is required.
[QuMagie] Browse photos [QuMagie] Virtual and smart albums [QuMagie] AI-assisted photo management People, things, places, and others
Antivirus (free) QVPN Service Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients 100
LDAP Server RADIUS SQL server License Center Multimedia Console Photo Station Music Station Video Station Download Station Notes Station Qfiling Media Streaming add-on QmailAgent QuWAN DA Driver Analyzer Q'center Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q'center Server Q'center Agent Connect to Q'center Container Station Note: At least 1 GB RAM is required.
[Container Station] Supported type LXC/LXD and Docker
Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry [Container Station] Container importing and exporting [Container Station] Console mode QVR Pro Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Pro] Recording Technique Index database based
[QVR Pro] License Type Perpetual
[QVR Pro] User-defined trigger events [QVR Pro] Metadata [QVR Pro] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Pro] QVR Pro Client (Mobile) Android and iOS
[QVR Pro] Recording camera streams H.264
[QVR Pro] Free built-in camera channels 8
QVR Elite Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique Standard MP4 file based
[QVR Elite] License Type Subscription-based
[QVR Elite] User-defined trigger events [QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile) Android and iOS
[QVR Elite] Recording camera streams H.264
[QVR Elite] Free built-in camera channels 2
QVR Pro Client [QVR Pro Client] Dynamic View Layout [QVR Pro Client] Windows [QVR Pro Client] Mac [QVR Pro Client] HybridDesktop [QVR Pro Client] iOS [QVR Pro Client] Android
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.
TS-832PXU-RP
Ethernet Cable x 1
Power Cord x 2
Flat head screw x 32 (for 3.5" HDD)
Flat head screw x 24 (for 2.5" HDD)
Quick Installation Guide (QIG)

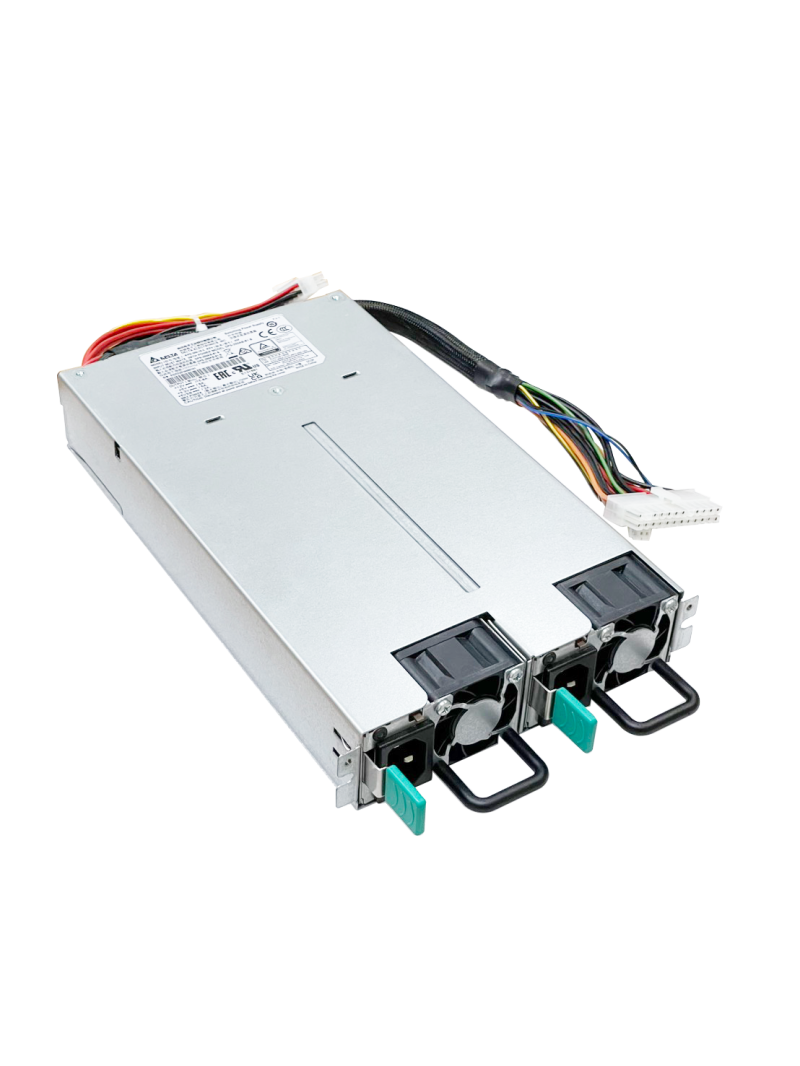

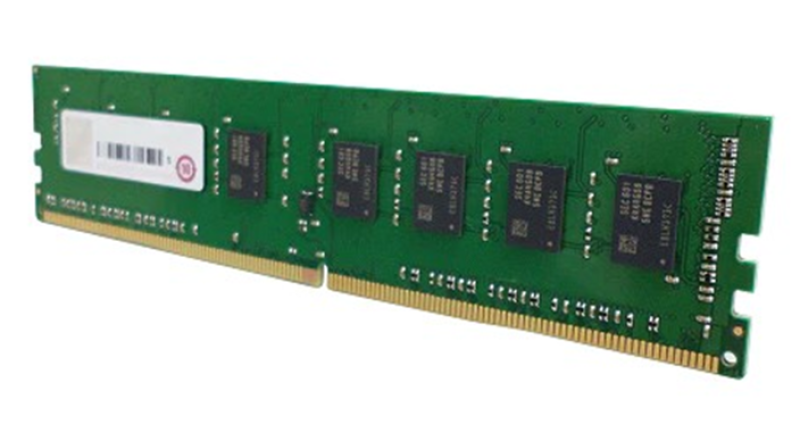

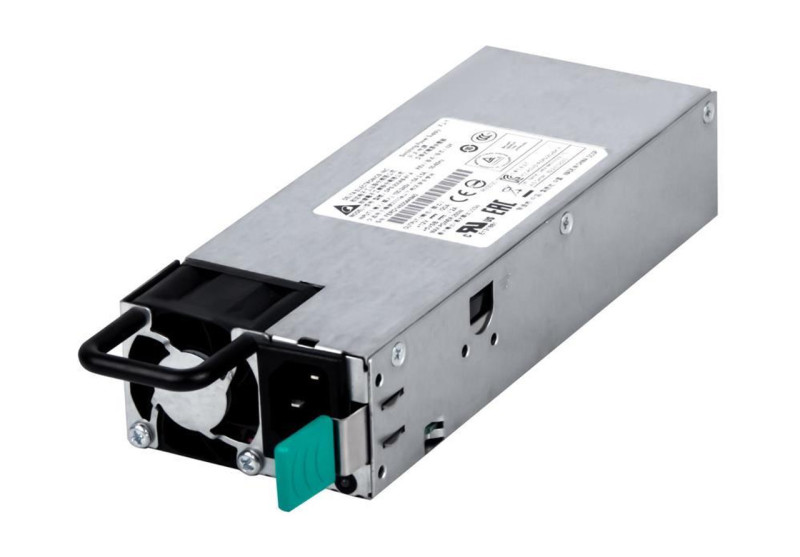

Acessórios opcionais
