A ZFS hybrid desktop NAS with a 6-core AMD Ryzen™ 7000 series processor, DDR5 memory and U.2 NVMe / HDD hybrid storage — and 25GbE with NFS over RDMA, so workstations edit straight off the NAS.
Three Key Upgrades: Compute, Storage and Networking
AMD Ryzen™ 7000 + DDR5: Breaking the Multitasking Ceiling
Key Feature

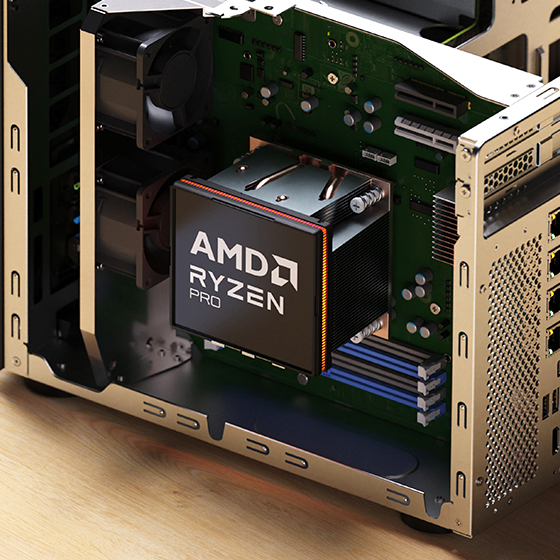

A 6-core / 12-thread AMD Ryzen™ 5 PRO 7000 series processor built on the latest Zen 4 architecture, paired with DDR5 memory expandable up to 192 GB.
Multitasking
A substantial IPC gain keeps the timeline playing in real time while transcodes and renders run in the background, so the edit never has to stop. There is headroom left over for Windows® and Linux® VMs and Docker® containers in Virtualization Station and Container Station, with no extra licence required.
Zen 4 6-core / 12-thread
No extra VM licence
Hybrid Storage Architecture, with Qtier Coming Soon
Key Feature

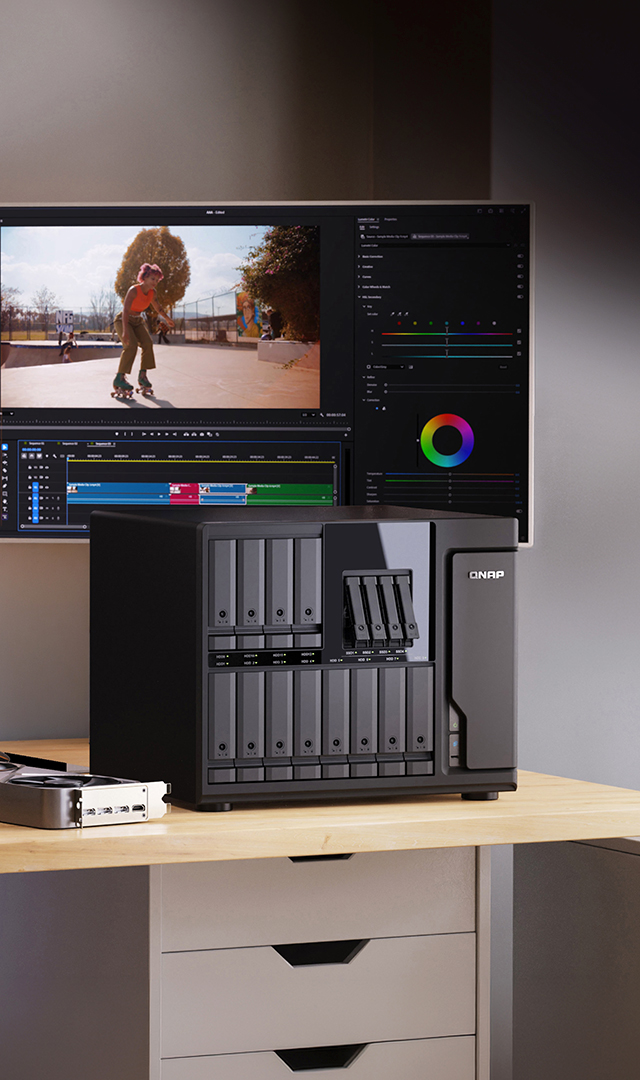

High-capacity 3.5-inch SATA bays alongside dedicated U.2 NVMe PCIe Gen 4 cache bays. The line-up covers TVS-h1677AX (12 HDD + 4 SSD), TVS-h1277AX (8 HDD + 4 SSD) and TVS-h877AX (6 HDD + 2 SSD).
Storage Efficiency
Live projects sit on the NVMe cache at full speed; finished ones settle onto high-capacity drives as an online archive you can pull back any time. It runs on QuTS hero, the ZFS operating system built for data integrity, with self-healing data and near-limitless snapshots so a bad change can be rolled back. Qtier tiering, coming soon, handles the move for you.
ZFS self-healing data
Near-limitless snapshots
25GbE + NFS over RDMA: Editing Without the Wait
Key Feature

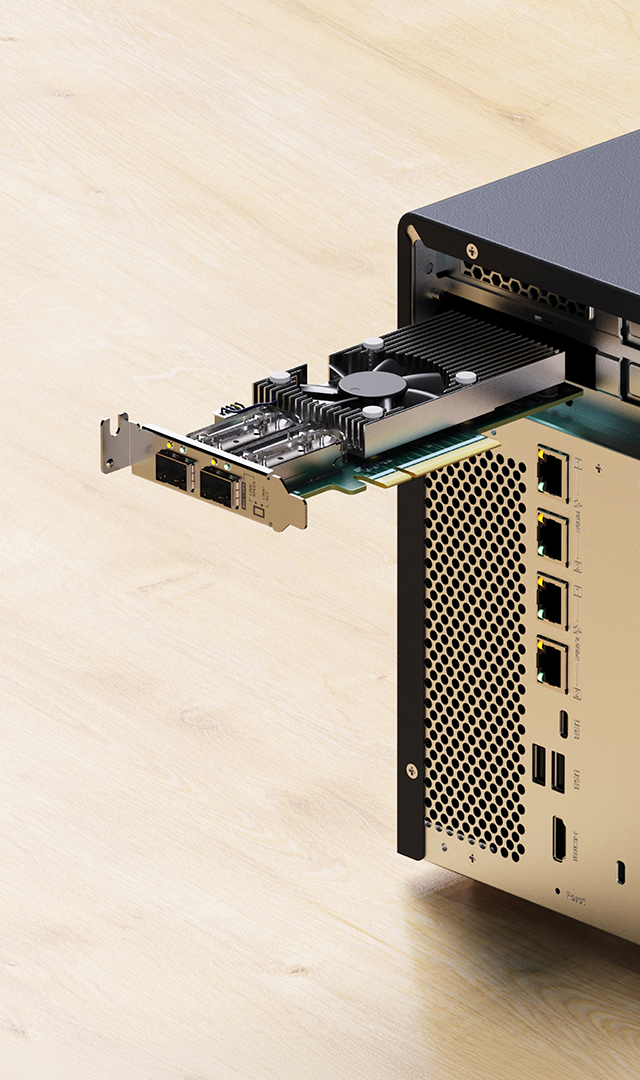

Dual 10GBASE-T and dual 2.5GbE onboard; add a 25GbE SmartNIC (optional) over PCIe to enable NFS over RDMA.
Collaboration Speed
RDMA moves data straight between memory pools, bypassing the CPU bottleneck, so workstations open footage as if it were local NVMe. On a tested TVS-h1677AX configuration it sustains five or more concurrent ProRes 4444 4K streams.
25GbE SmartNIC (optional)
NFS over RDMA
Feature Highlights

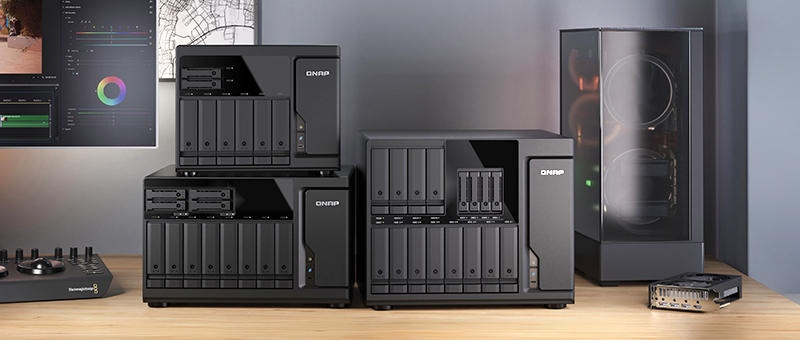

The new TVS-hx77AX series, built for demanding professionals
Powerful Compute
AMD Ryzen™ 5 PRO 7000
6 cores / 12 threads on Zen 4, with boost clocks up to 5.1 GHz.
Next-Gen Memory
DDR5 Up to 192 GB
ECC optional, delivering ample bandwidth and low latency for heavy workloads.
High-Speed Network
2 x 10GBASE-T + 2 x 2.5GbE
Four onboard Ethernet ports, expandable to 25GbE via PCIe.
AI Disclosure: Some images and text in this article were created or refined with the assistance of Artificial Intelligence (AI) and reviewed by human editors.
