TS-h977XU-RP

MSRP

TS-h977XU-RP

Powered by QuTS hero — a ZFS-based operating system with greater reliability and higher performance

Watch Video

The QuTS hero NAS TS-h977XU-RP is powered by an AMD Ryzen™ 7 processor that delivers supreme system performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h977XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h977XU-RP helps your business achieve reliable service-level agreement performance, whether in mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.

Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port 10GbE RJ45 adapter for bandwidth-demanding applications.
Provides two built-in 10GbE SFP+ ports and pre-installed with a dual-port 10GbE RJ45 adapter for bandwidth-demanding applications.
SSD cache acceleration improves random read/write performance to meet IPOS-demanding applications.
SSD cache acceleration improves random read/write performance to meet IPOS-demanding applications.
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019, and hosts virtual machines and containers.
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019, and hosts virtual machines and containers.
Supports block-based and file-based cloud storage gateways with local cache for low-latency access to cloud data.
Supports block-based and file-based cloud storage gateways with local cache for low-latency access to cloud data.
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
Comprehensive security management, providing a NAS security portal to help you to stay informed of NAS status at all times.
Comprehensive security management, providing a NAS security portal to help you to stay informed of NAS status at all times.

Available Models

TS-h977XU-RP-3700X-32G

TS-h977XU-RP-3700X-32G

AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz), 32 GB DDR4 memory (2 x 16 GB), redundant power supply

Absolute performance with AMD Ryzen™ processor

Powered by a high-performance AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core 4.4 GHz) with AES-NI encryption acceleration and up to 128 GB DDR4 RAM, the TS-h977XU-RP delivers aggressive yet power-smart performance to meet your multi-tasking demands and is capable of running multiple virtual machines simultaneously. For resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization, the TS-h977XU-RP delivers high performance and dependable reliability for rugged business IT environments as a cost-efficient NAS solution.

Dual-channel memory to deliver power-smart performance

The TS-h977XU-RP supports dual-channel DDR4 memory and four Long-DIMM slots. When using paired memory modules, the TS-h977XU-RP can leverage the power of dual-channel architecture to boost performance. You can also customize the memory configuration (supports up to 128 GB RAM) of the TS-h977XU-RP, making it the most ideal and cost-efficient storage solution for environments including virtualization that contain dynamically-changing workloads.

Top-class hardware engineering with high I/O expandability

The TS-h977XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.

5x 2.5-inch SSD drive bays

Allows installation of SSDs for SSD caching to increase system performance.
System fans

Monitors system temperatures and automatically adjusts fan speeds accordingly.
AMD Ryzen™ 7 processor

AMD Ryzen™ 7 3700X 8 cores/16 threads 3.4 GHz processor (Turbo Core up to 4.4 GHz) delivers high computing power
Up to 128 GB DDR4 memory

Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
2x 10GbE SFP+ ports

Fully supports 10GbE high-speed networks, ideal for running bandwidth-demanding applications.
USB 3.2 Gen 1/ USB 3.2 Gen 2 ports

Supports external hard drives, printers and UPS. The USB 3.2 Gen 2 port provides data transmission speeds up to 10Gb/s, significantly boosting data transfer performance.
2x Gigabit Ethernet ports

Ideal for service binding, port trunking, and MPIO configurations.
Dual-port 10GbE RJ45 expansion card

Provides two 10GbE RJ45 ports to speed up your workflows.
Redundant power supply unit

Redundant 300W power supplies ensure continuous system uptime.

Virtualization Certifications Supported by TS-h977XU-RP

Check QNAP NAS with Support for Virtualization application

ZFS-based QuTS hero operating system enhances NAS performance and data integrity

QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.

Learn More: QuTS hero operating system,Why QNAP business NAS uses ZFS?

Data integrity is key	Data reduction improves storage efficiency and performance	Multi-level cache technology
QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.	Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.	Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection	QSAL (QNAP SSD Antiwear Leveling) enhances data protection	App Center ecosystem extends NAS functionality
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.	RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.	Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h977XU-RP.

Real-time SnapSync ensures minimal RPO with real-time disaster recovery

Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.

Note: SnapSync will be available from QuTS hero h4.5.2.

The TS-h977XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.

Snapshots multiply backup protection

Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans

HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h977XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.

Learn More: HBS backup and restore

Tiered storage configuration for a QuTS hero NAS

Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.

Step 1: System Drive & Default Shared Folders
The first Storage Pool you create is where the system drive, default shared folders, and apps are stored. In this step, it is recommended to create an SSD RAID with at least two SSDs to attain optimal system performance and efficient app metadata management. (With an all-HDD configuration, the first Storage Pool is also where the system drive and default shared folders are stored.)
Step 2: Read Cache & ZIL
Use more SSDs for read cache or ZIL. You can also install QM2 expansion cards to add M.2 SSDs for expanding cache space.
Step 3: Data Storage
Allocate HDDs/SSDs to create a RAID for storing files and application data. If needed, you can configure an all-flash configuration for optimal performance.

Step 1: System Drive & Default Shared Folders

10GbE connectivity optimizes high-speed data transfer

The TS-h977XU-RP provides two Gigabit RJ45 ports, two 10GbE SFP+ ports, and comes with a dual-port 10GbE RJ45 expansion card pre-installed in a PCIe slot. The sufficient 10GbE connectivity improves overall network performance to streamline bandwidth-demanding applications, such as virtualization, large file sharing, and high-speed backup and recovery.

Learn More: QNAP 10GbE Solutions,QNAP 10GbE Switches

Abundant I/O capability with PCIe expansion

The TS-h977XU-RP features 1 PCIe slot that enables deployment of numerous expansion cards for expanding application potential.

Note: The 1U rackmount model uses low-profile graphics cards.

10GbE/25GbE/40GbE network cards

Enable lightning-fast throughput for bandwidth-demanding tasks, such as virtualization, massive data transmission, and fast backup and restoration.

Learn More: QNAP 10GbE Solutions,QNAP network expansion cards

QM2 M.2 SSD/10GbE cards

Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.

Learn More: QM2 cards

SAS expansion cards

Designed for connecting the TS-h977XU-RP to REXP expansion units to increase storage capacity by adding up to 128 SAS/SATA drives.

Learn More: SAS expansion cards,Compatible expansion units

SSD caching to accelerate IOPS performance

The TS-h977XU-RP features an HDD and SSD hybrid structure (including five 2.5-inch and four 3.5-inch drive bays), allowing you to leverage the benefits of both hard drives and SSDs to provide high storage capacity and high performance. Adding an SSD cache to the TS-h977XU-RP is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications, including databases and virtualization, and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.

Learn More: SSD caching

Block-based iSCSI LUN: Ideal choice for virtualization storage

● Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Citrix®, Microsoft® Hyper-V® and Windows Server® 2019 virtualization environments.

● Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.

Learn More: Storage for virtualization

All-in-one solution for hosting virtual machines and containers

Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, allowing you to flexibly allocate physical and virtual network resources to simplify network deployment.

Virtualization Station

Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC ). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Learn More: Virtualization Station,P2V
Container Station

Experience LXC and Docker® lightweight virtualization technologies, and download apps from the built-in Docker Hub Registry®, import or export containers to create multiple microservices.

Learn More: Container Station,QIoT Containers

Complete backup planning

QNAP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-effectively and with high productivity.

HBS

Consolidates backup, restoration and synchronization functions for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. QuDedup technology deduplicates backup data at the source to accelerate multi-version backups.

Learn More: HBS efficient backup,QuDedup source-based deduplication
Snapshots

Snapshots are essential for NAS data protection, and the block-level feature makes them a dependable method for protecting data in the face of growing ransomware threat. QuTS hero supports near-limitless snapshots to reinforce your multi-version backups.

Learn More: Protect your data from ransomware
VM backup

With high performance, potentially huge storage capacities, integrated virtualization solutions, and snapshot support for recording the system state at any specific time, the TS-h977XU-RP is perfect for backing up virtual machines.

Learn More: VM backup,NAKIVO backup

Cloud Storage Gateway provides low latency access to data on the cloud

The TS-h977XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.

Learn More: QNAP Cloud Storage Gateway

HybridMount File-based Cloud Gateway

Flexibly expand your storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.

Learn More: HybridMount
VJBOD Cloud Block-based Cloud Gateway

Supports mounting object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes, such as addition, modification, or deletion will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.

Learn More: VJBOD Cloud

Build an affordable Fibre Channel SAN environment

Common Fibre Channel Storage Area Networks (SAN) devices are often costly. Now you have more budge-friendly options to easily add your NAS to a SAN environment. By installing a Marvell®, ATTO® or QNAP Fibre Channel card in the TS-h977XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.

Learn More: QNAP NAS supports Fibre Channel SAN

Extend hardware warranty up to 5 years

The TS-h977XU-RP is backed by a 3-year warranty at no extra cost. If needed, you can purchase a warranty extension to increase warranty coverage up to 5 years.

Learn More: QNAP warranty services

QM2-2P-244A

Dual M.2 22110/2280 PCIe SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide

QM2-2P-344

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface

QM2-2P-384

Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-2P10G1TA

QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen2 x 4 , 1 x AQC107S 10GbE NBASE-T port

QM2-2P2G2T

QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port

QM2-2S-220A

Dual M.2 22110/2280 SATA SSD expansion card

Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)

QM2-4P-384

Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface

QM2-4S-240

Quad M.2 2280 SATA SSD expansion card

Dimension (L × W × H): 265.00 × 120.00 × 55.00 (mm)

Weight: 0.50 (kg)

QDA-A2AR

Dual 2.5" SATA to 3.5" SATA adapter with RAID support

QDA-A2MAR

Dual M.2 SATA SSD to 2.5" SATA adapter with RAID support

Note: Computer SATA ports that do not support 12V (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR.

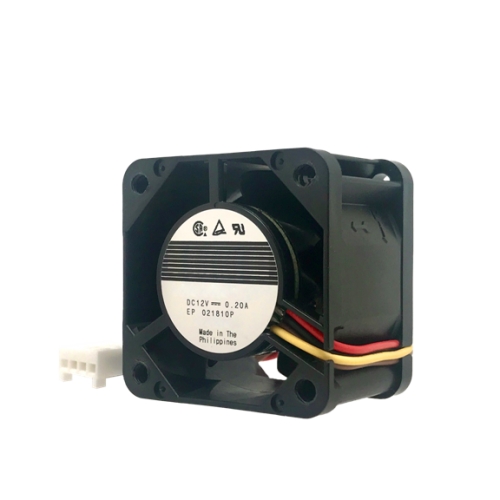

FAN-4CM-R02

40x40x28mm fan, 12V,

PWR-PSU-320W-FS01

320W FSP power supply

SCR-HDD25A-96

Screw pack for 2.5" HDD/SSD intallation, 96 pieces, Flat head machine screw

SCR-HDD35B-96

Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw

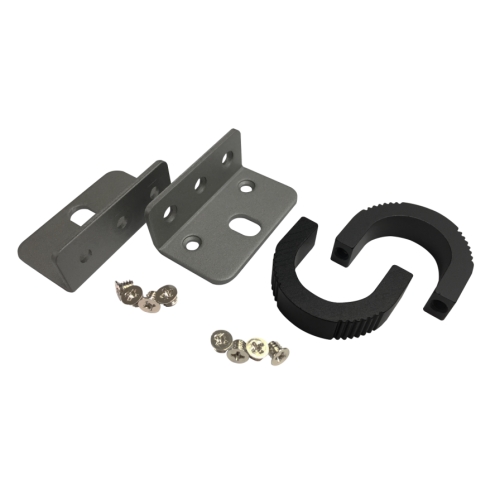

SP-EAR-BLK-01

1U rack mounting ears kit with screws, one pair for left and right each, black.

SP-TS-TRAY-WOLOCK

HDD Tray without key lock, black, metal

RAIL-B02

Rail kit for rackmount models

Note: This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.

LAN-10G2T-X550

DUAL-PORT 10GBASE-T NETWORK EXPANSION CARD

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

LAN-40G2SF-MLX

Dual-port 40GbE QSFP+ network expansion card

Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)

Weight: 0.42 (kg)

QXG-10G1T

Single-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4

Dimension (L × W × H): 18.00 × 11.00 × 5.50 (cm)

Weight: 1.00 (kg)

QXG-10G2SF-CX4

Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8

QXG-10G2T-107

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4

QXG-10G2TB

Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4

QXG-25G2SF-CX6

Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8

QXG-2G1T-I225

Single-port 2.5 GbE network expansion card

QXG-2G2T-I225

Dual-port 2.5 GbE network expansion card

QXP-1620S-B3616W

4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series

QXP-16G2FC

Dual-port 16Gb Enhanced Gen 5 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-32G2FC

Dual-port 32Gb Gen 6 Fibre Channel Host Bus Adapter with SFP+ transceivers

Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.

QXP-820S-B3408

2-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series

USB-U31A2P01

Note: USB cabe is not included.

TRX-10GSFP-SR-MLX

TRX-16GFCSFP-SR

16Gb LC SR shortwavelength SFP+ transceiver

TRX-32GFCSFP-SR

32Gb LC SR shortwavelength SFP+ transceiver

CAB-DAC15M-SFP28

SFP28 25GbE twinaxial direct attach cable, 1.5M

CAB-DAC15M-SFPP

1.5M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC30M-SFP28

SFP28 25GbE twinaxial direct attach cable, 3.0M

CAB-DAC30M-SFPP

3.0M SFP+ 10GBE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

CAB-DAC50M-SFPP

5.0M SFP+ 10GbE DIRECT ATTACH CABLE

Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.

RAM-16GDR4A1-UD-2400

DDR type: DDR4(288PIN)

Capacity: 16GB

Spec: 1024M X 8

Frequency: DDR4-2400

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 2048M*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

RAM-32GDR4S0-UD-2666

DDR type: DDR4(288PIN)

Capacity: 32GB

Spec: K4AAG085WM-BCTD

Frequency: DDR4-2666

Form(PIN): 288PIN

Power Supply: 1.2V

Dram Organization: 4G*64

Temperature: 0℃~85℃

Environmental Regulation: RoHS

Personal and Home NAS

Small and Midsize Business

Enterprise NAS

Dual Controller NAS

Storage Accessories

Resources

JBOD & RAID

Resources

Cloud NAS

Cloud Applications

Cloud Service

Direct Attached Storage

Accessories

Wi-Fi Mesh Router

Wi-Fi 6 SD-WAN Router

Resources

QSW 2.5GbE Switches

QSW 10GbE Switches

QSW Full 10GbE Switches

PoE Switches

QSW Managed Switches

QSW Unmanaged Switches

QGD Smart Edge PoE Switches

Resources

QuCPE Series

Wake on Lan Device

Wired/Wireless Network Adapters

Computing Accelerators

Interface Cards

Storage Accessories

Resources

QVR Pro Appliances

Software

Resources

Products

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Cloud

Surveillance & Smart Video

Utilities and Mobile

Backup and Data Protection

Virtualization

Storage Management

Productivity

IT Management

Multimedia

Security

Cloud

IT Management

SD-WAN

Mobile Apps
