"QNAP NAS exceeded our expectations. Its powerful performance and flexibility have transformed our IT operations, driving remarkable efficiency."
- IT Manager, Holland Mechanics China
Build high-performance storage infrastructure for IOPS-demanding applications
-
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
-
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
-
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
2nd Gen AMD EPYC™ processors and DDR4 ECC memory
The TS-h2490FU is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the “Zen 2” architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications.
Supports larger capacity U.2 SSD
The single capacity of U.2 NVMe SSDs has increased from 7.68 TB to up to 61.44 TB, allowing the TS-h2490FU all-flash NAS to provide over 1 PB of raw capacity when fully populated. It supports workload-demanding applications such as enterprise data centers, AI/machine learning, edge storage, and virtual machines with ease.
-
RecommendedMicron 9400 PRO / Micron 9400 MAX
- Supports U.2 / U.3 15mm modules
- Single capacity up to 30.72 TB
- Ideal for read-intensive and write-intensive applications
- High IOPS enables faster read/write speeds for a vast amount of small files, enhancing multitasking performance
-
RecommendedSolidigm D5-P5336
- Supports U.2 15mm modules
- Single capacity up to 61.44 TB
- Ideal for read-intensive applications
- Faster data access speeds and larger capacity; space-saving for rack cabinets and reduced TCO.
Verified as Veeam Ready Object
QuObjects is verified Veeam® Ready, ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.
Learn More: OuObjects

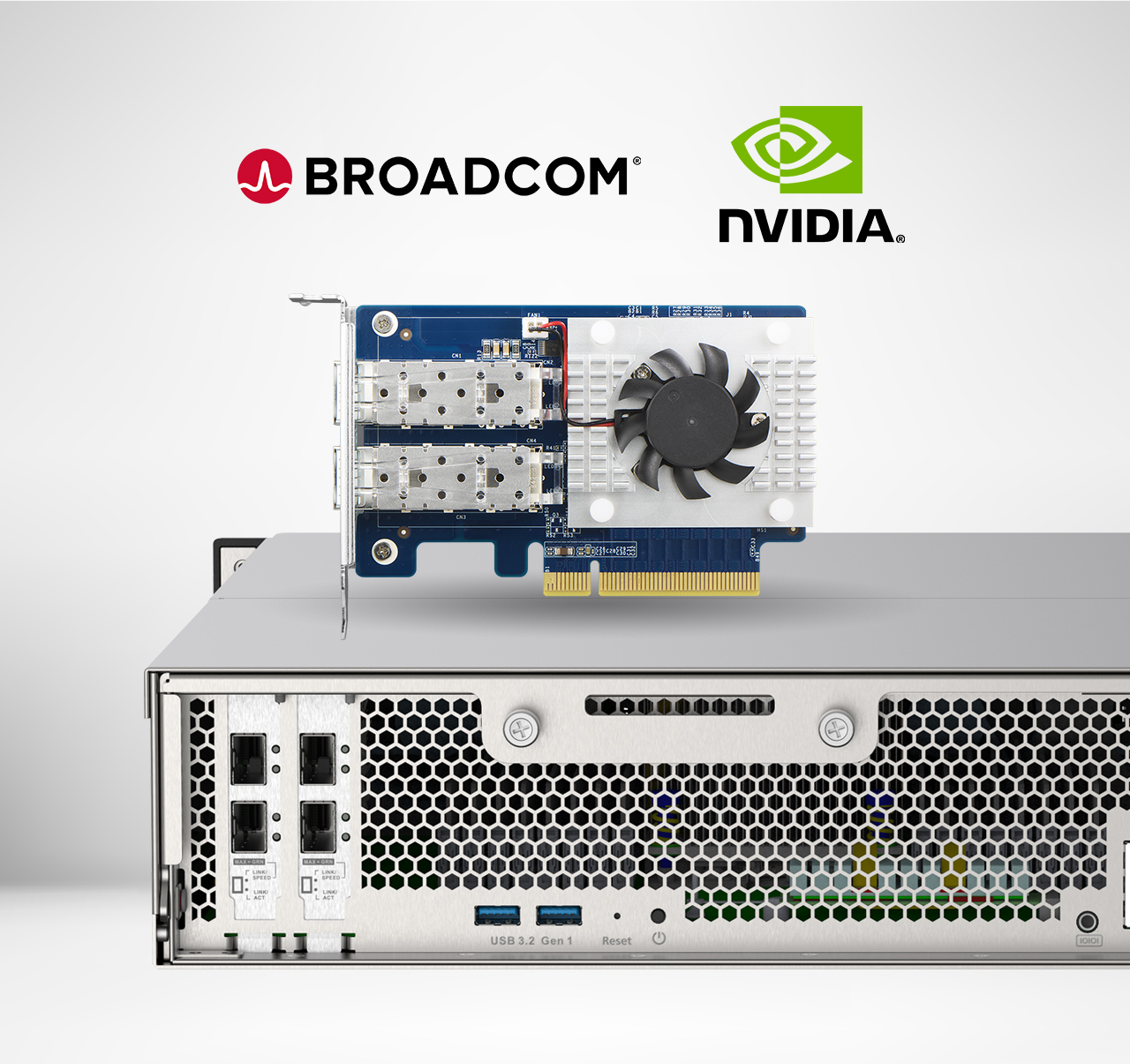

Empower high-speed data transfer with four 25GbE ports
The TS-h2490FU provides breakthrough network connectivity with two pre-installed dual-port 25GbE SFP28 SmartNICs* (that use the Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx, or the same level SmartNIC). With failover and Port Trunking for up to 100Gb/s bandwidth, the TS-h2490FU empowers your organization with the bandwidth to tackle the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission.
Learn More: QNAP QSW switch series
* TS-h2490FU-7232P-64G is pre-installed with one dual-port 25GbE SFP28 SmartNIC.
* The 25GbE SmartNIC is backward compatible with 10GbE SFP+/1GbE SFP.
Leverage the M.2 PCIe NVMe SSD to U.2 Adapter
Install one or more QDA adapter in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot swappable.
• QDA-UMP: Accommodates an M.2 PCIe 3.0 x4 NVMe SSD
• QDA-U2MP*: Accommodates two M.2 PCIe 3.0 x4 NVMe SSDs
• QDA-UMP4: Accommodates an M.2 PCIe 4.0 x4 NVMe SSD (Compatible with PCIe 3.0)
* Software requirements for using QDA-U2MP:
1. NAS OS: QTS 4.5.2 or QuTS hero h4.5.2 (or later)
2. BIOS Q03XAR16 (Click here to download)
Multiple PCIe Gen 4 slots for flexible expansion
The TS-h2490FU is equipped with five PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h2490FU can take advantage of many PCIe cards to expand application potential.
Robust hardware paralleled to boost all-flash NVMe performance
The TS-h2490FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access. With a removable motherboard drawer design, IT staff can easily maintain the TS-h2490FU without needing to remove it from the rack.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h2490FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
More SSD performance and lifespan optimization technologies
-
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
-
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
-
TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Learn More: SnapSync
The TS-h2490FU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
High availability (HA) and failover with dual-NAS architecture
Avoid unplanned downtime and data loss. Dive into details
Create a HA cluster with two TS-h2490FU — one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.
-
Easy management and monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
-
Guaranteed data consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
-
Ensured continuity of critical business
The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).
Run VMs and Containers
With no additional fees, you can run multiple VMs of different OS on TS-h2490FU. This allows you to deploy multi-tenant environments and applications to increase management efficiency and save hardware costs.
-
VM High Availability (Coming soon)
VM Live Migration and HA (High Availability) guarantee continuous operation and minimal downtime.
-
Network & Virtual Switch
Flexibly allocate virtual network resources and configure VLANs to ensure virtual services via the virtual network topology in Network & Virtual Switch.

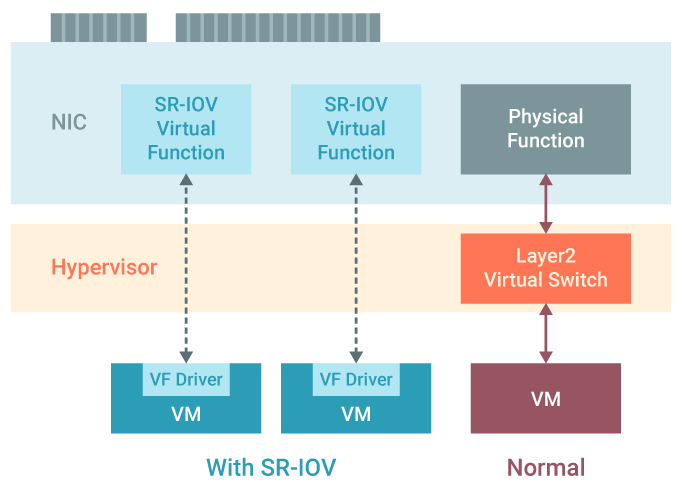

Single Root I/O Virtualization (SR-IOV)
By installing an SR-IOV compatible PCIe SmartNIC in the TS-h2490FU, you can allocate bandwidth resources from a physical network card directly to VMs. With traffic bypassing the Hypervisor vSwitch, it helps enhance I/O throughout and network efficiency, ensuring reliable VM applications and reduced CPU overheads.
License-free VMware® and Hyper-V backup appliance
With Hyper Data Protector, the TS-h2490FU becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. Hyper Data Protector also simultaneously backs up multiple VMs, providing you with a cost-effective and reliable disaster recovery plan, ensuring 24/7 operation of your services.
Learn More: Hyper Data Protector
Move business data to the cloud and enjoy low latency access to cloud-based data
The TS-h2490FU perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching, organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.
Learn More: QNAP cloud storage gateways
-
HybridMount file-based cloud gateway
Flexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Learn More: HybridMount
-
VJBOD Cloud block-based cloud gateway
VJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Learn More: VJBOD Cloud
High-performance, reliable storage solution for virtualization
● Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
● Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Learn More: Storage for virtualization
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing QNAP dual-port 16Gb/32Gb Fibre Channel expansion cards in the TS-h2490FU, you have more budget-friendly options to add a NAS to a SAN environment. You can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Learn More: QNAP NAS supports Fibre Channel SAN, QNAP Fibre Channel cards
More productivity applications
-
Boxafe
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® to the TS-h2490FU.
Learn More: Boxafe
-
Security Counselor
A security portal for checking weaknesses and receiving recommendations for enhancing NAS security. It also integrates anti-virus and anti-malware scanning software.
Learn More: Security Counselor
-
Qsirch
QNAP’s powerful, Google-like search tool helps you quickly find images, music, videos, documents, and emails by keywords, color, and more search conditions. It also supports Qfiling to perform one-time or automatic archival tasks based on your search criteria.
Learn More: Qsirch
Build a high-density petabyte-scale data center with Seagate® Exos™ E series JBOD
QNAP and Seagate® join hands to assist you in overcoming the challenges of extreme data growth! The TS-h2490FU supports connecting a Seagate Exos E series JBOD, offering a competitive storage solution with unprecedented capacity, industry-leading storage density, and high reliability while also minimizing TCO by saving rack space. You can flexibly install one or more QDA-UMP adapters with IronWolf 525 M.2 NVMe SSDs in the TS-h2490FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 SSD instead of U.2 SSD for optimizing data-intensive applications.
- Supported Seagate JBOD models: Exos E 2U12, Exos E 5U84 (For the actual support models, please check the compatibility list)
- The TS-h2490FU NAS requires QuTS hero h5.0 (or later) and QNAP SAS expansion cards (QXP-820S-B3408 or QXP-1620S-B3616W) with SAS 12Gb/s SFF-8644 cables to connect to the Seagate JBOD.
- Seagate’s JBODs can only be used as an individual storage pool or volume. Its storage pool/volume cannot be combined into the connected NAS. NAS applications cannot be installed on Seagate’s JBODs.
- QNAP NAS supports Seagate Exos E JBOD and requires purchasing a license for full use.
Standard 5-year warranty
TS-h2490FU is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
Learn More: QNAP warranty services
How to choose an all-flash array?
First-choice
TS-h3077AFU
|
U.2 NVMe-based
TS-h2490FU
|
Dual-processor
TDS-h2489FU R2
|
|---|---|---|
|
SATA SSD-based large storage space and powerful I/O performance
|
Built-in 25GbE high-performance file server
|
Dual processors to create a data center for huge enterprise systems and key data
|
|
• 30 x 2.5-inch SATA bays
• 4K random read: Over 1.6M IOPS • AMD Ryzen™ 5 7000 Series Processors • Uses industry-leading DDR5 RAM, expandable to 192 GB (4 x 48 GB) • 3 x PCIe Gen 4 slots for 100GbE network cards • Connect eight TL-R2400PES-RP PCIe JBODs for up to 1 PB capacity • Long-term and stable supply until 2030 |
• 24 x 2.5-inch U.2 PCIe NVMe slots
• 4K random reads: Over 661K IOPS • AMD EPYC™ 7002 Series Processors • Supports up to 4 TB (16 x 256 GB) DDR4 ECC RAM • 4 x 25GbE SFP28 SmartNIC ports, supports iSER offload transmission to accelerate virtualization applications and dense file access • 5 x PCIe Gen 4 slots for 100GbE network cards • Connect twelve TL-R2400PES-RP PCIe JBODs for up to 4 PB capacity |
• 16 x 2.5-inch U.2 PCIe NVMe slots + 8 x 2.5-inch U.2 PCIe NVMe/SATA bays
• 4K random read: Over 1M IOPS • Dual Intel® Xeon® Silver 4300 Series processors • Supports up to 1 TB (32 x 32 GB) DDR4 ECC RDIMM RAM • 2 x 25GbE SFP28 SmartNIC ports, supports iSER offload transmission to accelerate virtualization applications and dense file access • 4 x PCIe Gen 4 slots for 100GbE expansion • Two M.2 PCIe/SATA slots with configurable SSD cache acceleration • Connect ten TL-R2400PES-RP PCIe JBODs for up to 3 PB capacity |
|
|
|
|
