TS-h1283XU-RP
Powered by QuTS hero — a ZFS-based operating system with greater reliability and higher performance
The QuTS hero NAS TS-h1283XU-RP is powered by an Intel® Xeon® E processor with up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade performance with dependable reliability. Running the brand new QuTS hero operating system that incorporates ZFS, the TS-h1283XU-RP supports near-limitless snapshots, SnapSync, block-level inline data deduplication, and inline data compression. The TS-h1283XU-RP helps your business achieve reliable service-level agreement performance, whether in a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup and recovery applications.
DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.
DDR4 ECC memory detects and then corrects single-bit memory errors, demonstrating high reliability for crucial applications.
Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ adapter for bandwidth-demanding applications.
Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE SFP+ adapter for bandwidth-demanding applications.
PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.
SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
SSD cache acceleration improves random read/write performance to meet IOPS-demanding applications.
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
Supports virtualization storage for VMware®, Citrix®, Microsoft® Hyper-V®, Windows Server® 2019, and hosts virtual machines and containers.
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
QTS App Center includes feature-rich apps for expanding NAS applications without extra costs.
Available Models
-
TS-h1283XU-RP-E2236-128G
Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Bursts up to 4.8 GHz), 128 GB DDR4 ECC memory (4 x 32 GB), redundant power supply
-
TS-h1283XU-RP-E2236-32G
Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Bursts up to 4.8 GHz), 32 GB DDR4 ECC memory (2 x 16 GB), redundant power supply
Intel® Xeon® E processors deliver extraordinary performance
Powered by an Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz), the TS-h1283XU-RP features enormous computing power for boosting virtual machine performance. Combined with up to 128 GB DDR4 ECC memory and a redundant power supply, the TS-h1283XU-RP delivers server-grade performance and dependable reliability for rugged enterprise IT environments as a cost-efficient NAS solution.
ECC memory prevents data corruption to assure reliability
The TS-h1283XU-RP uses ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss, which is essential for always-on, mission-critical, server-grade applications. The TS-h1283XU-RP supports dual-channel DDR4 memory in four Long-DIMM slots. When using paired memory modules, the TS-h1283XU-RP can leverage the power of dual-channel architecture to boost performance. You also customize the TS-h1283XU-RP memory configuration (supports up to 128 GB RAM) for greater performance to tackle dynamically-changing workloads, such as virtualization applications.
Server-grade hardware: Sturdy and expandable
The TS-h1283XU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet business application diversification demands.
-
Intel® Xeon® E processor
High-performance Intel® Xeon® E-2236 6 cores/12 threads 3.4 GHz processor (Burst up to 4.8 GHz)
-
Up to 128 GB DDR4 ECC memory
Supports four DDR4 dual-channel Long-DIMM memory modules for a maximum of 128 GB RAM.
-
4x Gigabit Ethernet ports
Ideal for service binding, port trunking and MPIO configuration.
-
USB 3.2 Gen 2 ports
Includes two USB 3.2 Gen 2 10Gbps Type-C ports and four USB 3.2 Gen 2 10Gbps Type-A ports to boost data transfer speeds. Supports external hard drives, printers, and UPS.
-
4x 10GbE ports
Pre-installed with two 10GbE network expansion cards, including one dual-port 10GbE RJ45 NIC and a dual-port 10GbE SFP+ NIC.
-
4x PCIe expansion slots
Supports 10GbE/ 25GbE/ 40GbE network expansion cards, QM2 cards, Fibre Channel cards, and SAS expansion cards for greater application potential. (Slot 3 and 4 come with pre-installed 10GbE adapters).
-
Redundant power supply unit
Redundant 500W power supplies ensure continuous system uptime.
-
System fans
Monitors system temperatures and automatically adjusts fan speeds accordingly.
Virtualization Certifications Supported by TS-h1283XU-RP
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Learn More: QuTS hero operating system,Why QNAP business NAS uses ZFS?
| Data integrity is key | Data reduction improves storage efficiency and performance | Multi-level cache technology |
| QuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported. | Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance. | Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security. |
| RAID Z enables robust data protection | QSAL (QNAP SSD Antiwear Leveling) enhances data protection | App Center ecosystem extends NAS functionality |
| Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection. | RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability. | Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h1283XU-RP. |
Tiered storage configuration for a QuTS hero NAS
Basic requirements for setup are similar to QTS. We recommend you to follow these steps to acquire optimal storage efficiency and performance for QuTS hero.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
Note: SnapSync will be available from QuTS hero h4.5.2.
The TS-h1283XU-RP also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
-
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
-
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h1283XU-RP to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
Learn More: HBS backup and restore
File transfer performance
Compared to QNAP’s QTS operating system, the latest QuTS hero operating system delivers better data transmission performance and capacity of realizing the full potential of 10GbE data transmission. QuTS hero also outperforms QTS in multiple small file transfers.
| Operating System | QuTS hero | QTS 4.4.1 | ||
|---|---|---|---|---|
| iSCSI | 4KB File | Random Write | 33917 | 11191 |
| Random Read | 93407 | 88152 | ||
| SMB 3.0 | 4KB File | Random Write | 34168 | 11367 |
| Random Read | 67922 | 80669 | ||
| SMB 3.0 File Transfer |
1* 10GB File | Upload | 1154 | 1136 |
| Download | 1162 | 1142 | ||
| SMB 3.0 File Transfer |
10000* 1M File | Upload | 256 | 26 |
| Download | 453 | 51 | ||
Test Environment:
NAS: TS-h1283XU-RP
1. F/W: H4.5.0.1105 build20191030
2. CPU: Intel® Xeon® E-2236 CPU@3.40GHz
3. SSD: Samsung® 850 PRO 512 GB x 12 (RAID 5)
4. RAM: 32 GB (8 GB x 4)
5. Thick volume; Block-based LUN
6. 1GbE NIC: Intel I211 Gigabit Network; 10GbE NIC: QXG-10G2SF-CX4
PC environment
1. CPU: Intel® Core™ i7-6700 CPU@ 3.40 GHz
2. OS: Windows® 10
3. Memory: 64 GB
4. 1GbE NIC Onboard; 10GbE NIC: CX3
Inline data compression helps boost QuTS hero data transfer performance. During simultaneous file transfer from multiple clients, inline data compression enabled QuTS hero performance is 1.6 times faster than QuTS hero or QTS without inline data compression.
1 x 10GbE SMB 3.0 – File Transfer
| Number of Clients | QuTS hero with Inline Compression | QTS or QuTS hero without Inline Compression | ||
|---|---|---|---|---|
| Upload | Download | Upload | Download | |
| Client x 1 | 1.1 GB/s | 1.0 GB/s | 1.1 GB/s | 1.0 GB/s |
| Client x 2 | 2.2 GB/s | 2.2 GB/s | 1.9 GB/s | 1.86 GB/s |
| Client x 3 | 3.1 GB/s | 2.9 GB/s | 2.19 GB/s | 2.69 GB/s |
| Client x 4 | 4.4 GB/s | 4.1 GB/s | 2.72 GB/s | 2.95 GB/s |
| Client x 5 | 5.4 GB/s | 4.5 GB/s | 3.26 GB/s | 3.49 GB/s |
Note: Each client was set to transfer a 10GB RAW file through 10GbE connectivity.Performance figures may vary according to file type and compression rate.
Test Environment:
NAS: TS-h1283XU
1. F/W: H4.5.0.1140 build20191204
2. CPU: Intel(R) Xeon® E-2236 CPU@3.40GHz
3. SSD: Samsung 860 PRO 512 GB x 12 (RAID 5)
4. RAM: 32 GB (8 GB x 4)
5. Thick volume
6. 1GbE NIC: Intel I211 Gigabit Network
7. 10GbE NIC: QXG-10G2SF-CX4
8. 10GbE NIC: Intel Ethernet Controller 10G X550T (x2)
Client x 4 environment
1. CPU: Intel® Core™ i7-6700 CPU@ 3.40 GHz
2. OS: Windows® 10
3. Memory: 64 GB
4. 1GbE NIC Onboard
5. 10GbE NIC: CX3 (Client x 1)
6. 10GbE NIC: X550 (Client x 3)
Client x 1 environment
1. MacOS Mojave 10.14.6
2. Processor 2.9 GHz Intel Core i7
3. Memory 16 GB 2133 MHz LPDDR3
4. 10GbE NIC: QNA-T310G1S
10GbE connectivity optimizes high-speed data transfer
The TS-h1283XU-RP provides four Gigabit RJ45 ports, and also supports 10GbE connectivity with a pre-installed dual-port 10GbE RJ45 expansion card and a dual-port 10GbE SFP+ expansion card to satisfy bandwidth-demanding applications, including virtualization, large file sharing, and high-speed backup and recovery.
Learn More: QNAP 10GbE Solutions,QNAP 10GbE Switches
Abundant I/O capability with PCIe expansion
The TS-h1283XU-RP features 4 PCIe slots that enable using numerous expansion cards for expanding application potential.
Note: The 2U rackmount model uses low-profile graphics cards.
SSD caching to accelerate IOPS performance
Adding an SSD cache to the TS-h1283XU-RP is an easy method for increasing IOPS performance and reducing storage volume latency. It is perfect for IOPS-demanding applications, including databases and virtualization, and can significantly improve overall workflows. You can launch, stop, or change settings to meet your needs at any moment without shutting down the system.
Learn More: SSD caching
Block-based iSCSI LUN: Ideal choice for virtualization storage
● Supports block-based iSCSI LUN as a high-performance, reliable, and affordable storage solution for VMware®, Citrix®, Microsoft® Hyper-V®, and Windows Server® 2019 virtualization environments.
● Supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications.
Learn More: Storage for virtualization
All-in-one solution for hosting virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, allowing you to flexibly allocate physical and virtual network resources to simplify network deployment.
-
Virtualization Station
Run multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.
Learn More: Virtualization Station,P2V
-
Container Station
Experience LXC and Docker® lightweight virtualization technologies, and download apps from the built-in Docker Hub Registry®, import or export containers, and create multiple microservices.
Learn More: Container Station,QIoT Containers
Complete backup planning
QNAP provides a reliable, flexible backup and disaster recovery solution to assist organizations in routine backup jobs cost-effectively and with high productivity.
-
HBS
Consolidates backup, restoration and synchronization functions for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan. QuDedup technology deduplicates backup data at the source to accelerate multi-version backups.
Learn More: HBS efficient backup,QuDedup source-based deduplication
-
Snapshots
Snapshots are essential for NAS data protection, and the block-level feature makes them a dependable method for protecting data in the face of growing ransomware threat. QuTS hero supports near-limitless snapshots to reinforce your multi-version backups.
Learn More: Protect your data from ransomware
-
VM backup
With high performance, potentially huge storage capacities, integrated virtualization solutions, and snapshot support for recording the system state at any specific time, the TS-h1283XU-RP is perfect for backing up virtual machines.
Learn More: VM backup,NAKIVO backup
Cloud Storage Gateway provides low latency access to data on the cloud
The TS-h1283XU-RP perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the NAS, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Learn More: QNAP Cloud Storage Gateway
-
HybridMount File-based Cloud Gateway
Flexibly expand your storage capacity by connecting to the cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or monitor multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.
Learn More: HybridMount
-
VJBOD Cloud Block-based Cloud Gateway
Supports mounting object cloud storage as a block-based volume or LUN on a NAS. Block-based data transmission uploads random data and large files to the cloud in blocks, and only block-based volume or LUN changes, such as addition, modification, or deletion will be transmitted. This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.
Note: This feature will be available on QuTS hero soon.Learn More: VJBOD Cloud
Build an affordable Fibre Channel SAN environment
Common Fibre Channel Storage Area Networks (SAN) devices are often costly. Now you have more budge-friendly options to easily add your NAS to a SAN environment. By installing a Marvell®, ATTO® or QNAP Fibre Channel card in the TS-h1283XU-RP, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.
Learn More: QNAP NAS supports Fibre Channel SAN
Standard 5-year warranty
TS-h1283XU-RP is backed by a 5-year warranty at no extra cost. This premier warranty demonstrates QNAP’s dedication to your essential business needs for continuous operations and non-interrupted services.
Learn More: QNAP warranty services
People Also Viewed
QSW-M408-4C
Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment
TS-h3088XU-RP
Modernize your IT using the ZFS-based, 25GbE-ready all-flash storage with high performance, high capacity, and low latency
QVR Pro
Your NAS is also a surveillance solution, try it now!
TL-R1620Sdc
Dual-controller SAS 12Gb/s storage expansion for enterprises
TBS-464
Compact, portable, versatile: Quad-core 4-bay M.2 NVMe SSD NASbook
TVS-h1288X
Intel® Xeon® W desktop QuTS hero NAS, ideal for high-speed media collaboration over Thunderbolt™ 3 and 10GbE virtual machine applications
Optional Accessories
- Storage Expansion Card
- Network Expansion Card
- Interface Expansion
- Other Accessories
- Cable / Transceiver
- RAM
-
QM2-2P-244ADual M.2 22110/2280 PCIe SSD expansion card
Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)
Note: Please check the M.2 SSD compatibility list and QM2 Installation Guide
QM2-2P-344Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x4 host interface
QM2-2P-384Dual M.2 PCIe SSD expansion card; supports up to two M.2 2280/22110 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface
QM2-2P10G1TAQM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen2 x 4 , 1 x AQC107S 10GbE NBASE-T port
QM2-2P2G2TQNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T port
QM2-2S-220ADual M.2 22110/2280 SATA SSD expansion card
Dimension (L × W × H): 159.85 × 90.30 × 20.60 (mm)
QM2-4P-384Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x4) SSDs; PCIe Gen3 x8 host interface
QM2-4S-240Quad M.2 2280 SATA SSD expansion card
Dimension (L × W × H): 265.00 × 120.00 × 55.00 (mm)
Weight: 0.50 (kg)
QDA-A2ARDual 2.5" SATA to 3.5" SATA adapter with RAID support
QDA-A2MARDual M.2 SATA SSD to 2.5" SATA adapter with RAID support
Note: Computer SATA ports that do not support 12V (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR.
-
LAN-10G2T-X550DUAL-PORT 10GBASE-T NETWORK EXPANSION CARD
Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)
Weight: 0.42 (kg)
LAN-40G2SF-MLXDual-port 40GbE QSFP+ network expansion card
Dimension (L × W × H): 260.00 × 150.00 × 58.00 (mm)
Weight: 0.42 (kg)
QXG-10G1TSingle-port (10Gbase-T) 10GbE network expansion card, PCIe Gen3 x4
Dimension (L × W × H): 18.00 × 11.00 × 5.50 (cm)
Weight: 1.00 (kg)
QXG-10G2SF-CX4Dual-port SFP+ 10GbE network expansion card; low-profile form factor; PCIe Gen3 x8
QXG-10G2T-107Dual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen2 x4
QXG-10G2TBDual-port BASET 10GbE network expansion card; low-profile form factor; PCIe Gen3 x4
QXG-25G2SF-CX6Dual-port SFP28 25GbE network expansion card; low-profile form factor; PCIe Gen4 x8
QXG-2G1T-I225Single-port 2.5 GbE network expansion card
QXG-2G2T-I225Dual-port 2.5 GbE network expansion card
QXG-2G4T-I225Quad-port 2.5 GbE network expansion card
-
QXP-1620S-B3616W4-port miniSAS HD host bus adapter, Broadcom Mercator SAS3616W, PCIe 3.0 x 16 for TL SAS JBOD series
QXP-16G2FCDual-port 16Gb Enhanced Gen 5 Fibre Channel Host Bus Adapter with SFP+ transceivers
Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.
QXP-32G2FCDual-port 32Gb Gen 6 Fibre Channel Host Bus Adapter with SFP+ transceivers
Note: The FC adapter can only be supported on QNAP QTS & QTS Hero NAS operating systems.
QXP-820S-B34082-port miniSAS HD host bus adapter, Broadcom Tomcat SAS3408, PCIe 3.0 x 8 for TL SAS JBOD series
USB-U31A2P01USB-U31A2P01
Note: USB cabe is not included.
-
SCR-HDD25A-96Screw pack for 2.5" HDD/SSD intallation, 96 pieces, Flat head machine screw
SCR-HDD35B-96Screw pack for 3.5" HDD intallation, 96 pieces, Flat head machine screw

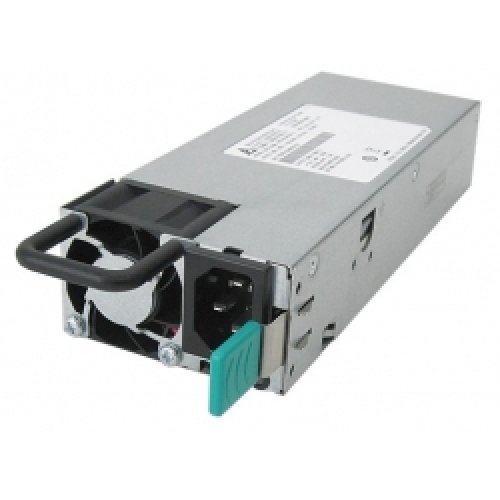

SP-B01-500W-S-PSU500W power supply unit
SP-TS-TRAY-WOLOCKHDD Tray without key lock, black, metal
RAIL-B02Rail kit for rackmount models
Note: This rail kit is designed for racks with 25-inch mounting depth. You may need to reserve some space when installing and adjusting the rail kit for racks with 18-inch mounting depth. For installation details, click https://qnap.to/rail-b02.
-
TRX-10GSFP-SR-MLXTRX-10GSFP-SR-MLX
TRX-16GFCSFP-SR16Gb LC SR shortwavelength SFP+ transceiver
TRX-32GFCSFP-SR32Gb LC SR shortwavelength SFP+ transceiver
CAB-DAC15M-SFP28SFP28 25GbE twinaxial direct attach cable, 1.5M
CAB-DAC15M-SFPP1.5M SFP+ 10GBE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC30M-SFP28SFP28 25GbE twinaxial direct attach cable, 3.0M
CAB-DAC30M-SFPP3.0M SFP+ 10GBE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-DAC50M-SFPP5.0M SFP+ 10GbE DIRECT ATTACH CABLE
Note: This 10GbE SFP+ network cable is designed for NAS models with an integrated 10GbE SFP+ LAN port or a 10GbE SFP+ network card.
CAB-NIC40G30M-QSFP3.0M QSFP+ 40GBE DIRECT ATTACH CABLE
Note: This 40GbE QSFP+ network cable is designed for NAS models which are compatible with the QNAP 40GbE NIC LAN-40G2SF-MLX
-

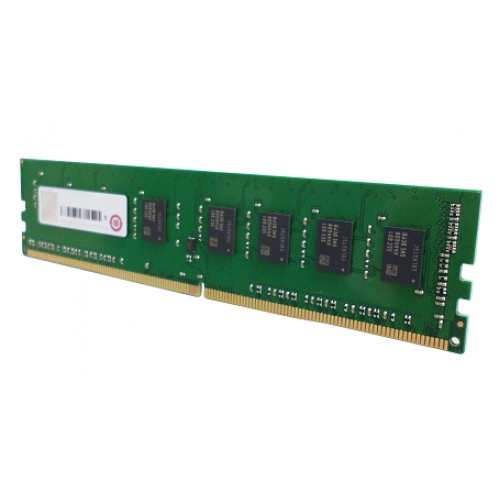

RAM-16GDR4ECP0-UD-2666DDR type: DDR4(288PIN)
Capacity: 16GB
Spec: 1G X 8
Frequency: DDR4-2666
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 2048M*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
RAM-32GDR4ECS0-UD-2666DDR type: DDR4(288PIN)
Capacity: 32GB
Spec: 2G X 8
Frequency: DDR4-2666
Form(PIN): 288PIN
with ECC Supported: ECC
Power Supply: 1.2V
Dram Organization: 4G*72
Temperature: 0℃~85℃
Environmental Regulation: RoHS
Choose specification
