About physical wiring

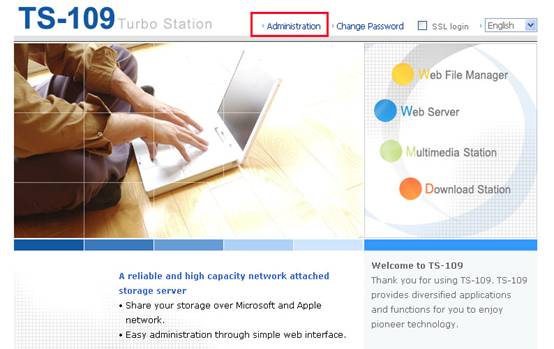

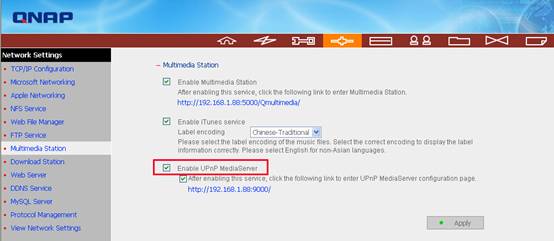

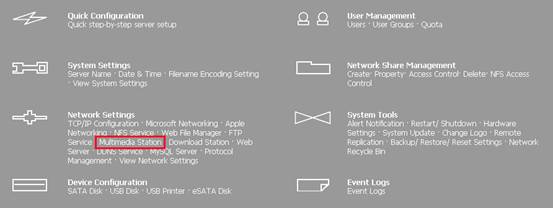

DMP is used to receive the streamed multimedia file sent by your UPnP Media server on NAS, then transcode these files to your TV or Hi-Fi system to play. Because of the limited cable length of these interfaces, normally you have to place your DMP near your TV and Hi-Fi system. Better to have an Ethernet connector near your TV, otherwise you need to use DMP's wireless connection to access to home network.
About TCP/IP settings

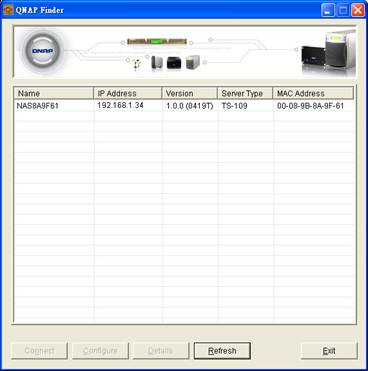

Simply connect your DMP device to the LAN at your home and set to acquire the IP address by DHCP. (Most of the DMP devices are defined as DHCP client, it will automatically be assigned an IP address when connect to your home network)
Connect video and audio output of DMP to your TV
There might be different video and audio interfaces provided by DMP devices, such as Composite video/audio output, S-Video for video output, S/PDIF digital audio, or the latest HDMI interface which can carry both video and audio signals.
In this example, the video out and audio out cables are connected to the TV. You can also connect audio out to your stereo acoustic system.
Turn on the TV that is connected to the DMP, you can select the options available by the remote control of the DMP. The DMP will find Turbo NAS on the network. An option "My TS-109" will be displayed on the screen.
You will find the photos, video and music shared by the specified folder on Turbo NAS. You can use the DMP remote control to select and play the files.
You can select the music, picture or video shared by Turbo NAS
DMP will play your photos automatically
You can also play the mp3 files while you are viewing the photos
HDMI interface start to appear in some DMP devices. ZyXEL DMA-1000W is one of the models which are based on SigmaDesigns' platform. (At the time of writing, ZyXEL's DMA-1000W is in beta phase)
If there is HDMI interface provided on your TV, both audio and video signals can be carried by the single cable. Simply connect your DMP to your TV by using HDMI cable.
If you don't have HDMI interface available on the TV, you can also connect S-Video cable to your TV for video output, and connect Composite left/right audio interface for audio output. If you demand higher quality of music, you can connect by using S/PDIF cable to your HiFi system.
Turn on and switch your TV to the selective interface (e.g. HDMI or S-Video).
Use your remote of the DMP. Select to enter the "Server" page, you will find your Turbo NAS is automatically found by your DMP. You can then select to enjoy the videos or photos on your TV, also to play your MP3 music or Internet Radio streamed from your Turbo NAS.
Conclusion
The UPnP Media Server of Turbo NAS enables you to save mp3 and other multimedia files collectively on Turbo NAS and share these files on LAN. With DLNA DMP device, the files can be played by stereo acoustic system and LCD TV independent of PC. It is small-sized, stylish, and an ideal choice for setting up digital home environment.
